Product Introduction of BLT-S310 Metal 3D Printer

• 1
  What the BLT-S310 Metal 3D Printer Actually Is
• 2
  Materials the BLT-S310 Metal 3D Printer Runs
• 3
  Design Rules and Their Limits
• 4
  Post-Processing After the Build
• 5
  When LPBF Beats CNC, and When It Does Not
• 6
  BLT-S310 vs CNC Machining: Where Each Fits

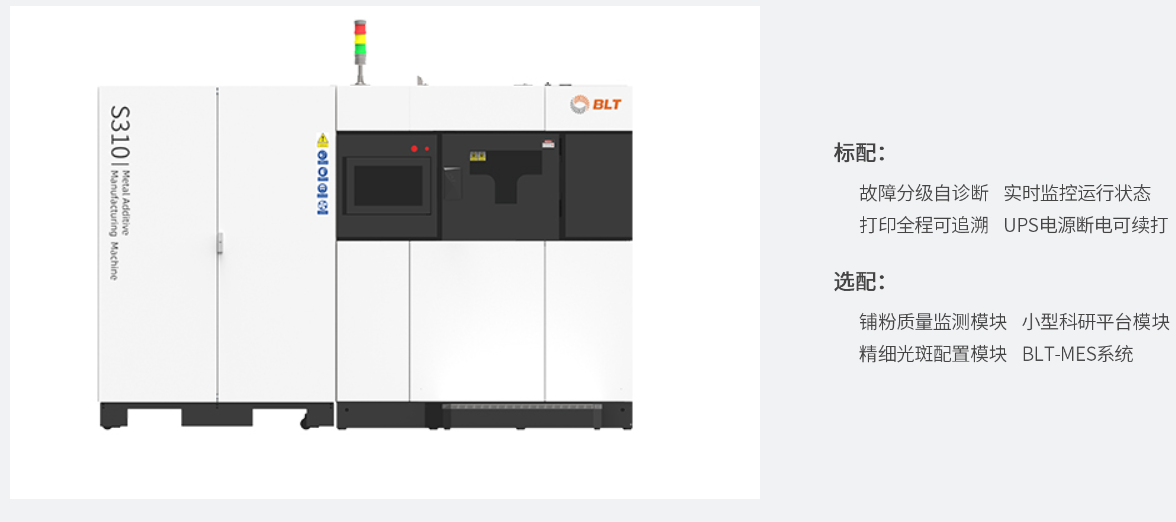

The BLT-S310 metal 3D printer is a laser powder bed fusion (LPBF) system. A recoater spreads metal powder across a build plate in layers, a fiber laser melts a cross-section defined by the CAD file, and the plate drops by one layer height. Repeat that a few thousand times and the part is buried in a powder cake.

The published envelope is 250 mm × 250 mm × 400 mm (L × D × H). That is a tall, narrow box rather than a wide one. Tall parts such as impellers, heat-sink columns and thin-walled housings fit comfortably. A 300 mm wide bracket does not, no matter how short it is.

Laser power is listed as 500 W for a single-laser configuration and 500 W × 2 for a dual-laser one. The second laser does not change the envelope. It splits the scan work across two galvo systems, so a full plate builds in less wall-clock time than the same plate on one laser.

Layer height is typically set between 30 μm and 60 μm depending on the alloy and the surface you need. Finer layers cost time roughly in proportion. A 40 μm layer on a 400 mm tall part means about 10,000 passes of the recoater before the job is done.

The material list covers titanium alloy, aluminum alloy, high-temperature alloy, stainless steel, high-strength steel, cast steel and copper alloy. In practice, each family needs its own laser parameters, scan strategy and powder handling. You cannot move a parameter set from Ti-6Al-4V to AlSi10Mg and expect the same density.

Titanium and nickel alloys are where LPBF earns its place. Both are difficult and expensive to cut, and both tolerate the residual stress that comes with rapid solidification better than some aluminum grades do. Ti-6Al-4V is the common aerospace and medical choice. Inconel 718 and similar nickel alloys suit hot gas paths and combustion hardware.

Aluminum is the awkward one. AlSi10Mg prints well and is widely used for thin-wall housings and heat exchangers. High-strength 7075-class aluminum is prone to cracking during fast cooling, so it is rarely the right first choice on a powder bed machine. Talk to us before you design around it.

Copper alloy is printed for thermal jobs where conductivity matters, such as cold plates and induction coils. Copper reflects laser light, so it needs higher power and careful parameter development. Stainless steel grades such as 316L and 17-4PH print predictably and are a good way to learn the process.

Powder is reusable within limits. Sieving removes agglomerates, but oxygen pickup and particle size drift mean you should track reuse cycles rather than assume the powder is unchanged. Chemistry checks on the powder lot are worth the cost on qualified parts.

Minimum feature size on the BLT-S310 is bounded by laser spot diameter and powder particle size, not by the CAD resolution. Walls thinner than about 0.4 mm become inconsistent. If the wall carries load or must be leak-tight, keep it at 0.8 mm or thicker and verify with a coupon first.

Overhangs are the second constraint. Surfaces inclined less than about 45° from the build plate generally need support structures. Supports are not optional decoration: they anchor the part to the plate, conduct heat away and stop the part from warping as each layer cools.

Those supports must be cut off after the build, which means the supported surface is never a finished surface. It comes off rough and usually needs machining, grinding or EDM. Design the support contact on a face you were going to machine anyway, and the operation costs you almost nothing.

Internal channels are where additive wins. A conformal cooling channel that follows the contour of a mold insert cannot be drilled from any direction. LPBF builds it in one piece. Keep the channel cross-section round, at least 1.5 mm in diameter, and give it clear inlet and outlet faces so the loose powder can be evacuated.

Trapped powder is the most common defect we see in customer designs. Any closed internal volume that has no escape path will retain powder and add hidden mass. Add escape holes of at least 2 mm at the lowest point of each cavity, and plan them so they can be plugged or machined shut afterward.

Thermal distortion scales with part size and with how much unsupported area you leave. A 400 mm tall thin blade will move more than a 40 mm cube of the same alloy. Expect to leave 0.3–0.5 mm of machining stock on critical faces so the final dimensions land inside tolerance after heat treatment and stress relief.

A printed part is not a finished part. The sequence is roughly: cut from the plate, remove supports, stress relieve, separate from the build plate if it was welded on, then machine the critical interfaces. Skipping stress relief before machining is the classic mistake. The part moves after you cut it, and the dimensions you measured are gone.

Heat treatment depends on the alloy. Titanium usually gets a stress relief cycle before support removal. Aluminum is often solution treated and aged. Nickel alloys may get a hot isostatic press step if internal porosity must be closed. Each of these changes dimensions, so the drawing needs to state which condition is the reference.

Machining stock is what makes the transition to CNC practical. Mating faces, bearing bores, seal grooves and thread forms should be left oversized by 0.3–0.5 mm on the print, then finished on a 3-axis or 5-axis mill after heat treatment. That is how you get to ±0.005 mm on the features that matter.

Surface finish off the machine is not the finish you would get from a mill. As-built surfaces sit around Ra 8–15 μm depending on layer height and orientation. Bead blasting, tumbling or polishing brings that down. If a face must seal against an O-ring or a gasket, machine it.

Powder removal needs to be planned before the build, not after. Blind cavities, long channels and lattice structures all need an escape route for loose powder. A part that cannot be cleared is a part you cannot ship.

Choose the BLT-S310 metal 3D printer when geometry cannot be cut. Conformal cooling, internal lattices, organic load paths and merged assemblies are the four cases that justify the cost. If a machinist can reach every feature with a tool, milling is almost always cheaper and faster per part.

Choose CNC when you need tight tolerances across many features, when the material is cheaper in bar stock, or when the order is one to fifty parts. A 5-axis machining center holds ±0.005 mm on a 300 mm part without a heat-treat detour. LPBF does not, and the post-machining step is what closes the gap.

The hybrid route is often the honest answer. Print the blank with the internal features you cannot cut, then machine every interface. This is how most production tooling inserts and aerospace brackets are actually made. Neither process wins alone.

Part count matters. LPBF has a high fixed cost per build because of setup, powder handling and post-processing, but the marginal cost per part on a full plate is low. Ten parts on one plate costs far less than ten separate builds. At high volumes with simple geometry, die casting or injection molding takes over.

Lead time is where additive stops being a shortcut. A printed metal part with heat treatment and machining is not a same-week item. If your program needs parts in days and the geometry is machinable, send it to the mill.

One more check before you commit: does the part need to be one piece? Engineers often arrive with a merged design because additive allows it. But if three separate machined plates bolt together and work, the printed mono-block adds cost, inspection burden and risk for no functional gain.
