CNC Milling Turning Manufacturing Tips for ODM Projects

These CNC milling turning manufacturing tips are written for design engineers, manufacturing engineers and sourcing teams who hand a drawing to an ODM partner and expect the shipped parts to match it. They cover the seven decisions that most often decide whether a program runs clean: material, DFM, workholding, process chain, programming, inspection and finishing.

±0.005 mm tolerance16 five-axis centersNo MOQNDA on request

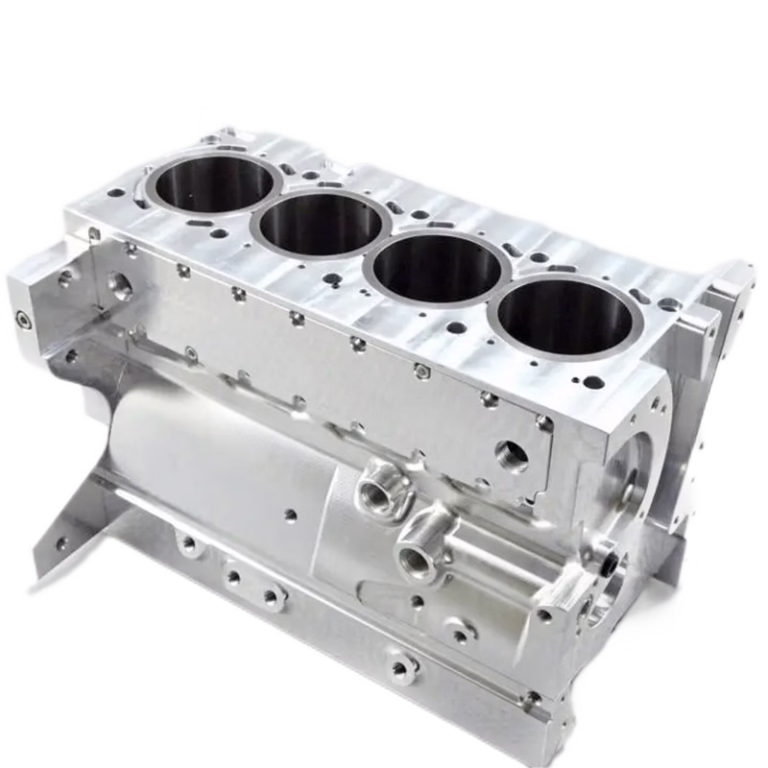

cnc milling turning manufacturing tips for ODM parts
Quick answers

Key takeaways

Choose the alloy before the geometryMachinability sets tool life, cycle time and the tolerance you can hold in production.
DFM is a conversation, not a formOne 12-hour review usually removes more cost than a week of drawing cleanup.
Workholding decides roundnessA weak fixture shows up as runout and taper, not as a drawing error.
Inspection needs a triggerDefine which dimensions get checked, at what interval, and on which report.
Finish is a process stepAnodizing and plating change size; plan the allowance before machining.
Tip 1

Match the material to the cut, not the datasheet

The strongest CNC milling turning manufacturing tips start with alloy selection, because everything downstream inherits it. 6061-T6 cuts clean, holds ±0.005 mm on stable setups and takes anodizing well. 7075 gives higher strength but works harder and chips gum on light finishing passes. 304 stainless work-hardens if the tool rubs; 303 was made to break chips. Pick by the cut you can actually run, not by the highest number on a spec sheet.

Titanium and Inconel change the plan more than the alloy name suggests. TC4 (Ti-6Al-4V) carries heat into the tool, so rough with generous coolant and moderate speed, then finish with sharp, low-radius inserts. Inconel punishes any dwell. Keep the tool moving and accept a shorter tool life.

For turned parts, free-cutting grades cut cycle time fast. C36000 brass and 303 stainless can run two to three times faster than their structural cousins. If the part sees no load, that trade is usually worth it.

Soft plastics are the opposite trap. POM and PEEK hold size well, but ABS and PP flex under clamping and spring back after the vise opens. Leave a finishing allowance, cool the part, and take the last pass light.

  • 1
    Aluminum6061-T6 for general parts, 7075 where strength is required, 2024 for fatigue.
  • 2
    Stainless303 for turned volume, 304 or 316L where corrosion matters more than speed.
  • 3
    Hard alloysTC4, Inconel and 17-4PH need rigid setups and shorter tools.
Tip 2

Run a DFM review before the first chip

A DFM review is where an ODM partner earns its place. Send the 3D model, the 2D drawing and the intended function. We return a quotation and a free DFM analysis within 12 hours, and the useful part of that reply is not the price. It is the list of features that will fight you at volume.

Deep pockets, sharp internal corners and thin floors are the usual suspects. A pocket deeper than four times its width forces a long tool that deflects, so surface finish drops and the corner radius grows. Open it to 6 mm or deeper and the same feature becomes routine.

Tolerances deserve the same honesty. A blanket ±0.01 mm note on every dimension raises cost for no benefit. Reserve tight limits for the datum features, the bearing bores, the sealing faces, and let cosmetic surfaces breathe.

Do not treat DFM as a one-time gate. Send revised models as they change. The second review is cheaper than the second setup.

  • 1
    Send function, not just geometryTell us what the part does and which features carry load.
  • 2
    Mark real datumsInspection follows the datums you name, so name them deliberately.
  • 3
    Flag cosmetic zonesIt changes toolpaths, sanding and which face gets the finish.
Tip 3

Workholding sets the real tolerance

Drawings say ±0.005 mm. Fixtures decide whether you hold it. A three-jaw chuck with soft jaws and a bored seat will run true; a worn chuck with hard jaws will not, no matter how new the lathe is. Check runout on the workpiece, not on the spindle.

For milled parts, the first question is how many setups. Every re-clamp adds stack-up. A five-axis setup that machines five faces from one datum removes that error, which is why we keep 16 simultaneous five-axis centers alongside 27 three-axis machines. The right answer is the one that matches the part, not the biggest machine.

Thin walls and long shafts move during the cut. Support them with a tailstock, a steady rest, or a sacrificial web that gets removed last. Leave the web 0.5–1 mm thick and cut it in a light finishing pass.

Mark the clamping face on the drawing. It tells the programmer which surface is safe to grip and which one must stay unfinished.

  • 1
    Turned partsBored soft jaws, tailstock support above 4× diameter.
  • 2
    Milled partsOne datum, as few setups as the geometry allows.
  • 3
    Thin sectionsSacrificial web or light finishing passes, never a heavy final cut.
Tip 4

Plan the process chain end to end

A part rarely leaves the machine finished. It may need heat treatment, wire EDM, mirror-spark EDM, grinding or surface finishing. Each step adds time and a chance to lose the tolerance you just held.

Sequence matters. Hardened 17-4PH is usually roughed before heat treatment, then finished after, because the heat cycle moves the part. Wire EDM cuts sharp internal corners that a mill cannot reach. Mirror-spark EDM gives a fine cavity finish without hand polishing.

Surface finishing has the same logic. Anodizing builds a layer a few microns thick, and hardcoat builds more. If a bore must stay at size, mask it or machine it undersize before coating.

We run milling, turning, EDM and finishing inside three wholly-owned plants, so the part does not travel between vendors and lose its traceability. That integration is the practical value of an ODM partner.

  • 1
    Heat treatmentRough before, finish after; expect growth from the cycle.
  • 2
    EDMUse for sharp corners, deep slots and hardened material.
  • 3
    CoatingPlan the build-up before you set the machining tolerance.
Tip 5

Program for the machine you have

Five-axis programming is not a bigger version of three-axis. On a trunnion table, the part rotates and gravity changes the chip evacuation. Deep pockets fill with chips that recut and ruin finish.

Use the rotary table (Ø400 mm on our compact cells) to bring features to the tool instead of reaching with a long tool. Short tools deflect less, so you can hold tighter tolerances and run faster at the same time.

Collision checking is not optional. Simulate the full setup, including the chuck, jaws and clamps, not just the part. Most crashes happen between the holder and the fixture, not between the tool and the workpiece.

Keep one proven program as the baseline for a family of parts. Change feeds and speeds by alloy, not by starting from an empty file each time. That is how a shop keeps first-article results repeatable.

  • 1
    Short tools firstRotate the part to the tool whenever the table allows.
  • 2
    Simulate the whole setupFixture, jaws and holder included.
  • 3
    Version controlOne master program per part family, edits tracked.
Tip 6

Inspection needs a trigger and a report

A quality system is only useful if it tells you what to do next. ISO 9001:2015 and IATF 16949:2016 set the framework; the working part is the inspection plan attached to the drawing. Which dimensions are critical, how often they are measured, and on which instrument.

We check raw material on arrival, monitor in process and inspect 100% of parts before shipment. Reports are available on request. For medical work under ISO 13485:2016, that record has to survive an audit, so the plan is written down, not carried in someone's head.

Data protection matters too. ISO 27001:2022 covers how drawings and models are stored and shared. Uploads are treated as confidential, and we sign an NDA on request.

A qualification rate of 99.99% is a result, not a promise. It comes from the inspection plan, not from good intentions.

  • 1
    Critical dimensionsList them on the drawing; inspection follows that list.
  • 2
    RecordsInspection reports available on request for each lot.
  • 3
    ConfidentialityNDA available; files stored under ISO 27001:2022 controls.
Tip 7

Treat the finish as a process, not a spray

Finishing is where a good part becomes a product, and where tolerance quietly disappears. Anodizing, plating and powder coating all add thickness. Decide the final dimension before machining, not after.

Bead blasting gives a uniform matte surface and hides light tool marks. Tumbling and brushing soften edges; polishing brings out the base metal. On aluminum, hardcoat anodizing adds wear resistance but changes color and dimension, so mask the threads and bores that must stay at size.

Laser marking needs room. Minimum character height is 1.5 mm. Smaller text fills in and becomes unreadable, which is a common reject at final inspection.

Surface finish numbers are a target range. Ra 0.2–0.8 μm is a fine finish, Ra 0.8–1.6 μm is a high finish, and Ra 1.6–3.2 μm is as-machined. Specify the range the function needs, not the finest number available.

  • 1
    AnodizingClear, color, hardcoat and conductive; mask critical bores.
  • 2
    PlatingElectroless nickel, zinc, silver and gold.
  • 3
    MarkingLaser engraving, 1.5 mm minimum character height.
How to run it

Step by step: releasing a part to an ODM partner

Work through these in order. Each step names the parameter range and the mistake that usually costs a re-run.

  • 1
    Freeze the function and the alloyWrite down load, environment and the features that carry it. Name the alloy from the approved list, for example 6061-T6 for a general housing or 316L for a wet medical part. Mistake: sending a model with 'material: aluminum' and no grade.
  • 2
    Set tolerances by featureApply ±0.005 mm only to datums, bores and sealing faces. Leave cosmetic surfaces at ±0.1 mm. Mistake: a blanket tight tolerance that adds cost on every dimension.
  • 3
    Send the model for DFMInclude 3D, 2D and the function note. Expect a reply within 12 hours. Mistake: sending STEP files with no drawing revision, so the review targets the wrong geometry.
  • 4
    Agree the workholding and datumMark the clamping face. For turned parts above 4× diameter, plan tailstock support. Mistake: a datum that cannot be gripped without deforming the part.
  • 5
    Confirm the process chainList heat treatment, EDM, grinding and finishing in sequence. Rough before hardening, finish after. Mistake: finishing before a heat cycle that moves the part out of tolerance.
  • 6
    Fix the inspection planName the critical dimensions, the frequency and the instrument. Request reports per lot. Mistake: inspecting only at the end, when the setup error is already in every part.
  • 7
    Lock the finish and the allowanceDecide Ra range and coating before machining. Mask threads and bores. Mistake: anodizing a bore that was cut to final size.
  • 8
    Run the first article, then rampApprove a first article against the drawing, then release the run. We work from one prototype to 10,000+ parts with no minimum order quantity. Mistake: skipping the first article to save a day.
Decision table

Which process fits your part

Use this to pick the route before you request a quote. Cell values are typical, not guaranteed.

Part featureBest routeTrade-off
Prismatic housing, 3 faces3-axis mill, one datumMore setups if faces are deep
Complex 5-face part5-axis simultaneousHigher hourly rate, fewer setups
Round shaft under 4× ØCNC turning with soft jawsTailstock may be needed above 4×
Round part with cross holesMill-turn centerProgramming time is longer
Sharp internal cornerWire EDM after millingAdds a queue step
Hardened 17-4PHRough, heat treat, finishHeat cycle moves the part
Thin wall under 1 mmSacrificial web, light passExtra removal step
Fine cavity finishMirror-spark EDMSlower than milling

Pick the partner that reviews the drawing

If a supplier quotes your file without asking what the part does, the price is a guess and the tolerance is a wish. Choose the one that sends back a DFM note.

FAQs

Questions engineers ask before releasing a part

What tolerance can you hold in production, not just on a sample?

We work to ±0.005 mm (about ±0.0002 in) on stable setups with a controlled process. That number depends on the feature, the material and the fixture, so it is agreed per part rather than applied globally.

On a long thin shaft or a deep pocket, tighter values may not be repeatable across a full run. We say so during DFM instead of after the first article.

How fast can a quote and a DFM review come back?

Quotation and free DFM analysis within 12 hours. Production can start within 24 hours once the drawing and the process plan are agreed.

Parts typically ship in 3–5 days for standard work. Complex parts with heat treatment or EDM add queue time that we flag in the quote.

Is there a minimum order quantity?

No minimum order quantity. We run from one prototype to 10,000+ part runs on the same process plan, so the prototype and the production parts come off comparable settings.

That matters for validation work: the part you test is made the same way as the part you buy.

How do you protect our drawings and models?

Uploads are secure and confidential, and an NDA is available on request. Our information controls follow ISO 27001:2022.

Access to customer files is limited to the people who need it for the job: programming, setup and inspection.

Which certifications cover which industries?

ISO 9001:2015 covers general quality management, IATF 16949:2016 covers automotive and EV work, and ISO 13485:2016 covers medical devices.

Tell us the target industry at the quote stage. It changes the inspection plan and the records we keep, not just the certificate on the wall.

What is the largest part you can machine?

Up to 4,000 mm maximum processing size on the large travel machines (4,000 × 400 × 150 mm). Medium cells cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm.

Compact cells handle 500 × 500 × 450 mm and 500 × 310 × 200 mm, with a Ø400 mm rotary table for five-axis work.

Send the drawing, get a DFM note back

Upload your model and drawing. We reply in 12 hours with a quotation and a manufacturability review, then start production within 24 hours once it is agreed.

12-hour quote100% inspectionNo MOQNDA on request
