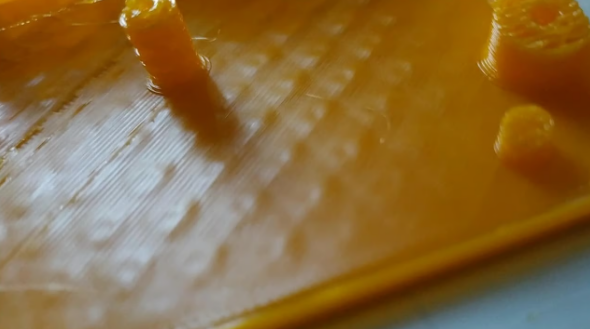

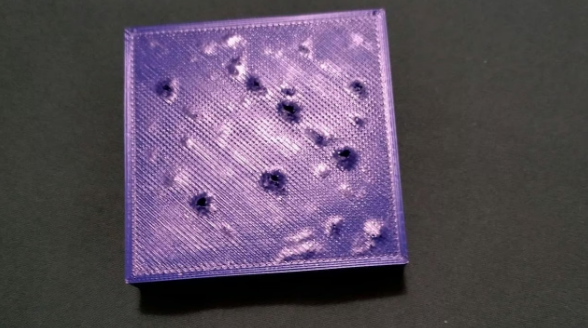

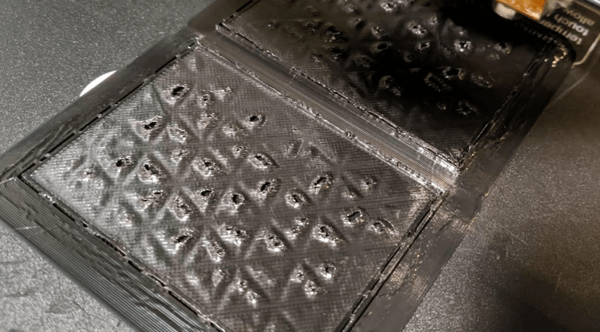

Pillowing is the name for the defect most people describe as a rough top. The solid top skin is printed over a mostly hollow interior. Heat from the nozzle and from the freshly laid plastic keeps the air inside those pockets warm. When the next pass seals the pocket, that trapped air pushes up on the still-soft skin. The surface rises into small blisters and then cools in that shape.

The defect only shows on the top face. Side walls look fine because each layer is supported by the one under it, so there is nothing to push up. That is the fastest way to confirm the diagnosis. If the walls are clean and the top is lumpy, you are looking at pillowing or a bridging problem, not a clog or a bed adhesion issue.

Three variables control whether it appears. The first is how much air stays under the skin, which comes from infill density and pattern. The second is how hot that air is when the skin goes down. The third is how fast the top skin solidifies once it is laid. Change any one of them far enough and the surface cleans up.

Different filaments respond differently. PLA has a narrow softening window and shows pillowing early, sometimes at 15% infill. PETG stays rubbery longer and tends to sag rather than blister. ABS and ASA warp at the corners and pull the top skin down, which reads as roughness too. The fix is not the same for all three.

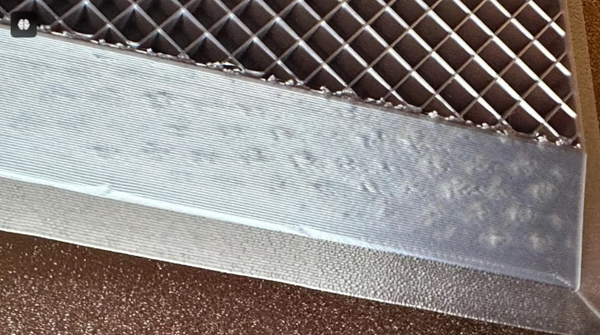

Infill density is the single biggest lever. At 10% you leave large open pockets for hot air to collect. Push it to 20–25% and those pockets shrink enough that the skin can bridge them without lifting. Going to 50% wastes material and time and does not improve the surface further. On a 0.4 mm nozzle, 20–25% is the sweet spot.

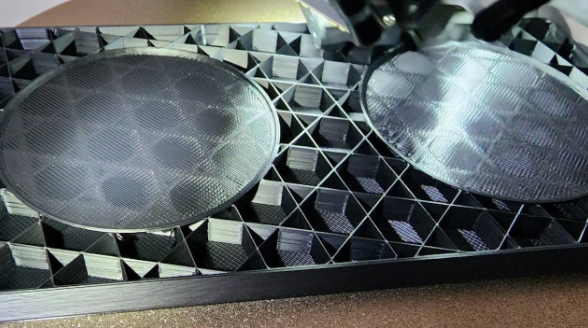

Pattern matters as much as density. Grid and lines create long straight channels that let air travel under the skin and heat a larger area. Gyroid and cubic break those channels into smaller cells. For top-surface quality, gyroid at 20% usually beats grid at 30%. Switch the pattern before you add more plastic.

Top layer count decides how much material sits between the pockets and the outside. Two top layers at 0.2 mm gives you 0.4 mm of skin, which is thin enough to flex. Five layers gives 1.0 mm and the pocket pressure cannot lift it. Set top layers to 5–7 for anything where the top face is visible.

Top skin overlap and line width also matter. If the solid infill lines do not overlap the perimeter, you get a hairline gap where the pocket connects to the outside. That gap lets air escape, which sounds helpful, but it also lets the skin sag into the void. A 10–15% overlap closes the seam without adding visible bulge.

The part cooling fan does two jobs on the top layers. It solidifies the skin fast enough that trapped air cannot deform it, and it keeps the surrounding walls from soaking heat into the top region. On PLA, run the fan at 100% from layer 3 onward. On PETG, cap it at 50–60% or you lose layer bonding.

Nozzle temperature is the other half. Dropping 5–10 °C makes the extruded bead stiffer as it lands, so it resists the push from below. On PLA, that means 200 °C instead of 210 °C. Do not drop more than 10 °C in one step, or you trade pillowing for poor interlayer strength and a matte, brittle surface.

Fan duct design decides whether the cooling is even. A stock single-side duct blows across the nozzle and cools one side of the part harder than the other. That is why the rough patch often appears on one side of the bed only. A dual or ring duct that surrounds the nozzle fixes the imbalance without any slicer change.

Chamber temperature matters on ABS and ASA. If you print in an enclosed chamber at 50–60 °C, the top skin stays soft long after the nozzle leaves. Open the door slightly for the top few layers, or reduce chamber temperature by 5–10 °C. Do not open the chamber on large parts, because the thermal shock will split the layers.

Flow rate on the top layers is easy to overlook. If your extruder over-extrudes by 3%, the top skin ridges and ripples because there is more plastic than space. Calibrate E-steps first, then trim flow to 97–98% for the top solid layers only. Test with a 20 mm cube and check the top with a fingernail.

Bridge settings apply wherever the top skin spans a gap. Set bridge speed to 20–30 mm/s and bridge flow to 90–95%. Too slow and the strand sags before it sets. Too fast and it snaps or curls. Bridge fan should be at 100% regardless of your normal fan profile.

Z-hop prevents the nozzle from dragging across the top skin during travel moves. On a slightly uneven top surface, a dragging nozzle leaves scrape marks that look like roughness. A 0.2–0.4 mm hop with a 0.2 mm retraction is usually enough to clear the surface without stringing.

Ironing is the last option, not the first. It re-melts the top skin with a low-flow pass at 10–20% flow and 0.1 mm spacing. It can produce a very flat surface, but it adds print time and hides the underlying problem. Fix infill and cooling first. Use ironing only when the top face is a visible cosmetic surface.
