Before you dismiss another failed print, consider the 5 First Layer Height Tips to Avoid 3D Printing Failures — because the root cause is often not your filament, your model orientation, or even your extruder temperature. More often than not, it is the microscopic gap between the nozzle and the build plate, a parameter so tiny that most hobbyists overlook it, yet so powerful that it can make or break an entire print job.
In this article, I will walk you through five practical, battle-tested tips for setting and troubleshooting first layer height. We will also look at why this parameter matters in industrial applications, how it differs across materials, and why partnering with a manufacturer like GreatLight CNC Machining can save you from the “z-offset nightmare” that plagues so many engineering teams.
Why First Layer Height Is the Achilles’ Heel of 3D Printing
Let us be honest: 3D printing is a technology that promises “press print and walk away,” but in reality, the first layer is where most print failures are born. Warped corners, gaps between lines, elephant’s foot, or the dreaded “spaghetti monster” all trace back to a poorly selected first layer height.
What Does “First Layer Height” Really Mean?
First layer height is the vertical distance between the nozzle tip and the build plate during the initial pass of a print. It is not the same as the “layer height” you set in your slicer for the rest of the print. It is a separate parameter, often labeled as “Initial Layer Height” in Cura, PrusaSlicer, or Simplify3D.
Why does it matter? Because the first layer must do two contradictory things:
It must squish the molten plastic onto the build plate hard enough to create mechanical adhesion.
It must not squish so hard that the filament backs up, curls, or digs into the bed.
If you get this gap wrong, every subsequent layer is built on a shaky foundation. In mechanical engineering terms, the first layer is your datum. If your datum is compromised, tolerances drift, surfaces become wavy, and dimensional accuracy disappears.
That is why mastering first layer height is not just a nice-to-have; it is a fundamental skill for anyone who needs reliable, repeatable 3D printing.
5 First Layer Height Tips to Avoid 3D Printing Failures
Here are the five tips I have learned from years of running both desktop FDM machines and industrial-grade additive systems at GreatLight CNC Machining Factory. These tips are ordered from the most common mistake to the more advanced troubleshooting steps.
Tip 1: Calibrate Your Z-Offset, Not Just the Slicer Setting
The single biggest mistake I see is that engineers tweak the slicer’s “Initial Layer Height” without ever checking the machine’s actual Z-offset. Your slicer tells the printer where the theoretical bed is, but your Z-offset tells the printer where the real bed is. If those two disagree, the first layer height becomes meaningless.
Most modern printers come with automatic bed leveling, but the Z-offset must still be set manually. Use a piece of printer paper that is about 0.08 mm to 0.12 mm thick, place it between the nozzle and bed, and adjust the Z-offset until you feel a slight drag on the paper. Then, fine-tune with a feeler gauge if you have one.
Why this matters: An incorrect Z-offset will either crush the first layer into the plate (too negative) or leave it floating in mid-air (too positive). Both scenarios are completely independent of your slicer’s layer height setting. So the first tip is simple: fix the hardware gap before you touch the software.
Tip 2: Understand the Nozzle-to-Bed Gap by Measuring Extruded Lines
The paper test is a good starting point, but it does not tell you the actual first layer height being printed. For that, you need to extrude a small line and measure it with calipers or a microscope.
Here is the method I use:
Set the nozzle to normal printing temperature.
Manually extrude a 20 mm long line at a thickness of ten times your expected first layer height.
Let it cool, then peel it off and measure its height with a digital caliper.
If the measured height is larger than your set first layer height, your bed is too far away. If it is smaller, the bed is too close. This is a direct measurement of the effective first layer height, and it is far more reliable than guessing based on visual “squish.”
This technique also helps you calibrate the extrusion multiplier for the first layer. Many printers over-extrude slightly on the first layer to improve adhesion, but if you are using a 0.4 mm nozzle and your first layer height is 0.2 mm, your extruded line should measure roughly 0.2 mm high. If it measures 0.3 mm, you are too close or over-extruding.
Tip 3: Use a First Layer Height That Matches Your Nozzle Diameter
A quick search on forums will show a chaotic mix of recommendations: “0.2 mm is safe,” “0.28 mm is perfect,” “0.3 mm for glass beds.” But the truth is that first layer height should be a function of your nozzle diameter, not a fixed number.
Here is a simple rule:
| Nozzle Diameter | Recommended First Layer Height Range |
|---|---|
| 0.2 mm | 0.12 mm – 0.16 mm |
| 0.4 mm | 0.20 mm – 0.28 mm |
| 0.6 mm | 0.24 mm – 0.36 mm |
| 0.8 mm | 0.32 mm – 0.48 mm |
Why? Because a nozzle prints a line with a width roughly equal to its diameter. If your first layer height is larger than the nozzle diameter, the plastic will not be pressed down by the nozzle tip; it will just be laid down in a loose tube with poor adhesion. If it is much smaller than 25% of the nozzle diameter, you risk back-pressure, clogging, or grinding the filament into the build plate.
In industrial practice at GreatLight, we often set the initial layer height to 60% to 75% of the nozzle diameter for PLA and PETG. For ABS, we sometimes go slightly higher to compensate for shrinkage stress.
Tip 4: Combine First Layer Height with Bed Leveling and Adhesion Aids
First layer height does not work in isolation. It interacts with bed leveling, build surface, and even the ambient temperature. A perfect first layer height on a warped bed is useless because the height varies across the plate. This is why I recommend that every user, even those with auto-leveling, perform a manual mesh bed leveling check at least once a week.
Additionally, consider using adhesion aids such as:
Glass beds – require a slightly higher first layer height to avoid “crushing” on brittle glass.
PEI sheets – work well with a lower first layer height for better contact.
Blue painter’s tape – typically needs a 0.04 mm increase because the tape compresses differently.
Glue sticks – useful for PETG to prevent over-adhesion, but they change the effective bed height slightly.
A common trick in our workshop is to set the first layer height 0.02 mm higher than usual when using a textured PEI sheet, because the texture creates tiny air gaps that reduce the real contact area. If you set the height too low, the plastic cannot flow into the texture and you get poor adhesion despite a “perfect” squish.
Tip 5: Use “Initial Layer Width” to Compensate for Height Limitations
Sometimes you cannot lower the first layer height because your print is very wide and you need to cover a lot of area quickly. Or you have a flex plate that is not perfectly flat. In those cases, the slicer’s Initial Layer Width parameter is your best friend.
Initial layer width is the width of the extruded line on the first layer, usually expressed as a percentage of the nozzle diameter. By increasing the initial layer width to, say, 120% or 150%, you force the plastic to spread sideways, which increases contact with the build plate and gives you a stronger bond—even if the first layer height is relatively high.
For example, imagine you are printing a large ABS part on a glass bed. You need to avoid elephant’s foot, so you keep the first layer height at 0.24 mm. But your part is 300 mm wide, and you are seeing gaps between the lines. Instead of lowering the height (which could cause over-squish and warp), increase the initial layer width from 0.4 mm to 0.55 mm. This widens each line and closes the gap without changing the z-gap.
This is a very effective technique for engineering materials like ABS, Nylon, and Polycarbonate that are prone to warping.
Materials Matter: Recommended First Layer Heights
In my experience, there is no single “best” first layer height. Different materials require different compromises. Here is a table that summarizes the ranges we use at GreatLight CNC Machining for both prototyping and functional parts:
| Material | Nozzle Temp (°C) | Recommended First Layer Height | Notes |
|---|---|---|---|
| PLA | 200–220 | 0.20 – 0.24 mm | Lower heights improve adhesion on glass. |
| ABS | 240–260 | 0.24 – 0.28 mm | Higher height reduces warping stress. |
| PETG | 235–260 | 0.24 – 0.28 mm | Slightly higher prevents over-adhesion. |
| TPU | 220–260 | 0.28 – 0.32 mm | Soft filament needs more clearance. |
| Nylon | 250–280 | 0.25 – 0.32 mm | Very sensitive to moisture and bed gap. |
| Polycarbonate | 270–310 | 0.25 – 0.30 mm | High shrinkage; use enclosure and brim. |
These are starting points, not absolute values. Every printer behaves differently, so always run a calibration disk or a single-layer test before starting a large print.
Beyond the Prototype: How GreatLight Integrates 3D Printing and CNC Machining
You might be wondering why a CNC machining company is talking about 3D printing first layer height. The answer is that modern manufacturing is not “either/or.” At GreatLight, we use 3D printing for rapid prototypes, tooling, and custom jigs, and then we often transition to five-axis CNC machining for production-grade parts.

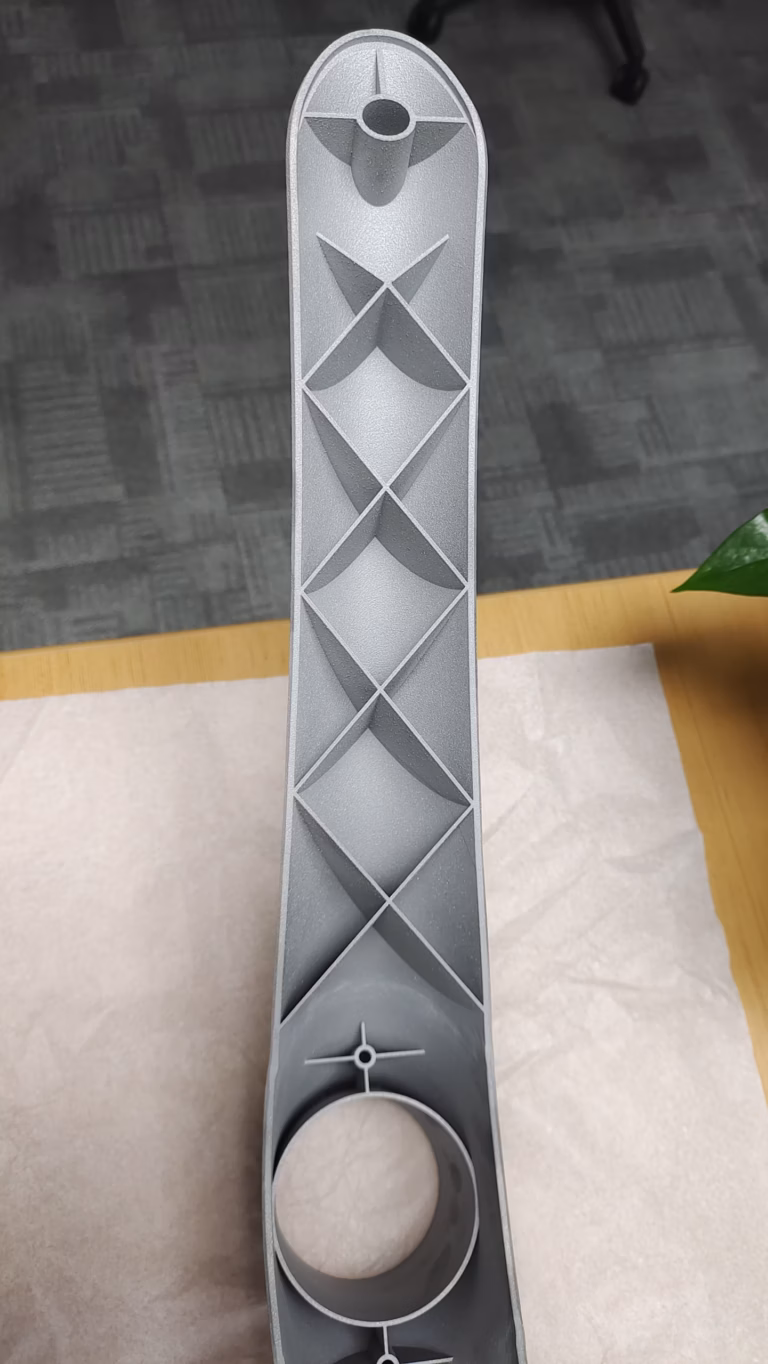

Our factory in Dongguan, China, operates 127 pieces of precision equipment, including large 5-axis CNC machining centers, Swiss-type lathes, EDM machines, and a full suite of 3D printers (SLM, SLA, SLS). We use 3D printing to validate designs quickly, and then we produce the final part in metal or plastic using CNC machining.
This hybrid approach means we have to understand first layer height not only for plastic but also for metal 3D printing (DMLS/SLM). In metal printing, the first layer height is often called “layer thickness” and is even more critical. If the first layer is too thin, the laser can over-penetrate and fuse the part to the build plate. If it is too thick, the powder bed does not fuse properly, and the part delaminates.
GreatLight’s engineering team regularly works with clients who provide 3D printed prototype files and then ask us to produce the same part in 6061-T6 aluminum using 5-axis CNC machining. Our ability to compare the two processes—additive and subtractive—allows us to advise clients on the best first layer strategy for their specific material and design.
Choosing a Manufacturing Partner: GreatLight vs. Other Digital Manufacturing Platforms
When sourcing precision parts, you need to distinguish between marketing promise and shop-floor reality. Let us briefly compare a few well-known suppliers:
GreatLight CNC Machining is a vertically integrated manufacturer with in-house 5-axis CNC, sheet metal, die casting, and 3D printing. Our first-layer calibrations are performed by engineers, not by operators blindly following a checklist. Because we also run production CNC machining, we understand tolerance stack-up and can advise whether a 3D printed part should even be produced as a plastic prototype or go directly to metal.
Protolabs Network offers excellent online instant quoting and a large network of 3D printing services. They are fast, but because they are a broker for many different facilities, you may not get the same in-depth engineering support for tricky first-layer issues.
Xometry is another strong platform for on-demand manufacturing. Their strength is in standardization, but if your design requires iterative first-layer tuning, you might find the black-box workflow limiting.
Fictiv focuses on high-quality plastic and metal parts, especially for the automotive and robotics sectors. They do good work, but they do not offer the same one-stop combination of 3D printing and 5-axis CNC machining under one roof that GreatLight provides.
SendCutSend and JLCCNC are excellent for flat parts and simple CNC operations, but they do not have the full additive manufacturing capacity that GreatLight has.
The key takeaway is that if you are manufacturing complex precision parts, you need a partner who understands both the additive and subtractive worlds. GreatLight’s decade of experience—since 2011—has given us the ability to solve first-layer problems that would stump a generic online service.
Final Thoughts
So the next time you are tempted to blame the printer, pause and recall the 5 First Layer Height Tips to Avoid 3D Printing Failures. These tips are not just for hobbyists; they are exactly what we apply daily at GreatLight before we move a part to our five-axis CNC machines. Master this layer, and you master the print.
Whether you are a design engineer working on a humanoid robot prototype, a medical device startup exploring titanium alloys, or an automotive Tier 1 supplier needing quick validation parts, understanding first layer height will save you days of wasted time and kilograms of expensive filament or powder.
At GreatLight CNC Machining, we have built our reputation on helping clients bridge the gap between prototype and production. We do not just process parts; we engineer them. And that starts with the very first layer.
