Sheet Metal Coating: Environmental Protection and Safety Risk Control

• 1
  Where the Emissions and the Risk Come From
• 2
  Booth Airflow Is the Primary Control, Not a Filter
• 3
  Solvent Storage and Mixing Rules That Prevent Accidents
• 4
  Waste Streams and the Cure Window
• 5
  How Part Geometry and Volume Shape the Finishing Route
• 6
  Coating Route Comparison for Sheet Metal Parts

Liquid coating is a mix of resin, pigment, and solvent. When the spray gun atomizes it, only part of the material lands on the part. The rest becomes overspray, and the solvent fraction evaporates into the booth air. A typical air-atomized spray gun transfers 30 to 60 percent of the sprayed volume to the substrate. The remaining fraction is the first place environmental load is created, and it is set by gun setup, not by the coating itself.

Powder coating removes the solvent from the equation almost entirely. Powder is applied electrostatically and cured in an oven, so the only significant air emission is the small fraction of fines that does not adhere. That is why a powder line usually needs less air permitting work than a liquid line. The trade-off is film thickness control and color change time.

Curing is the second emission point. Solvent-borne coatings release the balance of their solvent in the flash-off zone and the oven. If the oven is under-ventilated, solvent concentration in the exhaust duct can climb toward the lower explosive limit. That is a safety issue before it is an environmental one.

Surface preparation is the third point, and it is the one most often missed in a review. Degreasing with solvent, alkaline cleaning, and chromate conversion each produce a waste stream with its own disposal rules. A process that looks clean at the spray booth can still generate hazardous waste upstream.

• 1
  Transfer efficiencyAir-atomized guns: roughly 30–60 percent of sprayed volume reaches the part.
• 2
  Powder linesNo solvent carrier; overspray is captured and reused as powder.
• 3
  Cure stageMain solvent release point; ventilation sets the LEL margin.
• 4
  Prep stageDegreasing and conversion coatings create the waste streams.

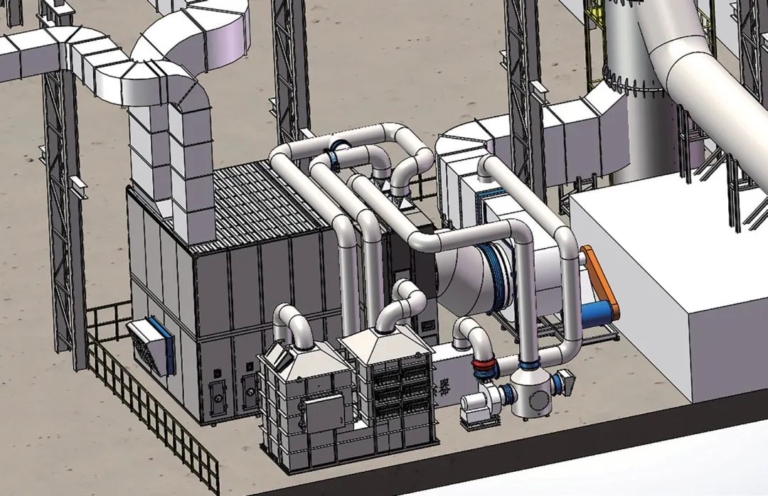

A spray booth works by sweeping solvent vapor away from the operator and out of the work zone before it can accumulate. The control variable is face velocity, the speed of air crossing the open face of the booth. Too low and vapor pockets form near the operator's breathing zone. Too high and the spray pattern distorts, transfer efficiency drops, and more overspray is generated.

For a cross-draft booth, face velocity typically sits between 0.4 and 0.6 m/s for a well-baffled design. Downdraft booths often run higher, around 0.5 to 0.75 m/s, because the air path is shorter and more uniform. These are starting points, not fixed rules. The correct number comes from the booth manufacturer and from a tracer test that shows where vapor actually travels.

Filters capture the solid overspray but they do not capture solvent vapor. Solvent leaves through the exhaust stack. This distinction matters when a shop assumes that a new filter set solves an odor complaint. It does not. Only airflow balance, or a downstream abatement device, changes the stack concentration.

Booth balance also affects the rest of the building. If the make-up air unit cannot supply what the exhaust fan pulls, the booth will draw air from adjacent rooms. That path can pull dust into the booth and can pull solvent vapor back into the shop. Both outcomes hurt finish quality and air quality at the same time.

• 1
  Cross-draft velocityTypically 0.4–0.6 m/s across the open face.
• 2
  Downdraft velocityOften 0.5–0.75 m/s for a more uniform sweep.
• 3
  FiltersCapture solid overspray only; solvent passes through.
• 4
  Make-up airMust match exhaust volume or the booth pulls from nearby rooms.

Most coating-line incidents start with solvent, not with the spray gun. Solvents have flash points that sit below typical workshop temperatures, and their vapors are heavier than air. Vapor from an open container travels along the floor and can reach an ignition source several meters away. That is why mixing and thinning belong in a dedicated area with continuous ventilation and no ignition sources.

Bonding and grounding is the second rule. When solvent flows through a hose or is poured between containers, static charge builds. A single unbonded metal container can discharge a spark at the vapor-air interface. Bond the container to the pump, ground the pump, and use conductive hoses. This is cheap and it removes an entire class of ignition risk.

The third rule is quantity. Keeping only the solvent needed for one shift in the mixing room limits the fuel load if a fire starts. Bulk drums belong in a separate fire-rated store, not next to the booth. The distance and the fire rating are set by local code, so check the code for the site rather than copying another shop.

Spray gun cleaning is a routine task with a high exposure risk. Closed gun washers capture the solvent and return it to a drum, which cuts both operator exposure and the volume of liquid waste. An open bucket of thinner does the opposite on both counts.

• 1
  Flash pointMost coating solvents flash below normal workshop temperature.
• 2
  Vapor densityHeavier than air; vapor travels low and far.
• 3
  Bonding and groundingContainer, pump, and conductive hose all connected.
• 4
  Shift quantityKeep only what one shift needs in the mixing area.

Coating waste splits into three streams, and mixing them creates a much larger disposal problem. Liquid waste includes waste paint, gun cleaning solvent, and booth wash water. Solid waste includes filters, masking material, and dried overspray. Aqueous waste includes pretreatment rinse water. Each has its own container, label, and disposal route. A shop that pours gun cleaner into the rinse tank turns a small liquid waste stream into a large hazardous one.

Overspray filters are the highest-volume solid stream on most lines. Their weight is mostly paint solids plus solvent that has not fully flashed off. Store them in a closed metal container with a lid, and empty that container on a fixed schedule. Open filter bins are a common source of odor complaints and a common finding in inspections.

The cure window is the other control point engineers tend to underrate. A two-component coating has a pot life after mixing and a recoat window after application. Spray past the pot life and the film will not cross-link properly, which shows up later as poor adhesion or solvent popping. Recoat outside the window and intercoat adhesion fails. Both outcomes mean rework, and rework means stripping, which generates more waste than the original coat.

Tracking pot life and recoat time is therefore an environmental control as much as a quality control. A simple mix log with time stamps does more for waste reduction than most equipment upgrades.

• 1
  Three waste streamsLiquid, solid, and aqueous; keep them separate.
• 2
  Filter storageClosed lidded metal container, emptied on a set schedule.
• 3
  Pot lifeTwo-component mixes cure in the pot; log the mix time.
• 4
  Recoat windowOutside it, intercoat adhesion fails and rework follows.

Powder coating suits parts that can take a 180 to 200 °C cure and that are produced in steady volume. A steel enclosure, a bracket, a chassis panel: all good candidates. Powder gives a thick, durable film in one pass and produces almost no solvent emission. The limit is temperature. Parts with soldered joints, bonded inserts, or heat-sensitive electronics cannot go through a powder oven.

Liquid coating suits heat-sensitive parts and small batches where color changes are frequent. It also reaches into recesses and complex geometry better than electrostatic powder, because the spray can be directed. The cost is solvent handling: ventilation, waste segregation, and operator protection all become part of the process.

Anodizing and plating are not spray processes at all, but they belong in the same decision. They convert the surface rather than adding a film, so they hold tight tolerances and do not fill threaded holes. The trade-off is line length and the waste treatment needed for the process baths.

For a prototype run of one to fifty parts, the practical answer is often a liquid coating or a conversion finish, because setting up a powder line for a handful of parts does not pay. For a 1,000-piece production run, powder usually wins on cost per part and on regulatory load.
