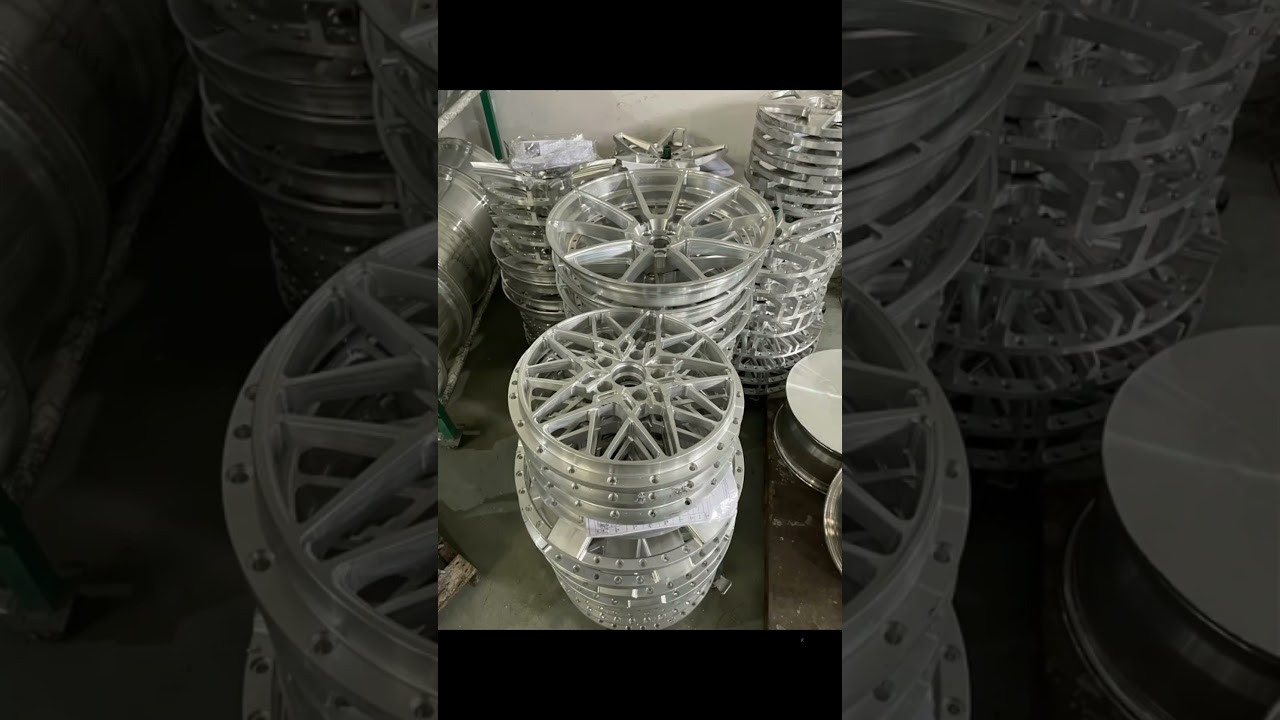

A wheel hub carries three jobs at once. It centers the wheel, transfers braking and cornering loads into the suspension, and provides a mounting face that must stay square to the bearing bore. On a 3-axis machine those features are cut in separate setups, and every setup adds a datum shift. Two setups means two chances for the flange face to tilt against the bore.

Wheel hub 5-axis machining removes most of that stacking. The part sits on a fixture once, and the machine's two rotary axes swing the tool around the hub so the bore, flange face, bolt circle and any pocketing are cut from the same zero. Runout is then a function of spindle accuracy and fixture stiffness, not of how well an operator re-zeroed the part.

The practical gain shows up on the drawing. Total indicated runout on the flange face, bolt-hole position relative to the bore, and concentricity between bearing seats are all called out as relationships. When they are machined in one setup, those relationships hold without shimming or selective assembly. When they are not, the shop has to add a finishing operation or accept a looser stack.

That is the whole argument. Five axes are not faster in every case. They are more predictable when the part has features that must stay aligned to each other.

Hub size decides which machine class you land in. GreatLight runs 16 simultaneous 5-axis machining centers, plus 16 mill-turn centers and a mix of 4-axis and 3-axis machines. The 5-axis centers cover travels from 500 × 500 × 450 mm up to 4,000 × 400 × 150 mm, and the rotary tables go to Ø400 mm. A typical passenger-car hub fits well inside those numbers.

The Ø400 mm rotary table is the number that usually matters. A hub that is turned on a trunnion has to clear the table through a full rotation, including any fixture jaws or tombstone. If the fixture swings wider than the table envelope, the machine will alarm long before the part is done. Design the fixture before you quote the part.

For long parts, the 4,000 × 400 × 150 mm travel is useful when the hub is integral with an axle stub or a driveshaft flange. In those cases the part is often better on a mill-turn center, where turning and milling happen without a second chucking. The choice between a 5-axis center and a mill-turn center is covered in the comparison table below.

Small hubs are not automatically easier. A compact hub with deep bearing bores and a tight bolt circle can need long, slender tools. Tool deflection then becomes the limiting factor, not the machine's positional accuracy.

Most automotive hubs are aluminum or steel. Aluminum grades like 6061, 6061-T6, 6082 and 7075 machine cleanly and hold a good finish with the right parameters. A 6061-T6 hub with Ra 0.8–1.6 μm on the flange face is a normal request, and it is achievable with a sharp carbide insert and a light finishing pass.

Steel changes the calculus. Grades like 1045, 4130, 4140 and 4340 cut at lower surface speeds, so the cycle time goes up and the heat goes into the tool. The same hub geometry in 4140 may need three roughing passes where 6061 needed one. That is not a machine limit. It is a cutting-physics limit.

Stainless grades 303, 304, 316 and 17-4PH (SUS630) are common where corrosion resistance matters, such as hubs that see road salt or marine exposure. They work-harden, so a dwell in the cut is worse than a heavier feed. Programming has to keep the tool moving through the material rather than rubbing it.

Titanium and Inconel are rare in wheel hubs but appear in motorsport and special vehicles. TA1, TA2 and TC4 (Ti-6Al-4V) all cut, but thermal control dominates. Inconel is slower still, and it is usually reserved for small, high-value features rather than a full hub body.

The shop tolerance floor is ±0.005 mm, or ±0.0002 in. That number is real, but it is a floor, not a default. It applies to critical diameters and faces on a stable setup with a warm machine. It does not apply to a thin flange that moves when the fixture clamps it.

Surface finish is usually the more useful callout. Ra 0.2–0.8 μm is achievable on bearing bores and sealing faces with a finishing pass. Ra 0.8–1.6 μm covers most flange faces and fits. Ra 1.6–3.2 μm is a normal as-machined finish for non-critical surfaces. Specifying a fine finish everywhere adds cost without adding function.

The limiting factor is rarely the machine's positioning accuracy. It is thermal growth, fixture stiffness and tool wear. A hub machined in the morning and one machined after six hours of cutting can differ if the spindle has grown. Shops that hold tight tolerances measure the machine, not just the part.

Bolt-hole position is a good example. The holes are typically drilled and reamed or interpolated in the same setup as the bore. The position tolerance relative to the bore is then a function of the machine's rotary accuracy. If the holes are drilled in a second setup, that tolerance depends on the fixture instead, and it will be looser.

Five axes cost more per hour than three. If the hub is a simple cylinder with one flat face, a bolt circle and a bore, a 3-axis mill or a lathe with live tooling will do the job for less. The features do not require the tool to reach around the part, so the extra rotary axes sit idle.

A hub that is mostly turned, with a small milled feature, is a mill-turn part. Putting it on a 5-axis machining center means the turning is done elsewhere, and that adds a setup. Mill-turn centers keep the part in one spindle and turn and mill without re-chucking.

High-volume production is another signal. When the annual volume is in the tens of thousands, a dedicated fixture on a 3-axis or 4-axis machine can beat a 5-axis cell on cycle time. Five axes win on complexity and setup count, not on raw throughput for simple parts.

The honest test is feature count. If the hub has more than two features that must stay aligned to each other, and at least one of them is not reachable from a single tool direction, 5-axis is usually the cheaper path once you count fixtures and scrap.
