  Composite milling and turning vs. a dedicated mill-turn center

A standard vertical machining center drives its spindle through a belt or gearbox. It spins, but the controller does not know where the cutting edge stops. Add a servo spindle with a position encoder and that changes. The spindle can now be commanded to a specific angle, indexed in fixed steps, and fed as an interpolated axis. Once the spindle is an axis, the machine can turn a diameter with a single-point tool held in the tool changer, then switch to a milling cutter without releasing the part.

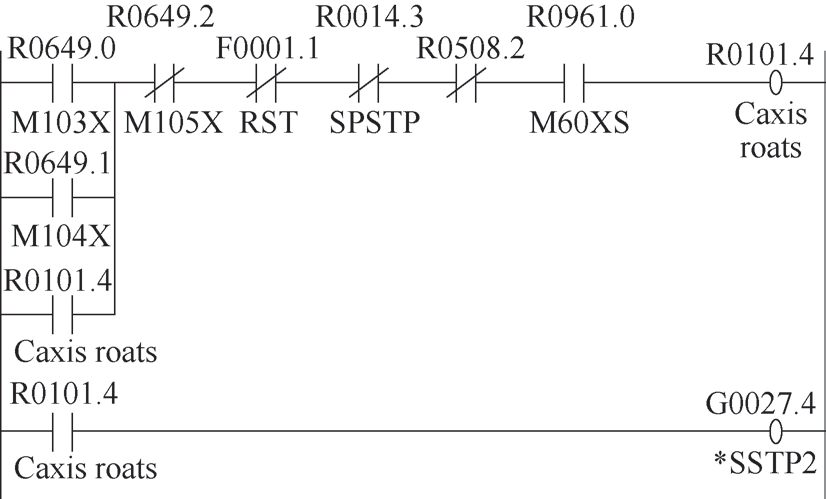

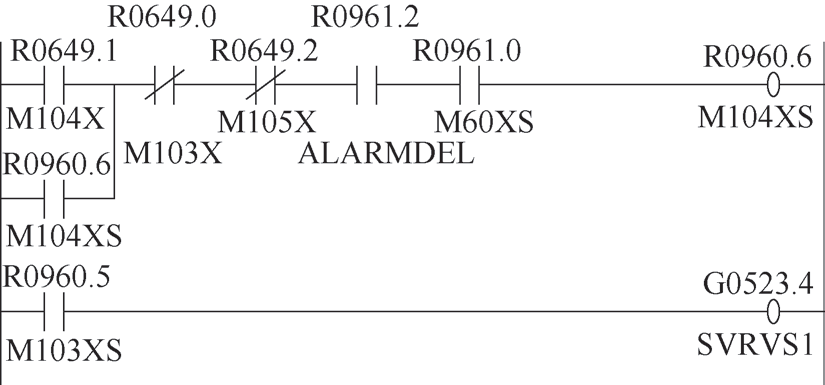

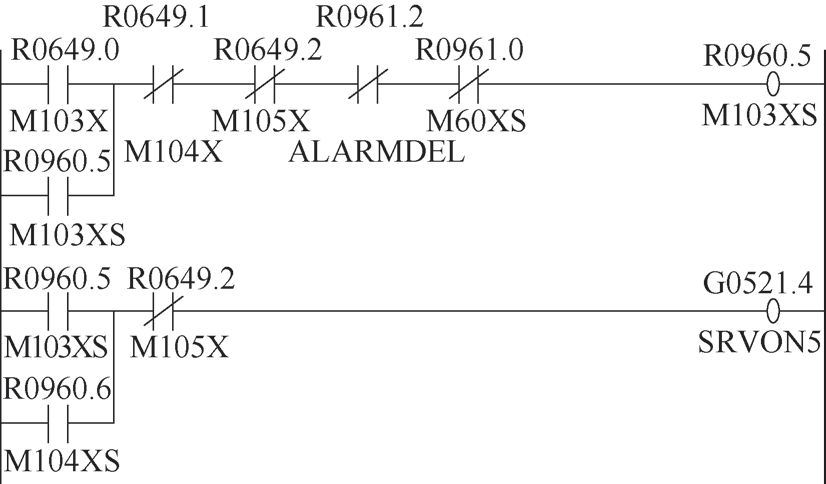

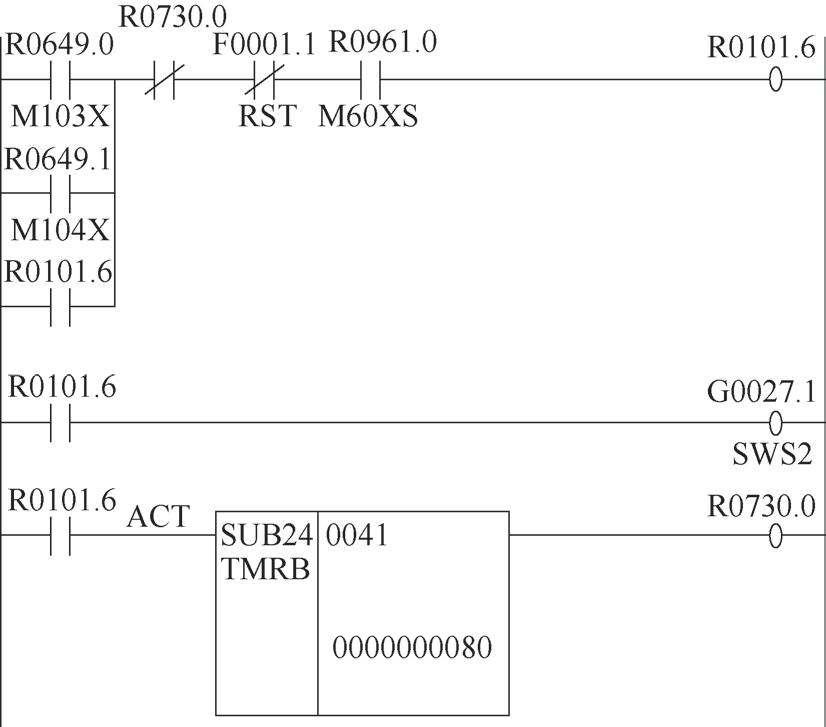

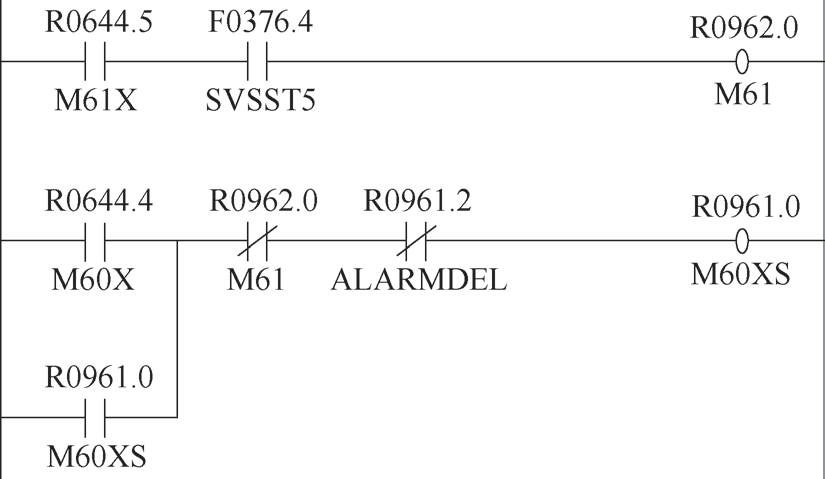

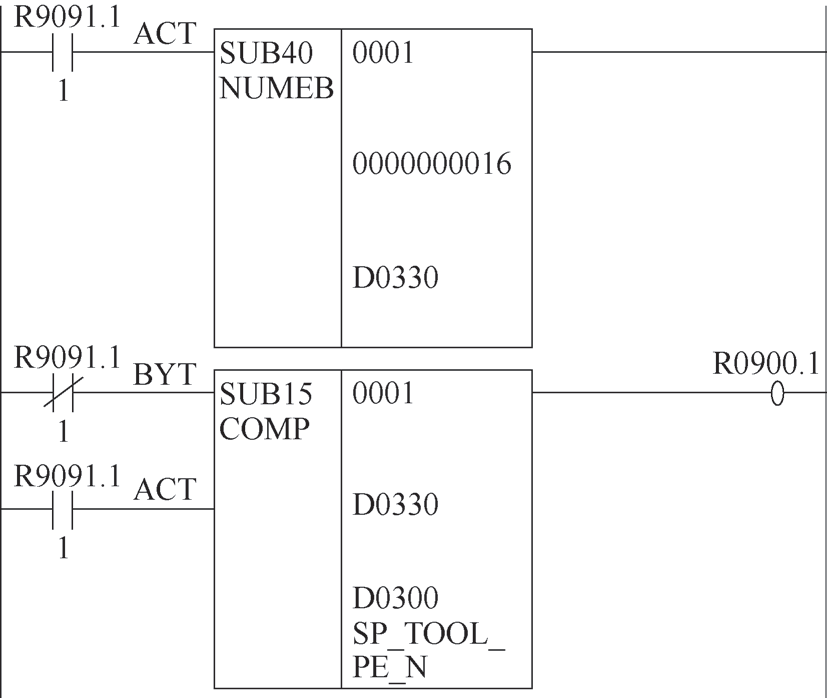

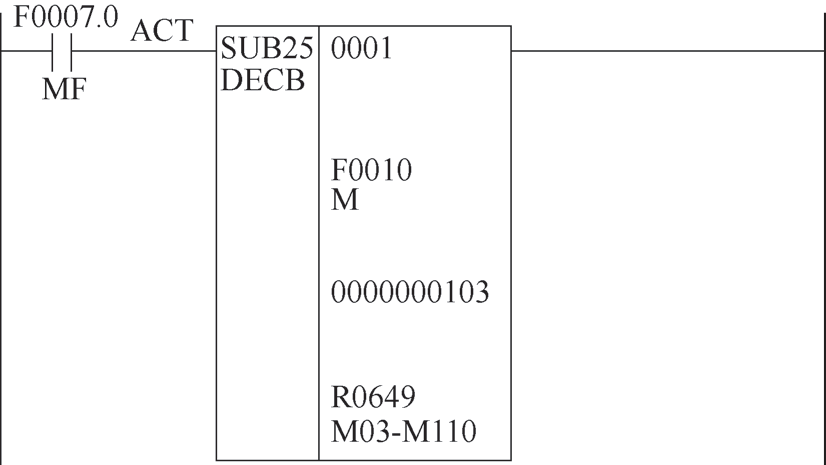

That is the whole idea behind composite milling and turning. Turning and milling stop being two separate operations on two separate machines. On a FANUC-based VMC the enabling functions are spindle orientation (M19), rigid tapping, and either polar coordinate interpolation (G112) or cylindrical interpolation (G107). Polar interpolation converts a programmed X-Z profile into X-C motion, so you can write a lathe-style contour and let the control handle the geometry.

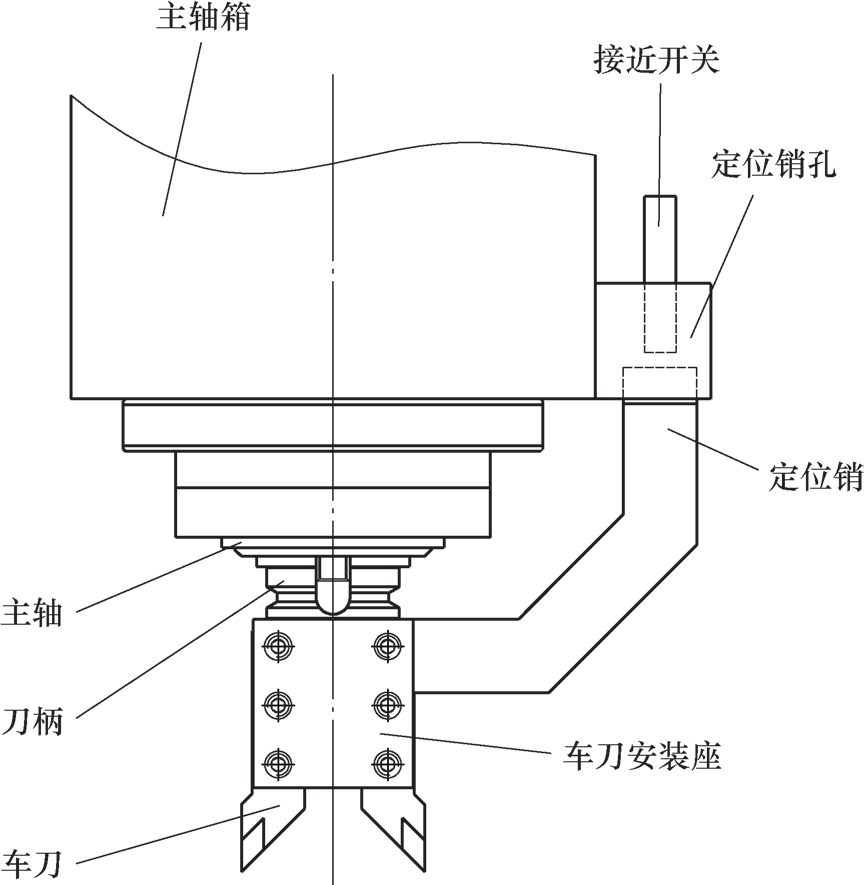

The mechanical side has limits worth checking early. A VMC spindle is built for radial load from a milling cutter, not for the continuous side load a turning tool applies. Depth of cut in the turning pass should stay light, often 0.2–0.5 mm per pass in aluminum and less in steel. Tool overhang matters more here than in normal milling. Keep the turning tool as short as the holder allows, and expect to reduce feed rates compared with a lathe.

Fixturing is the other half of the problem. A three-jaw chuck on a rotary table is the common arrangement, and a Ø400 mm rotary table covers most small to medium work. For parts that cannot be held in a chuck, a collet block or a dedicated soft jaw set on an indexer works. What matters is that the workholding repeats to within a few microns, because every feature on the part is now referenced to that one grip.

• 1

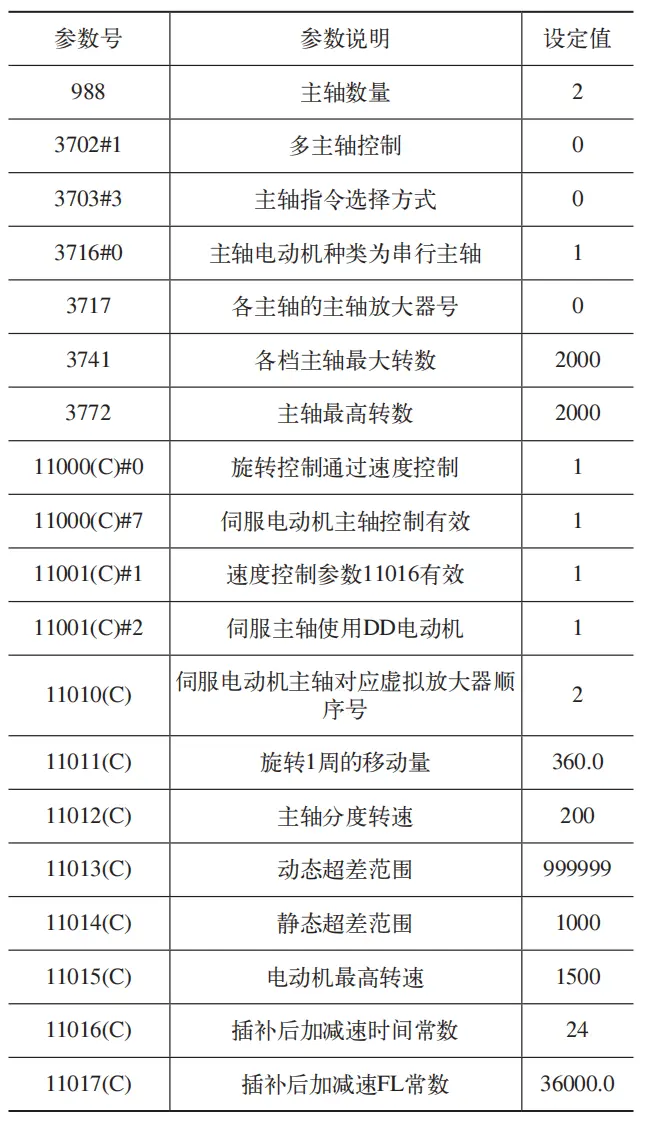

  Servo spindle + encoderRequired for orientation, indexing and C-axis feed.
• 2
  G112 or G107Polar or cylindrical interpolation turns lathe-style code into X-C motion.
• 3
  Light radial cutsTurning passes of 0.2–0.5 mm in aluminum are typical on a VMC spindle.

The parts that benefit most are small, round, and feature-rich. Think of a sensor housing with a turned outside diameter, a cross-drilled port, and two milled flats. On separate machines that is three setups and two fixtures. On a composite setup it is one program and one grip. The part usually fits inside a 200 mm envelope and weighs under 5 kg, which keeps the rotary table and chuck loads reasonable.

Concentricity is the strongest argument. When a turned bore and a milled bolt circle are cut in the same setup, the relationship between them is set by the machine geometry, not by how well a second fixture was dialed in. For a part with a 0.02 mm true position callout between a bore and a pattern, that difference decides whether the part passes. We hold ±0.005 mm on critical features when the setup supports it.

Some geometries are a poor fit. Long shafts with a high length-to-diameter ratio do not work well, because the VMC spindle cannot support the part the way a lathe with a tailstock or steady rest can. Deep turning operations that remove a lot of material radially will chatter and burn tool life. If the part is mostly a turned profile with one small cross hole, a lathe with live tooling is cheaper and faster.

Material matters too. Aluminum 6061 and 7075, brass C36000, and stainless 303 and 304 all machine predictably in this configuration. Titanium TC4 and Inconel raise cutting forces enough that the light radial cuts become a real constraint. For those, we usually keep turning features on a lathe and mill the rest on a 5-axis center instead.

• 1
  Good fitHousings, adapters, fittings and bushings under 200 mm with mixed turned and milled features.
• 2
  Poor fitLong slender shafts and parts needing heavy radial stock removal.
• 3
  Concentricity gainBore-to-bolt-pattern relationships held in a single grip.

The program structure is a hybrid. You write the turning portion in a lathe-like manner using the C-axis as the spindle angle, then switch modes for milling. On FANUC, G112 lets you program in a Cartesian X-Z plane and the control translates the motion into X and C moves. The tool stays normal to the surface as the part rotates. Feed rates need attention: the programmed feed is in degrees per minute for the rotary axis, so a feed that looks reasonable in millimeters per minute can be far too fast in C.

Setup order matters. Dial in the chuck or collet on the rotary table first, then touch off the turning tool, then the milling tools. If you touch off milling tools first and then move the workholding, every offset shifts. Use a test bar to verify the C-axis zero before running the first part. A 0.05° error at a 50 mm radius is about 0.04 mm of tangential error, which is enough to miss a tight position callout.

Coolant and chip evacuation need a plan. Turning produces stringy chips that a VMC's flood coolant may not clear from the work zone. High-pressure through-spindle coolant helps, and so does programming a short retract between turning passes to let chips fall. On deep bores, peck the turning pass rather than taking one long continuous cut.

Verification is the last step and it is not optional. Because the part is finished in one setup, a mistake in the program scrapes the whole part, not just one face. Run the first article with a single-light-pass turning strategy, measure, then open the depths. In-process probing on the machine shortens that loop considerably. Every part we ship gets a raw material check, in-process monitoring and a final inspection, with reports on request.
