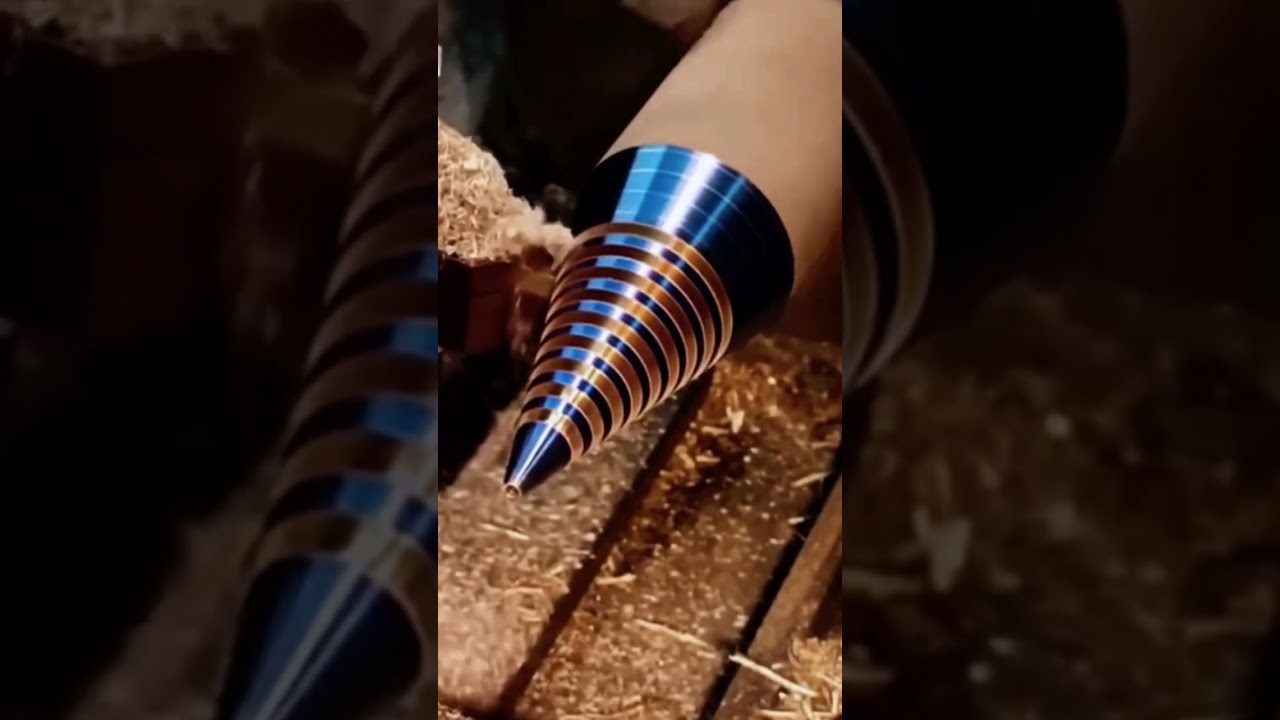

A lathe spins the workpiece and pushes a single-point tool along X and Z. A mill holds the workpiece still and spins the tool in a spindle that moves in three or more axes. CNC turning and milling composite machining puts both motions inside one enclosure: the part rotates on a main spindle, and a second spindle or a live tool holder drives a rotating cutter into that same part.

The practical result is simple to state. Features that would need two setups on two machines can be cut in one. A shaft with a cross-drilled oil passage, a milled flat, and a threaded end comes off the machine complete instead of being re-chucked three times.

That matters because every re-chuck adds error. Chuck jaws have runout. A part seated in soft jaws for a second operation rarely repeats to the same centerline as the first operation. When the same spindle holds the part for turning and milling, the centerline never moves.

Live tooling is the oldest form of this. A driven tool block sits on the turret and spins a small end mill or drill at an angle to the part axis. It is cheap, proven, and limited: the tool is small, the spindle is small, and the machine still has only a few axes of coordinated motion.

A mill-turn center starts from a lathe bed. The main spindle turns the part, a lower turret handles OD work, and an upper tool station carries live tooling or a B-axis milling head. Some of ours carry a Ø400 mm rotary table with a second opposed spindle for back-side work. This is the right platform for round parts that also need milled features.

A 5-axis machining center starts from a mill. The part sits on a trunnion or a swiveling head, and the tool reaches it from five coordinated directions. It is the right platform for prismatic parts, deep pockets, and contoured surfaces that cannot be reached by a tool pointing along one axis.

The distinction is about which motion is primary. On a mill-turn, rotation is the base motion and milling is the addition. On a 5-axis center, milling is the base motion and rotation of the part or head is the addition.

Both can produce the same geometry in many cases. The choice usually comes down to part shape and to how much of the part is round. A part that is 80 percent turned features belongs on a mill-turn. A part that is 80 percent milled features belongs on a 5-axis center.

The clearest case is a part with a tight relationship between a turned diameter and a milled feature. Say a hydraulic spool has a bore on the centerline and a port drilled at 90 degrees. If the bore is turned on one machine and the port is drilled on another, the angular position of the port depends on how the part was clocked in the second fixture. Move the work into one spindle and the angular position comes from the same coordinate system as the bore.

The second case is a part with features on five faces. Reaching all five faces on a 3-axis mill means five setups, or one setup on a 5-axis center with a trunnion. Each eliminated setup removes a fixture, a clock-in step, and a stack of tolerance.

The third case is a thin-wall or long slender part. Every re-chucking applies clamping force to a finished surface. On a shaft with a 0.8 mm wall section, the second chuck can crush or ovalize what the first operation just made. Single-setup work avoids that.

There is also a handling case. A heavy part that measures 600 × 600 × 600 mm is awkward to move between machines and re-indicate. Keeping it on one table saves both time and the risk of a dropped or dinged part.

Combination machining is not automatically cheaper. A mill-turn center has a smaller milling spindle than a dedicated mill, so heavy material removal in steel is slower. If a part needs a 50 mm face mill taking 4 mm depth of cut, run that on a 3-axis machine with a 40-taper spindle and keep the mill-turn for the finishing features.

Tool reach is the second limit. A live tool holder on a turret has limited stick-out before chatter starts. Deep cavities with a 6:1 depth-to-diameter ratio usually need a dedicated milling spindle with through-coolant and a shorter gauge length.

Thermal drift is the third. A machine that alternates between turning at high surface speed and milling with a small cutter never reaches a stable thermal state. On work held to ±0.005 mm, that drift shows up over a long run. The fix is to group operations so the spindle temperature stabilizes, or to leave a finishing pass for the end.

Finally, batch size matters. For one or two pieces, programming time on a multi-axis machine can exceed the savings. For 10,000 pieces, a dedicated line with two simple machines often beats one complex machine on cycle time.

Concentricity is the headline number. When a turned diameter and a milled bore are cut without releasing the part, the relationship between them depends only on machine geometry, not on fixture repeatability. We hold ±0.005 mm on those relationships across a production run, and we inspect 100 percent of parts before shipment.

Surface finish follows the same logic. Turning a 6061-T6 or 316L surface with a sharp insert and a 0.4 mm nose radius at 0.08 mm/rev lands in the Ra 0.8–1.6 μm band. A light finishing pass with a wiper insert pushes it to Ra 0.2–0.8 μm. Milled floors usually sit at Ra 1.6–3.2 μm as machined.

The catch is that a single setup does not fix a bad process. If the part moves in the chuck under cutting load, it moves for both operations. Workholding rigidity still decides the outcome. For thin rings, we use pie jaws or a expanding mandrel rather than three-jaw contact.

Cutting data has to be split by operation. Turning speeds are set for continuous engagement; milling speeds are set for interrupted engagement. Running one set of parameters for both is a common cause of poor finish and short tool life.

Aluminum alloys like 6061, 7075, and 6082 cut freely in both modes. They suit single-setup work because the light milling spindle is not a bottleneck. Cycle times stay short and tool wear is predictable.

Stainless grades 303 and 316L behave differently. They work-harden if the tool rubs instead of cuts, so live tooling with low rigidity is a risk. Use a positive rake insert, keep the feed per tooth above 0.05 mm, and never dwell. 17-4PH in the H900 condition is worse still and often justifies splitting the milling onto a dedicated machine.

Titanium Ti-6Al-4V and Inconel 718 generate heat at the cutting edge rather than in the chip. On these, single-setup work pays off mainly for finishing, where the reduced handling protects a surface that took a long time to produce.

Plastics such as POM, PEEK, and carbon fiber need sharp tools and high spindle speed. Carbon fiber dust is abrasive, so tool life is short and coolant strategy matters more than machine choice.

A 3D model in STEP or IGES plus a 2D drawing with the tolerances that matter. Mark the datum features. If a bore and a slot must stay aligned to 0.01 mm, say so on the drawing instead of leaving it to the machinist to infer.

State the material and temper, not just the alloy family. 6061 and 6061-T6 machine differently. 316 and 316L have different work-hardening behavior.

State the quantity and whether it is a prototype or a production run. The machine choice for one piece is not the machine choice for 10,000 pieces.

Mention any finish requirement. Anodizing adds 5 to 25 μm per surface depending on type, which matters on a bore held to a tight tolerance. Bead blasting will round a sharp edge, so call out edges that must stay crisp.

We return a quotation and a free DFM analysis within 12 hours. Production can start within 24 hours after approval, and parts typically ship in 3 to 5 days. There is no minimum order quantity, from one prototype to 10,000+ part runs.
