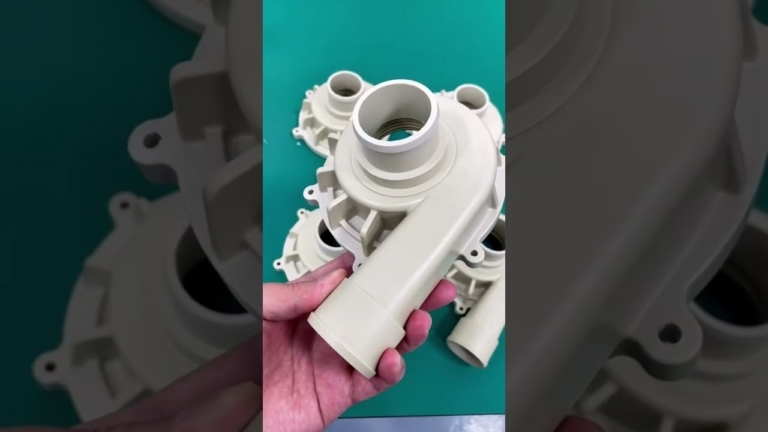

Suppliers use turbo plastic as a trade label for high-performance polymer stock, usually a glass- or carbon-filled engineering resin such as PEEK, PA, POM, or a PC blend. The base polymer matters less than the filler content and the extrusion direction of the plate. A 30% glass-filled plate is stiff along the flow axis and noticeably weaker across it.

That anisotropy drives most machining decisions. When you cut a pocket into a filled plate, you remove the material that was carrying load in one direction. Thin walls that look fine on the model can bow after the part relaxes. We check wall thickness against filler content before programming, not after the first article.

Unfilled grades behave differently. They cut faster and hold a better surface, but they move more with temperature. A 300 mm unfilled PA plate can grow 0.6 mm across a 30 °C shop swing. Filled stock moves less, yet it dulls tooling faster and chips at the edges.

So the first question is never "which plastic is strongest." It is which grade, at which thickness, cut in which direction, will still meet the drawing after the part cools and stress-relieves. Get that wrong and no amount of machine accuracy saves the job.

Plastics cut by shearing, not by the heat-and-flow mechanism you see in steel. A sharp edge with a positive rake peels the chip away. A dull edge rubs, generates heat, and smears the surface instead of cutting it. That smear is what most people call a bad finish on a plastic part.

Heat is the main limit. Polymer conductivity is low, so friction heat stays at the cutting zone instead of leaving through the chip. Above the glass transition temperature the material turns rubbery and tears. We keep the surface cool with air or a light mist, high spindle speed, and a feed that keeps the edge engaged.

Tool geometry matters more than coating. Two-flute and single-flute end mills clear chips well and cut freely. Carbide with a polished flute reduces built-up edge. Diamond-coated tools help on abrasive glass-filled grades. On PEEK and carbon-filled stock, edge wear shows up within a few meters of cut.

Feeds and speeds sit in a narrow band. Too slow and the edge rubs; too fast and the part chips at the exit. A starting point for POM at 6 mm depth is 12,000 rpm and 2,500 mm/min feed, then tune from the chip and the sound.

A plastic plate is not rigid like a steel block. Clamp it too hard and it bows, so the cutter removes more material in the middle than at the edges. Release the clamps and the part springs back into a shape that matches nothing on the drawing.

We hold filled plates on vacuum chucks or soft jaws with a wide contact area, and we keep clamp pressure low. Where a part needs support, we leave a sacrificial web and cut it in a second op. Thin sections get support from below, not from the side.

Stress relief is the step most shops skip. Rough the part oversize, let it sit, then take a light finish pass. For a 20 mm thick PEEK plate we leave 0.5 mm on all faces, relax overnight, and finish the next day. The finished dimension then stays put.

For long plates up to 4,000 mm, thermal drift along the bed is real. We let the stock sit in the shop for a few hours before the first cut, and we measure at the same temperature the part will be inspected at.

A plate with pockets, holes, and slots on one face is a 3-axis job. Add angled ports, contoured ribs, or features on five sides and the part becomes a candidate for 5-axis. One setup means one datum and no re-clamping error.

That matters most on plastic because every re-clamp is a chance to distort the part. Moving a plate from a vise to a fixture for a second side can shift a thin wall by 0.05 mm or more. A 5-axis center cuts four or five faces from one hold.

The trade is programming time. Complex toolpaths take longer to prove out, and the first article may need two or three tuning passes. For a one-off prototype with simple geometry, 3-axis is often faster overall. For 50 parts with angled features, 5-axis wins on repeatability.

We run 16 simultaneous 5-axis centers with a Ø400 mm rotary table, plus 4-axis and 3-axis mills when the geometry is simple. The choice is about the part, not about which machine sounds more advanced.

Machined plastic holds ±0.005 mm on a stable grade and a well-supported part. That number is not universal. A thin unfilled wall will move more than a thick filled boss, no matter how good the machine is. Tolerance and geometry have to be read together.

Inspection happens at three points: incoming stock for thickness and flatness, in-process checks on critical features, and a final dimensional report before shipment. Every part is inspected. Reports are available on request with the drawing dimensions and the measured values.

Surface finish depends on the grade and the pass. As-machined plastic lands around Ra 1.6–3.2 μm. A light finish pass with a sharp tool reaches Ra 0.8–1.6 μm on POM and PC. PEEK with glass filler rarely goes below Ra 0.8 μm without polishing.

Holes need their own plan. Drill plastic with a slow helix and a sharp point, and back the exit with a support block. A hole drilled straight through a plate without backup will chip the far side on almost every grade.

Wall thickness is the first lever. Keep walls above 0.8 mm on unfilled grades and above 1.5 mm on 30% glass-filled stock. Below that, the wall flexes during cutting and the finish suffers even when the dimension holds.

Corners should have a radius at least half the cutter diameter. Sharp internal corners force a small tool, which deflects and leaves chatter marks. A 3 mm corner radius on a 6 mm cutter cuts clean and holds size.

Threads are workable but not free. Coarse threads hold better in plastic than fine ones, and a metal insert is the better answer if the joint will be opened more than a few times. We machine the pilot, then tap at reduced speed with a cutting fluid suited to the polymer.

Remember that the drawing tolerances you set have to survive the material. A ±0.02 mm callout on a 200 mm unfilled plate is a fight against thermal expansion, not a machining problem. Loosen what the function allows and the part gets cheaper and more repeatable.
