CNC Machining of Large Cover Plate Parts: How Flatness Is Held

• 1
  Why a large cover plate distorts
• 2
  How 5-axis setups change the clamping plan
• 3
  Rough, stress relieve, then finish
• 4
  Material choice and what it does to the cut
• 5
  What flatness and hole position really cost
• 6
  When a large cover plate should not be milled from solid
• 7
  Choosing the setup for a large cover plate

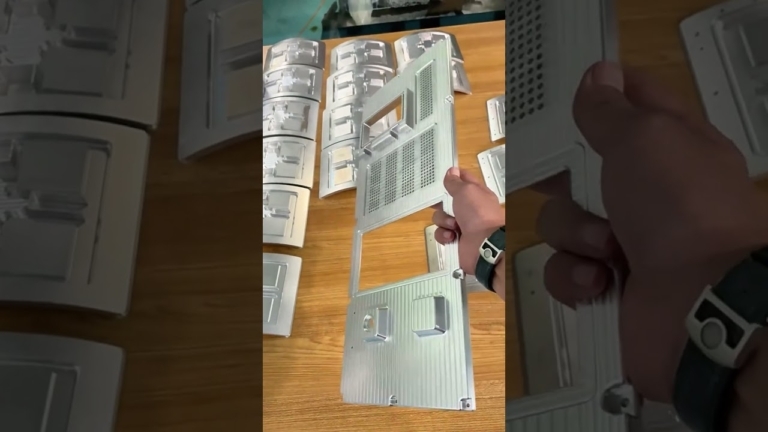

A cover plate is usually a thin, wide part with a bolt pattern around the edge, a few pockets, and a sealing face. On a 200 mm plate, machining stress is small compared with the stiffness of the part. On a 1,500 mm plate, the same cutting forces bend it, and the material you remove releases internal stress that was locked in during rolling or casting.

The first sign is not a bad dimension. It is a flatness reading that changes between the machine and the inspection table. The part was clamped flat, cut flat, and released into a different shape. Nothing was machined wrong. The fixture was holding the part in a shape it did not want to keep.

Aluminium plate is the usual case. A 6061-T6 plate 1,200 × 800 × 12 mm can move 0.3–0.8 mm after the skin is removed if it is cut in one pass with no stress relief. That number is not a tolerance failure in the cut. It is a distortion failure in the sequence.

The engineering meaning is simple. On large plates, the process plan controls the result more than the machine accuracy does. A ±0.005 mm machine cannot save a part that is clamped into a twist.

On a 3-axis machine, a large cover plate is normally held on a vacuum table or a fixture plate with edge clamps, and every face that needs work becomes a separate setup. Each time you unclamp, the part relaxes. Each time you reclamp, you may pull it into a new shape. Three setups means three chances to lose flatness.

A simultaneous 5-axis center with a Ø400 mm rotary table lets the tool reach the sides, angled bosses and undercuts without moving the part. For cover plates with a raised rim, a sloped sealing flange or a deep internal pocket, one setup often replaces three. Fewer unclamps means fewer stress-release events.

Tilting the part also helps the tool. A 45° tilt lets a short, stiff end mill reach a wall that would need a long tool in a 3-axis setup. Short tools deflect less, so the wall stays straighter and the surface finish holds. On deep pockets, the difference between a 4:1 and an 8:1 tool length is visible in the wall taper.

Not every plate needs 5-axis. If your cover plate is flat on both sides with edge holes, a 3-axis mill with a vacuum fixture is faster and cheaper. The 5-axis argument is about features, not size.

The fixture matters more than the axis count. A vacuum table with a proper gasket grid, or a fixture plate machined to match the part contour, supports the plate across its area instead of at four points. Support is what keeps a thin plate from vibrating under the cutter.

The sequence that works on large plates is not the sequence that works on small ones. Cut the part to near net shape first, leaving 0.5–1.0 mm on the faces that matter. Then release the clamps and let the part sit. Then finish.

For aluminium, a roughing pass followed by a rest of several hours, or a low-temperature stress-relief cycle, removes most of the movement before the final cut. For castings, the movement is often larger and happens earlier, so the roughing allowance should be bigger.

Heat is the second source of movement. A 20 mm face mill taking a full-width cut in aluminium puts a lot of heat into a thin plate. The top face expands, the tool cuts to a hotter surface, and the part bows when it cools. Use air blast or flood coolant, reduce the radial engagement, and keep the chip load steady rather than pushing feed to finish faster.

Finishing passes should be light. A 0.2–0.3 mm depth of cut with a sharp, coated cutter leaves a better face than a heavy pass with a worn one. On sealing faces we aim for Ra 0.8–1.6 μm, which is reachable on aluminium and stainless without a separate polishing step.

Measure after cooling, not straight off the machine. A plate that reads flat at 40 °C may read differently at 20 °C.

Aluminium 6061 and 6082 are the default for large cover plates because they cut fast and move less than steel of the same thickness. 7075 is stronger but more prone to movement after machining, so it suits smaller, stiffer sections better. 5052 and 5083 hold up better in marine and welded assemblies.

Stainless 304 and 316 are common for food, medical and chemical covers. They work-harden, so the cutter must stay in the cut. A light pass that rubs instead of cutting will harden the surface and wear the tool quickly. Rigid fixturing and a constant feed rate matter more here than on aluminium.

Steel plates for industrial machinery are usually 1018, 1045 or 4140. These need slower speeds, more coolant, and a heavier machine to avoid chatter on a long, thin section.

Titanium and Inconel cover plates exist in aerospace work, but the cost is in the cycle time, not the material alone. Heat stays in the cut zone, tool life drops, and the process window narrows. For those parts, a roughing strategy with high-pressure coolant is usually the difference between a stable job and scrapped plates.

Plastics behave differently again. POM and PEEK move with temperature and clamp pressure, so a vacuum fixture with light clamping is better than mechanical clamps.

A large cover plate usually carries two tolerance families: the sealing or mating face, and the bolt pattern. The face is a flatness callout. The holes are position callouts relative to each other, not to an outside edge.

Flatness on a 1,000 mm plate is harder to hold than on a 100 mm plate because the same distortion is spread over a longer span and any bow shows up directly. On aluminium we hold ±0.005 mm on critical features and control flatness with the sequence rather than with a final straightening operation. Bending a plate straight after machining puts stress back in.

Hole position is measured on a CMM after the part has cooled and is sitting free, not clamped. If you measure a plate while it is still bolted to a fixture, the numbers are meaningless for the assembled part.

We inspect 100% of parts before shipment, with raw material checks, in-process monitoring and a final inspection. Reports are available on request. For cover plates, the report usually includes flatness, hole position and the surface finish of the sealing face.

If your drawing calls for a flatness tighter than the plate thickness allows, the fix is often a design change: a thicker plate, a rib, or a smaller unsupported span. Machining cannot remove physics.

Machining from solid is the right answer for prototypes, low volumes, and parts with tight flatness or sealing requirements. It is the wrong answer for a large, simple cover in a 10,000-piece run.

If the plate is mostly flat with a few holes and no sealing face, laser cutting or waterjet plus a light face mill is faster and cheaper. If it needs ribs and bosses, die casting or vacuum casting may beat milling on unit cost at volume, with machining only on the critical faces.

Sheet metal fabrication is another option for covers under about 3 mm thick. A formed cover with a hemmed edge is stiffer than a flat plate of the same weight, and it avoids the distortion problem entirely because there is no thick section to relieve.

The honest comparison is not machining versus casting. It is how much of the part must be machined. On many large covers, the answer is 20% of the surface: the sealing face, the bolt holes and one locating bore. The rest can be formed, cast or cut.

At GreatLight we run both sides of that decision. If a cover plate is better made by casting or sheet metal, we say so. There is no minimum order quantity here, so a single prototype and a 10,000-part run are both normal work.
