CNC Machining of Aluminum Housings

• 1
  Key takeaways
• 2
  What makes an aluminum housing different from a plate part
• 3
  Stock choice and how it shapes the first operation
• 4
  Wall thickness, chatter and the limits of the cut
• 5
  Datums, workholding and why the second operation drifts
• 6
  Bores, seals and surface finish inside a housing
• 7
  When 5-axis actually pays for itself
• 8
  3-axis vs 4-axis vs 5-axis for housing work

A bracket or a plate is mostly open on one side, so the cutter can reach every face without a long tool. A housing is closed. You are removing material from inside a box, through a limited opening, and the remaining walls are thin relative to their length. That geometry changes which errors matter. Flatness on a 300 mm plate is usually a fixturing question. On a housing wall it is a stiffness question.

The second difference is the number of functional faces. A housing typically carries a mounting flange, one or more bearing bores, a cover face, and a connector or port face. Each one has its own tolerance and its own relationship to the others. Position between two bores matters more than the absolute size of either. So the setup plan, not the spindle, sets the achievable result.

Aluminum helps here. Its modulus is roughly one third that of steel, so it deflects three times as much under the same cutting force. It also conducts heat about five times faster than steel, which pulls heat out of the cut and into the body of the part. That is good for tool life and bad for thin walls, because the part grows while you cut it and shrinks when it cools.

• 1
  Open geometryShort tools, rigid setups, tolerance set by the machine.
• 2
  Closed geometryLong tools, thin walls, tolerance set by the process.
• 3
  Alloy choice6061 machines cleanly; 7075 holds a better finish but cracks at sharp internal corners.

Most aluminum housings start as either plate or extrusion. Plate gives you a homogeneous grain structure and no internal void, which matters for pressure-tight covers and for parts that get anodized. Extrusion is cheaper and closer to net shape when the housing has a constant cross-section, but the profile carries residual stress from the quench. Cut the skin off one side and the part bows.

Castings are the third route. ADC12 die castings are common for automotive and electronics enclosures because the near-net shape removes most of the roughing time. The trade-off is porosity. A casting can have scattered micro-voids that only show up after you face into them. If the housing has to be leak-tight or take a mirror finish, that is a conversation to have before the tooling is cut.

For prototypes, plate is almost always the right answer. No tooling cost, no porosity risk, and the geometry can change between revisions. Move to casting or extrusion when the annual volume justifies it and the wall thickness is stable enough that near-net stock is genuinely near net.

One practical rule: leave 0.5–1.0 mm of stock on any face that will be a datum. The first pass should clean up the surface enough that the clamp sits flat, then you re-datum from the machined face for the remaining operations. Skipping that step is the most common reason a housing comes out twisted.

• 1
  PlateBest for prototypes and low volume; predictable internal structure.
• 2
  ExtrusionGood for constant-section housings; expect stress relief after skin removal.
• 3
  Die castingLowest cycle cost at volume; porosity limits finishing and sealing.

Aluminum walls below 1.5 mm behave like a membrane under a milling cutter. The tool pushes the wall away, the wall springs back, and the finished thickness varies along the length. You can reduce this with a smaller radial depth of cut and a higher spindle speed, but at some point the wall is simply too flexible to hold ±0.05 mm over a long span.

The usual fix is support, not a slower feed. Backing the wall with a machined plug, a wax or low-melt fixturing compound, or a temporary rib that gets removed in a later op keeps the wall from moving during the cut. For a housing with a 1.0 mm side wall and a 120 mm span, that support step is not optional. It is the process.

Ribs and bosses help the design side as much as the machining side. A 1.2 mm wall with a 3 mm rib every 40 mm is stiffer than a 2.0 mm wall without ribs, and it weighs less. If the housing is going into a handheld device or a drone, that difference is worth designing for from the first sketch.

Sharp internal corners are the other limit. A cutter has a radius, so an internal corner cannot be sharper than that radius unless you use EDM. On 7075, a sharp internal corner also concentrates stress and can crack during anodizing. Design a corner radius at least one third of the wall thickness and the part will machine and finish better.

• 1
  Below 1.5 mmExpect to add support; tolerance will otherwise follow the wall, not the drawing.
• 2
  2–4 mmComfortable range for most housings; standard cutters hold tolerance well.
• 3
  Above 5 mmRoughing time dominates; consider near-net stock or a casting.

A datum that disappears after the first cut is not a datum. It is a starting point. If the drawing calls out a mounting flange as datum A and the first operation faces that flange, then datum A no longer exists in its original state. The second operation has to be located from something that survived, usually a machined bore or a set of dowel holes.

The practical approach is to machine a temporary reference in the first op: two dowel holes and a flat pad, placed where they will not interfere with the finished part. Every later operation locates from those features. The temporary reference is removed in the final op, after the real datums have been established. This is standard practice on housings with tight bore-to-bore position.

Thermal drift is the second source of movement. A spindle running at 12,000 rpm for an hour puts heat into the part and the fixture. On a 200 mm aluminum housing, a 5 °C rise moves a bore roughly 0.01 mm. If the drawing tolerance is ±0.02 mm, that is half your budget gone before the tool touches the part. Let the part stabilize before the finishing pass, or cut the finishing pass in the morning when the shop is cool.

Clamping force matters too. A vise closed on a thin wall will distort it, and the distortion is released the moment you unclamp. For housings, use a fixture that clamps on a thick boss or on the base flange, and keep the clamping pressure low enough that a dial indicator on the opposite wall does not move more than 0.01 mm.

• 1
  Surviving datumsLocate later operations from machined bores or dowel holes, not from raw stock.
• 2
  Thermal budgetA 5 °C rise costs about 0.01 mm on a 200 mm aluminum part.
• 3
  Clamp where it is thickNever clamp a 1.5 mm wall directly; use a boss or the base flange.

Bearing bores and seal bores are the features that decide whether the housing works. A bore that is round to 0.005 mm but tapered along its length will still leak or preload a bearing wrong. Check roundness and cylindricity, not just diameter. On a Ø40 mm bore, a 0.01 mm taper is usually a sign that the boring bar deflected or the part moved during the finishing pass.

Finish depends on the function. A bearing seat typically wants Ra 0.8–1.6 μm. A seal bore wants a smoother, more consistent finish, often Ra 0.2–0.8 μm, and it wants that finish in a helical or axial direction rather than a crosshatch. A cover face that gets a gasket can be rougher, Ra 1.6–3.2 μm, because the gasket fills the texture.

Anodizing changes the bore size. A hardcoat anodize can add 25–50 μm of oxide per surface, which shrinks a bore by roughly twice that. If the bore is a bearing seat, mask it or plan the pre-anodize diameter accordingly. The same applies to threaded holes: anodizing a 1/4-20 thread will make it tight enough that a standard bolt will not run in without chasing.

For leak-tight housings, the sealing face is the part to control. A 0.05 mm step at a sealing surface is enough to open a path. Face it in one continuous pass, and inspect it with a straightness check, not just a surface finish reading.

• 1
  Bearing seatRa 0.8–1.6 μm; control roundness and taper, not just size.
• 2
  Seal boreRa 0.2–0.8 μm; keep the lay direction consistent.
• 3
  Cover faceRa 1.6–3.2 μm is fine when a gasket is in the joint.

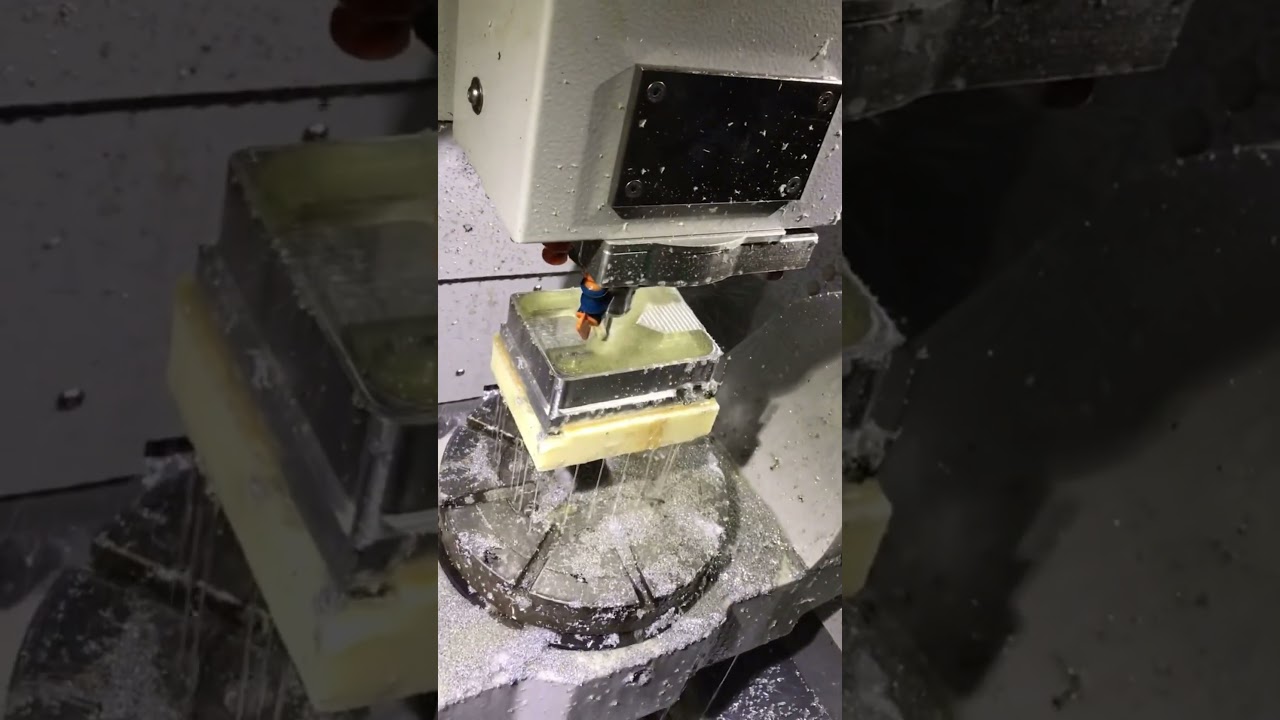

Five-axis is not automatically better. It costs more per hour, and it needs a clean CAD model and a well-planned toolpath. Where it wins is when a part has features that sit off the three primary axes and those features have to hold position to each other. A port boss at 30° to the main axis, with a sealing face and four bolt holes, is a natural five-axis feature. On a 3-axis machine that face needs a tilting fixture, and the position error between the port and the main bore now depends on how well that fixture was set.

The second case is a contoured outer skin. A housing with a swept outer surface and a uniform wall behind it is hard to blend on a 3-axis machine because the tool has to reach around the curve. A simultaneous 5-axis toolpath keeps the cutter normal to the surface, which gives a more even wall and a better finish.

Where 5-axis does not help: a rectangular box with six flat faces. There is nothing to tilt toward. A 3-axis machine with good fixtures will match the tolerance and cost less. The same goes for a housing that is mostly a turned part with a few milled flats; a mill-turn center handles that in one setup without the cost of a full 5-axis cycle.

A reasonable rule: count the faces that sit off the primary axes and carry a position tolerance to another feature. Two or more, and 5-axis is usually the cheaper route once you account for fixture cost and re-datum error. One, and it depends on the tolerance.

• 1
  Angled port facesStrong 5-axis candidate, especially with a sealing face and bolt pattern.
• 2
  Contoured skins5-axis keeps the wall even and the finish consistent.
• 3
  Flat boxesStay on 3-axis; add fixtures, not axes.
