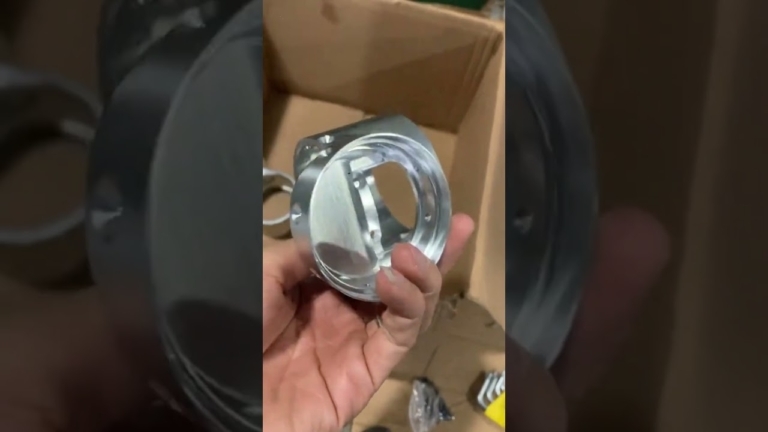

CNC Machining Curved Arm Geometry: What Decides the Result

• 1
  Why a Curved Arm Cuts Differently From a Block
• 2
  Tool Access and the Reach Problem in CNC Machining Curved Arm Sections
• 3
  Wall Thickness, Runout and Why Curved Arms Move Under the Cutter
• 4
  Material Choice Changes the Curved Arm Process
• 5
  How to Verify a Curved Arm Without Guessing
• 6
  Curved Arm Features and the Right Machine Setup

On a straight part, the cutter path is mostly predictable: engagement stays steady, chip load stays steady, and the tool wears evenly. A curved arm breaks that. As the tool follows the arc, the contact width between flute and material changes continuously. A cutter that is fully buried at the start of a pass can be nearly free-cutting 30° later.

That swing matters because cutting force tracks engagement. Where the arc bends inward, radial engagement climbs and the tool pushes harder against the wall. Where it bends outward, the tool lifts and can rub instead of cut. Rubbing generates heat, work-hardens stainless and titanium, and shortens tool life fast.

The practical result: on a curved arm, feed and speed cannot be treated as one setting for the whole operation. Either the CAM path is split into zones with different feed rates, or the part is set up so the tool keeps a constant angle to the surface. The second option is what 5-axis simultaneous motion is for.

One more effect is direction. The outer arc of the arm is a convex surface, and a ball nose cutter leaves a scallop whose height depends on stepover. The inner arc is concave, and the same stepover leaves a taller scallop plus a risk of gouging the wall opposite. Those two surfaces usually need different stepover values in the same program.

• 1
  Convex vs concaveThe same stepover leaves a taller scallop on the inside of the bend.
• 2
  Engagement swingsRadial cut width can double or halve along one arc pass.
• 3
  Rubbing riskLow engagement on stainless and titanium hardens the surface instead of cutting it.

A curved arm is usually a link: two bores at the ends, an offset web between them. The offset is what creates the access problem. If the arm is bent in one plane and the bores sit parallel, a 3-axis machine can often reach both ends and the outer curve from two or three setups. If the bores sit on non-parallel axes, or the bend is compounded, the part no longer has a sensible single orientation.

That is the dividing line for machine choice. A 3-axis mill with a rotary table on a simple link is a proven setup. A compound curve with two non-parallel bores belongs on a 5-axis machine, where the table can tip the part and the tool stays short and rigid over the cut. Long tools deflect. A Ø10 mm end mill hanging 80 mm out of the holder will push away from the wall under load, and the error lands directly on the arm's bore-to-bore distance.

Reach also sets the minimum tool diameter. Tight inner radii need small cutters, small cutters need high spindle speed to keep the surface speed up, and high speed with a long reach is where chatter starts. On a curved arm, the corner where the web meets the bore boss is usually the tightest radius on the part, and it governs the whole tool list.

Before quoting, we check three things on the model: the smallest internal radius, the longest unsupported tool length needed to reach the deepest face, and whether any feature is hidden from every direction. The last one is the only case that genuinely cannot be machined.

A curved arm is a lever. Every cut pushes on the free end, and the free end is far from the vise. Even a well-supported arm flexes a little, and the flex shows up as a taper or a wavy wall rather than an obvious dimension error.

Wall thickness is the main lever here. Below about 1.5 mm in aluminum, the wall starts to ring under a normal finishing pass. The fix is not a slower spindle. It is a lighter radial cut, a sharper tool with a higher rake angle, and sometimes a temporary support or a partial cut that leaves a rib until the last pass.

Runout on the bores is the other number that matters. If the two end bores are machined in separate setups, the stack-up of fixture error, re-datum error and thermal change lands on the arm's center distance. On a link, that distance controls the mechanism's timing. Machining both bores in one 5-axis setup removes the re-datum step entirely, which is why we push compound arms onto a single setup when the part fits the machine envelope.

For a typical robot arm link in 6061-T6, a stable process looks like this: rough leaving 0.4 mm on walls, semi-finish leaving 0.1 mm, finish with a 6 mm or 8 mm cutter at a 5 to 8 percent stepover, and a spring pass on the bores. In 7075 or 17-4PH the same arm needs lower radial engagement, because both materials work-harden at the cutter edge.

• 1
  Under 1.5 mm wallExpect ring and taper unless radial cut is reduced.
• 2
  Single setupRemoves re-datum error between the two end bores.
• 3
  Spring passA light final bore pass corrects elastic recovery.

Aluminum 6061-T6 is the default for a curved arm: it cuts fast, holds a thin wall reasonably well, and takes anodizing without trouble. 7075 gives higher strength for the same section, but it is less forgiving on thin walls and chips aggressively at the cutter edge. If the arm is stiffness-driven rather than strength-driven, 6061 with a slightly thicker web usually beats 7075 with a thin one.

Stainless 304 and 17-4PH are common where corrosion or fatigue matters. Both work-harden, so a light feed with a dull tool puts a hard skin on the surface that the next pass has to cut through. Tool changes matter more than speed here. 17-4PH in the H900 condition is strong and machines well, but the heat treat has to be sequenced correctly relative to the finishing cuts.

Titanium Ti-6Al-4V and Inconel are used on curved arms in aerospace and energy hardware. Both cut at low surface speed, generate heat at the edge, and need rigid setups. A long, thin titanium arm is the hardest case on this page: low stiffness in the part, low thermal conductivity in the material, and high tool wear all at once.

For non-metals, POM and PA are sometimes used for arm prototypes, and carbon fibre where weight dominates. Carbon fibre machines as an abrasive composite, so it needs carbide or diamond tooling and dust control, not a standard aluminum program.

A curved arm is hard to measure because the datums are at the ends and the surface between them is a curve. CMM inspection with the bores as primary datums is the standard approach, and it lets us report center distance, angular position of the bores, and profile deviation of the outer curve in one report.

For tight arms we probe the part on the machine before finishing. The probe picks up the actual bore position, the CAM program shifts the finishing path to match, and the re-cut removes the setup error instead of reporting it. This works well on two-bore links where position, not size, is the risk.

Surface finish is checked against the drawing callout. A curved arm that slides or rotates against another part usually calls for Ra 0.8–1.6 μm on the running surfaces, while non-functional outer faces are fine at Ra 1.6–3.2 μm as machined. Polishing a curve by hand is possible but it changes the profile, so it should be agreed before the run starts.

Every part we ship is inspected before it leaves the floor, with reports available on request. Raw material certificates, in-process checks and the final report are kept together with the job, so a later question about one arm can be answered from the record rather than from memory.
