  Why CNC machining birdhouse artwork is harder than it looks
• 2
  Tool access: where the cutter can and cannot reach
• 3
  Wall thickness and grain direction decide whether it survives
• 4
  Fixturing: how to hold a hollow shell without crushing it
• 5
  Surface finish and edge treatment for outdoor artwork
• 6
  Which process fits which birdhouse design

Most decorative parts start as a block and lose material from the outside. A birdhouse does the opposite. You cut a hollow interior, then cut an entry opening through one wall, then keep the roof and floor attached to walls that are often 4–6 mm thick. Every operation removes stiffness from the part you are still holding.

The entry bore is a deep blind feature with a diameter far smaller than its depth. The interior is a cavity with a floor. The roof overhang sits above a wall and points its underside away from any tool coming straight down. Three features, three different access directions, one workpiece.

That is why the same file can run in 40 minutes on one machine and 4 hours on another. The difference is not spindle speed. It is how many times the part has to be re-fixtured, and how much of the cavity the tool can reach without the shank rubbing the wall behind it.

For a one-off gift piece the answer barely matters. For a run of 200 units sold as CNC machining birdhouse artwork, a 20 percent cycle-time gap is the whole margin. So the geometry decision comes before the finishing decision.

Start with the entry hole. A typical birdhouse opening is Ø32–Ø50 mm. That is large enough for a Ø12 mm end mill to pass, but only if the hole axis is normal to the wall and the wall is flat around it. Put the opening on a curved or angled face and the tool enters at an angle, which means the effective cut diameter shrinks and chatter rises.

The cavity floor is the second limit. A 3-axis machine can cut the floor, the vertical walls and the opening, but it cannot cut the underside of the roof overhang. That surface either stays as-cast tool marks, gets a hand finish, or needs the part tilted.

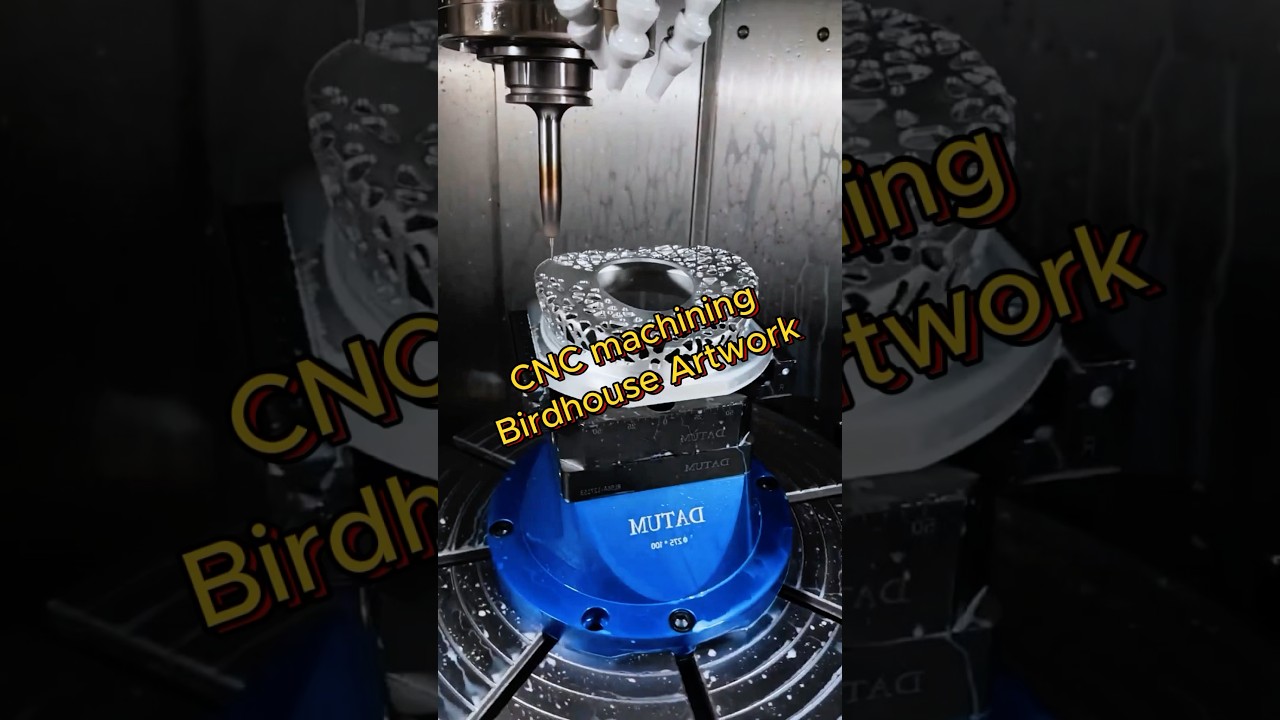

Tilting is what 5-axis buys you. With a Ø400 mm rotary table and a short gauge-length tool, the machine can swing the part and bring a Ø6 mm cutter under the overhang at 30–45° from the surface normal. Reach goes up, but so does programming time.

The third limit is the shank. A Ø6 mm cutter with 40 mm of flute length deflects. Keep the flute length under 3× diameter where the wall is thinner than 5 mm, and use a stub tool for the last 2 mm of depth. If the model cannot accept that, the wall needs to get thicker, not the tool longer.

Machined wood and machined aluminium behave differently at the same wall thickness. In 6061 aluminium, a 3 mm wall holds form under normal roughing if you take light depths of cut. In a hardwood blank, the same 3 mm wall can split along the grain when the roof is clamped.

The rule we use: keep structural walls at 5 mm or more in wood, 3 mm or more in aluminium, and 4 mm or more in PMMA or POM. Cosmetic walls can go thinner, down to 1.5 mm, but only where no clamp touches them and no bolt passes through.

Grain direction matters more than most CAD reviewers expect. A roof panel cut with the grain running across its short span is roughly twice as stiff as the same panel cut the other way. Rotate the blank in the fixture, not the toolpath.

If the design needs a 2 mm wall in wood, that is a signal to change process. Vacuum casting or resin 3D printing holds a thin wall with less risk, and the surface can still be sanded and painted. CNC machining birdhouse artwork is not always the right answer, and saying so early saves a scrapped run.

Once the interior is hollow, the part is a shell. Clamping it on the outside deforms it. Clamping it on the inside needs a fixture small enough to enter the cavity and strong enough to resist cutting force. This is where most of the setup time goes.

For small runs we cut the part in two halves, machine the cavity in each half, then join them. The joint line is hidden under the roof cap or along a corner chamfer. Two halves cut the cavity access problem entirely, and each half is a rigid open part while it is being cut.

For larger runs we machine a soft jaw set that matches the outside profile, or a dedicated fixture plate with locating pins. A cavity-negative fixture, cut from POM or aluminium, supports the inside of the shell at 4–6 points and leaves the outside free for the finishing pass.

Vacuum workholding works well on flat-bottomed birdhouses with a footprint over 100 × 100 mm. Below that the holding force drops off and a mechanical fixture is safer. Either way, check the first article for wall deflection before running the batch.

As-machined finish lands at Ra 1.6–3.2 μm, which is fine for painted wood and rough for anodized aluminium. If the birdhouse will be anodized clear or colored, cut the visible faces to Ra 0.8–1.6 μm so the anodize reads even instead of showing tool marks.

Bead blasting is the fastest way to hide tool marks on a complex roof. It also slightly rounds sharp edges, which matters for outdoor pieces because a sharp 90° edge loses paint first. A 0.5 mm chamfer or a 1 mm radius on every external edge costs almost nothing in cycle time.

Deburring the entry bore matters more than it looks. A sharp lip at the opening wears and chips as birds enter and leave. A 0.5 mm chamfer on both ends of the bore removes that failure point.

For wood parts, sanding to 180–220 grit and then sealing with an exterior-grade finish is enough. Do not over-sand the machined detail, or the crisp toolpath lines that make the artwork read will disappear.
