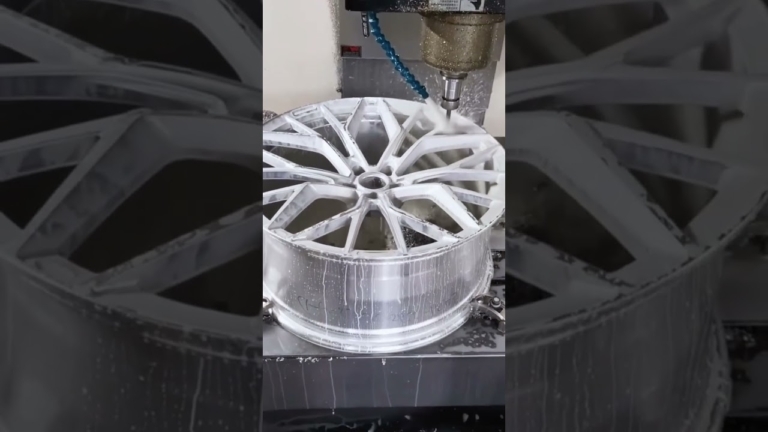

CNC Machining Automobile Wheels: How 5-Axis Machining Works

• 1
  What CNC Machining Automobile Wheels Really Cuts
• 2
  Blanks, Fixturing and the First Datum
• 3
  Why 5-Axis Motion Helps on Wheel Discs
• 4
  Cutting Parameters and Sequence
• 5
  Where Machining Stops Being the Right Answer
• 6
  Machined vs Cast vs Forged Wheels

A wheel is two jobs in one part. The rim is a surface of revolution: bead seats, flanges, a drop center, and a mounting face that must sit flat against the hub. The disc is a plate with spokes, windows, bolt holes and a center bore. Turning handles the first job well. Milling handles the second.

On a one-piece wheel, those two jobs meet at the drop center. The cutter has to reach from the outboard face, over the spoke shoulder, into the barrel, without leaving a witness line where the two operations overlap. That transition is the reason 5-axis work shows up on wheel drawings at all.

Not every wheel needs that reach. A flat-faced wheel with straight spokes and no undercut can be finished on a 3-axis mill plus a lathe. The moment a spoke tapers in two directions, or the window edge tucks under, a 3-axis setup runs out of tool clearance.

So the first question is not which machine is better. It is whether the spoke geometry has an undercut. If it does not, you are paying for motion you never use.

• 1
  Rim featuresBead seat, flange, drop center, mounting face
• 2
  Disc featuresSpokes, windows, bolt circle, center bore
• 3
  Undercut spokesThe usual trigger for 5-axis machining

Machined wheels usually start as castings or forgings, not as bar stock. A forged blank costs more but has finer grain flow and less porosity, so the machined surface stays clean. A cast blank machines faster and is cheaper per piece, but you may cut into a gas pocket and scrap the part.

The blank needs a datum before anything else happens. We face the mounting face first, then grip on that face for the rim operations. This keeps the runout stack in one direction instead of splitting it between two setups.

Runout is the number that decides whether the wheel shakes at highway speed. Lateral runout at the bead seat and radial runout at the flange both matter. A machined wheel can hold these tight because the same datum carries through every operation.

Clamping force is the quiet risk. Grip a thin barrel too hard and it springs back oval once the jaws open. Soft jaws bored to the blank diameter, plus a light finish pass, usually solve it.

• 1
  Forged blankBetter grain flow, fewer internal voids
• 2
  Cast blankCheaper, but porosity can scrap a part
• 3
  Soft jawsBored to blank size to limit ovality

A 5-axis machining center adds two rotary axes to the three linear ones. On a wheel disc, that means the tool can tilt to stay normal to a curved spoke face instead of approaching it from one fixed direction. Short, stiff tools cut better than long ones, and tilting lets us keep the tool short.

The practical gain is one setup. Spoke faces, window walls and the bolt circle can be reached without re-chucking the part. Every re-chuck adds a runout contribution and a handling step. On a 16-machine 5-axis floor, this is the difference between two fixtures and four.

Tilting also helps surface finish. When a ball nose cutter stays perpendicular to the surface, the step-over marks are even. Approach the same spoke at a fixed angle and the effective radius changes across the cut, so the finish drifts.

One limit: 5-axis motion does not fix a bad blank. If the casting is warped, the machine will faithfully cut a warped wheel. Inspection of the blank matters more than the machine count.

• 1
  Single setupFewer re-chucks, less runout stack
• 2
  Short toolsTilt keeps the cutter stiff, less chatter
• 3
  Even step-overConsistent Ra across curved spokes

Roughing on aluminium wheels runs fast. On 6061-T6 we take 3–6 mm radial depth with a 12 mm carbide end mill at 8,000–12,000 rpm, leaving 0.3–0.5 mm for the finish pass. Heat-treated 7075 wants lower surface speed and a sharper edge, or the cut starts to smear.

The sequence matters more than any single number. Face the mounting face, bore the center, turn the rim, then mill the disc. Turning the rim last would put the chuck on a finished spoke face, which is a good way to dent it.

Bolt holes are drilled and reamed in the same setup as the center bore. That keeps the bolt circle concentric with the hub bore. A bolt circle that is off by 0.1 mm will still bolt up, but it loads the studs unevenly.

Deburring is not optional. A raised burr on a window edge becomes a crack starter under road load. We break edges by hand on small runs and with a chamfer tool on production runs.

• 1
  6061-T6 roughing3–6 mm radial depth, 8,000–12,000 rpm
• 2
  7075 finishingLower surface speed, sharp edge
• 3
  SequenceFace, bore, turn rim, mill disc

Cycle time is the wall. A 100% billet wheel can take hours per part, most of it spent turning chips into scrap. If you need 5,000 wheels a year, casting or flow forming will beat machining on cost every time.

Size is the second wall. We machine up to 4,000 mm on the largest travels, but wheel sizes sit far below that. The real constraint is the rotary table: a Ø400 mm table limits how large a disc you can index in one setup.

Material removal also changes the part. Cutting deep windows out of a forged blank removes the material that carried the load. The finished wheel is not the blank minus holes; it is a new structure, and it should be checked as one.

So machining earns its place in prototypes, low-volume and motorsport wheels, and in any case where runout and finish have to be tight before a casting tool is cut. Beyond that, the numbers usually point elsewhere.

• 1
  VolumeCasting wins above a few thousand units a year
• 2
  Table sizeØ400 mm rotary table caps single-setup indexing
• 3
  StructureDeep windows change load paths, re-check the design
