Engineering explainer

CNC Machined Filter Disk: How It Works and When 5-Axis Pays Off

A filter disk is a thin plate with a hole pattern that sets flow rate, filtration grade, and pressure drop. This page explains the geometry, the machining routes, and the points where a design stops being practical. Written for design and process engineers who need to decide between turning, 3-axis milling, and 5-axis work before releasing a drawing.

±0.005 mm toleranceRa 0.8–1.6 μm16 five-axis centersNo MOQ

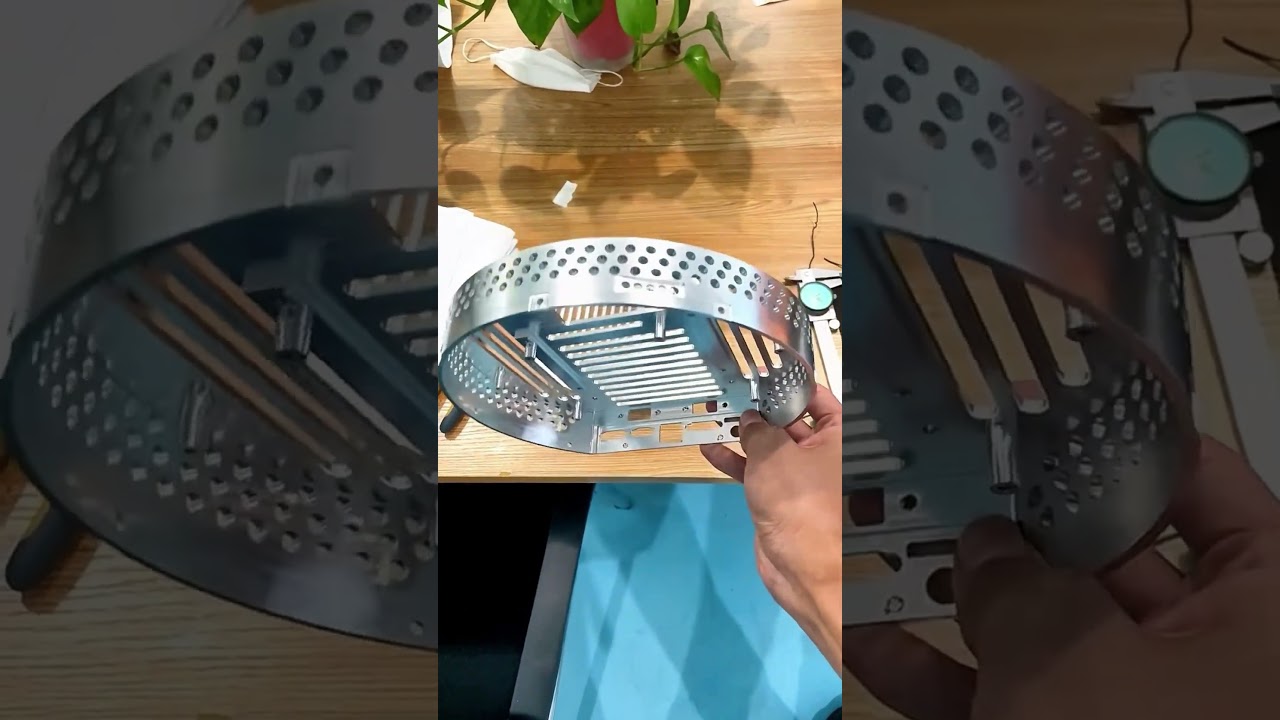

CNC machined filter disk produced on a 5-axis machining center
Function

What a CNC Machined Filter Disk Actually Does

A filter disk is a flat or dished plate pierced with a pattern of holes, slots, or tapered passages. Fluid or gas crosses it once, and the pattern decides three things at the same time: how much passes, what size particle is stopped, and how much pressure is lost. Change the hole diameter by 0.05 mm and all three numbers move.

That coupling is why the part is machined rather than stamped. A punched plate holds hole size to roughly ±0.05 mm and leaves a shear burr on one face. A CNC machined filter disk holds ±0.005 mm, keeps the bore round, and lets you taper each passage so the inlet is wider than the outlet.

The taper matters more than most drawings suggest. A straight bore clogs at the inlet face because particles bridge across the opening. A cone that narrows from 1.2 mm to 0.8 mm keeps the smallest section downstream, so debris is pushed through instead of settling on top. Backflush also clears it faster.

Dished and domed versions show up in hydraulic and fuel service. The curvature adds stiffness so a 0.8 mm plate survives 20 bar differential without bowing into the downstream cavity. A flat plate of the same thickness would deflect and leak around the seal.

  • 1
    Open area ratioHole count × hole area ÷ disk face area. Most designs land between 15% and 40%.
  • 2
    Aspect ratioDepth ÷ diameter. Above 4:1, chip evacuation and drill breakage become the main cost.
  • 3
    Edge conditionDeburred and radiused inlets, never a sharp shear edge.
Geometry

Hole Pattern, Open Area, and Pressure Drop

Pressure drop across a perforated plate follows a square law against flow. Doubling flow roughly quadruples the loss through the same pattern. So the design question is never just hole size. It is hole size against the flow the system must pass at the cleanest and dirtiest states.

Start from the clean-state target. If the pump delivers 30 L/min and the disk may cost no more than 0.3 bar when new, calculate the open area that passes 30 L/min at 0.3 bar, then add 20% margin. That margin covers manufacturing variation and the first layer of trapped debris.

Then check the plugged state. A disk sized exactly to the clean requirement will hit the bypass threshold after a short service interval. In practice, engineers specify an open area 1.5 to 2 times the clean minimum, accepting a slightly larger housing.

Pattern layout affects the same numbers. A hexagonal pitch packs about 10% more holes into the same face than a square grid. Concentric rings are easier to program and inspect but leave dead bands between rings where flow stalls and particles collect.

  • 1
    Square gridSimplest CAM, largest dead area between rows.
  • 2
    Hexagonal pitchBest open area for a given ligament width.
  • 3
    Concentric ringsGood for round housings, watch the inter-ring gap.
Process choice

Turning, 3-Axis Milling, or 5-Axis Machining

A round disk with axial holes and a plain outside diameter is a lathe part. Turn the OD, face both sides, drill the pattern on a live-tool lathe or a mill-turn center, and you are done at the lowest cost per part. Our 16 mill-turn centers handle this in one setup for diameters up to Ø400 mm on the rotary table.

Move to 3-axis milling when the pattern is not axisymmetric, when the plate is rectangular, or when the holes sit at an angle to the face. A 3-axis machine with the plate flat on the table drills angled holes only by tilting the fixture, which adds a second setup and a positional stack-up.

Angled or radial passages on a curved disk are the case for 5-axis work. A domed fuel filter with 40 passages drilled normal to the surface needs the tool axis to follow the curvature. On a 3-axis machine that means 40 fixture positions or a specially ground form tool. On a 5-axis center it is one program and one setup.

There is a cost crossover, and it is not as high as buyers expect. If a part needs three or more setups on 3-axis, or if the angled features carry a position tolerance tighter than ±0.05 mm, 5-axis usually wins on total cost even at moderate volumes. We run 16 simultaneous 5-axis machining centers, so the setup time is spread across the batch.

  • 1
    Lathe or mill-turnRound disk, axial holes, symmetric pattern.
  • 2
    3-axis millRectangular plate, flat face, perpendicular holes.
  • 3
    5-axisDomed or conical disk, angled passages, tight true position.
Tolerances

Which Tolerances on a Filter Disk Really Matter

Not every dimension deserves a tight number. Over-tolerancing a filter disk raises cost without improving function. Four features control behavior: hole diameter, hole position, plate thickness, and flatness.

Hole diameter sets the filtration grade. For a 1.0 mm nominal hole, hold ±0.02 mm. Tighter than that adds reaming or jig grinding time for no measurable gain in particle retention. If the grade must be exact, the hole is usually the wrong feature to control and a mesh or sintered layer does the filtering instead.

Hole position controls open area and seal land. A true position of Ø0.1 mm is normal. Where a hole sits close to an O-ring groove, tighten to Ø0.05 mm so the ligament does not thin below design. Hole-to-hole pitch matters more than absolute position because pitch sets the ligament width.

Plate thickness and flatness decide sealing. A 2 mm plate held to ±0.05 mm thickness and 0.05 mm flatness across the face compresses a gasket evenly. Our standard machining tolerance is ±0.005 mm when the drawing calls for it, but applying that to a 60-hole pattern is wasted money.

  • 1
    Hold tightHole diameter, ligament width, sealing face flatness.
  • 2
    Hold normalOverall thickness, OD, hole position away from seals.
  • 3
    Leave openNon-sealing edges, chamfer size, marking depth.
Materials

Material and Deburring Choices That Change Service Life

Stainless 304 and 316L are the default for water, fuel, and food-contact service. They resist corrosion and hold a clean bore. 316L is the pick when chlorides are present. Both are gummy compared with aluminum, so feeds stay moderate and coolant flow must be generous to clear chips from small holes.

Aluminum 6061-T6 suits air, oil, and low-pressure hydraulic disks where weight matters. It machines three to four times faster than stainless, which shows up directly in the price. Anodize the finished part if it sees moisture; hardcoat anodizing also raises surface hardness and improves wear at the seal land.

Titanium TC4 (Ti-6Al-4V) and Inconel appear in aerospace and high-temperature service. Both are slow to drill and work-harden if the tool rubs. Pecker drilling with full retract and a rigid setup is not optional here. Expect longer cycle times and plan the pattern to minimize hole count.

Deburring is where filter disks are quietly ruined. A wire brush pass rounds the inlet but can leave a rolled lip inside the bore, changing the effective diameter. We deburr with controlled chamfer tools and verify with a pin gauge or optical comparator. Bead blasting follows when the drawing calls for it, and it also removes the fine burr at the exit edge.

  • 1
    Stainless 304 / 316LWater, fuel, food and medical contact.
  • 2
    Aluminum 6061-T6Air and oil service where weight matters.
  • 3
    Titanium and InconelHigh temperature or high strength, slow to drill.
Inspection

How We Verify a Filter Disk Before It Ships

Hole patterns cannot be checked by sampling a few bores. If one passage in sixty is undersized, the disk behaves as a different part. We measure hole diameter with pin gauges or a bore comparator across the pattern, and record the result per feature.

Flatness and thickness come off the granite plate and a micrometer at several points across the face. For a sealing disk, the reading that matters is the edge-to-center variation, not a single mid-plate number. A plate that is uniformly 2.03 mm thick seals fine; one that runs 2.00 mm to 2.06 mm may not.

For 5-axis disks with angled passages, true position is the critical check. We verify it on a CMM against the datum scheme on the drawing. If the drawing does not define datums clearly, we flag it during the DFM review rather than guessing.

Every order gets a raw material check, in-process monitoring, and a final inspection before shipment. Inspection reports are available on request. Our documented qualification rate is 99.99%, and uploads stay confidential with an NDA available when the drawing is sensitive.

  • 1
    Hole diameterPin gauge or bore comparator, per feature.
  • 2
    FlatnessGranite plate, edge-to-center variation.
  • 3
    True positionCMM check against drawing datums.
Selection

Machining Route Selection by Disk Feature

Use the feature that dominates the drawing, not the part name.

Disk featureBest routeTypical toleranceWatch out for
Round disk, axial holes onlyMill-turn or lathe±0.02 mm holeBurr on exit face
Rectangular plate, flat face3-axis milling±0.05 mm positionSecond setup for edges
Domed disk, normal passages5-axis machining±0.05 mm true positionTool reach at the crown
Angled holes, tight pitch5-axis machining±0.02 mm pitchLigament thinning
Deep small holes, 4:1 or more3-axis with pecker cycle±0.03 mm diameterDrill breakage, chip packing
Wide slots, low open area3-axis milling±0.05 mm slot widthSlot corner radius limits
Seal land plus hole patternMill-turn, one setup±0.005 mm on faceRe-chucking error

When to Choose Each Route

If your disk is round with axial holes, keep it on a mill-turn center and spend the money on deburring. If the passages are angled, normal to a curved face, or need true position tighter than ±0.05 mm, go to 5-axis and accept the higher hourly rate because one setup replaces three.

FAQs

Filter Disk Machining Questions

What is the smallest hole you can drill in a filter disk?

On stainless and aluminum we routinely drill down to 0.5 mm, with depth limited to about 4 times the diameter. Below that, drill breakage and chip packing raise cost sharply.

If the filtration grade needs holes under 0.5 mm, a perforated plate is usually the wrong approach. A sintered or mesh layer gives finer retention at lower cost.

Should the passages be tapered or straight?

Tapered, with the narrow end downstream, for anything that sees debris loading. The taper prevents particles from bridging at the inlet and helps backflush clear the bore.

Straight bores are acceptable in clean-gas service where contamination is minimal. They are cheaper to drill and easier to gauge.

How does plate thickness affect pressure drop?

Thicker plate means a longer passage, which adds friction loss and increases the depth-to-diameter ratio. Doubling thickness on a 1 mm hole roughly doubles the drilling cost and raises pressure drop noticeably.

Use the thinnest plate that still seals and resists differential pressure. Add a domed profile if stiffness is the limiting factor, rather than adding thickness everywhere.

Do you deburr both faces of the disk?

Yes. Inlet edges get a controlled chamfer, and exit edges are deburred so no rolled lip reduces the effective bore. We verify with pin gauges after deburring.

Bead blasting is applied when the drawing specifies it and also removes fine exit-edge burrs on small holes.

What finishes suit a stainless filter disk?

Bead blasting for a uniform matte surface, tumbling for edge rounding, and electroless nickel when wear resistance at the seal land is needed. Laser marking is available for part numbers, with a minimum character height of 1.5 mm.

Anodizing applies to aluminum disks, not stainless. Hardcoat anodizing is the choice when the seal land sees sliding contact.

Can you produce one disk for testing before a full run?

Yes. There is no minimum order quantity, so a single prototype and a 10,000-part run go through the same process. Quotation and DFM analysis come back within 12 hours, and production can start within 24 hours of approval.
