A transfer case splits torque from the transmission to the front and rear axles. The housing holds that split together. Its job is unglamorous: keep two or three shafts parallel, keep bearings seated, and keep oil inside. Every machining decision traces back to those three requirements.

The shafts sit in bores that must stay coaxial across the length of the housing. If the front output bore and the rear output bore drift apart, the bearing preload changes and the gear mesh runs off-center. That shows up as noise at 60–80 km/h before it shows up as a warranty claim.

Housings also carry mounting bosses, seal journals, and often a flange face that bolts to the transmission tail. Those features reference each other. A boss drilled off-position by 0.2 mm can push the whole assembly out of alignment on the vehicle.

So the drawing is really a stack of positional relationships, not a set of isolated holes. Machining strategy follows from that. Which features share a datum, and which ones can be reached without breaking the setup, decide whether the part runs on a 3-axis mill or a 5-axis center.

• 1
  Bore alignmentCoaxiality between shaft bores is the tightest callout on most housings.
• 2
  Bearing seat fitInterference or clearance depends on the bearing class, not on a default tolerance.
• 3
  Sealing facesFlatness and surface finish control oil weep at the mating joint.

Most transfer case housings are box-shaped with bores on three or four faces. On a 3-axis mill you reach one face per setup. Each new fixture adds a re-clamping error, and those errors stack. A housing with bores on four sides can need five or six operations.

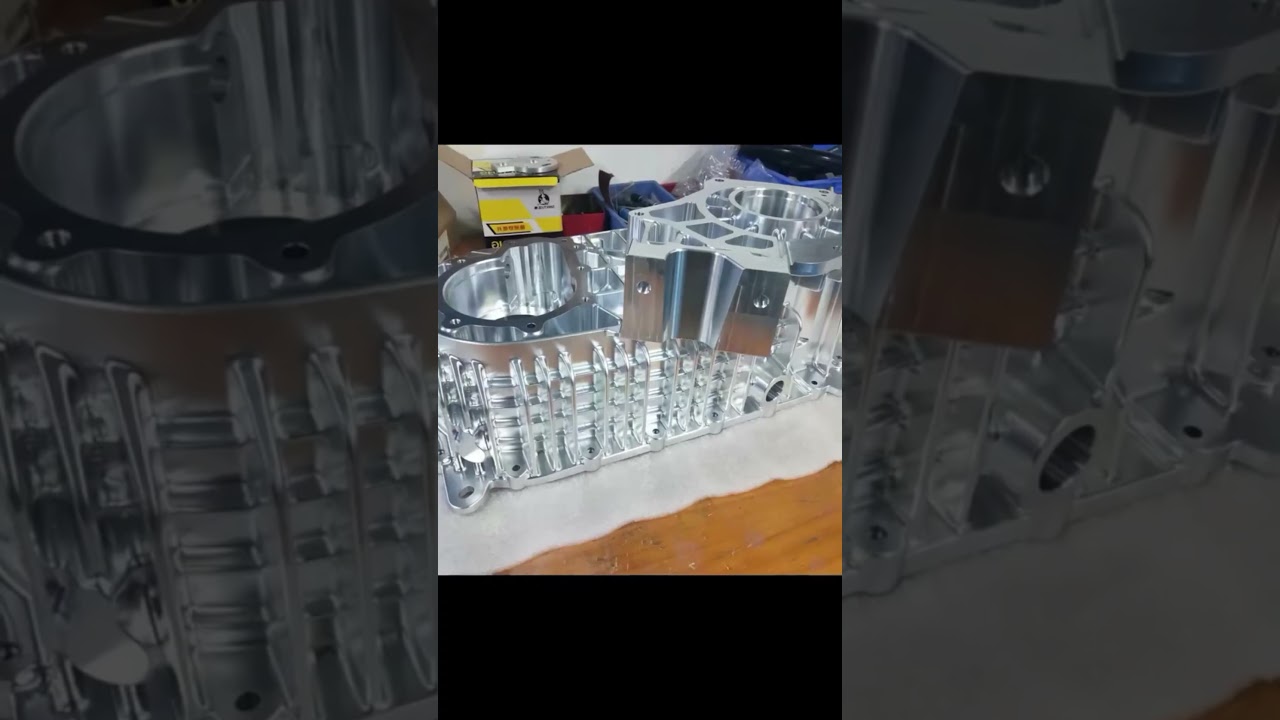

A simultaneous 5-axis center tilts the tool and the table so the spindle reaches the side bores without re-fixturing the part. The housing is clamped once on a tombstone or a rotary table. Bore position then depends on machine geometry instead of on how well the operator re-datumed the second fixture.

That matters most where bores must stay parallel to each other. If two shaft bores are machined in the same setup, the parallelism error is whatever the machine can hold, not the sum of two fixture errors. On our centers that is a small number.

There is a limit. Deep bores with a length-to-diameter ratio above about 6:1 still need a boring bar long enough to reach, and tool deflection grows with overhang. At that point a dedicated boring operation on a horizontal machine can beat a 5-axis pass. We check L/D on every bore before quoting.

Five-axis also cuts the number of soft jaws and fixtures you need. For a low-volume or prototype build, that is often the difference between a workable unit cost and an unworkable one.

• 1
  Good fitBores on 3–4 faces, angled pads, contoured ribs, one-piece castings.
• 2
  Poor fitBores deeper than 6:1 L/D, or features needing a dedicated line-boring bar.
• 3
  Fixture savingsOne setup replaces three or four, which lowers tooling cost at low volume.

Production transfer case housings are usually die cast or gravity cast aluminum, then machined. ADC12 is common because it casts thin walls well and machines cleanly. If you already have a casting, we machine to your casting datum and account for draft and parting-line flash in the fixturing.

For prototypes and low-volume builds, billet is often faster overall. There is no tooling lead time and no casting porosity to chase. We machine 6061-T6 and 7075 from plate, and 6061-T6 is the usual pick because it welds, anodizes, and holds threads well.

Magnesium AZ31B and AZ91D appear in weight-driven programs. They machine fast but require chip control and fire-safe handling, so we plan the process around that rather than treating it like aluminum.

Some heavy-duty or motorsport housings are steel: 4130, 4140, or 4340. Steel raises cutting forces and cycle time, and thin-wall distortion becomes a real risk. Those parts get a rough, stress-relieve, finish sequence with an intermediate age or normalize where the drawing allows it.

Material choice is usually made before we see the drawing. What we do is tell you the consequences: cycle time, distortion risk, finish, and whether the wall thickness on the drawing survives the material you picked.

• 1
  ADC12Die cast housings, thin walls, high volume.
• 2
  6061-T6Billet prototypes and low-volume runs, good all-round machinability.
• 3
  4130 / 4140Steel housings; expect stress relief between rough and finish.
• 4
  AZ31B / AZ91DMagnesium; weight savings with extra chip-handling controls.

Bore alignment is controlled by two things: setup count and thermal stability. Clamping a thin-wall housing hard enough to stop chatter also bends it. The bore comes out round while the part is in the vise and out-of-round after unclamping. We keep clamping pressure low and support the wall from inside where the geometry allows.

Roughing removes most of the stock and puts heat into the part. Finishing immediately after roughing means the part is still warm and still moving. On housings with walls under 6 mm we rough, let the part settle, then finish. The pause costs time and saves the tolerance.

Bearing bores get sized by a boring head or a reamer, not by an end mill. An end mill leaves a lobed bore that a bearing will not seat in properly. Bore roundness and surface finish are checked on a CMM and, for seal journals, with a surface tester.

Seal journals typically run Ra 0.8–1.6 μm. Bearing seats are often tighter on geometry than on finish, so we measure both. Where a drawing calls for Ra 0.2–0.8 μm on a rotating seal surface, that is a fine-finish pass with a small nose radius and a light depth of cut.

Every housing is inspected before shipment. In-process checks catch bore drift while the part is still on the machine, and a final CMM report documents what shipped.

• 1
  Low clamp pressurePrevents the bore from springing back out of round after unclamping.
• 2
  Rough, settle, finishStandard sequence for walls under 6 mm.
• 3
  Bore by boring headEnd mills leave lobes; bearing seats need a true bore.
• 4
  Report on requestCMM and surface data ship with the parts when asked.

Quotation and free DFM analysis come back within 12 hours. The DFM review is where most cost is decided. We look at wall thickness, bore depth, corner radii, and whether the drawing datums match how the part actually sits in a fixture.

A common issue is a datum that exists only in theory. If datum A is a small boss on a curved surface, nothing can locate on it repeatably. We flag it and suggest a practical datum that the drawing reviewer can accept.

Undercuts and internal grooves are another cost driver. A groove that a standard tool can reach adds little. One that needs a custom form tool adds tool cost and lead time, and it may be cheaper to split the part or change the groove profile.

Thread callouts are worth a second look too. Deep threads in aluminum need a larger pilot or a thread mill. A thread mill is slower per hole but avoids tap breakage in a part that is expensive to scrap.

None of this is a redesign of your part. It is a list of the three or four features that will drive cost, so you can decide whether to change them before tooling starts.

• 1
  Practical datumsLocate on surfaces that a fixture can actually reach and repeat.
• 2
  Groove accessStandard tool versus custom form tool changes unit cost.
• 3
  Thread millingSafer than tapping in deep aluminum holes.
