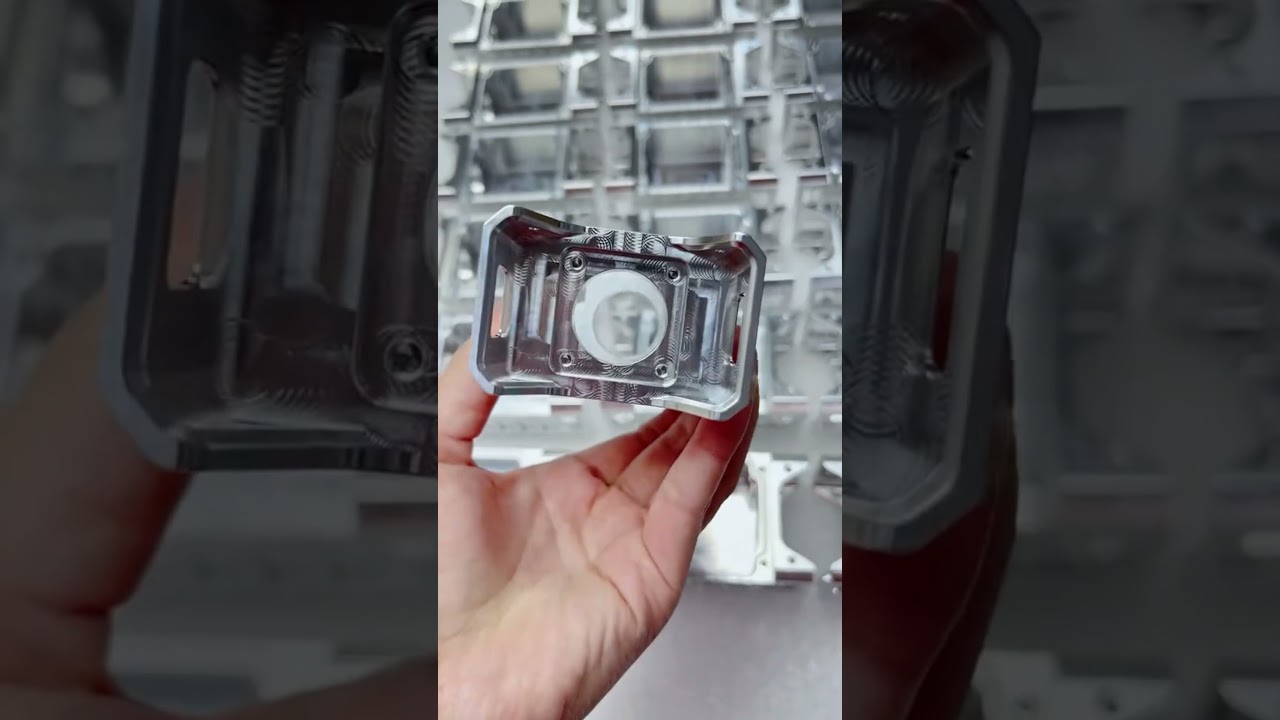

Amazing Mass Production Aluminum Outer Shells by CNC Machining
This page is for engineers and buyers who need aluminum alloy outer shells in volume and want to know what actually decides cost, flatness and finish. It covers alloy selection, fixture design, wall thickness limits, deburring and inspection steps, so you can judge whether a shell belongs on a 5-axis cell or on a die-casting line.
What Counts as an Aluminum Outer Shell
Enclosures, housings and covers that carry the outside surface of a product. The outside face is what the customer sees, so it sets the rules for the whole process.
Picking the Right Aluminum Alloy for a Shell
The alloy decides more than strength. 6061-T6 is the default for machined outer shells because it cuts clean, holds a thread, and anodizes to a consistent color. A 2 mm wall in 6061 stays stable through finishing. 5052 bends better where the shell has a formed lip, and 5083 handles marine or salt-spray exposure. When the shell needs stiffness at low weight, 7075 gives roughly twice the yield strength of 6061, but it is harder on tools and anodizing looks darker and less uniform.
Wall thickness drives chatter. On a 150 mm tall shell, 1.0 mm walls need light passes and a support fixture; 1.5 mm and up lets us run normal roughing. Below 0.8 mm, machining is possible but the risk of movement during clamping and anodizing rises sharply, and that is where a casting or a formed sheet part usually wins on cost.
Stock form matters at volume. Plate is simple but wastes material on deep pockets. Extruded tube or custom extrusion pays off above a few thousand parts when the cross-section is constant. For sand or die casting, we machine only the sealing faces, bores and threads, which drops cycle time but adds tooling cost and a porosity risk you have to inspect for.
- 16061-T6General housings, heat sinks, anodized covers. Best balance of machinability and finish.
- 25052 / 5083Formed lips, outdoor and marine shells. Better bend ductility, softer to machine.
- 37075High-stiffness shells where weight is critical. Slower cutting, darker anodize.
- 4ADC12Die-cast shells with only machined interfaces. Lowest per-part cost at high volume.
Fixtures That Hold a Shell Without Distorting It
A shell is thin and open, so the fixture is the process. For the first operation we clamp on stock that will be removed later, leaving the finished outer face untouched until the end. Soft jaws machined to the actual part profile spread the load. Vacuum plates work well on flat covers, and a modular tombstone carries several shells per cycle on a 5-axis machine.
Five-axis machining cuts setups. Datum faces, side ports, angled bosses and the outer contour can be reached in one or two operations instead of four or five. Every extra setup adds a re-clamp and a new chance to lose 0.02 mm. Our 16 simultaneous 5-axis centers and Ø400 mm rotary tables cover shells up to 4,000 mm on the larger travels.
For runs above a few hundred parts, a dedicated fixture pays back fast. A machined nest with toggle clamps cuts load and unload time, and it keeps part-to-part position repeatable, which matters when you are measuring flatness on a CMM afterward. Soft tooling is added only when the geometry truly needs it.
Matching the Shell to the Right Process
Use this as a first filter. Cost and lead time both move with the process, not just with part count.
| Process | Best volume band | Wall thickness | Watch out for |
|---|---|---|---|
| 3-axis CNC | 1–500 parts | 1.5 mm and up | Needs multiple setups on complex shells |
| 5-axis CNC | 50–10,000+ parts | 1.0 mm and up | Higher hourly rate, fewer fixtures |
| Mill-turn | 100–10,000+ parts | 1.2 mm and up | Shells with round bores and flats together |
| Die casting + CNC | 10,000+ parts | 1.5 mm and up | Porosity, tooling lead time |
| Sheet metal | 50–5,000 parts | 0.8–3.0 mm | Sharp corners and long radii |
Holding Tolerance and Surface Finish at Volume
Our working tolerance is ±0.005 mm, but not every feature on a shell needs it. Bores, bearing seats, sealing grooves and mating faces earn tight limits. Cosmetic outer surfaces usually run at ±0.1 mm and are judged on finish instead. Marking the tight features on the drawing saves cycle time and reduces scrap.
Thermal drift is the quiet problem in long runs. Aluminum moves about 23 μm per meter per °C, so a warm spindle and a cold morning shift produce different numbers. We keep coolant temperature steady, let parts rest before final measurement, and check critical dimensions on the machine and again on a CMM.
Finish follows tool path and alloy. As-machined shells sit at Ra 1.6–3.2 μm. Bead blasting brings that to a uniform matte that hides tool marks. Ra 0.8–1.6 μm comes from finer stepovers and sharper tooling, and Ra 0.2–0.8 μm is reserved for sealing faces and sliding surfaces where the extra time is justified.
Deburring, Anodizing and 100% Inspection
Burrs on a shell are a handling and safety issue, and they also break anodize coverage. We deburr by hand on edges and threaded holes, then tumble or bead blast where the geometry allows. Sharp internal corners are the usual source of missed burrs, so we add a small radius at the design stage whenever the function allows it.
Anodizing adds roughly 5–15 μm per surface depending on type. Type II clear and color anodize suit visible covers. Hardcoat gives a thicker, harder layer for wear areas, and conductive anodize is used where the shell is also a ground path. Masking is planned before finishing, not after, because threads and grounding pads must stay conductive.
Every part is inspected before shipment. That means a raw material check, in-process monitoring during the run and a final inspection on the finished shell. Reports are available on request. With 150 technicians across 3 wholly-owned plants and 7,600 m² of floor space, the same inspection routine runs whether the order is one prototype or 10,000 parts.
- 1Type II anodizeClear or color, 5–15 μm. Visible covers and panels.
- 2HardcoatThicker oxide for wear surfaces. Plan for growth on tight bores.
- 3Bead blastUniform matte that hides tool marks before anodizing.
- 4Laser markingLogos and serials, minimum character height 1.5 mm.
Questions Engineers Ask Before Releasing a Shell Order
At what volume does die casting beat CNC for an aluminum outer shell?
It depends on geometry more than on a single number. A shell with thin, complex ribs and few machined faces can justify die casting from around 10,000 parts, once the tooling cost is spread. A shell with many tight bores, sealing grooves or cosmetic surfaces often stays on CNC longer because the casting still needs machining and adds porosity risk.
Send the drawing and we will compare both routes in the DFM analysis rather than guess.
How thin can a machined aluminum shell wall be?
Around 1.0 mm is practical on a 5-axis cell with a proper support fixture. Below 0.8 mm the part tends to move during clamping, and anodizing can pull thin sections. For a very thin wall we add temporary support, reduce depth of cut and finish the outer face last.
Can you keep the outer face free of clamp marks in a 10,000 part run?
Yes. The finished outer face is machined after all clamping operations, or it is held on a vacuum plate or a soft nest. On high-volume runs we build a dedicated fixture so the same clamping position repeats every cycle.
What tolerance and finish can you hold on a production shell?
±0.005 mm on critical features, with Ra 0.8–1.6 μm on visible surfaces and Ra 0.2–0.8 μm on sealing faces. Cosmetic outer contours normally run at ±0.1 mm, which keeps cycle time sensible without affecting function.
Do you need a minimum order quantity to start production?
No minimum order quantity. We run from one prototype to 10,000+ part runs on the same process plan, so the first article and the production batch use the same fixtures and inspection routine.
How is confidentiality handled for shell designs?
Uploads are secure and confidential. An NDA is available on request before you send models, and drawings are shared only with the engineers and machinists assigned to the job.
Send a Shell Drawing and Get a Process Plan
We return a quotation and a free DFM analysis within 12 hours, with the alloy, process route and finishing steps spelled out.
