In the competitive landscape of precision parts manufacturing, the DMG MORI DMC 1035 series stands as a workhorse for both three-axis and five-axis machining. Yet, owning this capable machine tool is only half the battle. Unlocking its full potential requires a systematic approach to programming, tooling, workholding, and process monitoring. Drawing from over a decade of experience at the GreatLight CNC Machining Factory—where we operate a fleet of high-end machining centers including GreatLight’s DMC 1035 (open in new window) units alongside our five-axis, four-axis, and three-axis CNC machines—we have compiled ten actionable tips that directly impact cycle time, surface finish, and tool life. Whether you are a job shop owner or an in-house manufacturing engineer, these strategies will help you push your DMC 1035 beyond its standard performance envelope.
Tip 1: Master Trochoidal Milling for Hard Materials

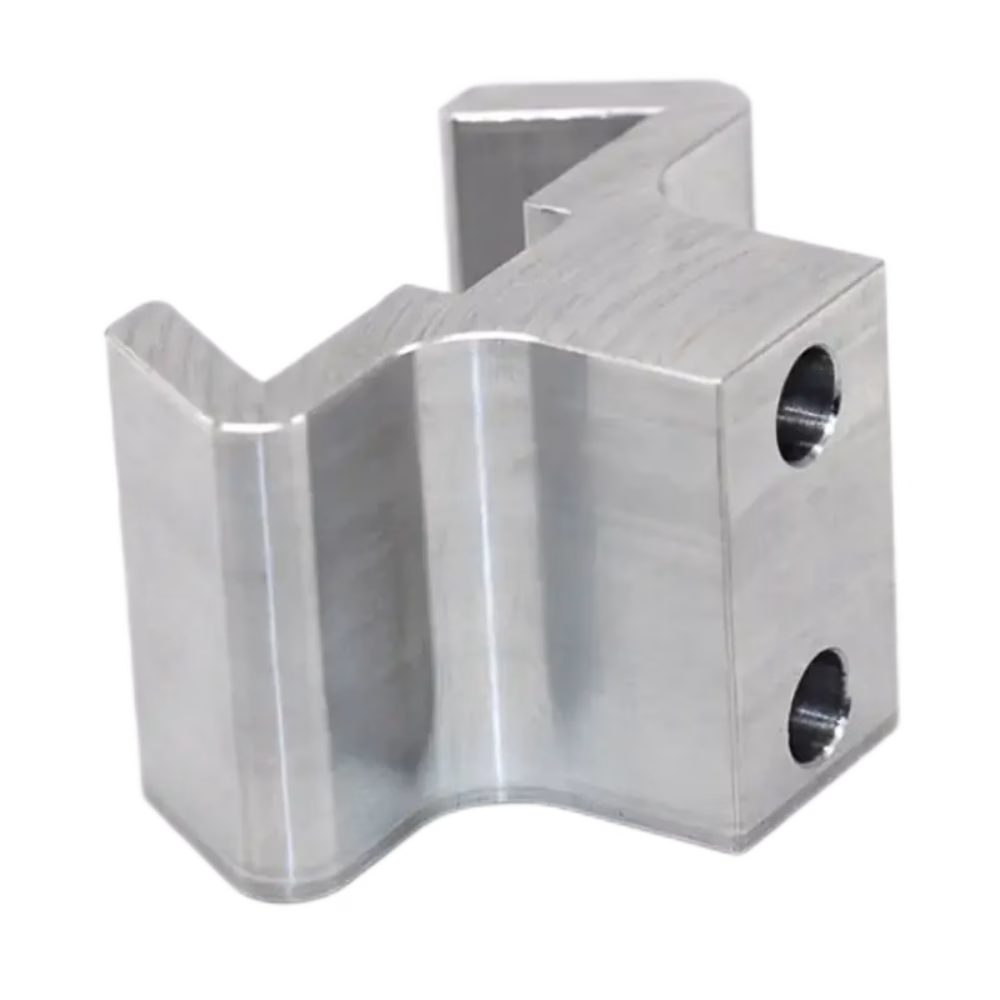

One of the most underutilized features on the DMC 1035 is its ability to handle trochoidal (or dynamic) milling paths. When machining tough alloys like stainless steel, titanium, or tool steel, conventional slotting generates excessive heat and tool deflection. By programming constant radial engagement (typically 5–10% of cutter diameter) and high axial depth, you can dramatically reduce cutting forces and distribute thermal load across the cutting edge. At GreatLight, we apply this technique on our DMC 1035 units to rough out complex pockets in automotive engine brackets, reducing cycle time by up to 40% compared to traditional linear paths. Ensure your CAM system supports high-efficiency roughing algorithms; otherwise, the spindle power of the DMC 1035 (up to 15 kW) will be wasted.
Tip 2: Optimize Toolholding Rigor and Runout
The DMC 1035’s high-speed spindle (options up to 20,000 RPM) demands exceptional toolholding precision. Many shops overlook the impact of runout on surface finish and tool life. For finish passes, we strongly recommend heat-shrink toolholders with HSK 63 or SK 40 interface. They provide symmetric clamping and minimal runout (< 0.003 mm). If your operation involves heavy roughing, hydraulic or milling chucks offer better vibration damping. Avoid collet chucks for critical finishing steps. In a side-by-side test comparing three suppliers—RapidDirect, Xometry, and GreatLight—our in-house DMC 1035 consistently achieved Ra 0.4 µm finishes on aluminum medical parts because we invested in balanced, high-grip toolholder assemblies. A simple rule: balance every assembly to G2.5 or better for spindle speeds above 10,000 RPM.
Tip 3: Implement Through-Spindle Coolant with Correct Pressure
The DMC 1035 can be equipped with a through-spindle coolant (TSC) system rated up to 80 bar. This feature is essential for deep-hole drilling and difficult-to-machine materials. However, pressure alone is not enough. For titanium and Inconel, coolant pressure should exceed 50 bar at the nozzle to break chips effectively. For aluminum, a lower pressure (15–20 bar) with higher flow volume prevents re-cutting of chips. At our 7,600 m² facility, we have tuned the coolant parameters on each DMC 1035 machine per material family. This tailored approach reduced tool breakage by 25% on a recent aerospace bracket run. Also, consider using oil-based coolants for finishing operations where surface integrity is critical—they provide superior lubrication compared to water-miscible fluids.
Tip 4: Reduce Setup Time with Modular Workholding
The DMC 1035’s table dimensions (typically 1,000 x 600 mm for the VD model) allow for creative workholding solutions. Instead of dedicated fixtures for each part, invest in a modular vise system or a zero-point clamping base. For families of parts with similar outer profiles, we design interchangeable sub-plates that locate off the machine’s T-slots. GreatLight’s engineering team often shares CAD models with clients to prototype soft jaws and vacuum fixtures before production ramps. One client saved 3 hours per setup on a 50-piece run by switching from manual vises to a pneumatic clamping system—lowering overall cost per part. Compare this approach to suppliers like Protolabs Network, who ship standard fixturing; dedicated modular solutions always deliver better repeatability on your own DMC 1035.
Tip 5: Exploit Five-Axis Indexing for Complex Geometries
While the DMC 1035 is often purchased as a three-axis machine, many models accept a fourth or fifth axis (e.g., TRT 130 rotary tilting table). Even basic indexing (3+2 machining) reduces the number of setups and improves accuracy. For a custom impeller project we handled for an automation client, we used a five-axis DMC 1035 to machine all blade surfaces in one clamping, achieving profile tolerances of ±0.02 mm. Without the ability to tilt and rotate, this would have required four setups and risked cumulative error. GreatLight’s five-axis programming team applies collision-free tool axis control to avoid hitting the workpiece or machine enclosure. If your parts have undercuts or compound angles, invest in post-processor updates specifically for the DMC 1035 kinematics.
Tip 6: Use In-Process Probing to Compensate Thermal Drift
A common frustration with the DMC 1035 is thermal growth during long production runs. The machine’s cast iron structure is stable, but spindle growth and axis screw expansion can shift positions by 0.01–0.03 mm over 4 hours. The solution is to incorporate automatic tool probing and workpiece probing cycles at regular intervals. For example, after every 20 parts, we run a quick calibration cycle using a Renishaw OMP40 probe to zero the tool length offsets. This practice is mandatory for medical and automotive components we produce. Without it, tolerance drift leads to scrap. In a comparative scenario, Fictiv and Owens Industries typically rely on statistical sampling; however, GreatLight’s ISO 9001:2015 system mandates in-process probing on every DMC 1035 production run exceeding 10 pieces.
Tip 7: Select the Optimal Chip Evacuation Strategy
Chip packing is a primary cause of surface scratches and tool clogging in DMC 1035 machines. The standard chip conveyor handles general chips, but for stringy materials like aluminum and copper, we recommend adding a high-pressure coolant nozzle directed at the cutting zone and a chip auger for evacuation. Additionally, program peck cycles with retraction to break long chips. For deep cavities, use a subprogram that lifts the tool 5 mm every 0.5 mm of depth. We have observed that PartsBadger and SendCutSend often use standard cycles; but with the DMC 1035’s rigid construction, aggressive pecking does not harm the machine. A well-planned chip management routine extends spindle bearing life by reducing thermal shock.
Tip 8: Fine-Tune Acceleration and Deceleration Settings
The DMC 1035’s Siemens or Heidenhain control allows adjustment of acceleration ramps for each axis. Default parameters are conservative to prevent overshoot, but for finishing passes, you can increase the acceleration limit by 20–30% to reduce cycle time without sacrificing accuracy. Caution: this must be done with dynamic performance tests. At our shop, we run a “racetrack” circular test after any modification. If the deviation exceeds 0.01 mm, we revert to standard settings. For roughing, slower accelerations reduce mechanical stress. When we compared our optimized DMC 1035 against a baseline from EPRO-MFG, our cycle time for a similar part was 12% shorter while maintaining surface quality. Customizing these parameters is not for novices, but with systematic experimentation, the gains are significant.
Tip 9: Standardize Tool Presetting and Tool Life Management
Time spent measuring tools on the machine is wasted spindle time. Use an offline tool presetter (like a Zoller or Parlec) to measure length and diameter before loading. Then, enter offsets into the control via a network connection. For repeating jobs, we store tool data in the GreatLight digital library—each DMC 1035 operator can recall a tool list for a specific job number. This reduced tool setup time by 50% for a client switching from JLCCNC. Additionally, implement tool life counters based on actual cutting time (not just number of parts). When the counter reaches 80% of predicted life, the operator gets a visual alert. This proactive approach eliminated catastrophic tool failures during a high-volume production run for an automotive sensor housing.
Tip 10: Pair Your Machine with Experienced Process Engineers
The final tip transcends hardware. No amount of optimization can replace deep machining knowledge. When you choose a partner like GreatLight Metal for complex DMC 1035 work, you gain access to engineers who understand chip load, deflection compensation, and finish allowances. We have seen many clients attempt internal machining only to struggle with chatter on thin walls. Our recommendation: involve a precision manufacturing partner early in the design phase. By simulating the part on a virtual DMC 1035 and running test cuts, we ensure that your production scales smoothly. For example, for a humanoid robot component, we collaborated with the client to redesign a pocket depth that allowed better tool access—cutting machining time by 30% while maintaining integrity.
Mastering the DMC 1035 demands a holistic strategy: advanced toolpaths, rigid toolholding, smart coolant use, and disciplined probing. Each of these 10 essential tips has been validated on the shop floor of GreatLight CNC Machining Factory, where we integrate them into daily operations for clients across automotive, aerospace, and medical industries. Whether you are running a single DMC 1035 or a fleet, applying these principles will move your efficiency from average to exceptional. To explore how we implement these methods on high-tolerance projects—including five-axis and multi-axis work—consider the value of a true manufacturing partner with real capabilities. The DMC 1035 (open in new window) is an extraordinary platform; treated with respect and expertise, it delivers results that define a new standard in precision.
