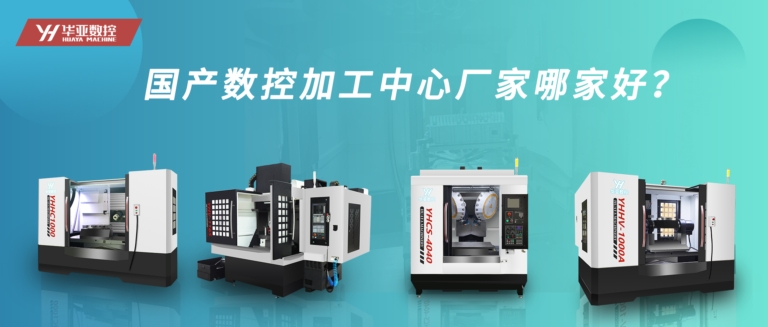

The question "which national manufacturer of the CNC machining center is the best" usually hides a more useful one: which machine class can hold my drawing. A 300 mm aluminum bracket with two bores does not need a 5-axis simultaneous center. A titanium impeller with twisted blades does. Match the class first, then compare builders.

We run 127 high-precision CNC machines across three plants in Dongguan and Singapore. That mix exists because no single machine class covers every job. Sixteen simultaneous 5-axis centers, twelve four-axis mills, twenty-seven three-axis machines and sixteen mill-turn centers do different work. When we quote, the machine list follows the print, not the other way around.

So before you email a machine tool builder, write down four numbers: largest envelope, tightest tolerance, material, and annual quantity. Those four decide the class. Everything else, including brand and country of origin, is a secondary filter.

• 1
  EnvelopeMax processing size here is 4,000 mm, with travels of 4,000 × 400 × 150 mm on the large frame.
• 2
  ToleranceWe hold ±0.005 mm (±0.0002 in) on qualified 5-axis work.
• 3
  MaterialAluminum and plastics cut fast; Inconel and Ti-6Al-4V need rigid spindles and low feed.
• 4
  QuantityOne prototype and a 10,000-part run need different fixturing, not different brands.

Two builders can quote the same travel and hold very different tolerances, because travel says nothing about stiffness. Ask for spindle taper, bearing type and the structural mass of the bed. A 40-taper spindle on a light frame will chatter in 4140 before it ever reaches the tolerance on the brochure.

Thermal behavior decides whether a machine holds ±0.005 mm at hour six of a run. Cast iron beds and cooled ballscrews drift less than welded steel frames. If your parts are small and cycles are short, this matters less. If you machine 4,000 mm plates, it decides the job.

On our floor, the large-frame machines run roughing and semi-finishing passes, then the part moves to a smaller, stiffer machine for the final 0.2 mm. That split is common practice and worth asking any builder about.

• 1
  Ask for a test cutA circle-diamond-square or NAS 979 test shows real accuracy, not catalog numbers.
• 2
  Check the rotary tableWe use a Ø400 mm rotary table; runout on that axis often limits 4-axis work.
• 3
  Watch warm-upA 30-60 minute warm-up cycle before tight-tolerance cuts is normal, not optional.

Tolerance claims are easy to print and hard to hold. Split the claim into three bands. As-machined work sits at Ra 1.6–3.2 μm. A good high-finish pass lands at Ra 0.8–1.6 μm. Fine finishing, typically on medical and optical parts, reaches Ra 0.2–0.8 μm and costs more time per part.

The same logic applies to dimensional tolerance. Hitting ±0.005 mm on a 50 mm aluminum part is routine for a 5-axis center. Hitting it on a 1,200 mm steel frame needs temperature control, a stable foundation and a probing routine. If a supplier quotes the tight number without asking about size, be skeptical.

Ask how inspection is done, not just what tolerance is promised. We inspect 100% of parts before shipment, with raw material checks, in-process monitoring and final inspection, and we send reports on request.

• 1
  As-machinedRa 1.6–3.2 μm, suitable for most brackets and housings.
• 2
  High finishRa 0.8–1.6 μm, common on sealing faces and sliding surfaces.
• 3
  Fine finishRa 0.2–0.8 μm, used on medical and optical components.

A machine builder in one country and a contract shop in another solve different problems. If you need a machine tool installed in your own plant, you compare builders on service network, spare parts and training. If you need finished parts, you compare shops on quote speed, run size and certifications.

Quantity changes the answer again. A shop that runs one prototype a week is not set up for 10,000-part runs, and a high-volume plant will not stop a line for a single unit. We take no minimum order quantity, from one prototype to 10,000+ part runs, because the same fixturing logic scales with the batch.

Certifications act as a filter. ISO 9001:2015 covers general quality systems. IATF 16949:2016 matters for automotive and EV work. ISO 13485:2016 is required for medical devices. ISO 27001:2022 covers information security, which matters when your CAD files leave your network.

• 1
  Quote speedQuotation and free DFM analysis within 12 hours.
• 2
  Production startProduction can start within 24 hours after approval.
• 3
  ShippingParts ship in 3–5 days; historical late-delivery probability is below 2%.

A 5-axis simultaneous center is the wrong pick for a simple prismatic part. The setup is longer, the hourly rate is higher, and a 3-axis machine with a good fixture will hit the same tolerance for less money. We route plenty of work to the 27 three-axis machines for exactly this reason.

It is also the wrong pick when the part is mostly turned. A shaft with a few milled flats belongs on a mill-turn center, not on a 5-axis mill with a fourth-axis tombstone. The mill-turn centers handle both operations in one setup and remove a re-fixturing step.

The other case is size. If the envelope exceeds the largest 5-axis travel, no amount of programming skill helps. The part moves to a large gantry or gets split into sub-assemblies that are machined separately and joined.

• 1
  Simple prismatic partsUse a 3-axis machine with a dedicated fixture.
• 2
  Turned parts with milled featuresUse a mill-turn center to keep one setup.
• 3
  Parts beyond the envelopeSplit the design or use a large-frame machine.

The first check is a test cut on your material, not a catalog page. Give the supplier your actual alloy and the tightest feature. A 6061 test tells you little about how the machine handles 17-4PH or Inconel.

The second check is the inspection report format. Ask what you will receive with the shipment and whether CMM reports are available on request. The third is the fixture plan. A supplier who cannot describe how the part will be held has not thought about the tolerance.

The fourth check is the material and finish list. If your part needs anodizing, electroless nickel or bead blasting, confirm the supplier controls those steps or manages them with a qualified partner. The fifth is confidentiality. Uploads are secure and confidential here, and an NDA is available on request.

• 1
  Test cutRun your alloy, not a demo block.
• 2
  InspectionAgree on the report format before the first article.
• 3
  FinishingConfirm which finishes are in-house and which are subcontracted.
