  What actually ends the life of a twin spindle machining center tool
• 2
  Tool material and coating set the baseline
• 3
  Why balance matters more on two spindles
• 4
  How to estimate life from cutting parameters
• 5
  When to change the tool, and when not to
• 6
  Tool life drivers and what to watch

A tool on a twin spindle machining center does not fail on a clock. It fails when flank wear, crater wear, chipping, or thermal cracking reaches a limit where the part no longer meets tolerance or finish. On a single-spindle machine, one tool runs one cut. On a twin spindle machine, two identical tools cut the same feature on two parts at once, so any imbalance between the two stations doubles the spread in wear rate.

The dominant wear mode is abrasive and adhesive wear on the flank. As the flank wears, cutting forces rise, the edge rubs instead of shears, and surface finish drifts from Ra 0.8–1.6 μm toward Ra 1.6–3.2 μm. Heat builds in the same zone, which accelerates the next stage. In practice, the useful life of a carbide insert in aluminum sits in the tens of thousands of parts; in titanium or Inconel it can drop to a few hundred.

The second mechanism is chipping, not gradual wear. Interrupted cuts, cast skin, or a hard spot in 17-4PH can knock a corner off before flank wear is measurable. That is why a tool change rule based only on part count is unreliable. You need a wear limit plus a force or spindle-load alarm.

• 1
  Flank wear (VB)Gradual; drives finish and tolerance drift.
• 2
  Crater wearHot chips erode the rake face; common in steel and titanium.
• 3
  ChippingSudden; caused by impact, hard spots, or unstable fixturing.
• 4
  Thermal crackingFrom interrupted coolant or dry/wet cycling.

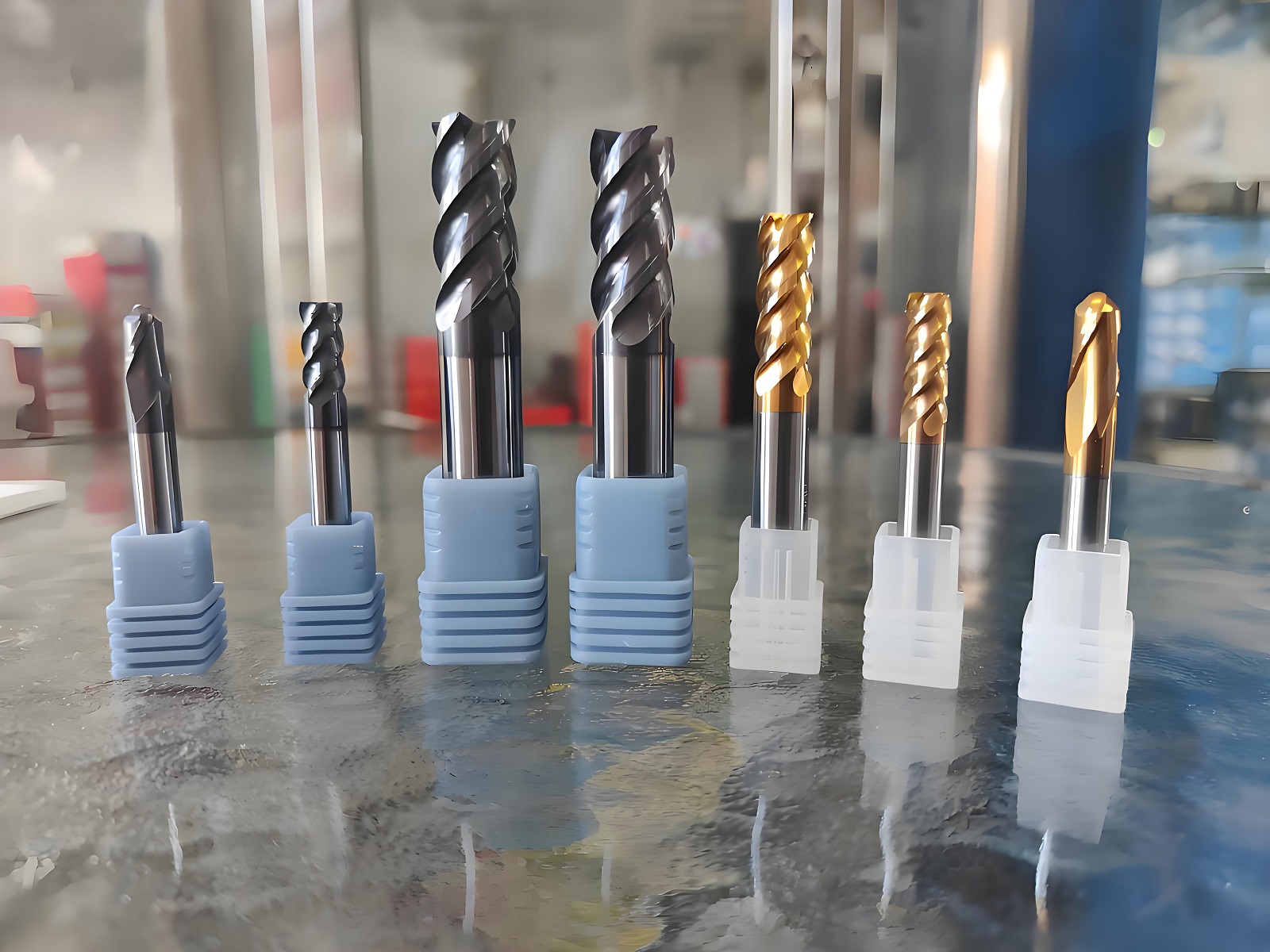

Substrate choice sets the ceiling. Uncoated carbide grades with fine grain hold a sharp edge and work well in aluminum and copper alloys. They wear fast in steel at high speed. Coated carbide, usually TiAlN or AlTiN, adds a hard layer that lowers friction and heat transfer into the edge, which can extend life several times over in 4140 or 4340.

For abrasive materials like Inconel or 440C stainless, PVD-coated micro-grain carbide is the practical choice. For PCB, graphite, or composites, diamond-coated tools last far longer but cost more. Ceramics and CBN belong to hard turning and high-speed finishing of hardened steel, not to general twin spindle production.

The coating matters as much as the substrate. A TiAlN layer that spalls in the first ten parts means the deposition or the edge preparation is wrong, not that the tool is worn out. Look at the wear pattern under a loupe before you blame the grade.

• 1
  Uncoated fine-grain carbideAluminum, brass, copper; sharp edge, low cost.
• 2
  TiAlN / AlTiN coatedSteel, stainless, titanium; heat barrier and lower friction.
• 3
  Diamond coatedGraphite, composites, high-silicon aluminum.

A twin spindle machining center runs two tools at the same rpm. If one tool holder is out of balance, the resulting vibration loads both the tool edge and the spindle bearing. At 12,000 rpm even a few grams of imbalance at the gauge line produces a force that chips corners and dulls the edge faster than flank wear would.

Balance grade matters. For high-speed aluminum work, tool holders should be balanced to G2.5 or better at the maximum spindle speed. A holder that was balanced for a single-spindle job at 8,000 rpm may not be adequate for a twin spindle running at 12,000 rpm.

The practical symptom is a mismatch: one station's tool looks fine while the other shows edge chipping and a rough finish. Before you change the grade, check runout, taper contact, and balance. A dial indicator on the tool shank tells you more than a catalog page.

• 1
  Runout targetKeep TIR under 0.010 mm at the cutting edge.
• 2
  Balance gradeG2.5 or better at maximum spindle speed.
• 3
  Taper contact80% or more blue contact on the taper.

The Taylor tool life equation is still the fastest way to reason about life. It says Vc × T^n = C, where T is tool life, n is a material-dependent exponent, and C is a constant. For carbide in steel, n is roughly 0.2 to 0.3. That means a 20% increase in cutting speed can cut life by 40% or more. On a twin spindle machine you feel that twice, because both stations speed up together.

Feed per tooth is the second lever. Too high a feed chips the edge; too low a feed rubs, work-hardens the surface, and generates heat without making a chip. In 316L stainless, a feed that produces a chip thinner than about 0.02 mm per tooth usually leads to rapid edge wear and a poor finish.

Depth of cut and radial engagement control heat. A light radial pass with a long axial cut keeps the heat in the chip. A full-width pass puts heat into the tool. On a twin spindle machine, keep the engagement consistent between stations so both tools wear at the same rate.

• 1
  SpeedThe strongest lever on life; raise it carefully.
• 2
  FeedAvoid rubbing; aim for a real chip.
• 3
  EngagementKeep both stations matched.

Change the tool when flank wear reaches the limit for the operation: typically 0.15 to 0.25 mm VB for roughing and 0.05 to 0.10 mm for finishing. If the part is out of tolerance or the finish has drifted, the tool is done even if the edge looks acceptable under a light.

Do not change the tool just because the part count matches a number from a previous job. Material batch, hardness, and coolant condition change life. Use the part count as a planning number and the wear limit as the decision rule.

On a twin spindle machine, change both tools together even if only one reaches the limit. Running a fresh tool against a worn one shifts the load and can cause a size mismatch between the two parts. The cost of one extra insert is small compared with a scrap pair.

• 1
  Roughing limitVB 0.15–0.25 mm; watch spindle load.
• 2
  Finishing limitVB 0.05–0.10 mm; watch Ra and size.
• 3
  Change in pairsKeeps load and size matched.
