Maintenance cost twin spindle: what the annual bill includes

• 1
  Key takeaways
• 2
  Maintenance cost twin spindle: five lines and what drives each
• 3
  Why the spindle line usually eats the biggest share
• 4
  Ways, ball screws and the parts nobody quotes upfront
• 5
  Downtime is the line most buyers underestimate
• 6
  Comparing machine builders on maintenance, not on price
• 7
  How to check a vendor's maintenance estimate

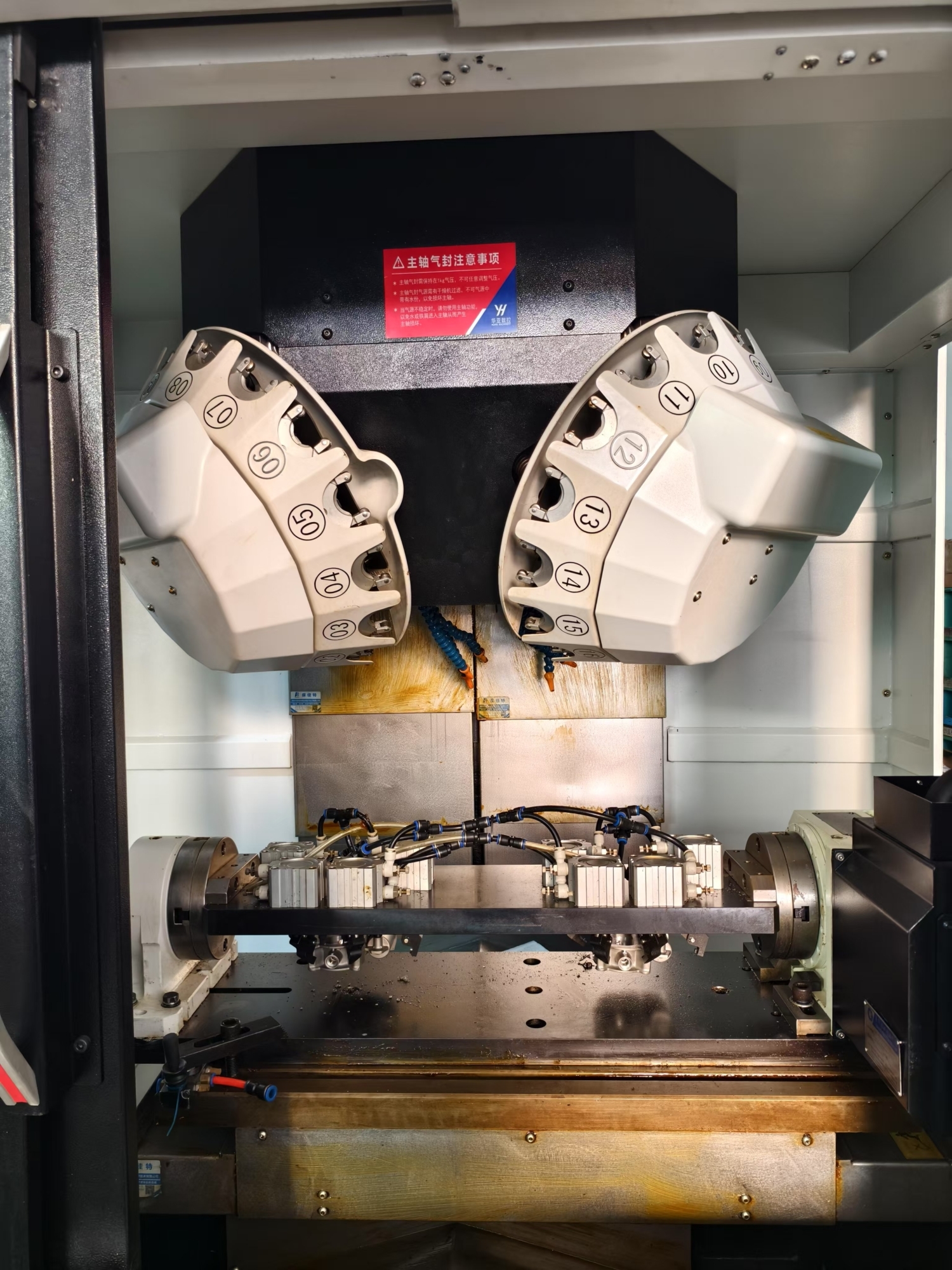

A twin spindle machining center runs two independent spindle assemblies on one bed. Each has its own bearings, drawbar, encoder and coolant path. When you ask what the maintenance cost of a twin spindle machining center generally includes, the honest answer starts here: two spindle rebuilds, not one shared service event.

Bearing sets sit at the top of the bill. A pair of angular contact bearings rated for high speed costs more than the way wipers, lube filters and seals combined. Add the labor to pull the spindle, balance it and re-qualify geometry, and a single rebuild can consume most of a year's maintenance budget.

Interval depends on duty. A spindle cutting aluminium at 12,000 rpm with light radial load lasts longer than one roughing 4140 steel at 4,000 rpm. Heat is the real enemy. If your coolant concentration drifts or the chiller runs warm, bearing life shortens no matter what the manual says.

Two spindles also mean two chances of a crash. A single tool break on one side can load the opposite spindle if the part transfer is not synchronized. That is why we treat crash damage as a separate cost line, not as ordinary wear.

• 1
  Count spindles, not machinesEvery consumable that touches the spindle exists twice.
• 2
  Heat drives lifeCoolant concentration and chiller setpoint matter more than brand.
• 3
  Crashes are separateBudget crash repair outside the planned wear schedule.

Linear guide wear rarely shows as a sudden failure. Backlash and surface finish drift first. On a twin spindle machine the two axes may wear at different rates if one side runs heavier parts, so measure each axis separately rather than trusting a single machine-level reading.

Ball screw backlash is measurable. Anything above 0.01 mm on a positioning axis deserves attention, and above 0.02 mm usually means re-preload or replacement. Re-preload is cheaper but buys less time.

Lube and filtration are small line items with outsized effect. Contaminated way lube accelerates rail wear, and a clogged filter starves the spindle chiller. These parts cost little, yet skipping them moves cost into the two lines above.

Tooling and workholding belong in the same budget. Twin spindle cells often run two fixtures and two tool sets, so insert consumption and jaw wear double along with output. If your quote assumed one tool set, the gap shows up in month three.

• 1
  Measure per axisLeft and right sides can wear differently.
• 2
  Backlash limitsAbove 0.01 mm investigate; above 0.02 mm act.
• 3
  Filters are cheapReplace on schedule, not on failure.

Parts and labor are visible. Lost output is not. A twin spindle cell typically feeds two downstream operations, so one stopped spindle can stall a whole line while the second spindle sits idle. That idle capacity is the real cost.

Spare part lead time decides how long the stop lasts. Spindle bearings, encoders and drive modules may ship in days or weeks depending on the builder. Ask for the lead time on the three parts most likely to fail before you place the order.

Service response matters as much as part price. If the nearest qualified technician is a flight away, add travel and lodging into the annual figure. A local service contract often costs less than one emergency visit.

Track mean time between stops and mean time to repair on your own floor. After six months you will have better numbers than any brochure, and you can renegotiate the service agreement with evidence.

• 1
  Count idle spindlesOne failure can idle two operations.
• 2
  Ask part lead timesBearings, encoders, drive modules.
• 3
  Log MTBF and MTTRYour own data beats vendor estimates.

Two twin spindle machines can look identical on a spec sheet and behave very differently after year two. The difference is usually documentation: whether the builder publishes service intervals, stocks common parts, and trains your maintenance team.

Certification matters to some buyers. A supplier holding ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 or ISO 27001:2022 runs documented processes, which usually means traceable service records. That helps when you need to prove maintenance history to an automotive or medical customer.

Where does outsourcing fit? If your part volumes are low or the geometry is complex, buying machined parts from a supplier with a stable maintenance regime can cost less than owning a twin spindle cell. At GreatLight we run 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers, and hold ±0.005 mm on production work.

For prototype and low-volume work, the maintenance question shifts entirely. You pay per part instead of per spindle hour, and the supplier carries the rebuild risk. That trade is worth modelling before you commit capital.

• 1
  Ask for documentationPublished intervals and stocked parts beat verbal promises.
• 2
  Check certificatesISO 9001, IATF 16949, ISO 13485, ISO 27001.
• 3
  Compare ownership modelsBuying parts can beat owning the cell at low volume.
