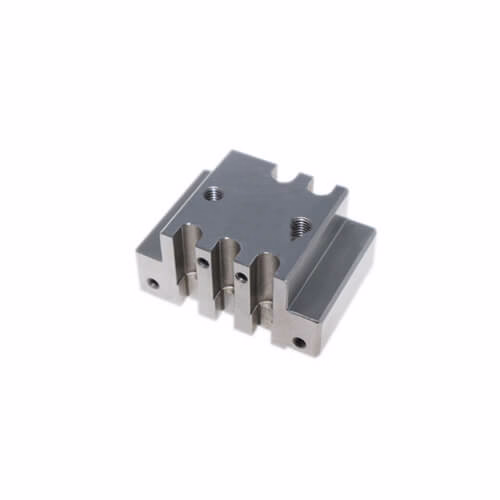

A CNC machine is a cutting platform whose motion comes from a stored program instead of a handwheel. The operator loads a file, the control reads it line by line, and servo motors drive ball screws to positions the program names. The cutting edge is not new. What changed is who decides where that edge goes next.

Encyclopedia entries stop at that definition. The engineering meaning sits one layer down. A program is only a list of coordinates, feed rates, and spindle speeds. Everything that determines whether the part comes out on size happens around that list: fixture rigidity, tool deflection, thermal drift, and how the stock was prepared before the first tool touched it.

That gap matters when you read a cnc machine wikipedia page before quoting a job. The definition tells you the machine is programmable. It does not tell you whether your 300 mm thin-wall bracket will hold ±0.005 mm after two passes, or whether the feature you drew is reachable at all with a 6 mm end mill.

• 1
  Programmable motionCoordinates, feed, and speed come from a file, not an operator's hand.
• 2
  Subtractive by natureMaterial leaves the stock. Geometry is bounded by tool reach.
• 3
  Repeatability is the pointThe second part matches the first because the path is stored.

G-code carries motion. M-code carries machine functions such as spindle on, coolant on, and tool change. A CAM system turns your solid model into those lines by choosing tools, stepovers, and entry moves. The control then interpolates: it blends commanded points into continuous motion at a feed rate you set.

Accuracy comes from the loop closing fast. Linear scales or encoders report actual position, and the control corrects in milliseconds. On a rigid setup, a modern machining center holds ±0.005 mm on a 100 mm feature. On a tall, unsupported wall, the same machine may drift 0.05 mm from tool pressure alone.

Surface finish follows the same logic. A light finishing pass at Ra 0.8–1.6 μm is normal on aluminum and mild steel. Pushing to Ra 0.2–0.8 μm usually means a separate finishing strategy: smaller stepover, sharper tool, and a spring pass to clean up deflection.

Coolant choice is not cosmetic. Aluminum likes high-flow flood coolant or air blast to clear chips. Titanium and Inconel need pressure through the tool, because heat that stays in the cut destroys edges in minutes and moves the part out of tolerance.

A 3-axis mill moves X, Y, and Z. The tool always points straight down. That covers prisms, plates, pockets, and most brackets, and it is the cheapest way to get there. The limit shows up on contoured faces and holes on angled walls, which need either a second setup or a re-fixture.

A 4-axis machine adds rotation, usually about X or Y. Now you can cut a cylinder's worth of features in one setup: flats, slots, and cross-holes on a shaft. The part spins under the tool, so the datum never changes. That single fact removes a whole class of position errors.

A 5-axis machine adds a second rotary axis, and the tool can tilt. Short tools reach deep pockets without long overhangs. Undercuts and organic surfaces become machinable. The trade is cost and programming time, so we reserve simultaneous 5-axis for parts that genuinely need it.

• 1
  3-axisFlat-bottom geometry, one dominant direction of approach.
• 2
  4-axisRotational features on shafts and cylindrical bodies.
• 3
  5-axisUndercuts, deep cavities, and compound angles in one setup.

Machining wins on tight tolerances, small to mid volumes, and parts where material properties matter more than unit cost. A 17-4PH medical housing at ±0.005 mm belongs here. So does a 4,000 mm frame that needs flatness checked after stress relief.

It loses on thin-walled shells at high volume, on parts with internal channels no tool can reach, and on anything where 90 percent of the stock becomes chips. Die casting, sheet metal, or 3D printing usually beat it there. The honest answer is often a hybrid: cast the blank, then machine only the critical faces.

Material picks the cutting data, not the other way around. Aluminum 6061 and 7075 cut fast and hold finish well. Stainless 316 work-hardens if you dwell, so feeds stay heavy and tools stay sharp. Titanium TC4 and Inconel demand low surface speed and rigid setups, which stretches cycle time.

A tolerance on a drawing is a promise until someone measures it. We check incoming stock, monitor dimensions during the run, and inspect before shipment. Reports go out on request. That sequence is what turns a ±0.005 mm claim into something a buyer can audit.

The first article matters most. We check the critical dimensions on part one, compare them to the model, and adjust offsets before the run continues. If a feature trends, we catch it at part five, not part five hundred. Historical late delivery sits below 2 percent across our work.

Certifications set the floor for how that work is documented. ISO 9001:2015 covers the quality system. IATF 16949:2016 applies to automotive programs. ISO 13485:2016 covers medical devices. ISO 27001:2022 covers how customer data and files are handled.
