People search "what city is CNC machining swiss school" expecting one campus with an address. The honest answer is that no single city owns the term. The technique traces to the watchmaking valleys of western Switzerland, where small turned components were produced on cam-driven automatics from the late 1800s onward. Towns like La Chaux-de-Fonds and Le Locle became the workshop cluster, and the machine builders who supplied them gave the world the sliding headstock.

That is why the phrase survives in English. It is a nickname for a machine architecture, not a diploma. If you call a shop and ask which city hosts "Swiss school," you will get different answers depending on whether the person means a machine tool builder, a training program, or a style of turning. The useful question is not the postal code. It is whether your part geometry suits the method.

What matters to a buyer is the consequence, not the geography. Swiss-type turning means the bar stock moves through a guide bushing while the tool stays close to the support point. That single design choice is what lets the process hold tight diameter control on long, slender parts. Everything else about the machine follows from it.

So treat the phrase as shorthand. When someone says their shop runs Swiss school work, they mean small-diameter, high-volume, tight-tolerance turning. They do not mean a certificate from a particular town. Ask for the machine list and the guide bushing sizes instead.

• 1
  Origin clusterWatchmaking towns of western Switzerland, late 1800s
• 2
  What the term describesA sliding headstock machine architecture
• 3
  What it does not describeA single accredited campus
• 4
  What to ask insteadGuide bushing range and bar feeder capacity

On a conventional lathe the part spins and the tool travels. On a Swiss-type machine the bar stock is pushed forward through a guide bushing by the headstock, and the tools sit in a cluster right at the bushing face. The bar advances, the tools cut, then the bar advances again. Cutting always happens within a millimeter or two of the bushing support.

That support point is the whole trick. A long, thin shaft that would chatter on a conventional lathe stays rigid because the unsupported length is tiny. Turn a Ø3 mm pin 80 mm long on a standard lathe and deflection ruins the middle. Feed it through a guide bushing and the same pin comes off straight, because the material is supported where the tool meets it.

The trade-off is that the workpiece cannot be long and fat at the same time. Swiss machines are built around bar stock, typically from Ø0.5 mm up to roughly Ø32 mm depending on the model. Above that range you are usually better off on a mill-turn center or a conventional turning center with a chuck.

Live tooling changes the picture further. Many Swiss machines carry milling spindles and a sub-spindle, so a part can be turned, cross-drilled, slotted, and cut off in one cycle. For small connectors, surgical screws, and sensor housings, that removes secondary operations entirely.

• 1
  Bar diameter rangeAbout Ø0.5 mm to Ø32 mm, model dependent
• 2
  Support conditionTool cuts within ~1–2 mm of the guide bushing
• 3
  Best geometryLong, slender, small-diameter, high aspect ratio
• 4
  Live toolingCross-drilling and milling in the same cycle

A conventional turning center holds the part in a chuck or collet and moves the turret. It handles larger diameters, shorter length-to-diameter ratios, and one-off parts with ease. Setup is straightforward because you can see the whole workpiece and touch off tools against a stationary surface.

A Swiss-type machine wins on aspect ratio and volume. It also wins on material yield for small parts, because bar stock feeds continuously and the remnant is short. What it loses is flexibility at the top end. You cannot swing a Ø150 mm flange on a sliding headstock machine, and you would not want to.

The decision usually comes down to two numbers: the largest diameter in the part and the length-to-diameter ratio of the slenderest feature. If the ratio exceeds about 5:1 and the diameter sits under Ø32 mm, Swiss-type turning is the natural fit. If the part is short and wide, a three-axis mill or a chucking lathe is simpler and cheaper.

There is also a volume dimension. Swiss machines shine when the same small part repeats thousands of times. For a single prototype, the setup effort may not pay back, and a mill-turn center gives you the same geometry with less fixturing work.

• 1
  Choose Swiss-typeL/D over 5:1, diameter under Ø32 mm, repeat volume
• 2
  Choose chucking latheShort and wide parts, wide diameter range
• 3
  Choose mill-turnMixed features, low volume, one-off prototypes
• 4
  Material yieldContinuous bar feed leaves a short remnant

Diameter control on a Swiss-type machine is the strong point. With a proper guide bushing, coolant, and a stable bar, we hold ±0.005 mm on diameters as a routine production tolerance. Surface finish lands around Ra 0.8–1.6 μm on turned faces, and Ra 0.2–0.8 μm after fine finishing passes.

Length tolerances are a different story. Every time the headstock advances, small positioning errors accumulate along the part. Hold total length to ±0.02 mm on a 60 mm part and you are asking for real work. The fix is usually to machine a reference face and measure from it, not from the bar end.

Material matters more than people expect. Free-machining grades like 303 stainless and 6061 aluminum run clean and hold size. Titanium TC4 (Ti-6Al-4V) and Inconel work but generate heat at the cutting edge and wear tooling fast, so cycle times and tool-change intervals need planning.

Thin walls are the other trap. A Ø6 mm tube with a 0.4 mm wall will deflect under clamping and cutting pressure. Light passes, sharp tooling, and sometimes a filling medium keep the wall round. If the wall is under 0.5 mm, tell us at the quoting stage rather than after the first article.

• 1
  Diameter±0.005 mm routine with a matched guide bushing
• 2
  FinishRa 0.8–1.6 μm turned, Ra 0.2–0.8 μm fine finished
• 3
  Length stack-upMeasure from a machined reference face
• 4
  Difficult alloysTC4 and Inconel need slower speeds and fresh edges

The cycle starts with a bar feeder loading stock through the guide bushing. The headstock pushes the bar forward by a programmed increment, the tools cut that exposed length, and the sequence repeats until the part is complete. Then a pick-off spindle takes the part and the saw cuts it free.

Tool layout is decided before the first cut. A Swiss machine holds many tools in a tight cluster, and the order they engage determines cycle time. Drilling a deep hole early, while the part is still fully supported, is standard practice. Cutting off last is mandatory.

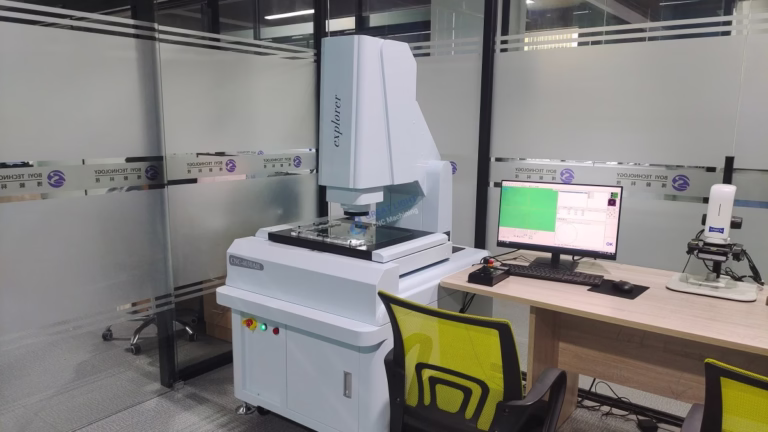

In-process gauging catches drift before it becomes scrap. On long runs we check diameter at set intervals, log the reading, and adjust offsets when the trend moves. This is how a run of thousands holds the same size from first article to last.

After machining, the part goes to deburring, then to any required finish. For small turned parts, tumbling and bead blasting are common, followed by passivation on stainless or anodizing on aluminum. Laser marking is available down to 1.5 mm character height if the part needs traceability.

• 1
  Bar feedContinuous stock through the guide bushing
• 2
  Cut sequenceDeep holes first, parting off last
• 3
  In-process checksDiameter logged at intervals, offsets adjusted
• 4
  FinishingTumbling, bead blast, passivation, anodizing

Send a 3D model and a 2D drawing with the critical dimensions marked. The model shows geometry; the drawing shows which tolerances actually matter. Without that split, a shop may spend effort holding a dimension that has no function and let a functional one drift.

State the material grade, not just "stainless steel." 303 and 316L machine very differently and behave differently in service. The same applies to aluminum: 6061-T6 and 7075 are not interchangeable. Grade selection drives tool life, finish, and sometimes the machine choice.

Mention the annual volume and whether the part is a prototype or a production item. Volume changes the fixturing decision and sometimes the process. A part that is marginal between Swiss-type and milling at 50 pieces may clearly belong on a Swiss machine at 20,000.

Add any finish, marking, and inspection requirement up front. Certificates, material traceability, and first-article reports take time to prepare. Knowing about them on day one keeps the schedule honest. Uploads stay confidential, and we sign an NDA on request.

• 1
  GeometrySTEP model plus a 2D drawing with critical dims
• 2
  MaterialExact grade, not a family name
• 3
  VolumePrototype quantity and annual production forecast
• 4
  ComplianceFinish spec, marking, inspection reports, NDA
