What Are the Five Basic Components of a Machining Center?
Five basic components carry every cut a machining center makes. This page walks through the structure, spindle, feed drives, tool changer and CNC control, and shows how each one sets a limit on the parts you can quote. Written for engineers and buyers who compare machines on capability, not on price alone.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
The five basic components at a glance
Every machining center, whether a compact 3-axis mill or a 5-axis cell with a Ø400 mm rotary table, is built from the same five groups. The structure carries the load. The spindle turns the tool. The feed drives position the axes. The tool changer swaps cutters without an operator. The CNC control reads the program and closes the loop. Nothing on that list is optional, and no single item can be upgraded far beyond the others.
It helps to think in terms of error budgets rather than feature lists. If the bed twists 10 μm under a heavy cut, a spindle with 2 μm runout will not save the part. If the control has 1 μm feedback resolution but the ballscrew has 8 μm of backlash, the resolution is decoration. The five basic components work as a chain, and the finished tolerance is set by the weakest link.
This matters when you read a spec sheet. Machine builders quote positioning accuracy, repeatability, spindle speed and tool count as separate numbers. Buyers often compare them one by one. A better habit is to ask which component the accuracy figure was measured on, at what spindle speed, and with what thermal state. A cold machine on a granite plate and a warm machine after four hours of aluminum cutting are two different machines.
The rest of this page takes each of the five basic components in turn, explains the mechanism that makes it work, and names the point where it stops helping. That boundary is usually where a process decision has to change: smaller depth of cut, a different toolpath, a different machine, or a different supplier.

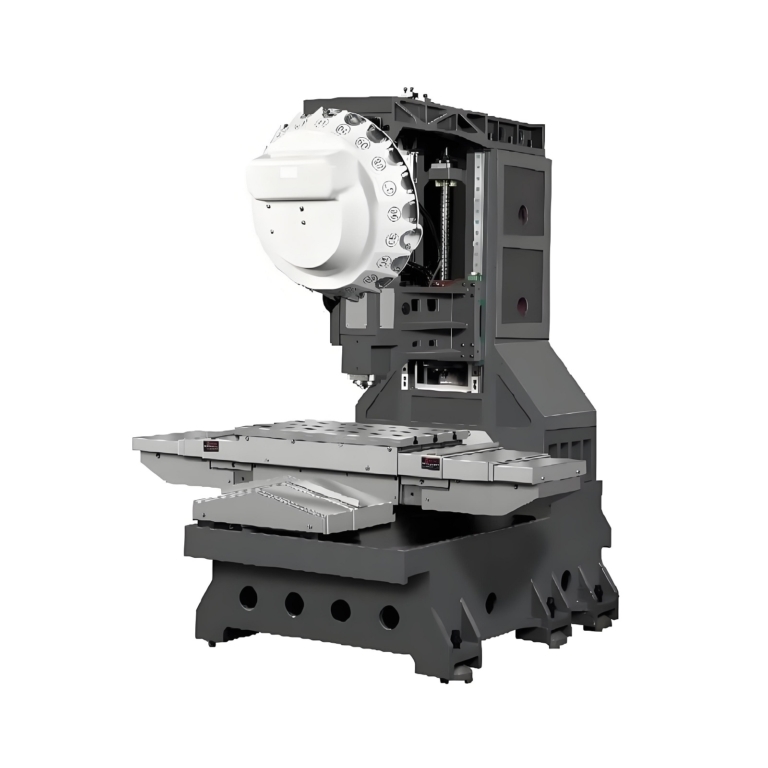

Structure: the bed, column and linear motion
The structure is the cast or welded frame plus the guideways that let the axes move. Cast iron is still common because it damps vibration well and holds shape as it ages. Welded steel frames are lighter and cheaper for large travels, but they ring more, so they usually need stress relief and filler in the columns. Polymer concrete sits between the two: heavy damping, good thermal inertia, higher cost.
Guideway type decides how the machine behaves under load. Box ways spread load over a large contact area, which suits heavy cuts in steel and cast iron. Linear roller guides run faster with less stick-slip and are the usual choice for aluminum and small tools at high feed. The trade is stiffness: a linear guide machine often needs a lighter radial engagement to stay chatter-free.
Thermal behavior is the part most buyers miss. The spindle, motors and ballscrews all generate heat, and the frame grows with it. A machine that holds ±0.005 mm in the first hour can drift if the structure has no symmetry and no compensation. Symmetrical bridge designs and temperature-controlled coolant through the frame reduce that drift, but they add cost.
Practical boundary: if your part is long and thin, or if the feature you need sits far from the spindle centerline, structure stiffness and thermal stability matter more than spindle speed. A 4,000 mm travel machine cutting a rail profile is a different problem from a 500 × 500 × 450 mm machine cutting a bracket.
- 1Cast ironBest damping, slow to warm, typical for general milling and toolroom work.
- 2Welded steelCheaper at large travels, needs stress relief, more prone to ringing.
- 3Box waysHigh stiffness for steel and cast iron, slower rapids, more stick-slip.
- 4Linear roller guidesFast positioning and fine finish on aluminum, lower load capacity.
Spindle: speed, bearings and thermal growth
The spindle is where the tool meets the part, so its errors go straight into the workpiece. Three numbers describe it: maximum speed, power at the tool, and runout. Runout of 5 μm on a 10 mm end mill produces a chip load difference across the flutes, which shows up as poor finish and short tool life long before the machine misses a dimension.
Bearing arrangement sets the speed and stiffness trade. Steel angular contact bearings handle high radial loads at moderate speed. Ceramic hybrid bearings run cooler and faster, often 12,000 to 20,000 rpm on a 40-taper spindle. Motorized spindles remove the belt and gearbox, which improves finish and speed, but they put motor heat next to the bearings, so cooling and thermal compensation become critical.
Taper size is a capacity decision, not a preference. A BT30 or HSK-E32 spindle is fast and light, good for aluminum and small features. A BT40 or HSK-A63 covers most general work. A BT50 spindle takes heavy radial cuts in steel and titanium, but it accelerates slowly and costs more per hour to run.
Where the spindle stops helping: when the tool overhang exceeds about four times its diameter, deflection at the tip dominates and no spindle upgrade fixes it. The answer is a shorter tool, a smaller stepover, or a different setup. In our shop, spindle runout and holder condition are checked before a job starts, because a worn holder can add more error than the machine itself.
- 1Steel bearingsHigh radial load, moderate speed, lower cost, more heat.
- 2Ceramic hybridCooler running, higher speed, better finish on aluminum.
- 3Motorized spindleNo belt or gearbox, best finish, needs active cooling.
- 4BT50 / HSK-A100Heavy cuts in steel and titanium, slower acceleration.
Feed drives: servos, ballscrews and feedback
Feed drives move the table and the head. Each axis has a servo motor, a mechanical transmission and a feedback device. The transmission is usually a ballscrew or a linear motor. A ballscrew is proven, costs less and handles heavy loads, but it has inertia, wear and backlash. A linear motor removes the screw, so it accelerates fast and holds fine resolution, but it generates heat in the rail and needs a rigid structure to absorb the reaction force.
Feedback separates two classes of machine. Semi-closed loop reads the motor encoder, so it assumes the screw and nut introduce no error. Full closed loop reads a linear scale on the axis itself, which catches screw pitch error and thermal growth. For work at ±0.005 mm, a linear scale on X, Y and Z is usually worth the cost. It does not make a weak structure accurate, but it does make a good structure repeatable.
The drive system also sets the practical feed rate. High-speed contouring needs both fast rapids and enough acceleration. A machine rated at 40 m/min rapid with low acceleration will lose time in every corner, and it may leave witness marks where the axis hesitates. Look at acceleration figures in m/s² alongside rapid rate.
Boundary condition: backlash and screw wear show up as a repeating dimensional error that changes with direction of travel. If two identical pockets cut in opposite directions differ by 10 μm, the axis is the suspect, not the tool or the program. That is a maintenance question before it becomes a design question.
Tool changer and CNC control: the two systems that make it automatic
The automatic tool changer is what separates a machining center from a CNC mill. A carousel or umbrella magazine holds 16 to 60 tools, and an arm swaps them in a few seconds. Tool-to-tool time is a real cost item on small parts. On a job with 20 tools and 200 parts, a 2 second difference per change becomes hours across the run.
Magazine size is a setup decision as much as a capacity one. A 24-tool magazine covers most aluminum and steel parts. Large or mixed jobs need 40 or 60 pockets, plus a probe and a spare face mill. Tool holders must be numbered and checked, because a worn taper or a chipped pull stud causes runout and, in the worst case, a dropped tool.
The CNC control reads the program, runs the servo loop, and applies compensation. Modern controls do more than interpolate: look-ahead predicts corners and slows before them, thermal compensation offsets screw and frame growth, and adaptive feed adjusts to spindle load. These functions matter more than the raw block processing speed on most shop work.
A control is also a data interface. For production work, you want program storage, tool life management, and an alarm log you can read after a crash. For prototyping, quick editing at the machine and easy probing save more time than any high-end feature. Match the control to the workflow. A powerful control on a machine nobody programs offline is wasted budget.
- 1Carousel changerFast, compact, 16 to 30 tools, common on 40-taper machines.
- 2Arm changerFaster tool-to-tool time, larger magazines, higher cost.
- 3Look-ahead controlSlows into corners, protects finish, needs tuning to match the machine.
- 4Tool life managementTracks cutting time per pocket, reduces scrap from worn tools.
Which component limits you, and what to do
Match the symptom to the subsystem before you change the process.
| Symptom | Likely component | What to change |
|---|---|---|
| Taper or size drift over hours | Structure and spindle thermal growth | Warm-up cycle, coolant control, linear scales |
| Poor finish at correct chip load | Spindle bearings or holder runout | New holder, lower runout, check preload |
| Repeating error that flips with direction | Feed drive backlash or screw wear | Backlash compensation, screw service, scale check |
| Chatter on thin walls | Structure stiffness and tool overhang | Shorten tool, reduce radial engagement, add support |
| Long cycle time on small parts | Tool changer and rapid rates | Larger magazine, higher acceleration, fewer tools |
| Corner marks and witness lines | Control look-ahead and acceleration | Tune look-ahead, use arc fitting, slower corners |
| Hole position off only on warm machine | Feedback type and thermal state | Full closed loop, probing, thermal compensation |
The trade you actually make
If your parts are small, tight and mostly aluminum, put the money into the spindle and full closed-loop feedback. If your parts are large, heavy and steel, put it into the structure and box ways. Buying both at the top of the market is how a shop ends up with a machine that cannot pay for itself.
Questions engineers ask next
Is the automatic tool changer really one of the five basic components?
Yes. A machining center is defined by automatic tool change plus CNC control. A CNC mill without a changer can still cut accurate parts, but it needs an operator at every tool change, so it is a different class of machine.
In practice the changer sets your cycle time on multi-tool parts. It also affects process planning, because tool order and tool life management become part of the program.
How much does each component contribute to the final tolerance?
There is no fixed split. On a good machine, structure and spindle thermal growth often dominate over a full shift, while feed drive error dominates on short moves and reversals.
The useful approach is to measure your own process. Cut a test part cold, then cut it again after four hours and compare. That tells you which subsystem is moving.
Do linear scales make a machine accurate?
They make it repeatable by closing the loop at the axis. They do not fix a flexible frame, a worn spindle or a bad setup.
On work at ±0.005 mm, scales on all three linear axes are usually worth the cost, especially for parts with tight hole-to-hole position.
When is a 5-axis machine the wrong answer?
When the part is prismatic and can be reached in two or three setups on a 3-axis machine. Five-axis machines cost more per hour, and their rotary axes add error sources that must be maintained.
Use 5-axis when the geometry needs it, or when fewer setups reduce handling error and fixturing cost enough to pay for the machine time.
What should I check on a used machining center?
Check backlash on each axis, spindle runout with a test bar, and tool changer repeatability. Ask for a ballbar or circular test record if one exists.
Also cut a test part in the material you plan to run. A cold geometry check misses thermal behavior, which is where older machines often show their age.
