Aircraft brackets rarely fail because the alloy was wrong. They fail because a corner radius, a fillet or a bolt pad could not be reached without two extra setups and the tolerance stack drifted. That is the problem 5-axis CNC machining components solve on the shop floor.

A typical wing rib bracket in 7075-T6 has pockets on four faces, a drain hole at 30° and two lugs that must sit within ±0.005 mm of each other. On a 3-axis mill that is four fixtures and four datum transfers. On a simultaneous 5-axis center the part stays clamped once and the rotary table indexes the work.

Material matters here. 7075 and 2024 cut clean at 8,000–12,000 rpm with an air blast, but titanium TC4 (Ti-6Al-4V) needs flood coolant and slower stepover to keep heat out of the thin webs.

We see two recurring mistakes on these parts. Programmers leave a 2 mm tool engagement in a 1.5 mm web, and the web springs. Or the deburr pass runs at the same feed as the roughing pass and rolls a burr over a sealing face.

• 1
  Typical alloys7075-T6, 2024, TC4 (Ti-6Al-4V)
• 2
  Typical tolerance±0.005 mm on lug-to-lug dimensions
• 3
  Common finishRa 0.8–1.6 μm on mating faces

Automotive work splits into two groups. High-volume castings are not a 5-axis job. Prototype and low-volume machined parts are.

A battery cooling plate, a motor end bell, a turbo compressor wheel or a gearbox housing all share the same trait: features on several faces plus a bore that must be concentric to the mounting face. Concentricity within 0.01 mm is straightforward when the bore and the face are cut in the same setup.

EV work pushes toward thin walls. A 2 mm aluminium housing wall will deflect under a 12 mm end mill at full radial engagement. We step down to a 6 mm cutter, take 0.3 mm radial passes and accept a longer cycle. The part stays in tolerance.

Prototype runs of one to fifty pieces are the sweet spot. No tooling cost, no casting lead time, and a design change between revisions costs a new program, not a new mold.

• 1
  Good fitMotor housings, cooling plates, impellers, intake manifolds
• 2
  Poor fitParts already die-cast in volumes above 20,000
• 3
  Wall thicknessDown to 1.5 mm with reduced radial engagement

Medical work is a different animal because the surface is the product. A bone plate that sits proud against tissue or a surgical guide with a rough channel is a rejected part, regardless of dimensional accuracy.

Titanium and stainless surgical instruments are usually machined from 17-4PH (SUS630) or 316L. Both work-harden. A dwell of even half a second in the cut raises the surface hardness and kills the next insert. We keep the feed per tooth above 0.05 mm and never let the tool rub.

Cobalt chrome and titanium implant blanks get a finishing pass at Ra 0.2–0.8 μm where the geometry allows. That finish usually comes off a ball nose cutter with a 0.05 mm stepover, not a polishing bench.

Traceability is part of the deliverable. Material certificates, in-process records and a final inspection report travel with the parts. For implant-adjacent work we hold to ISO 13485:2016 and keep the inspection data attached to the lot number.

• 1
  Common alloys17-4PH (SUS630), 316L, TC4, cobalt chrome
• 2
  Surface targetRa 0.2–0.8 μm on functional surfaces
• 3
  DocumentationMaterial certs and inspection reports on request

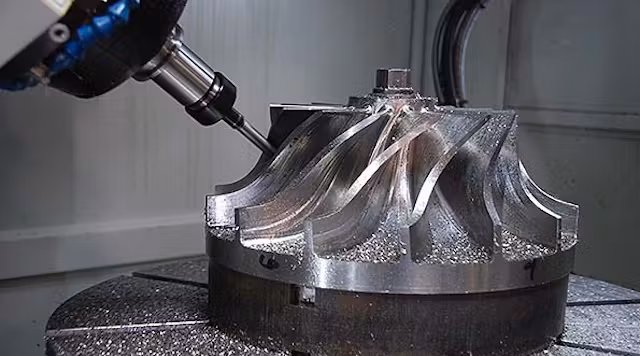

Pump impellers, turbine blades and hydraulic manifolds are the classic 5-axis parts. The blade surface is a ruled or twisted spline, and a 3-axis mill can only reach it with a long tool that chatters.

A closed impeller in 17-4PH with seven blades and a 90 mm diameter is a two-setup job on a 5-axis center: rough the shroud side, flip, machine the hub and blend the fillets. Tool access through the blade channel is the constraint. A 6 mm lollipop cutter handles most channels down to 12 mm wide.

Robotic joint housings bring a different challenge. They are usually aluminium 6061-T6 or 6082 with two perpendicular bores that must intersect within 0.02 mm. Cross-drilling after the fact never holds that. Machining both bores in one setup does.

Heat exchangers and manifold blocks add drilled cross-passages. A 5-axis center with through-spindle coolant drills a 25× diameter deep hole in one pass and keeps the chip evacuation clean.

• 1
  Typical partsImpellers, turbine blades, hydraulic manifolds, joint housings
• 2
  Key constraintTool reach inside blade channels
• 3
  CoolantThrough-spindle, high pressure for deep cross-holes

Not every 5-axis job is exotic. A lot of it is a large welded frame that needs its mounting pads face-milled flat, or an aluminium enclosure with a curved top and connector cutouts on three sides.

Our largest 5-axis travel is 4,000 × 400 × 150 mm, which covers long extrusion profiles and machine bed sections. Medium centers run 750 × 1,150 × 550 mm and 600 × 600 × 600 mm for general frame work. The rotary table is Ø400 mm, so anything that needs to spin through a full rotation has to fit inside that circle.

Architectural and product design parts usually run as one-offs or short batches. Curved aluminium panels, sculpted handset shells, exhibition hardware. There is no fixture to amortize, and no casting tool to pay for.

The trade-off is cycle time. A sculpted surface at a 0.1 mm stepover takes hours. If the part is decorative and the surface is painted, a 0.5 mm stepover with bead blasting gets the same visual result in a fraction of the time.

• 1
  Large partsUp to 4,000 × 400 × 150 mm
• 2
  Rotary capacityØ400 mm table for full rotation
• 3
  Short runsOne-off to 10,000+ pieces, no MOQ
