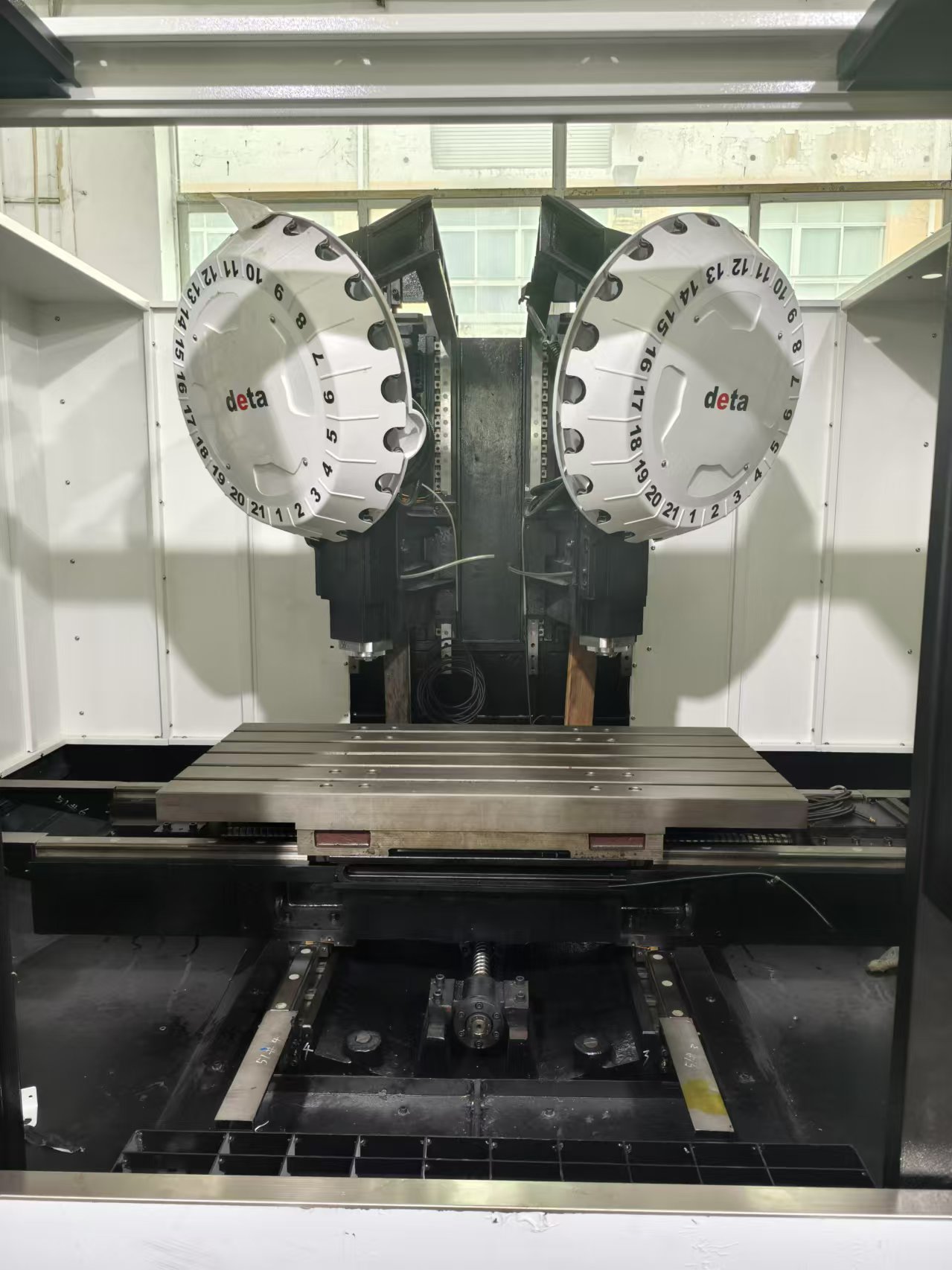

A twin spindle machining center carries two independent spindle units on a shared bed. Each spindle has its own tool magazine and its own axis stack. While spindle one mills a face, spindle two can be loading, unloading, or cutting the opposite face of a second part. The machine does not run faster in spindle rpm. It runs more of the time.

That distinction matters when reading the development prospects for twin spindle platforms. The gain comes from overlapping non-cut time with cut time. Tool changes, part swaps, and rapid moves on one side hide behind cutting on the other. On a single-spindle machine these events sit in series. On a twin-spindle machine they sit in parallel.

Cycle time is roughly the longer of the two spindle cycles plus any shared handling. A 90-second single-spindle part with 40 seconds of non-cut time can drop toward 50 to 60 seconds per part on a well-balanced twin-spindle setup. The exact number depends on how evenly the two sides load.

Balance is the catch. One spindle waiting on the other is wasted capacity. The best development prospects for twin spindle layouts appear when the two sides carry similar cut time, similar tool counts, and similar tolerance demands.

• 1
  Overlap, not rpmThe second spindle hides handling and tool changes behind cutting.
• 2
  Balance decides gainEven cut time on both sides is what turns a parallel layout into real savings.
• 3
  Shared base, shared errorThermal drift on the bed affects both spindles at once.

Two spindles on one base share a thermal environment. Heat from one spindle head reaches the bed and the other head through the casting. Over a long run, that shared heat moves both tool tips in similar directions. The relative error between the two sides stays small, and absolute position drifts more.

For most parts this is fine. A housing bored from two sides still lines up if both bores are cut under the same thermal state. Coaxiality between two opposite bores typically holds within 0.01 to 0.02 mm on a well-maintained machine. A single-spindle machine moved between two fixtures can do better on paper, but only if the refixturing is perfect.

GreatLight holds ±0.005 mm on its precision work and inspects 100% of parts before shipment. That figure reflects the shop capability, not a promise that every twin-spindle job hits it. Deep bores, thin walls, and long tools all eat into the budget.

Reaching ±0.005 mm on a twin-spindle machine means controlling thermal growth, not just geometry. Warm-up cycles, coolant temperature, and spindle load all shift the number. Ask what the machine does after four hours of continuous cutting, not after a fresh start.

• 1
  Relative vs absoluteTwo-sided features from one setup stay tight even when absolute position drifts.
• 2
  Thermal budgetShared heat is the dominant error source on long runs.
• 3
  In-process checksProbing between cuts catches drift before the run ends.

A part earns its place on a twin spindle when both faces need metal removed and the two faces need to line up. Valve bodies, steering knuckles, pump housings, and hydraulic fittings all fit. They have bores, faces, and threads on opposite ends that must share an axis.

Parts that fail the test are just as common. A long shaft cut almost entirely from one end gains little. A flat plate with pockets on one side gains nothing. A part with a delicate feature that needs a single continuous pass may lose accuracy when split between two heads.

Volume enters the picture too. Below roughly 500 parts, the programming and fixturing effort for two spindles rarely pays back. Above 10,000 parts, a dedicated transfer line or a mill-turn cell often beats a general-purpose twin-spindle machine on cost per part.

Material matters less than geometry. Aluminum 6061 and 7075, stainless 304 and 17-4PH, and titanium Ti-6Al-4V all run on twin-spindle platforms. The tool paths differ, the part logic does not.

• 1
  Two faces, one axisOpposing bores and faces that must align are the strongest signal.
• 2
  Skip one-face partsPockets and profiles on a single side waste the second spindle.
• 3
  Volume matters500 to 10,000 parts is the usual sweet spot.

The development prospects for twin spindle machines track three shop-floor pressures: labor cost, part complexity, and traceability. Labor pushes toward unattended runs. Complexity pushes toward multi-axis motion on both sides. Traceability pushes toward in-process probing and logged data.

Automation is the clearest shift. A gantry loader or robot arm can feed both spindles from one queue. That turns a two-spindle machine into a small cell that runs through a break. The engineering work moves from cutting to part presentation and chip management.

Multi-axis heads are the second shift. A twin-spindle platform with a tilting B-axis on each side cuts angled features without a refixture. That removes the setup error that used to dominate two-sided work.

The third shift is data. Spindle load, tool wear, and probe results are logged per part. Buyers increasingly ask for that record alongside the inspection report. Twin-spindle cells produce it naturally because the machine already tracks both sides.

• 1
  Unattended runsLoaders feed both spindles from one queue.
• 2
  Tilting headsAngled features cut without a refixture.
• 3
  Per-part dataLoad, wear, and probe results logged for traceability.

Ask for the fixturing plan first. On a twin-spindle machine, the fixture often costs more engineering time than the tool path. A fixture that holds the part for both spindles without losing location is the whole game.

Ask for a warm-up curve. A machine that holds ±0.005 mm cold may drift after three hours. The shop should know its own drift and compensate.

Ask how the two sides balance. If one spindle finishes in 40 seconds and the other in 70, the machine runs at the slower rate. Rebalancing the cut is a programming job, not a machine limit.

GreatLight runs 127 high-precision CNC machines across three plants in Dongguan and Singapore, with 16 simultaneous 5-axis centers and 16 mill-turn centers. Twin-spindle logic shows up in the mill-turn and multi-axis cells, where one setup covers both ends of a part.

• 1
  Fixture firstThe holding plan decides whether the part works.
• 2
  Warm-up curveKnow the drift after four hours, not after four minutes.
• 3
  Balance the cutEven cycle time on both sides is the goal.
