3D Printing Alloy Mechanism: How Charge Rearrangement Makes Lighter Vehicle Parts

• 1
  What the 3D printing alloy mechanism actually describes
• 2
  Why the as-built microstructure differs from cast alloy
• 3
  Where the mechanism helps and where it does not
• 4
  Process parameters that decide whether you get the mechanism
• 5
  Cost and program impact for a real part
• 6
  Choosing between AM and CNC for lightweight parts

The Oak Ridge team studied an aluminum-based alloy built by laser powder bed fusion. In that process a laser melts a thin layer of metal powder, the melt pool solidifies in milliseconds, and the part grows layer by layer. Cooling rates reach 10^5 to 10^7 K/s. That is thousands of times faster than casting, and it forces the solid to keep more solute in solution than it normally would.

The mechanism they describe is charge rearrangement around a crystal defect. When solute atoms sit near a dislocation core, electron density shifts between neighboring atoms. That shift changes how strongly the solute pins the dislocation. Pinning is what resists plastic flow, so the shift shows up as a measurable change in yield strength.

This matters because a stronger alloy can carry the same load with less cross section. In vehicle terms, less cross section means less mass. Roughly, a 10 percent mass cut on a structural part returns a few percent in fuel or range. The effect is real but modest, and it only appears when the alloy chemistry and the thermal cycle are both controlled.

• 1
  Fast coolingKeeps solute in solution instead of forming coarse precipitates
• 2
  Defect coreWhere the electron charge redistribution happens
• 3
  ResultHigher resistance to dislocation motion, higher yield strength

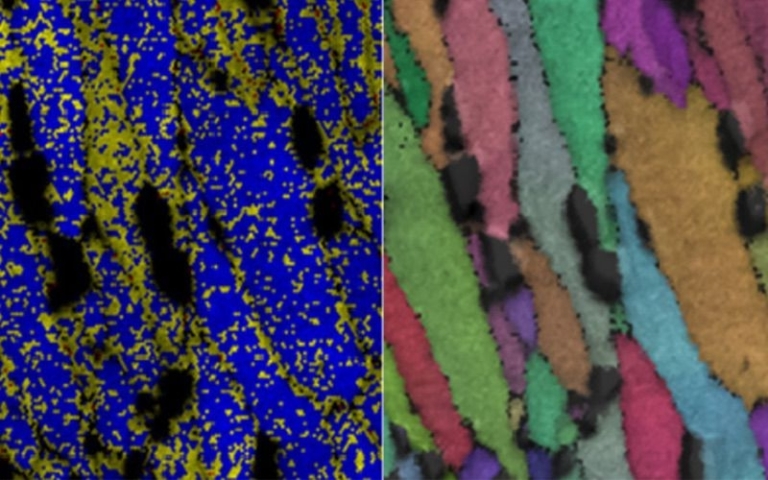

A cast aluminum part cools slowly. Grains grow large, second phases coarsen, and the solute has time to leave solution. A laser-built part does the opposite. Grains are fine and columnar, aligned with the build direction. The solute is trapped where it was during the last pass, and the cell walls are often richer in solute than the cell interiors.

That trapped state is metastable. It is not the equilibrium structure the phase diagram predicts. The 3D printing alloy mechanism depends on this metastability. Remove it, and you remove the strength contribution. That is why a heat treat schedule written for a wrought 6061 or 7075 part will not transfer directly to the same chemistry in an AM build.

The practical consequence is anisotropy. A coupon cut along the build direction and a coupon cut across it will not test the same. Yield strength can differ by 5 to 15 percent depending on alloy and orientation. Any design value has to come from the direction that carries the load, not from an average.

• 1
  Fine cellsTypical cell size 0.3–1.0 μm in as-built aluminum AM
• 2
  AnisotropyStrength varies with build direction, often 5–15 percent
• 3
  Heat treatMust be re-qualified per alloy, not copied from wrought specs

It helps in thin-wall, stiffness-limited structures. Brackets, housings, battery trays, and heat-sink bodies are good candidates. These parts often fail by deflection rather than by stress, so a stiffer or stronger alloy lets you remove material without losing function. Lattice and topology-optimized geometry multiplies the gain because the alloy and the shape both save mass.

It does not help when fatigue dominates. Pores, lack of fusion, and unmelted powder act as crack starters. A stronger matrix does not fix a 50 μm void at the surface. If the part sees 10^6 cycles or more, the porosity level and surface roughness matter more than the alloy mechanism. HIP and machining after build usually do more for fatigue life than a chemistry change.

It also does not help when the part is stiffness-limited and the alloy is the wrong class. Aluminum has a Young's modulus near 70 GPa. Steel is near 200 GPa. No mechanism inside an aluminum alloy closes that gap. If a part is limited by stiffness, changing alloy chemistry inside the same metal family buys very little.

• 1
  Good fitStiffness-limited or strength-limited brackets, housings, trays
• 2
  Weak fitHigh-cycle fatigue parts where porosity governs life
• 3
  Wrong leverStiffness-critical parts that need a different metal class

Laser power, scan speed, hatch spacing, and layer thickness set the energy density. Too low and you get lack of fusion. Too high and you get keyhole porosity and metal spatter. Both defects cut fatigue life. A useful working range for aluminum AM is roughly 200–400 W power, 600–1400 mm/s scan speed, and 30–60 μm layer thickness, but the exact window is alloy and machine specific.

Powder quality is the second lever. Particle size distribution, oxygen content, and reuse count all shift the result. Each reuse cycle adds oxygen and changes flowability. Track reuse count and re-check chemistry on a schedule. A build that runs clean on virgin powder can show higher porosity after several reuse cycles.

Post-processing decides what survives. Stress relief, HIP, solution treat, and artificial aging each move the microstructure in a different direction. Machining after build removes the rough surface and the partially melted particles that act as crack starters. For a load-bearing part, plan the post-process chain before you plan the build orientation.

• 1
  Energy densityBalance fusion against keyhole porosity
• 2
  Powder reuseTrack cycles, re-check oxygen and chemistry
• 3
  Post-processHIP plus machining lifts fatigue life most

AM is not a drop-in replacement for a casting or a machined billet. The powder costs more per kilogram than bar stock, the build rate is slow, and every part needs support removal and often machining. For a low-volume bracket, the cost per part can be several times a machined version. The saving only appears when the lightweighting lets you remove a second part, cut a fastener count, or drop a whole assembly step.

The honest comparison is total system cost, not part cost. If a topologically optimized AM bracket replaces three welded steel parts and removes 1.2 kg from a vehicle, that is worth more than the per-part price difference. If it replaces one simple machined aluminum plate with no other change, it usually is not.

For early programs, the useful sequence is: prototype the geometry, test it, then decide the process. If the geometry is simple, subtractive machining is faster and cheaper. If the geometry has internal channels, lattices, or organic ribs, AM earns its place. That decision should be made before the design is frozen.

• 1
  Powder costHigher per kg than bar stock, and reuse matters
• 2
  System viewCount removed parts, not just the new part
• 3
  Simple geometryCNC is usually faster and cheaper
