Online Anatomical Model 3D Printing: A Buyer's Guide

You send a CT or MRI dataset; a supplier turns it into a physical model you can hold. This guide covers resin choice, file prep, tolerance, and lead time so engineers and lab managers can compare quotes on equal terms.

Get Instant Quote Talk to an Engineer

DICOM to STLMedical-grade resinsNo minimum orderISO 13485:2016

Online anatomical model 3D printing workflow for a medical model

On this page

1
Key takeaways
2
Matching the model to the process and material
3
What online anatomical model 3D printing actually involves
4
Judging a supplier: five checks that matter
5
Tolerance, resolution, and what the numbers mean
6
Lead time and cost drivers in a quote
7
Common mistakes that ruin the first print
8
Step by step: from scan to shipped model

Quick answers

Key takeaways

Segmentation decides the modelA clean STL from the DICOM scan matters more than the printer. Ask who does the segmentation.

Resin follows the use caseRigid for drilling guides, flexible for vessel walls, transparent for sinus and airway study.

Layer height sets the finish0.05–0.1 mm layers are the common range for anatomical models; 0.025 mm only where fine channels matter.

Hollowing cuts cost, not accuracyShelling a large spine or pelvis model saves resin and print hours without changing outer geometry.

Check the certificate, not the claimISO 13485:2016 scope should cover the printing process, not just general machining.

Selection matrix

Matching the model to the process and material

Use this when you brief a supplier or review a quote.

Model use	Typical resin	Layer height	Watch out for
Surgical planning, bone cut	Rigid opaque	0.05–0.1 mm	Thin cortical walls below 1 mm
Vessel and aneurysm study	Flexible shore A 60–80	0.05 mm	Segmentation gaps inside the lumen
Airway and sinus	Transparent	0.025–0.05 mm	Polishing that clouds the surface
Patient education	Standard opaque	0.1 mm	Over-tight tolerance on soft tissue
Implant trial fit	Biocompatible Class I	0.05 mm	Sterilization method compatibility
Anatomy teaching set	Durable ABS-like	0.1 mm	Long-term color shift

The short version

Pick a supplier that owns segmentation, states layer height and resin grade in writing, and will print one test model before a full order. If the quote has no print parameters, it is not comparable.

Get Instant Quote Talk to an Engineer

What online anatomical model 3D printing actually involves

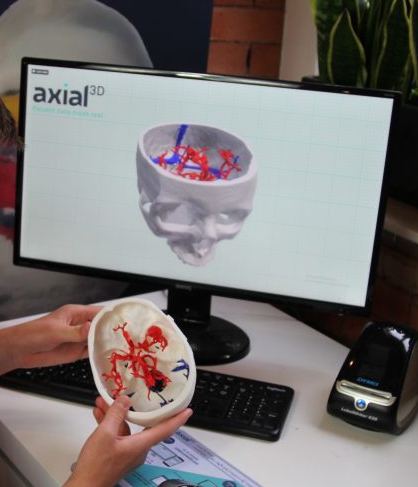

Online anatomical model 3D printing is not a single step. It starts with a scan, usually DICOM from CT or MRI. Someone has to separate bone, vessel, or soft tissue from the surrounding data, close the mesh, and export a printable STL or 3MF. That segmentation step takes the most engineering time and it is where most model errors are born.

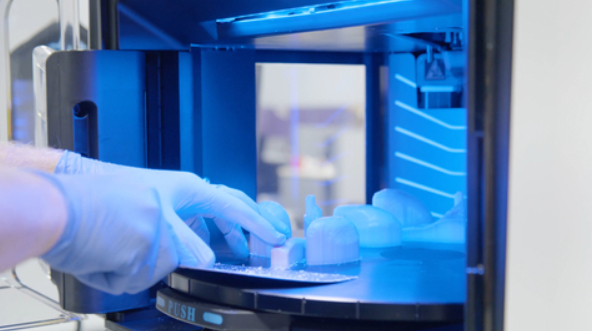

The printing itself is the visible part. A resin or filament machine builds the model layer by layer, then the part is washed, cured, and often sanded or polished. For anatomical work, the outer surface is what the surgeon or lab staff touches, so post-processing matters as much as the build. Suppliers that treat printing as the whole job tend to ship models with visible layer lines and trapped uncured resin.

What you get back depends on what you described. If you only send a scan and a rough sketch, expect the supplier to guess. If you send the scan plus the intended use, the region of interest, and the dimensional checks you care about, the quote will be tighter and the first print more likely to be usable. Online does not mean hands-off. It means the loop is email or a portal instead of a meeting.

Judging a supplier: five checks that matter

Start with the certificate scope. ISO 13485:2016 is the medical device quality standard. A supplier can hold it and still print anatomical models under a general work instruction. Ask whether the certificate scope covers the additive process used for your model. ISO 9001:2015 and ISO 27001:2022 are useful signals too: the first for process control, the second for handling patient scan data.

Next, ask who does segmentation. Some suppliers accept DICOM and hand it back as STL for your approval. Others only accept an STL you prepare yourself. Both are valid, but the price and the risk sit in different places. If the supplier segments, you need to see a threshold or region-growth method and agree on which structures are included before printing.

Third, ask for the layer height and resin grade in writing. A quote that says only "3D printed anatomical model" is not comparable to one that says "0.05 mm layers, rigid opaque resin, shore D 80." Fourth, confirm the dimensional report. For anatomical models, a full CMM report is rarely needed, but key landmarks such as canal diameters or screw trajectories should be checked. Fifth, check the data handling: uploads secure, NDA available on request, and a stated retention period for patient files.

One more practical check: sample parts. A supplier that will print a small test model from your scan before a full order removes most of the guesswork. GreatLight runs no minimum order quantity, so a single test model is possible, from one prototype to 10,000+ part runs.

1
Certificate scopeISO 13485:2016 should cover the printing process, not only machining.
2
Segmentation ownerAgree who converts DICOM to STL and who approves the mesh.
3
Written print parametersLayer height, resin grade, and build orientation in the quote.
4
Data handlingSecure uploads, NDA on request, stated file retention.

Tolerance, resolution, and what the numbers mean

Resolution and tolerance are different things. Resolution is the layer height and the XY pixel size of the printer. Tolerance is how close the finished part sits to the intended geometry. A 0.025 mm layer does not guarantee a 0.025 mm accurate model. Shrinkage during cure, support removal, and sanding all move the surface.

For anatomical models, a practical working tolerance is ±0.1 mm on rigid parts when the mesh is clean and the model is not heavily post-processed. Fine features such as thin vessel walls or small foramina are harder. Below about 0.8 mm wall thickness, flexible resins can tear during support removal, and transparent resins can craze when polished too hard. Tell the supplier which features are critical so they can orient the build around them.

If your model will be used to size an implant or drill a guide, say so. Those models need a dimensional check on the specific landmarks, and the print orientation should be chosen to keep those faces away from supports. For general teaching models, a coarser layer height of 0.1 mm is usually enough and costs less in machine time.

Lead time and cost drivers in a quote

Four things drive the price of an online anatomical model 3D printing order: segmentation hours, model volume, resin type, and post-processing. Segmentation is billed by engineering time and scales with scan quality. A clean 0.5 mm slice CT of a single bone is fast. A full-body trauma scan with motion artifact can take many hours before anyone touches a printer.

Volume drives resin and machine time. Hollowing a large model to a 2–3 mm shell cuts both, and it does not change the outer surface. Resin type matters because flexible and biocompatible grades cost more than standard opaque. Post-processing covers washing, curing, support removal, sanding, and any polishing or clear coating.

On timing, a realistic sequence for a small anatomical model is: quote and file review within 12 hours, print start within 24 hours of approval, and parts shipped in 3–5 days. Large multi-part models or ones needing extensive segmentation take longer. Ask for the schedule in stages so you can see where the time goes. If a supplier quotes a single number with no breakdown, you cannot tell whether the risk is in the mesh or the machine.

Common mistakes that ruin the first print

The most common failure is an unclosed mesh. STL files from segmentation often have holes where two tissues touch or where the scan contrast dropped. Slicers will either refuse the file or fill the hole with a flat patch that changes the anatomy. Always run a mesh check before upload and ask the supplier to report triangle count and any repaired areas.

The second mistake is choosing resin by color instead of by mechanical need. A clear model looks good in a photo, but a clear resin printed at 0.1 mm shows every layer line and yellows with UV exposure. If the model will be handled often, a durable ABS-like or rigid opaque resin holds up better.

The third mistake is ignoring sterilization and handling. If the model enters a sterile field, the resin must tolerate the chosen method, and some autoclave cycles will distort standard resins. State the sterilization method in the brief. The fourth mistake is skipping the file review. A supplier that offers free DFM analysis before printing will flag thin walls and scale issues early, when fixing them is cheap.

Workflow

Step by step: from scan to shipped model

A practical sequence for a first order.

1
Prepare and de-identify the scanExport DICOM from CT or MRI at the thinnest slice available, commonly 0.5–1.0 mm. Remove patient identifiers before upload. Keep the original series; do not resample.
2
Write the briefState intended use, region of interest, critical dimensions, resin preference, layer height, and sterilization method. One page is enough and it prevents most reprints.
3
Agree on segmentation scopeConfirm which structures are included (bone only, bone plus vessels, soft tissue). Ask for a threshold or region-growth description and an STL preview before printing.
4
Approve the meshCheck for holes, non-manifold edges, and correct scale in millimeters. Ask for triangle count and any repaired regions. Approve in writing.
5
Confirm print parametersLayer height 0.05–0.1 mm for most models, 0.025 mm only for fine channels. Orientation should keep critical faces away from supports.
6
Review the inspection recordFor functional models, request measured values on the agreed landmarks. For teaching models, a visual and dimensional spot check is usually enough.
7
Plan post-processingDecide on sanding, polishing, or clear coating before the build. Aggressive polishing can round sharp anatomical edges and cloud transparent resin.

FAQs

Questions buyers ask before ordering

Can I send DICOM files directly?

Yes. Most suppliers accept DICOM and handle segmentation in-house, but you should confirm this before you upload because some only accept STL. If the supplier segments, agree on the structures included and request a preview STL for approval.

De-identify the scan first. Remove patient name, ID, and any burned-in annotations. For sensitive data, ask for an NDA and confirm the file retention period.

What tolerance can I expect on an anatomical model?

On a clean mesh with rigid resin and light post-processing, ±0.1 mm is a realistic working figure on the outer surface. Thin walls and small foramina are less predictable and depend on orientation and support placement.

If a specific landmark drives a clinical decision, name it in the brief and ask for it to be measured. A general tolerance statement for the whole model is less useful than a measured value on the feature you care about.

Is biocompatible resin always required?

No. Biocompatible Class I resins matter when the model contacts tissue or enters a sterile field. For surgical planning that stays on a table, patient education, or teaching sets, a standard rigid or durable resin is fine and costs less.

If the model will be sterilized, tell the supplier the method. Standard resins can distort in an autoclave, and the resin choice has to match the cycle.

How should I hollow a large model?

Shell to 2–3 mm for large bone models such as a pelvis or full spine. This cuts resin use and print time without changing the outer geometry that you measure.

Add drain holes at hidden locations and confirm they are cleared after printing. Trapped uncured resin inside a hollow model will keep curing and can crack the shell later.

Can I combine 3D printed anatomical models with CNC parts?

Yes, and it is common for guides and fixtures. The printed model shows the anatomy; the metal guide, bushing, or frame is machined to tighter limits. GreatLight machines to ±0.005 mm (±0.0002 in) and holds ISO 13485:2016 alongside ISO 9001:2015 and IATF 16949:2016.

Send the printed model and the mating metal part in one brief. The fit between them is usually the real requirement, not either part on its own.

What file formats do you accept?

STL and 3MF are the standard exchange formats for printing, and DICOM for source scans. STEP or IGES is useful when the model must mate with a machined part, because it carries exact geometry rather than a triangle mesh.

For combined projects, send the mesh for printing and the solid model for machining. Include a short note on which surfaces are functional and which are cosmetic.
