Machining Center Automotive Parts: How Five Axes Change the Cut

• 1
  What the two rotary axes actually change
• 2
  Which automotive features need five axes
• 3
  Workholding and datum strategy
• 4
  Where five axes stop helping
• 5
  Cutting parameters by material
• 6
  Choosing between 3-axis, 3+2 and simultaneous 5-axis

A 3-axis mill moves the tool along three straight lines. The spindle direction never changes, so every surface must face the spindle. On a machining center automotive parts job with angled ports, tapered ribs or a curved housing flange, that means several setups. Each setup adds a re-clamp, a new zero point and a fresh chance for position error.

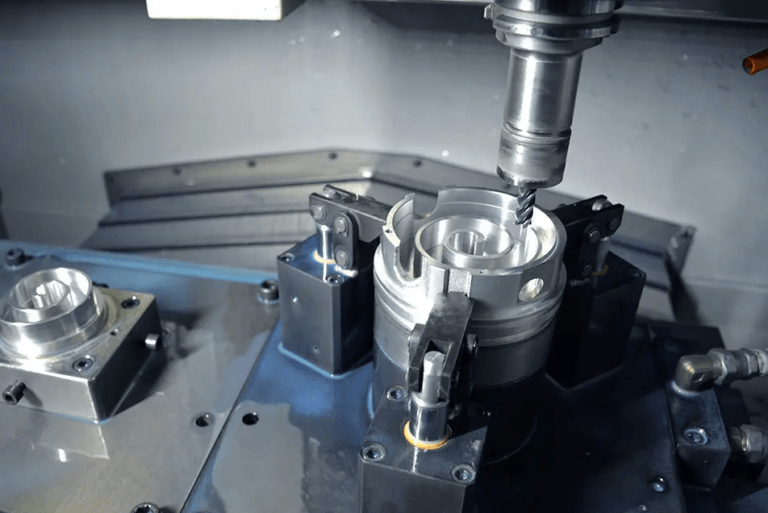

A 5-axis machine keeps the linear axes but mounts the part on two rotary axes. One axis turns the table in the horizontal plane, the other tilts it. The tool tip can now approach a surface from almost any direction. In a simultaneous cut the five axes move together, so the tool stays normal to a curved surface while it sweeps.

That single change removes most of the setup count. A transmission housing that once ran on four fixtures can often run on two, and sometimes on one. Fewer setups means less stack-up between operations, which is the main reason 5-axis work holds ±0.005 mm across a whole part rather than across one face.

The rotary axes are not free. They add mass to the table, they need their own calibration, and a tilted setup loses some stiffness. The trade is worth it when the geometry demands it, not because five is a bigger number than three.

• 1
  3-axisTool points one way. Good for prismatic parts with open faces.
• 2
  3+2Rotary axes index, then lock. Cuts one angled face at a time.
• 3
  Simultaneous 5-axisAll axes move together. Cuts free-form surfaces in one pass.

The clearest case is a part with features on several faces that must stay in one datum. Engine blocks, cylinder heads, gearbox casings and EV motor housings all carry bores, pads and sealing faces that relate to each other. If you cut them in separate 3-axis setups, each re-clamp shifts the datum slightly. On a sealing face, a shift of 0.02 mm can show up as a leak path.

The second case is the undercut or the deep pocket. A ball-nose cutter on a 3-axis machine cannot reach the side wall of a pocket without the shank rubbing the top edge. Tilting the tool lets a short, stiff cutter reach in from the side. That is how you hold Ra 0.8–1.6 μm on a port wall instead of leaving chatter marks.

The third case is the thin-wall part. Bracket arms, battery tray ribs and structural nodes often run 1.5–3 mm thick. A tilted cutter spreads the cutting force along the wall instead of pushing straight into it, so the wall deflects less. Finish passes at 0.2–0.4 mm radial depth keep the load low.

Some parts look like 5-axis work but are not. A flat mounting plate with holes on one face is faster on a 3-axis machine. So is a simple shaft that belongs on a lathe or a mill-turn center. Matching the machine to the geometry saves money on every unit.

On a 5-axis table the part moves, so the fixture has to be rigid and light. A heavy tombstone eats into the rotary table's load limit and slows the tilt. We keep fixtures compact and often cut them from the same aluminium stock used for prototypes.

The datum choice sets the whole process. A common approach is to machine a soft jaw or a sacrificial pad first, then use that pad as the zero for the rest of the part. This carries one reference through every rotation. When the part turns 90°, the coordinates rotate with it, so the operator does not re-zero.

For a machining center automotive parts run, the probe matters as much as the fixture. An in-process probe checks the pad and the first bore, then the control offsets the remaining features. That step catches thermal drift on a long run, which is where tolerance usually goes first.

Clamping force is the quiet risk. Too much force on a thin housing bows the part while it is cut, and it springs back when the clamps release. We test with a dial indicator across the wall before and after unclamping, then dial the pressure down until the movement stays under a third of the tolerance.

The rotary axes trade stiffness for reach. When a tilted tool hangs far from the table center, the whole loop is softer than a 3-axis cut at the same depth. Deep roughing at high material removal rates is often faster on a 3-axis machine with a big, rigid setup. We rough on 3-axis and finish on 5-axis when the part allows it.

Size is another boundary. Our largest five axis machining center handles 4,000 mm in the long travel, but long parts on a trunnion table need counterbalance and careful fixturing. Very long, simple parts such as chassis rails are usually better on a large 3-axis bed mill.

Programming cost is real but finite. A simultaneous 5-axis toolpath takes longer to prepare and to verify than a 3-axis one. For a one-off prototype that difference can dominate the quote. For a 10,000-part run it disappears into the cycle time. That is why the same feature can be cheap or expensive depending on volume.

Last, the tolerance you can hold depends on the machine, not the axis count. A tired 5-axis machine with a worn rotary will not beat a well-kept 3-axis mill. Axis count buys access, not accuracy by itself.

Aluminium is the easy case. On 6061-T6 and 7075 we run carbide end mills at 300–500 m/min surface speed, 0.1–0.2 mm per tooth, with air blast or minimal lubrication. The rotary axes move fast enough that cycle time is governed by the toolpath length, not by the tilt speed.

Steels such as 4140 and 4340 need lower speeds, 120–180 m/min, and a rigid setup. On a tilted cut we reduce the axial depth to keep the tool from pulling. Tool steel and 17-4PH run slower still, and we plan a semi-finish pass so the finish pass removes a uniform 0.3 mm.

Titanium TC4 (Ti-6Al-4V) is where the stiffness trade bites. A tilted cutter in titanium chatters sooner than in steel. We keep radial engagement low, use high-pressure coolant, and often rough on a 3-axis setup before moving to the 5-axis for the contoured features.

Plastics and carbon fibre behave differently. POM and PEEK cut clean with sharp tools and high speed. Carbon fibre needs diamond-coated tooling and dust extraction, and the fixture must not crush the laminate. In every case the parameter window is set by the material first and the axis count second.
