Small CNC for Aluminum: 7 Essential Secrets to Achieve Flawless Precision

• 1
  Key takeaways
• 2
  Alloy and Temper Decide How Small CNC for Aluminum Behaves
• 3
  Tool Geometry Beats Tool Diameter on a Compact Spindle
• 4
  Feeds and Speeds Are a Moving Target, Not a Setting
• 5
  Rigidity Is a System Property, Not a Machine Spec
• 6
  Coolant, Chip Evacuation and Metrology Close the Loop
• 7
  Setting Up a Small CNC for Aluminum in Seven Moves
• 8
  Aluminum Grades and How They Behave on Small Machines

Aluminum is sold as one material and behaves as a family. A small CNC for aluminum sees the difference in the first minute of a cut. 6061-T6 is the forgiving default: stable, weldable, consistent chip formation, and it holds a wall thickness without much drama. Most brackets, housings and fixture plates start here.

2024-T4 and 7075-T6 are stronger and less forgiving. They contain more copper and zinc, machine with a gummier chip, and show built-up edge sooner. On a compact spindle running 10,000–30,000 RPM, that shows up as a dull edge finish and micro-chipping at the cutter corner. We reduce radial engagement and keep the cutter moving so the edge stays in the cut instead of rubbing.

Temper matters as much as alloy number. T6 is solution-treated and artificially aged; T4 is naturally aged and softer. A part that machines cleanly in 6061-T6 can smear in 6061-O. If the drawing only says "aluminum 6061", ask which temper before you quote tooling life or finish.

Cast alloys are a separate case. ADC12 and similar die-casting grades contain silicon that abrades edges, and porosity can open a pinhole on a finished face. Small machines handle castings well, but expect shorter tool life and plan a light finishing pass.

• 1
  6061-T6General purpose. Predictable chips, good finish, low risk.
• 2
  7075-T6 / 2024High strength. Reduce radial engagement, sharpen the edge, watch for built-up edge.
• 3
  Cast ADC12Abrasive silicon. Shorter tool life, watch for porosity on faces.

On a large machine you can overpower a mediocre cutter. On a small machine you cannot. The cutter is the link between a limited torque curve and the workpiece, so its geometry matters more than its diameter. For aluminum, look for a high helix of 40°–45°, polished flutes and a genuinely sharp edge. A sharp edge slices. A dull one pushes metal sideways and leaves a torn surface.

Coating choice is narrower than the catalog suggests. Uncoated polished carbide works well for many aluminum jobs because there is no coating to round the edge. ZrN and similar low-friction coatings help in gummy 7075 and in deep pockets where chips are hard to clear. AlTiN is a poor default here: it is designed for steel, runs hotter, and tends to promote built-up edge on aluminum.

Flute count is a trade. Two flutes clear chips in a deep slot; three flutes balance chip room and feed rate for general profiling. A four-flute cutter can finish a wall at a higher feed, but only if coolant and air keep the flutes empty. On a small machine, chip room is usually the binding constraint, not feed rate.

Tool overhang is the quiet killer. Every extra millimeter of stick-out adds deflection, and deflection shows up as chatter, a tapered wall or an out-of-tolerance corner. Keep the tool as short as the geometry allows and check runout in the holder before the run.

• 1
  Sharp and polishedSlices aluminum instead of smearing it.
• 2
  40°–45° helixLifts chips out of the cut on profiling and pocketing.
• 3
  Minimal overhangThe cheapest rigidity upgrade available.

A cutting parameter table gives a starting point. The real value drifts as the tool wears, the spindle warms and the chip load changes. On a small CNC for aluminum, the useful approach is a target band: a surface speed range, a chip load per tooth range, and a limit on spindle load. You tune inside the band rather than chasing one number.

Start conservative on radial engagement and aggressive on feed per tooth. Aluminum likes a real bite. If the chip load per tooth falls too low, the edge rubs instead of cutting, heat builds in the part, and the surface work-hardens. That is the most common cause of a bad finish on a compact mill that has plenty of spindle speed.

Listen and look. A steady note and short, curled chips mean the band is right. A high-pitched squeal means chatter or a worn edge. Fine powder instead of chips means you are rubbing. Long stringy chips in a deep pocket mean chip evacuation, not feed rate, is the problem.

Keep a log for each alloy and tool combination. After a few runs, the band for 6061-T6 with a 6 mm three-flute cutter becomes a known range instead of a guess. That log is what turns a prototype platform into a production one.

• 1
  Feed per toothKeep it high enough that the edge cuts rather than rubs.
• 2
  Radial engagementReduce it first when the machine or the set-up is not rigid.
• 3
  Spindle loadWatch percentage, not just RPM. It tells you when the tool dulls.

Machine weight is one number on a datasheet. Rigidity is the sum of everything between the spindle nose and the floor: the toolholder, the collet, the tool, the vise, the soft jaws, the fixture plate and the table. A stiff machine with a loose set-up cuts worse than a modest machine with a tight one.

Workholding is where small aluminum jobs are usually lost. Thin plates and long thin walls ring under cutting load. Soft jaws machined in place, contact over most of the part profile, and low-profile clamps close to the cut do more for accuracy than any parameter change. If a part has a 0.02 mm flatness error, suspect the hold before the program.

Thermal drift is part of rigidity in the practical sense. A small spindle running at 24,000 RPM puts heat into the tool and the part. Warm up the spindle, keep the coolant steady, and do not measure a hot part against a cold reference. A part that measures correctly at 20 °C can sit outside tolerance at 35 °C.

Short tools, short holders and short set-ups win. Every component you remove from the chain removes compliance. This is why experienced operators spend more time on the fixture than on the toolpath.

• 1
  Machine soft jaws in placeThey match the part profile and spread the clamping load.
• 2
  Clamp near the cutLong overhangs vibrate even when the torque is sufficient.
• 3
  Warm up before the first cutTen minutes of spindle warm-up prevents a drifting first part.

Coolant on aluminum does three jobs: it removes heat, it lubricates the edge, and it flushes chips. The third job is the one small machines usually fail at. Flood coolant in a shallow pocket can pool and hold chips against the wall. Misting or air blast often clears better on an open cut. For a deep pocket, program a chip-break cycle so the tool lifts clear and lets the coolant carry debris away.

Recutting is the most expensive habit in aluminum machining. A chip caught under the flute gets dragged across the finished surface, scratches it, and work-hardens the wall. The part then measures oversize after a spring pass or tears during the next one. If the finish degrades the deeper you go, stop and fix evacuation before you touch the parameters.

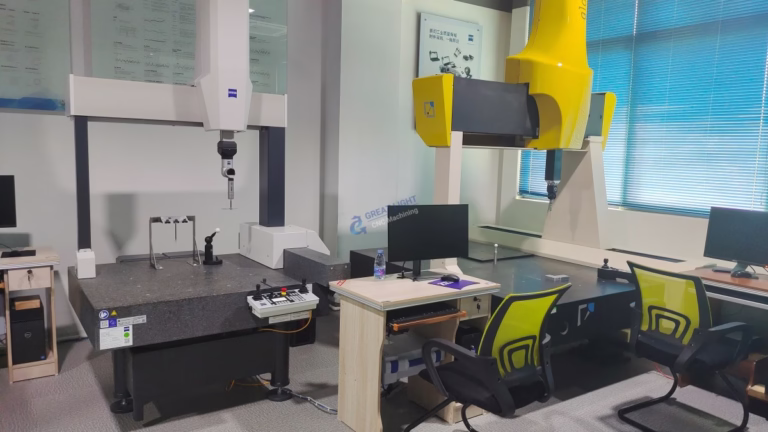

Metrology closes the loop. Measure the features you cannot afford to lose, not every dimension on the drawing. In-process checks on a critical bore or a sealing face catch drift before the whole batch is wrong. A first-article inspection against the drawing is the baseline; CMM reports are available when the print calls for them.

Trace your measurement back to the same reference. A part measured on a warm bench with a cold caliper will disagree with the CMM. Repeatability comes from a fixed routine, not from a more expensive gauge.

• 1
  Air or mist on open cutsChips clear faster when nothing traps them.
• 2
  Chip-break cycles in pocketsFull retract beats a longer dwell.
• 3
  Measure critical features onlyA short, repeatable inspection beats a long, noisy one.
