Perforated Sheet Metal Box For Radiator: A Deep Dive into CNC Sheet Metal Manufacturing
Introduction In the world of industrial manufacturing, precision, efficiency, and versatility are paramount. CNC (Computer Numerical Control) sheet metal manufacturing has revolutionized how parts and enclosures are fabricated, enabling the creation of high-quality, custom-made components with incredible precision. One such critical application of CNC sheet metal is the creation of perforated sheet metal boxes for radiators, a product essential in a variety of sectors, from HVAC to automotive and industrial machinery.
In this article, we will explore the concept of CNC sheet metal manufacturing, dive into the details of perforated sheet metal boxes for radiators, and outline the steps and considerations involved in the production process. We will also explore the different types of perforation patterns, material choices, and their specific applications in creating perforated boxes for radiators.
What is CNC Sheet Metal Manufacturing?
CNC Sheet Metal Machining Overview CNC sheet metal manufacturing is a precise and efficient method used to process sheet metal into functional components. Sheet metal, typically ranging from 0.006 inches to 0.25 inches in thickness, can be shaped into parts using various CNC techniques. These methods include cutting, punching, bending, and even specialized processes like laser cutting and waterjet cutting.
CNC machines automate the sheet metal fabrication process, ensuring consistency, precision, and scalability. This makes CNC sheet metal machining an ideal choice for industries that require high-quality, repeatable parts, such as the production of perforated sheet metal boxes for radiators.
Core Processes in CNC Sheet Metal Manufacturing
- Laser Cutting Laser cutting is a highly precise method used to cut sheet metal into intricate shapes. With CNC-controlled lasers, manufacturers can achieve clean, detailed cuts on materials like stainless steel, aluminum, or carbon steel. Laser cutting is especially beneficial when working with parts that require high precision and minimal edge distortion.
- Plasma Cutting Plasma cutting is typically used for cutting thicker sheet metal. Plasma cutting involves the use of a plasma torch to cut through metal, which is ideal for large-scale manufacturing or one-off custom projects. Plasma cutting, while not as precise as laser cutting, can be more cost-effective for bulk production.
- Waterjet Cutting Waterjet cutting uses high-pressure streams of water to cut through materials. When mixed with abrasive particles, the water can cut through thick sheet metal with a high degree of accuracy. Waterjet cutting is particularly advantageous when working with materials that may be sensitive to heat distortion or when a smooth edge finish is required.
- Sheet Metal Bending Bending is a common process used in CNC sheet metal manufacturing. After the sheet metal is cut into the required shape, it is bent to form the final geometry of the part. CNC bending machines use press brakes to precisely bend materials into angles or complex shapes, often for the creation of enclosures or structural components.
What is Perforated Sheet Metal?
Understanding Perforated Sheet Metal Perforated sheet metal is created by punching holes into a metal sheet using specialized machinery. These holes can be of various shapes and sizes, arranged in patterns like round, square, slotted, or hexagonal. The perforation process creates a product that is lightweight, durable, and functional, making it ideal for a variety of applications, including perforated sheet metal boxes for radiators.
Advantages of Perforated Sheet Metal:
- Strength and Durability: Despite the holes, perforated metal retains much of its original strength due to the high strength-to-weight ratio.
- Ventilation: The perforations allow for increased airflow, making perforated sheet metal an ideal material for radiator boxes, which require effective heat dissipation.
- Versatility: Perforated metal can be customized to suit a variety of designs, hole sizes, and material types.
- Aesthetic Appeal: Perforated metal offers a unique aesthetic, often used in modern building facades, decorative panels, and industrial designs.
Perforated Sheet Metal Box for Radiators: A Specialized Application

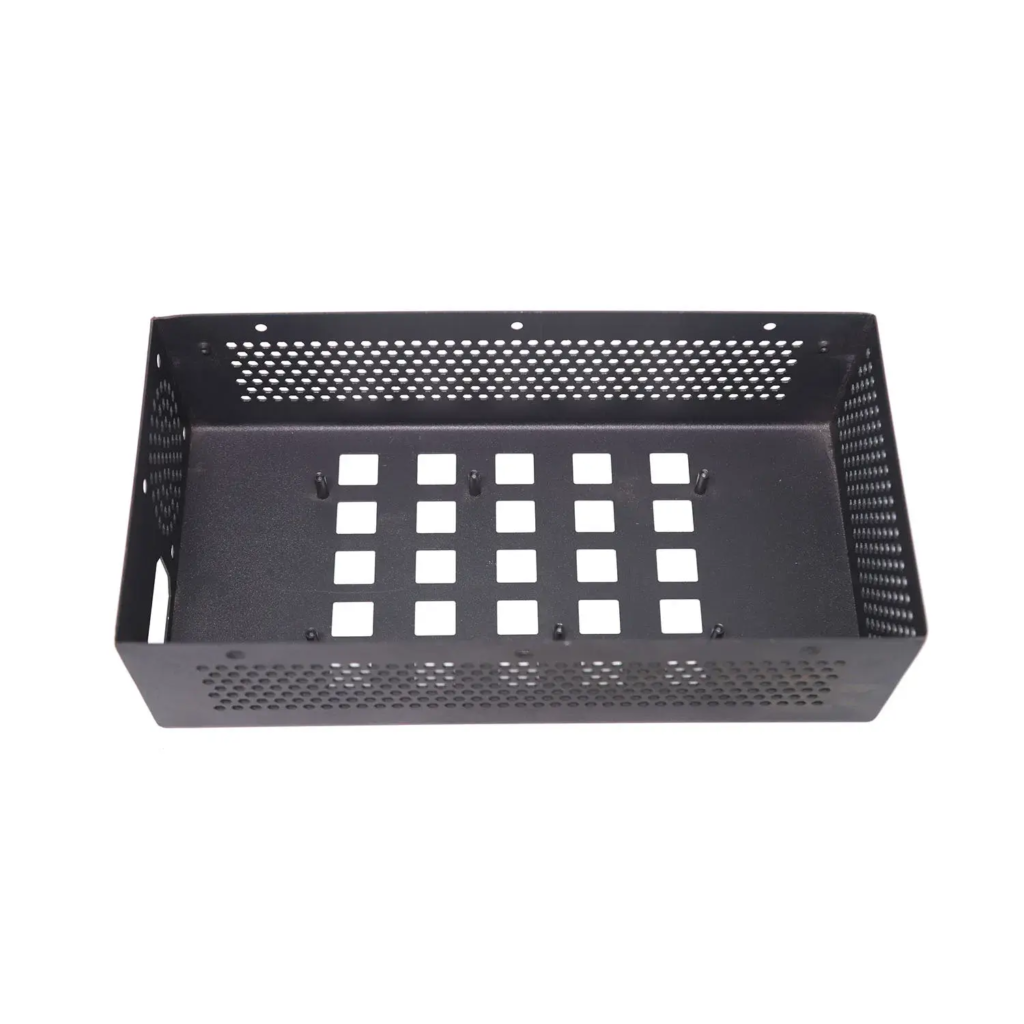

What is a Perforated Sheet Metal Box for Radiators? A perforated sheet metal box for radiators is a metal enclosure designed to house radiators while allowing for optimal airflow and ventilation. Radiators, which are often used in HVAC systems or industrial machinery, require proper ventilation to dissipate heat effectively. The perforations in the sheet metal allow air to flow through the box while maintaining the structural integrity of the enclosure.
Why Use Perforated Sheet Metal for Radiators?
- Heat Dissipation: The primary function of a radiator box is to provide a pathway for air to circulate around the radiator. The perforations allow air to enter and exit the box freely, enhancing the radiator’s ability to dissipate heat.
- Space Efficiency: Perforated sheet metal is lightweight and durable, offering a compact yet effective solution for enclosing radiators in tight spaces.
- Customization: Perforated sheet metal boxes can be customized to fit different radiator sizes and specifications, making them versatile for various applications.
- Protection and Safety: The perforated metal protects the radiator from physical damage while still allowing the necessary airflow. Additionally, it can act as a safety barrier to prevent accidental contact with the radiator’s hot surface.
Design Considerations for Perforated Sheet Metal Boxes for Radiators
- Material Selection The material chosen for the perforated box is critical for ensuring its longevity and performance. Common materials include:
- Aluminum: Lightweight, corrosion-resistant, and easy to work with, making it an excellent choice for most radiator enclosures.
- Stainless Steel: Offers enhanced durability and resistance to corrosion, ideal for use in harsh environments.
- Carbon Steel: Often used for heavier-duty applications where strength is a primary concern.
- Galvanized Steel: Provides excellent corrosion resistance, making it suitable for outdoor or moisture-prone environments.

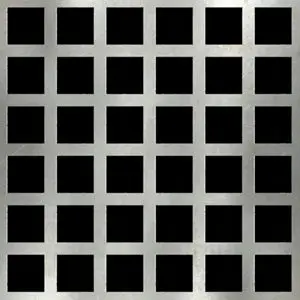

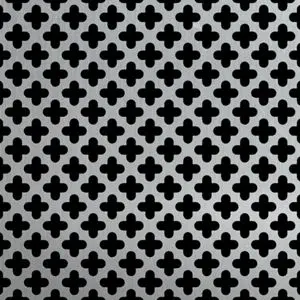

- Hole Pattern and Size The hole size and pattern are important factors in determining airflow and structural integrity. Common patterns include:

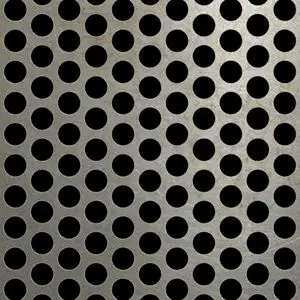

- Round Holes: Standard for general use, providing even airflow and aesthetic appeal.
- Slotted Holes: Provide greater strength and can allow more airflow with fewer holes.

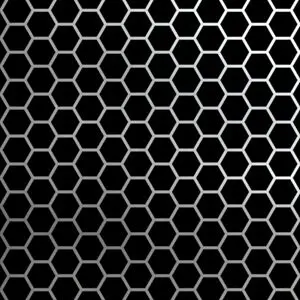

- Hexagonal Holes: Often used for more decorative purposes or when a higher open area percentage is required.
- Open Area Percentage The open area percentage refers to the proportion of the sheet metal that is perforated. A higher open area percentage allows for more airflow, which is essential for the heat dissipation function of radiator enclosures. The ideal percentage will depend on the radiator’s size and the intended environment.
- Size and Shape The size and shape of the perforated sheet metal box must be tailored to fit the specific radiator it is designed to house. Boxes can be custom-made to suit various configurations, including rectangular, square, or cylindrical enclosures.
- Edge Treatment The edges of the perforated sheet metal box should be finished to prevent sharp edges that could cause injury during handling. Options include smooth edging, rolled edges, or welded seams for added durability.
Manufacturing Process of Perforated Sheet Metal Boxes for Radiators
The production process involves several key steps to create a high-quality perforated sheet metal box:
- Material Selection and Preparation
- Choose the appropriate material based on the application’s requirements (e.g., corrosion resistance, strength, etc.).
- The material is then cut to the desired dimensions using CNC machines such as laser cutters, plasma cutters, or waterjet cutters.
- Perforation
- The next step involves perforating the metal sheet. This is typically done using a CNC punching machine or laser perforating system. The hole size, shape, and pattern are programmed into the machine based on design specifications.
- Bending and Forming
- After the perforation process, the sheet is bent to create the box shape using a CNC press brake. Precision bending ensures that the final box will have the correct geometry and dimensions.
- Edge Finishing and Assembly
- Edges are smoothed or rolled to ensure safety and proper fitment.
- The perforated panels are then assembled into the final box, often welded or fastened together depending on the design.
- Finishing and Coating
- The final product may undergo additional finishing steps, such as powder coating, anodizing, or galvanization, depending on the material and environmental requirements.
Conclusion
CNC sheet metal manufacturing plays a crucial role in the production of perforated sheet metal boxes for radiators, offering an ideal combination of strength, versatility, and customization. Whether for industrial, automotive, or HVAC applications, perforated sheet metal provides an effective solution for radiator enclosures, ensuring optimal airflow, heat dissipation, and long-term durability.
By carefully considering factors such as material choice, hole patterns, open area percentages, and edge treatments, manufacturers can produce perforated sheet metal boxes that meet the specific needs of any project. Whether you’re producing a small prototype or scaling up for mass production, CNC sheet metal manufacturing is the key to achieving precise, high-quality results.
For more information or to start your project today, reach out to a CNC sheet metal service provider that specializes in perforated sheet metal fabrication.
