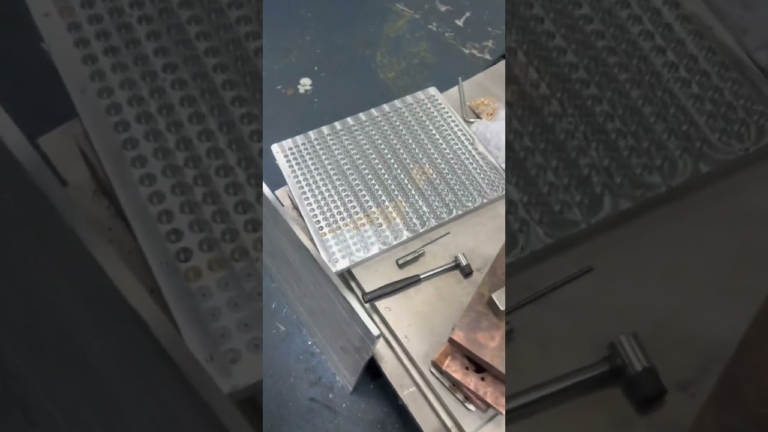

A multi-point vacuum chuck for CNC machining is a plate drilled with a grid of small vacuum points. Each point sits in its own shallow pocket or island, and a gasket ring around each point touches the part. A vacuum pump pulls air from the sealed cavities, so atmospheric pressure pushes the part down onto the gasket faces. The part is held by pressure difference, not by mechanical jaws.

At sea level the atmosphere pushes about 1 bar, or roughly 0.1 N/mm². A pump that reaches 80% vacuum gives you about 0.08 N/mm² of clamping pressure. On a plate with 40,000 mm² of sealed area, that is roughly 3,200 N, or 320 kg of downward force. Enough to hold a 6 mm aluminum plate flat while a 12 mm end mill takes a 2 mm depth of cut.

The grid matters more than the total area. A single large cavity can bow a thin plate, because one big pocket creates a long unsupported span. Many small points break that span into short distances, so the part stays flat between points. That is the whole reason the multi-point layout exists. More points, shorter spans, less chatter.

Every point is sealed by its own gasket. If one gasket leaks, the pump still holds the other zones, but force drops in that area. A machined surface with tool marks may not seal at all. Squeeze the gasket about 20-30%, no more. Over-compression makes the part sit high and cuts the wrong depth.

The method rewards flat, thin, low-stiffness parts. Think 1-6 mm aluminum housings, stainless cover plates, PCB stiffeners, and large thin panels up to 4,000 mm long. These are the parts that clamps would bend. A vacuum chuck spreads load over the whole face instead of squeezing at a few points.

A part suits the method when one face is flat enough to seal and the part has enough surface area to generate force. As a rule of thumb, keep the ratio of thickness to unsupported span above 1:100 for aluminum. Below that, deflection under vacuum and cutting load becomes hard to control.

The method does not suit every job. Small parts under roughly 50 mm across cannot generate much force, even at full vacuum. Parts with open through-holes, deep pockets on both faces, or rough cast skins break the seal. Tall thin walls that need support from the side also fail here, because vacuum only pulls in one direction.

For those cases a vise, soft jaws, or a fixture with mechanical clamps works better. Vacuum is not a universal answer. It is a specific answer for flat parts that need to stay flat.

• 1
  Good fitThin flat plates, 1-6 mm thick, with one sealed face and area above roughly 2,500 mm² per zone.
• 2
  Poor fitParts under 50 mm across, rough cast surfaces, and geometry that needs side support.
• 3
  Watch outThrough-holes and open pockets inside a zone will kill the vacuum in that zone.

Start with gasket layout. Place gasket cord in the grooves around each zone you plan to use. Leave the unused zones open or blocked off with plugs. On a 5-axis machine the part is often held on a Ø400 mm rotary table, so keep the part center over the table center and seal a symmetric set of zones. That keeps the vacuum force balanced during rotation.

Control zones with a manifold and valves, not by covering holes with tape. Tape creeps under coolant and loses seal. A valved manifold lets you shut off zones that sit over a through-hole or a thin web, so the remaining zones still pull full vacuum. This is the single biggest upgrade for mixed-part shops.

Cutting parameters should stay conservative. Vacuum holds the part down, but it does not resist side load as well as a vise. Use a lower feed per tooth and a shallower axial depth than you would in a vise. For a 12 mm carbide end mill in 6061, a 1-2 mm axial depth and 0.05-0.10 mm feed per tooth is a safe starting range. Listen for chatter; if it starts, reduce depth first.

Coolant and chips are the silent failure mode. Flood coolant can seep under a gasket and break the seal. Air blast is safer. Vacuum the chips off the chuck face between parts, and check the gasket groove for aluminum slivers. One sliver under a gasket drops the whole zone.

• 1
  Seal firstGasket cord in every groove, 20-30% squeeze, no gaps at corners.
• 2
  Zone controlUse a valved manifold so open holes do not steal vacuum from solid zones.
• 3
  Cut lighter1-2 mm axial depth in aluminum, then raise feed only if the part stays quiet.

Vacuum force scales with sealed area, so small parts lose. A 40 mm × 40 mm zone at 80% vacuum gives about 128 N, roughly 13 kg. A light finishing pass may be fine, but a roughing cut will push the part sideways. For small parts, mechanical workholding is the honest choice.

Leak rate sets the practical limit. A gasket that leaks slowly may still hold if the pump has enough reserve. A pump with low flow will lose vacuum during a long cycle and the part will shift mid-cut. Check the vacuum gauge at the start and again after five minutes of cutting. A steady drop means a leak, not a bad pump.

Temperature changes the picture too. Aluminum expands about 23 μm per meter per °C. A 10 °C rise across a 500 mm plate moves the edges around 115 μm. If you hold a tight ±0.005 mm tolerance, measure after the part has cooled, and do not trust a reading taken right after a heavy cut.

Porosity is the last boundary. Die-cast and some cast aluminum parts have internal porosity that lets air bleed through the part itself. No gasket fixes that. Machining a sealing face first, or switching to a different blank, is the only reliable route.
