CNC knowledge

MTU trusts the tightening technology of Rego-Fix tools: 5 troubleshooting checks

Aerospace engine work lives or dies on tool holding. This page is for machinists and process engineers who want to know why the tightening technology of Rego-Fix tools is trusted by MTU, and how to diagnose holder slip, runout and chatter before they scrap a part.

Get Instant Quote Talk to an Engineer

Holder slip diagnosisRunout and chatterTitanium and InconelInspection data

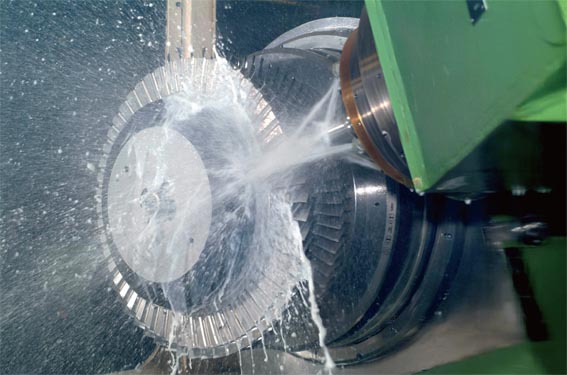

Precision CNC: tightening technology of Rego-Fix tools on a spindle

On this page

1
Symptom, cause and fix on a Rego-Fix holder
2
Why the tightening technology of Rego-Fix tools shows up in engine shops
3
Baseline numbers to compare against
4
Reading holder slip, runout and chatter on the machine
5
How titanium and Inconel change the diagnosis
6
Five checks, step by step

Symptom, cause and fix on a Rego-Fix holder

Use this as a first pass before you pull the holder off the machine.

Symptom	Likely cause	What to do
Tool pulls out mid-cut	Clamping nut not torqued to spec	Torque the nut to the holder spec, then re-measure
Runout above 0.010 mm TIR	Chip trapped in the collet bore	Clean the collet, check for fretting, replace if scored
Chatter marks on a titanium wall	Overhang too long for the tool diameter	Shorten overhang or step down to a smaller axial cut
Poor surface finish on Inconel	Collet worn past its clamping range	Swap the collet and log the hours on the old one
Holder gets hot after a cycle	Spindle taper contact is poor	Blue-check the taper, re-seat the holder, re-check TIR
Tool breaks at the shank	Nut over-torqued on a small shank	Back off torque and confirm the collet size range

The holder is the first place to look

If the finish drifts or the tool pulls out, check the clamping interface before you touch the program. Clean, torque, measure, then cut.

Get Instant Quote Talk to an Engineer

Why it matters

Why the tightening technology of Rego-Fix tools shows up in engine shops

MTU builds turbine components from titanium, nickel alloys and composites. These materials cut hot and they fight back. A holder that loses grip for even a few seconds will rub the wall, change the chip load, and put the whole feature out of tolerance. That is the reason the tightening technology of Rego-Fix tools gets attention in aerospace shops: the clamping interface is where a stable cut starts.

The Rego-Fix system is built on a precision collet and nut pair. The nut presses the collet into the holder taper at a controlled angle, so the collet closes evenly around the tool shank. When the angle and the torque are both correct, contact is uniform. When either one drifts, the tool moves.

This page is not a product brochure. It is a troubleshooting guide. We see the same five failure modes come through our own 5-axis cells, and we want to show how to read them from the machine before a scrapped part tells you the hard way.

1
Check the interface firstMost chatter and runout problems trace back to the holder, not the insert.
2
Log the torqueA torque wrench with a record beats an operator's memory every time.
3
Keep the collet cleanA single chip in the bore can push TIR past 0.020 mm.

Baseline numbers

Baseline numbers to compare against

Before you can call something a fault, you need a baseline. For a healthy Rego-Fix holder on a clean spindle, we expect runout at the tool shank to sit inside 0.005 mm TIR on a new collet, and to stay under 0.010 mm after normal use. If your indicator reads 0.030 mm, that is not a small drift. Something is wrong.

Cutting temperature is the second baseline. In titanium, a stable holder running at the right surface speed will keep the chip silver and the wall cool. A slipping holder turns the chip blue and heats the shank. That color change is a free diagnostic. You do not need a thermal camera to see it.

Surface finish is the third. On a finish pass, we target Ra 0.8–1.6 μm on most aerospace alloys. If the finish jumps to Ra 3.2 μm with the same program, the holder or the collet is the first place to look, not the tool coating.

Write these three numbers down for every job. A baseline you can compare against is worth more than any single measurement.

Diagnosis

Reading holder slip, runout and chatter on the machine

Holder slip is the most damaging fault because it hides until it fails. The tool creeps out of the collet a few microns at a time. Your Z depth drifts, the cut gets heavier, and eventually the tool pulls out. If you see a depth error that grows through a batch, stop and check the clamping nut torque before you re-zero anything.

Runout shows up as a poor finish on one side of a bore and a good finish on the other. Put a dial indicator on the tool shank, not the flute. Rotate the spindle by hand and read the total indicator movement. Above 0.010 mm on a finish tool, you will fight the machine all day.

Chatter is a vibration problem, but the holder is often the source. A collet that is worn, or a nut that is not seated square, lets the tool oscillate at the tip. You hear it before you see it. The sound is a high-pitched ring that changes with depth of cut.

1
Indicator on the shankMeasure at the shank, close to the collet face, not at the flute tip.
2
One change at a timeChange the collet, re-check, then change the nut. Do not swap both together.
3
Listen for the ringA clean cut is a steady hum. A ring that rises with depth is chatter.

Materials

How titanium and Inconel change the diagnosis

Titanium alloys like Ti-6Al-4V (TC4) have low thermal conductivity. Heat goes into the tool and the holder instead of the chip. A holder that is slightly loose will expand, lose grip, and let the tool rub. On these jobs, torque and cleanliness matter more than on aluminum.

Inconel is worse. It work-hardens at the cut and pushes back hard on the tool. Any runout at the shank becomes a fast wear point on one flute. If you are burning through Inconel tools, check the holder before you blame the grade.

Aluminum is more forgiving, but it hides problems. A holder that is out of spec will still cut 6061 clean, so the fault only shows up when you switch to a hard alloy. That is why we run a holder check at every setup, not only when something looks wrong.

The rule is simple: the harder the alloy, the tighter the holder tolerance has to be.

Procedure

Five checks, step by step

Run these in order. Do not skip to the torque check before you clean the interface.

1
Clean the taper and the collet boreWipe the holder taper and the collet with a lint-free cloth and a light oil film. Inspect for fretting or scoring under a loupe. A chip in the bore is the most common cause of runout above 0.020 mm.
2
Seat the collet and nut by handPress the collet into the nut until it clicks into the eccentric ring, then thread the nut onto the holder by hand. If it binds, the threads are dirty or damaged. Do not force it with a wrench.
3
Torque the nut to the holder specUse a torque wrench rated for the holder size. For a typical ER collet nut, stay within the manufacturer's range, usually 70–130 N·m depending on the nut and holder. Over-torque distorts the collet and hurts runout.
4
Measure TIR at the shankMount a dial indicator on the tool shank within 5 mm of the collet face. Rotate the spindle slowly by hand. Target under 0.005 mm for a finish tool, under 0.010 mm for roughing.
5
Take a test cut and read the chipRun a short pass at 50% of your normal feed. Look at the chip color and the wall finish. Silver chips and a steady sound mean the holder is seated. Blue chips and a rising ring mean back off and re-check.
6
Log the result and the tool hoursWrite the TIR reading, the torque value and the collet hours in the job sheet. Trending this data over a batch tells you when to replace the collet before it fails.

FAQs

Questions we get from the shop floor

How often should a Rego-Fix collet be replaced?

There is no fixed hour count that fits every shop. It depends on the material, the spindle speed and how well the collet is cleaned between setups.

The practical answer is to replace a collet when runout at the shank drifts past 0.010 mm after a clean and re-torque, or when you can see fretting on the bore. We log hours and TIR and let the trend decide.

Can I use the same torque value for every holder size?

No. Torque is set by the nut and collet size, not by habit. A small nut torqued to a large-holder value will distort the collet and make runout worse.

Follow the holder manufacturer's spec and use a calibrated torque wrench. If you do not have the spec, ask the holder supplier for it in writing.

Why does my tool pull out only on deep pockets?

Deep pockets mean long overhang, and long overhang multiplies any small loss of grip. The tool side-loads, the collet opens a fraction, and the tool creeps.

Shorten the overhang where you can, reduce the axial depth of cut, and verify the nut torque. If the problem stays, check the spindle taper contact with a blue-check.

Does a clean holder really change the finish that much?

Yes. A single chip in the collet bore can push TIR from 0.005 mm to 0.030 mm. That shows up as a visible mark on the wall and a shorter tool life.

Cleaning the taper and collet takes under a minute. It is the cheapest fix on this list.

What TIR should I hold for aerospace finish passes?

For finish work on titanium and nickel alloys, target under 0.005 mm at the shank. That keeps the chip load even across the flutes and protects the wall finish.

For roughing, under 0.010 mm is a reasonable working target. Above that, expect chatter and uneven tool wear.
