HP 3D Printing Material: How Elastic TPU-01 Actually Behaves

• 1
  What Makes HP 3D Printing Material Elastic TPU-01 Different
• 2
  How Flexible Parts Behave Under Load
• 3
  Wall Thickness, Tolerances and the Limits of Powder-Bed TPU
• 4
  Where CNC Machining Beats an HP 3D Printing Material
• 5
  TPU-01 Additive vs Machined Elastomer vs Rigid MJF

Elastic TPU-01 is a thermoplastic polyurethane powder built for HP's multi jet fusion process. A recoating blade lays down a thin layer of powder, a print head jets fusing and detailing agents onto the areas that will become the part, and infrared lamps pass over the bed. The agents absorb heat at different rates, so the powder melts only where the geometry was printed. The unfused powder around it stays loose and supports the part.

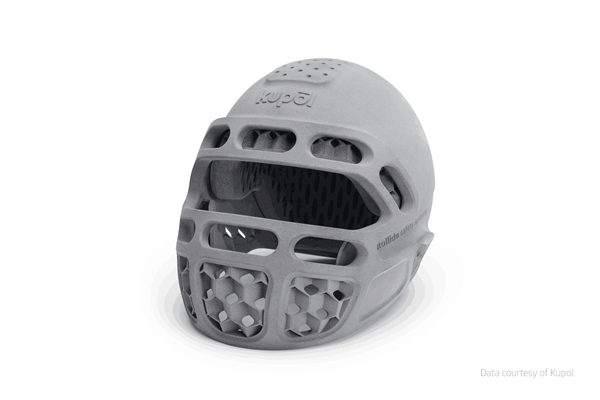

That support behavior is the whole point. A rubber-like part printed on a filament machine usually needs breakaway supports, and pulling them off tears the surface. In a powder bed there is nothing to tear away. Powder simply falls out of the cavities, so undercuts, internal channels and lattice walls come out clean.

The trade-off is surface texture. Every layer leaves a grain on the skin, and on a soft material that grain feels rougher than it looks on a rigid nylon part. Bead blasting smooths it, but aggressive blasting rounds edges and can polish away fine ribs.

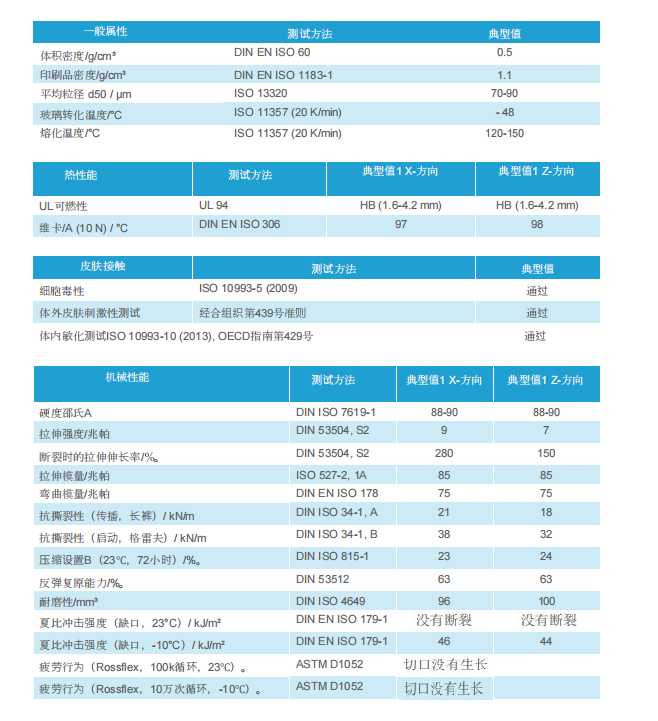

The material itself is a polyurethane with a segmented structure: hard blocks that hold shape and soft blocks that stretch. That structure is why the part returns to form after compression instead of staying dented. It also explains why the stiffness you feel depends on how thick the wall is, not only on the grade of powder.

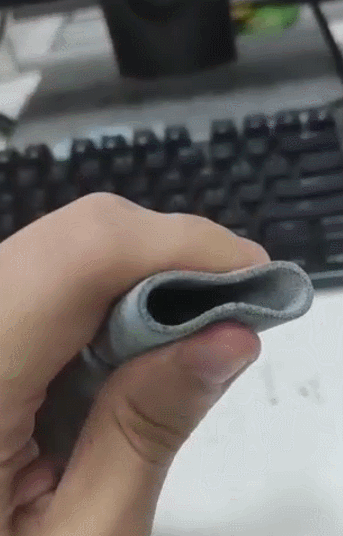

Flexible parts do not fail the way rigid ones do. A nylon bracket cracks when stress concentrates at a sharp corner. A TPU-01 part bends, absorbs the strain, and comes back. That makes it useful for snap fits, gaskets, vibration pads, cable guides and wear surfaces that rub against a harder part.

The catch is creep. Hold a TPU part under constant load and it slowly takes a set. A compressed gasket that sits under bolt torque for months will relax and lose some of its sealing force. If the joint must stay tight for years, design in more compression or use a stiffer elastomer.

Hysteresis matters too. Each bend cycle converts some energy into heat. Run a soft part at high frequency with a large strain amplitude and it warms up, softens, and can tear at a stress riser. For a one-time deflection, ignore it. For a continuous flexing hinge, keep strain amplitude low and test it.

Temperature shifts the whole picture. TPU softens as it warms, so a part that feels firm at 20 °C turns noticeably softer near its upper service range. Cold makes it stiffer and less forgiving of sharp notches.

Tolerances on a soft part are not the same as on a machined one. A rigid MJF part holds roughly ±0.3 mm on a well-supported dimension. A TPU-01 part can be built to that, but any measurement you take afterward depends on how you hold it. Squeeze it in a caliper and you read a smaller number than the true dimension.

Measure flexible parts with light contact or an optical method, and agree on the measurement force before the first article. Otherwise the same part gives two different readings and neither side is wrong.

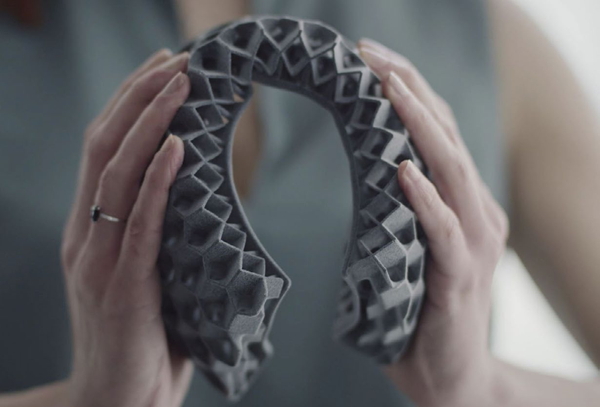

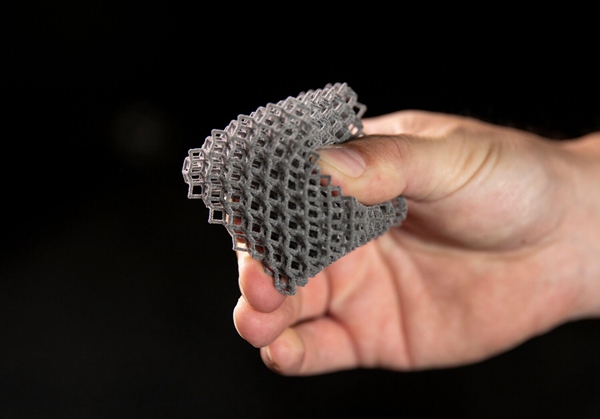

Thin walls below about 1 mm get hard to control. Powder may not fuse cleanly, the wall can warp during cooling, and the part loses the stiffness the design assumed. Thick solid blocks are the opposite problem: they cool slowly, and internal porosity or sink marks can appear. A lattice or ribbed core usually beats a solid mass.

Sharp internal corners are a stress riser in any material, and more so here because the part moves. Add a radius. Threads formed directly in soft TPU strip under torque, so use a metal insert, a captive nut, or a through-bolt with a washer.

Draft is not needed in a powder bed, so vertical walls and undercuts are fine. What the process cannot do is a fully enclosed hollow void with no escape path, because the trapped powder has to come out somewhere.

Additive is not always the cheap answer. When a part needs a tight tolerance, a metal thread, or a surface that seals against another machined face, subtractive work wins. A machined urethane or cast elastomer part also gives a uniform, molded skin with no layer grain.

At GreatLight we run both routes and pick per part, not per project. Powder-bed TPU-01 suits low-to-mid volume, complex geometry and parts that would be expensive to tool. CNC suits tight fits, small quantities, and any design where the material must be metal.

For a soft part that must hold ±0.005 mm on a mating bore, no powder-bed process will get you there. Machine the bore in aluminum and overmold or bond the elastomer to it. Splitting the part by function is usually cheaper than forcing one process to do both jobs.

The decision often comes down to quantity and geometry. One rubber gasket with a simple profile is a machining or casting job. Two hundred gaskets with internal channels and a lattice core are a powder-bed job.

We quote both and show the split. You see the additive price and the machined price side by side before you commit. Additive gives geometry freedom. Machining gives tolerance and finish. Most good designs use each where it is strong.
