Every milling cut is defined by four numbers: cutting speed (Vc), feed per tooth (fz), axial depth of cut (ap), and radial width of cut (ae). The first two come from formulas. The last two are a strategy choice that you make before the tool touches the part. Get the order wrong and the math is useless, because a safe chip load at 8 mm step-over becomes a broken flute at 32 mm step-over.

Cutting speed is the surface speed of the tool edge against the material, in m/min. Feed per tooth is how far each edge advances in one revolution. Multiply them out and you get spindle speed (n) and table feed (Vf). Those two outputs are what the operator actually types into the control.

The formulas below are the standard ones. They are not a substitute for a tool catalog, but they let you cross-check whatever the CAM software hands you. If the catalog and the formula disagree by more than 30%, stop and find out why before cutting metal.

One more input matters more than most people admit: radial engagement. A 12 mm tool at 6 mm ae is a 50% radial step-over, which is a roughing load. The same tool at 1.2 mm ae is a 10% step-over, which is a high-speed path. The chip thinning that comes with low engagement is what makes the aggressive feeds in trochoidal milling possible.

• 1
  Vc is a material property, not a machine propertyAluminum runs 300–500 m/min; 4140 steel 120–180 m/min; 48–52 HRC tool steel 60–120 m/min with carbide.
• 2
  fz scales with tool diameter0.01–0.02 mm/tooth per mm of diameter is a common starting band for carbide in steel.
• 3
  ap and ae trade off against each otherDeep and narrow, or wide and shallow. Both work; mixing the two extremes does not.
• 4
  Chip thinning only applies below 50% engagementAbove that, use the catalog feed directly and check spindle load.

Spindle speed: n = (Vc × 1000) / (π × D). For a 10 mm carbide end mill in 6061 aluminum at 400 m/min, that gives roughly 12,700 rpm. In 4140 at 150 m/min the same tool gives about 4,770 rpm. Same formula, very different machine behavior.

Table feed: Vf = fz × z × n, where z is the number of flutes. A 4-flute 10 mm cutter at 0.05 mm/tooth and 4,770 rpm feeds at 954 mm/min. That number is what you program as F. If you program feed in mm/tooth instead, the control does the multiplication, but the result must match.

Feed per tooth from a known feed: fz = Vf / (z × n). Use this when you inherit a program and want to know whether the previous programmer was conservative or reckless. It is the fastest way to audit an existing setup sheet.

Metal removal rate: MRR = ap × ae × Vf, in cm³/min after unit conversion. This is the number that tells you whether a strategy is actually faster. A trochoidal path with a low MRR is not a productivity tool; it is a tool-life tool.

Cutting time: Tc = (L + approach) / Vf, where L is the path length in mm. Add 5–10% for entry, exit, and retracts. This is what you use to sanity-check a quoted cycle time before you commit to a production run.

• 1
  n = (Vc × 1000) / (π × D)Vc in m/min, D in mm, n in rpm.
• 2
  Vf = fz × z × nVf in mm/min, fz in mm/tooth, z is flute count.
• 3
  fz = Vf / (z × n)Reverse the feed formula to audit an existing program.
• 4
  MRR = ap × ae × VfConvert mm³ to cm³ for a readable number.

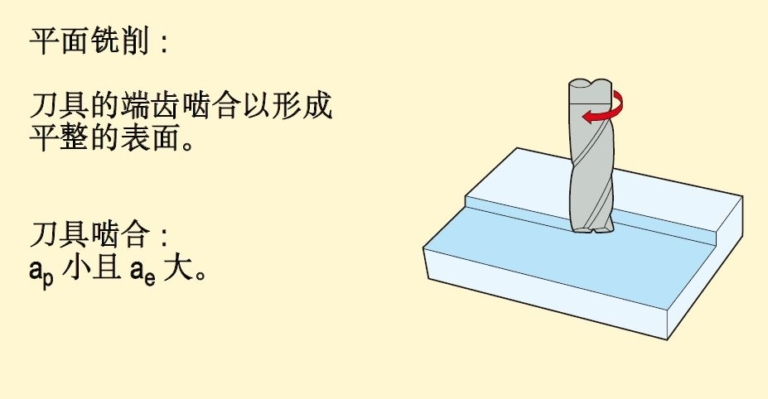

Basic milling covers face milling, side milling, slotting, and profile milling with a standard step-over. It is the right choice when the part is open, the setup is stable, and the material cuts freely. A 50% step-over with a 1×D axial depth is still the fastest way to remove bulk material in aluminum on a rigid 3-axis machine.

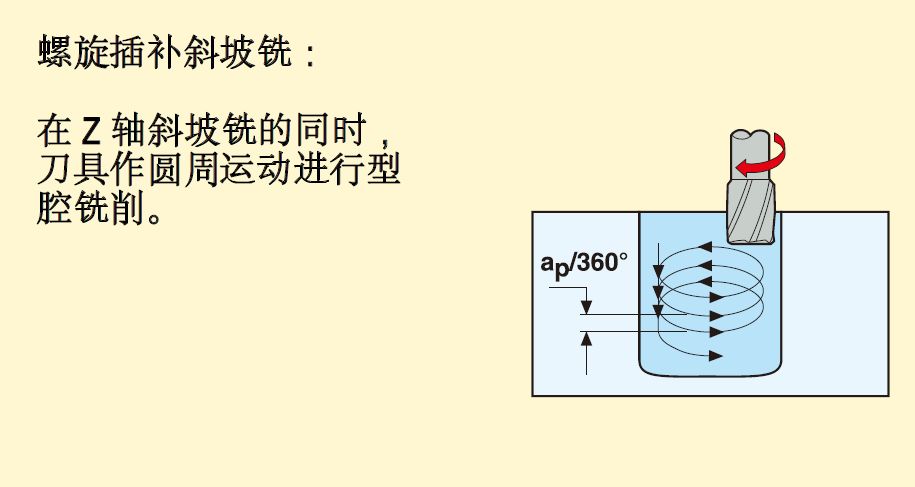

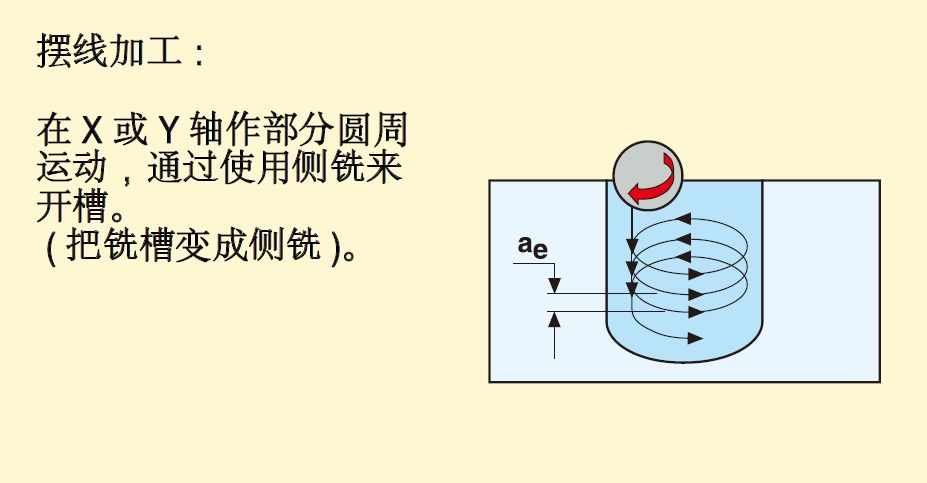

Advanced methods change the engagement geometry rather than the tool. Trochoidal milling uses a circular path with a small radial step-over, often 5–10% of diameter, and a deep axial cut up to 2×D. Ramp or helical entry replaces a plunge. Dynamic pocketing keeps the cutter moving instead of cornering into a full-width cut.

High-feed milling does the opposite: a shallow axial cut, often 0.5–2 mm, with a step-over of 70–90% of diameter. The feed per tooth is high because the chip is thin and the lead angle spreads the load. It suits large flat cavities where the machine has the spindle speed to keep up.

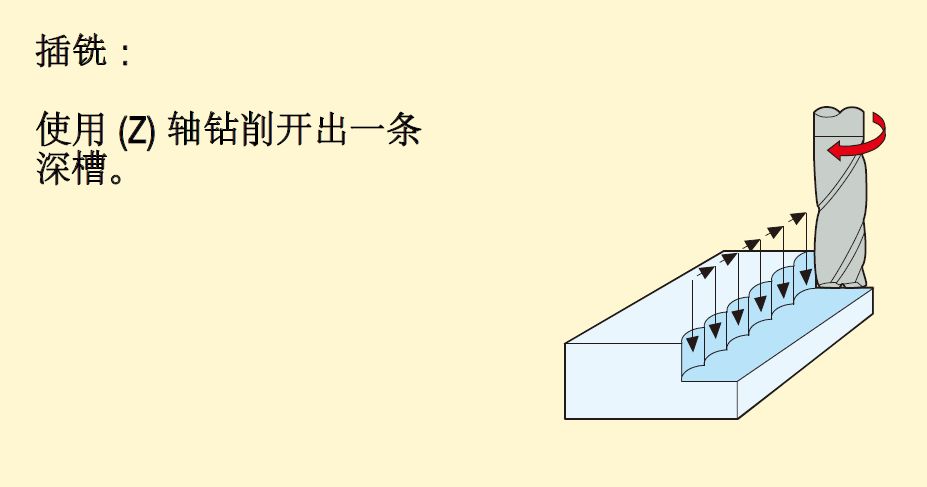

Push-pull and plunge roughing are niche methods. Plunge roughing removes material with the end of the tool like a drill, which works when the part is tall and thin and side deflection is the limiting factor. It leaves a stepped floor that needs a finishing pass.

Pick the method from the part geometry, not from habit. Open pocket, rigid setup, aluminum: basic or high-feed. Deep cavity, hard steel: trochoidal. Thin wall, tall feature: plunge roughing or a smaller radial engagement. If two methods both fit, run the MRR formula on each and let the numbers decide.

• 1
  Trochoidal5–10% radial engagement, axial depth up to 2×D, high Vf, low cutting force.
• 2
  High-feed70–90% step-over, 0.5–2 mm axial depth, high fz, needs spindle speed.
• 3
  Basic step-over40–50% radial engagement, 1×D axial depth, simple and rigid.
• 4
  Plunge roughingDrill-like entry, good for tall thin walls, leaves a stepped floor.

In climb milling, also called down milling, the cutter tooth enters at maximum chip thickness and exits at zero. The cutting force pulls the work toward the cutter. On a machine with a preloaded ball screw this gives a better surface finish, longer tool life, and less tendency to rub. It is the default on CNC equipment.

In conventional milling, the tooth enters at zero thickness and exits at maximum. The edge rubs before it bites. That produces more heat and a rougher finish, but it also lifts the work away from the cutter, which helps on a worn machine or a loose setup.

The practical rule: climb mill everything on a tight machine, and switch to conventional only for the first pass on a scaly casting or forging. The scale is abrasive and hard on the insert. Once you are under the skin, go back to climb milling.

Back-and-forth toolpaths that mix both directions are common in CAM defaults. They cut cycle time but they change the chip load twice per pass. On finishing passes, force one direction. The extra retract time is cheaper than a rejected surface.

• 1
  Climb millingBetter finish, longer tool life, standard on preloaded CNC axes.
• 2
  Conventional millingUse for the first pass through casting scale, or on a loose old machine.
• 3
  Mixed-direction pathsFine for roughing, not for finishing.
