7 Maintenance Methods for CNC Gantry Milling Machines
A gantry mill loses accuracy long before it stops running. This guide lists the maintenance methods for CNC gantry milling that actually move the needle, in the order a shop should apply them. Written for maintenance techs and process engineers who own the machine, not for a purchasing spreadsheet.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Key takeaways
What a gantry mill punishes first

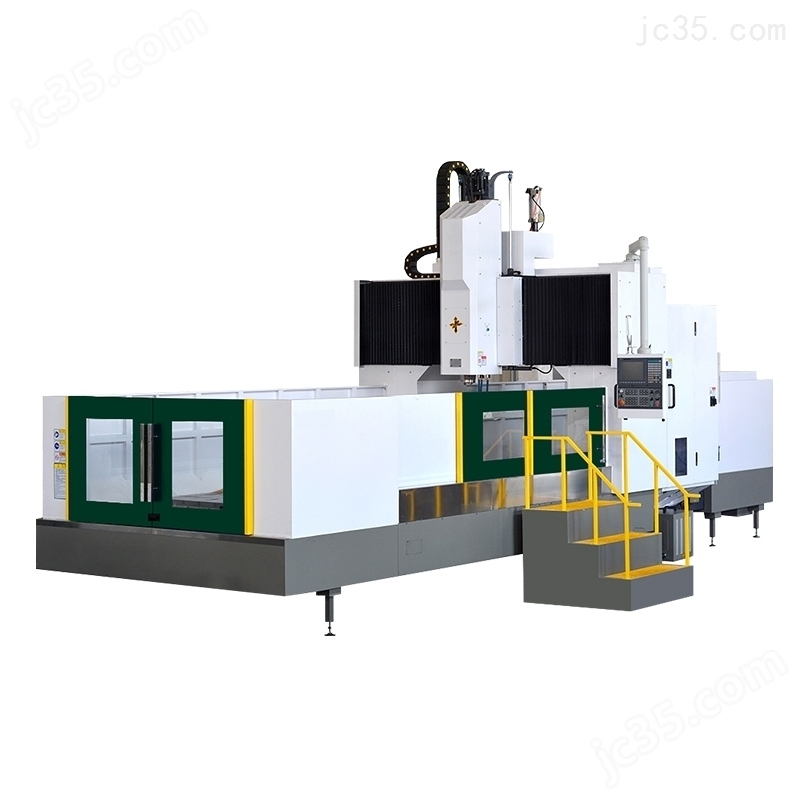

On a moving-column or bridge-type gantry, the X axis carries the whole bridge. That mass rides on two guideways and a pair of ball screws, and it moves in the same direction thousands of times a day. The first parts to show wear are almost never the spindle or the control. They are the ways, the screws, and the lube lines feeding them.
A worn guideway does not announce itself. It shows up as a taper you did not program, a corner radius that drifts on one side of the table, or a flatness reading that gets worse toward the end of the stroke. By the time an operator hears a change in sound, the damage is usually measurable in tenths, not microns.
That is why maintenance on these machines is a schedule, not a reaction. The intervals below are what we run on our own 4,000 mm travel machines and what we recommend to shops running gantry mills in aerospace and industrial machinery work. Adjust them for your duty cycle, but keep the order.
- 1Ways and screws firstThey set geometry before the control ever moves.
- 2Lube secondA dry ball screw fails in weeks, not months.
- 3Spindle and coolant thirdThey affect finish and tool life more than position.
Daily and weekly checks that catch drift early
Start every shift with the machine referencing home and the operator confirming the numbers match the last shift. A change of more than 0.01 mm in the home position is a signal, not noise. Write it down. The trend matters more than the single reading.
Walk the table and check for chips packed under the covers. Cast iron and aluminum chips work their way into the wiper seals and then onto the rail. Once a chip is embedded in a linear guide block, no amount of oil will remove it. Vacuum the covers, do not blow them out with shop air.
Weekly, check the way lube reservoir level and the pressure gauge on the lube pump. If the gauge does not cycle when the pump fires, the metering units are blocked or the line is broken. Clear it the same day. A week of dry running on a preloaded ball screw is enough to change the preload.
Also weekly: clean the spindle taper by hand, check the coolant concentration with a refractometer, and inspect the tool changer arm for looseness. Coolant below 5 percent concentration invites bacteria and rust on the vise and fixtures.
Monthly and quarterly service on ways, screws and spindle
Monthly, measure backlash on X, Y and Z with a dial indicator against a known stop. Record it. On a healthy machine, backlash stays inside 0.005 mm. If it grows past 0.01 mm, check the thrust bearing and the coupling before you touch the control parameters. Compensating in the control hides a mechanical problem.
Grease the linear guide blocks only with the lubricant the guide maker specifies. Mixing lithium and calcium greases, or a grease with the wrong base oil viscosity, will gum the block. If you do not know what was in there, purge it fully rather than topping it up.
Quarterly, check the squareness of the spindle to the table with a granite square and an indicator, and check table flatness with a precision level. On a large gantry, thermal growth makes a cold machine read differently from a warm one. Take both readings and keep the pair.
Inspect the spindle taper for fretting and blue marks. Run the spindle through its speed range and listen for a change in tone above 8,000 rpm. Vibration at one specific speed usually points to a bearing, not to the tool holder.
Thermal drift and the shop environment
A steel or cast iron gantry frame grows about 11 µm per meter per °C. On a 4,000 mm machine, a 5 °C swing across a shift is roughly 0.2 mm of growth if the frame is not held at temperature. That is far larger than the ±0.005 mm tolerance we hold on small parts, so thermal control is not optional on large work.
The practical fix is boring but effective. Log the ambient temperature and the machine temperature at the start and end of each shift. Warm the spindle for 15 to 20 minutes before the first cut, on the same warm-up program every day. If the shop swings more than 3 °C, move the finishing passes to the coolest part of the day.
Keep the machine away from direct sun through a window, from a dock door that opens all day, and from the exhaust of another machine. These three sources cause more dimensional scatter on gantry mills than any servo tuning issue.
For parts held to tight flatness, do the roughing, let the part and the machine settle, then finish. A part that is warm when it comes off the table will measure differently an hour later in inspection.
Lubrication and contamination control
Gantry mills run on three separate lubrication circuits: way lube for the guideways and screws, grease for the linear blocks, and oil or grease for the spindle, depending on the build. They do not share a lubricant. Using way lube in a spindle or grease in a way lube reservoir is a common and expensive mistake.
Way lube should be a slideway oil in the ISO VG 32 to 68 range, matched to the pump and the guide load. Thinner oil reaches the metering units faster but carries less load. Thicker oil stays in place but can starve the far end of a long line. Check the pump cycle time, not just the level.
Contamination control is the other half. Keep the lube reservoir capped, filter new oil before it goes in, and never top up from an open container sitting on the floor. Water in way lube turns it milky and destroys its film strength.
On machines cutting graphite, composites or cast iron, shorten every interval by half. These materials make abrasive dust, and that dust does not care about your schedule.
Keep records that decide repair or rebuild
A maintenance log is only useful if it holds numbers. Record home position, backlash on each axis, squareness, table flatness, spindle runout and lube pressure. Six months of these readings will tell you more about the machine than any single inspection.
Set a trigger for each value. Backlash above 0.01 mm on X, squareness out of 0.02 mm over 1,000 mm, spindle runout above 0.005 mm, or a flatness change of 0.03 mm across the table. When a trigger trips twice in a row, schedule the repair instead of adjusting around it.
This is also how you decide between a realignment and a rebuild. A machine that holds geometry after a scrape and realign will run for years. One that drifts again within a month has worn guideways or a damaged screw, and no amount of adjustment will fix it.
If you outsource gantry work because your own machine is down, send the geometry record with the RFQ. A shop that knows the machine is drifting can plan the setup around it instead of guessing.
Step by step: a full quarterly service
Allow 4 to 6 hours on a large gantry. Work in this order; skipping ahead invalidates the checks that follow.
- 1Lock out and cleanIsolate power and air. Remove chips from the table, covers and chip conveyor. Vacuum, do not blow with air, so dust does not reach the rails.
- 2Check lube deliveryFire the way lube pump manually and confirm every metering unit discharges. Replace blocked units. Verify reservoir level and top up with ISO VG 32–68 slideway oil.
- 3Measure backlashIndicate each axis against a fixed stop at three positions along the stroke. Record values. Anything above 0.01 mm goes to the thrust bearing and coupling, not the control.
- 4Inspect ways and screwsWipe the rails and look for scoring, pitting or a bright polished band. Check wiper seals for embedded chips and replace them if the lip is cut.
- 5Check geometry coldSet a granite square and precision level on the table. Record squareness to the spindle and flatness across the table before the machine warms up.
- 6Warm up and re-checkRun the warm-up program 15–20 minutes. Repeat the geometry readings. The cold-to-warm delta is your thermal signature; keep both numbers.
- 7Spindle and taperClean the taper by hand, check runout with a test bar, and listen through the speed range. Runout above 0.005 mm or a tone change at one speed means a bearing inspection.
- 8Log and close outWrite every number into the log, flag any value that tripped a trigger, and schedule the next service. Do not leave the machine in a half-adjusted state.
Maintenance interval and trigger reference
Adjust intervals by duty cycle. Cutting abrasive material halves every number in this table.
| Item | Interval | Check or action | Trigger to act |
|---|---|---|---|
| Home position | Every shift | Compare to previous shift | Drift over 0.01 mm |
| Chip and cover clean | Every shift | Vacuum covers and table | Chips under the covers |
| Way lube pressure | Weekly | Watch gauge cycle on pump fire | Gauge does not move |
| Coolant concentration | Weekly | Refractometer reading | Below 5 percent |
| Axis backlash | Monthly | Indicate against a fixed stop | Above 0.01 mm |
| Guide block grease | Quarterly | Purge and re-grease to spec | Any contamination |
| Squareness and flatness | Quarterly | Granite square and level | Out 0.02 mm per 1,000 mm |
| Spindle runout | Quarterly | Test bar and indicator | Above 0.005 mm |
Maintenance questions we get asked
How often should way lube be checked on a gantry mill?
Check the reservoir level and the pump pressure gauge every week, and confirm the metering units discharge at least once a month. The level alone tells you nothing if the line is blocked.
On machines cutting cast iron, graphite or composites, check twice as often. Abrasive dust accelerates wear on the metering units themselves.
Can I fix backlash with control compensation?
You can hide it, but the mechanical wear keeps going. Compensation changes the commanded position without removing the play in the thrust bearing or coupling.
Use compensation only as a short-term measure until the next scheduled service. If backlash grows past 0.01 mm, inspect the bearing and coupling first.
What causes a gantry mill to cut a taper on one side of the table?
Most often it is a misaligned or worn guideway, or a machine that has drifted out of squareness. Check the squareness of the spindle to the table before touching the program.
If the taper appears only after a few hours of running, look at thermal growth instead. A frame that warms unevenly will show the same symptom.
Which oil goes in the way lube system?
A slideway oil in the ISO VG 32 to 68 range, matched to your pump and guide load. Never use spindle oil or hydraulic oil as a substitute.
Do not mix brands or base oil types without purging the system. Mixed oils can form deposits that block the small metering orifices.
How do I know when a gantry mill needs realignment instead of adjustment?
Watch the trend, not the single reading. A machine that holds geometry for months after a realignment is fine. One that drifts back within a month has worn ways or a damaged screw.
That pattern means a rebuild, not another adjustment. Keep the log and the decision becomes obvious.
Does ambient temperature really matter on a large gantry?
Yes. Steel and cast iron grow roughly 11 µm per meter per °C. Over a 4,000 mm frame, a 5 °C swing is about 0.2 mm of movement.
Log the temperature with the geometry readings and keep the finishing passes in the coolest part of the shift.
