Shop-floor guide

Learn How CNC Machines Are Revolutionizing Manufacturing

This guide is for engineers and buyers who need to judge a part before it is cut. You will see which geometries suit 3-axis, 4-axis or 5-axis work, what tolerances hold on a real shop floor, and how to inspect the first article so the second run is boring. Numbers come from our own 127-machine floor in Dongguan.

±0.005 mm toleranceRa 0.8–1.6 μm finish5-axis simultaneous100% inspection
CNC machines are revolutionizing precision machining on a 5-axis center
Key takeaways

What you need to know first

Start with axis count, not machine brandUndercuts on three faces usually need a 5-axis setup; flat plates do not.
Tolerance follows the setup, not the brochureEvery refixture adds error. One 5-axis setup holds ±0.005 mm far more reliably than four manual moves.
Finish is a cutting choiceRa 0.8–1.6 μm comes from light finishing passes, not from grinding after the fact.
First-article inspection sets the runMeasure the first part fully, then let the process repeat it.
Datum choice drives costA datum you can grip in one vise keeps hours off the quote.
Why it changed

Why CNC machines are revolutionizing small-batch work

Thirty years ago a prototype run meant a model shop, a tracer mill and a lot of hand fitting. Today a CAM programmer posts a toolpath, a 5-axis center cuts all six faces from one blank, and the first article lands on a CMM the same day. That compression is what people mean when they say CNC machines are revolutionizing manufacturing. It is not one invention. It is the combination of rigid spindles, fast look-ahead control and toolpath software that can plan a hundred thousand moves before the spindle turns.

The practical effect for a design engineer is simple. You can now design a part with a curved rib, a drafted wall and a threaded boss without asking whether it is machinable. If the tool can reach it, the control can interpolate it. The limit moved from what a machinist could hand-feed to what a CAM system can simulate.

That shift changes how you write a drawing. Instead of tolerancing every surface to the tightest number you can type, you tolerance the features that actually mate. A machined face that locates a bearing needs ±0.005 mm. A cosmetic surface does not. When you sort your tolerances this way, the shop can hold the important ones and leave the rest at Ra 1.6–3.2 μm as machined.

One caution. A 5-axis center can reach a feature, but that does not mean it should. Deep pockets with a high depth-to-diameter ratio still force a long, thin tool that deflects. If a pocket is deeper than four times the cutter diameter, expect to slow down, add a roughing pass and accept a wider tolerance band. Design the depth out if you can.

  • 1
    One setup replaces manyFewer refixtures means less stacked error and shorter lead time.
  • 2
    Simulation catches crashesCAM verification checks holder clearance before the first cut, not after.
  • 3
    Toolpaths finish hard materialsTitanium and 17-4PH cut well with constant-engagement paths at lower radial depth.
Axis choice

Choosing between 3-axis, 4-axis and 5-axis

Axis count is the first cost decision on any quote. A 3-axis mill cuts from one direction. If your part is a plate, a housing cover or a bracket with features on a single face, that is enough, and it is the cheapest way to make it. Our floor runs 27 three-axis machines for exactly this kind of work.

A 4-axis mill adds a rotary table, usually Ø400 mm on our machines. This lets the tool index around a part without re-clamping, so you can drill a bolt circle, cut flats on a shaft, or machine four sides of a block in one program. Twelve four-axis mills handle this middle ground. It is the right call when features repeat around an axis but do not tilt.

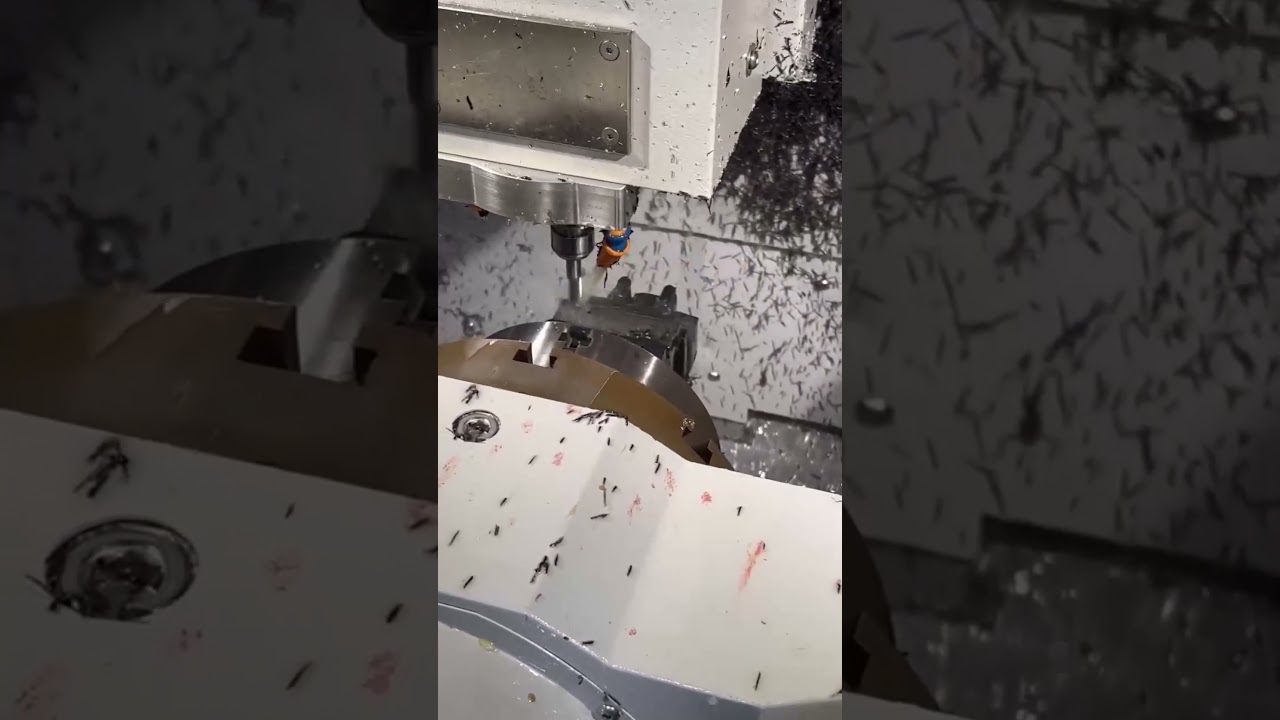

A 5-axis center adds two rotary axes so the tool can tilt. That tilt is what lets a short, stiff cutter reach an angled wall, a deep rib or a contoured pocket. We run 16 simultaneous 5-axis machining centers. The gain is real: a part that would take three fixtures on a 3-axis machine becomes one setup, and one setup holds ±0.005 mm more consistently.

Do not buy 5-axis time for a part that does not need it. If your geometry is prismatic and the tolerances are loose, a 3-axis program will quote lower and ship faster. The axis decision should follow the drawing, not the other way around.

  • 1
    3-axisFlat plates, covers, single-face features. Lowest cost per part.
  • 2
    4-axisShafts, bolt circles, four-sided blocks. One index, no tilt.
  • 3
    5-axisAngled walls, deep ribs, contoured pockets, six-face parts.
Tolerance and finish

What tolerance and surface finish actually hold

A tolerance number on a drawing is a target. What the shop delivers depends on the setup, the material and the tool. For machined metal on a stable setup, we hold ±0.005 mm (±0.0002 in) on critical features. That is not a promise for every dimension on the print. It is what we can repeat when the feature is properly datumed and the cutter is not overhung.

Surface finish follows a similar rule. A light finishing pass with a sharp cutter gives Ra 0.8–1.6 μm on aluminum and steel. If you need Ra 0.2–0.8 μm, that is a fine finish, and it costs more time. If a surface is only cosmetic, leave it as machined at Ra 1.6–3.2 μm and save the cycle.

Roughing removes the bulk. A typical roughing pass takes 60 to 70 percent of the material at a high feed, then a semi-finish pass leaves 0.3 to 0.5 mm of stock. The finishing pass takes that stock in one light cut. Skipping the semi-finish to save time is a common mistake. It leaves witness marks and forces the shop to run the finisher twice.

Heat is the quiet enemy. Aluminum moves as it warms, and a thin wall can spring back after the vise opens. On a ±0.005 mm wall, let the part cool before the final pass, or cut it in two stages with a stress-relief pause. On 17-4PH or Inconel, control chip load and use constant-engagement toolpaths to keep the tool cool.

  • 1
    ±0.005 mmCritical mating features on a rigid, well-datumed setup.
  • 2
    Ra 0.8–1.6 μmStandard fine finish for machined aluminum and steel.
  • 3
    Ra 0.2–0.8 μmFine finish. Adds a dedicated finishing pass and inspection time.
  • 4
    Ra 1.6–3.2 μmAs machined. Fine for non-mating and cosmetic surfaces.
Materials

Matching material to the cut

Material choice changes the toolpath, the speed and the finish. Aluminum 6061 and 7075 cut fast with high spindle speeds and leave a clean face. They are the default for prototypes and housings. 7075 is stronger and machines well, though it costs more and can be less weldable.

Stainless 303 and 304 are common for shafts and fittings. They work-harden, so the tool must keep moving. A dwell in the cut hardens the surface and dulls the edge. 17-4PH (SUS630) machines well in the annealed state and can be aged afterward for strength. That is a useful sequence when a part needs both machinability and final hardness.

Titanium TC4 (Ti-6Al-4V) and Inconel are slow. They hold heat at the cutting edge, so feeds drop and tool life shortens. Use a rigid setup, climb milling and a constant-engagement path. Budget more time per part and expect a higher price. If the design allows, 17-4PH or 4140 may do the same job for less.

Plastics behave differently again. POM and PEEK hold tight tolerances and cut cleanly. ABS and PC can melt and smear if the feed is too slow. On carbon fibre, use diamond-coated tools and plan for dust extraction. The material list in a quote should always name the temper or grade, not just the family.

  • 1
    Aluminum 6061 / 7075Fast, clean, good for housings and prototypes.
  • 2
    Stainless 303 / 304 / 17-4PHKeep the cutter moving. No dwell in the cut.
  • 3
    Titanium TC4 / InconelSlow speeds, rigid setup, higher cost per part.
Inspection

Building an inspection loop that catches drift early

A good process does not depend on a machinist watching every cut. It depends on measuring the first part, logging the result, and letting the control repeat that path. We inspect 100 percent of parts before shipment, with raw material checks, in-process monitoring and final inspection. Reports are available on request.

The first-article inspection is where a run is won or lost. Measure every critical feature on the first good part. Compare it to the drawing. If a dimension sits at the middle of its tolerance band, the process has room to drift. If it sits at the edge, adjust the offset before the second part is cut.

In-process checks catch tool wear. On a long run, a finishing cutter dulls and the surface finish changes before the dimension does. Check the finish and one key dimension every 20 to 50 parts, depending on the material. On titanium, check more often. On aluminum, less.

Record the numbers. A simple log of part number, feature, measured value and time tells you when a tool was changed and what happened after. When a customer asks why a lot shifted, that log answers the question. It is also the evidence an auditor looks for under ISO 9001:2015 or IATF 16949:2016.

  • 1
    First articleFull measurement of critical features before the run continues.
  • 2
    In-processCheck finish and key dimensions every 20 to 50 parts.
  • 3
    Final100 percent inspection before shipment. Reports on request.
Step by step

How to set up a part for a first run

Follow this order to keep the first article and the production run aligned.

  • 1
    1. Fix the datum before you modelPick a face and two edges the shop can grip in one vise. A datum that needs a custom fixture adds days to the quote. Put the datum callout on the drawing, not in an email.
  • 2
    2. Sort tolerances into critical and freeTolerance only mating features. Mark everything else as general, and note the finish band. A print with 40 tight dimensions is a sign the design was not sorted.
  • 3
    3. Choose the axis count from the geometrySingle face, 3-axis. Features around one axis, 4-axis. Angled walls or deep ribs, 5-axis. Do not ask for 5-axis time on a flat plate.
  • 4
    4. Leave stock for finishingRough to 0.3–0.5 mm of remaining stock, then semi-finish, then take one light finishing pass. Skipping the semi-finish leaves witness marks.
  • 5
    5. Set the cutting parameters by materialAluminum runs fast and dry. Stainless and titanium run slower with constant-engagement paths and flood coolant. Never let the cutter dwell.
  • 6
    6. Check the first article fullyMeasure all critical features and log them. If a value sits at the edge of its band, adjust the offset before part two.
  • 7
    7. Monitor the runCheck finish and one key dimension every 20 to 50 parts. Change the finishing tool on a fixed interval, not when a part fails.
  • 8
    8. Inspect before shipmentFinal inspection on 100 percent of parts, with reports on request. Package with the datum protected.
Decision table

Which setup fits your part

Use the geometry and tolerance to pick the process, not the other way around.

Part typeRecommended setupTypical toleranceWatch out for
Flat cover or plate3-axis±0.05 mmThin walls spring after unclamping
Shaft with bolt circle4-axis, Ø400 mm table±0.02 mmIndex error if the table is not locked
Housing with angled ports5-axis simultaneous±0.005 mmLong tools deflect in deep bores
Impeller or contoured rib5-axis simultaneous±0.005 mmThin blades need light finishing passes
Prototype, 1 to 10 parts3-axis or 4-axis±0.02 mmDo not over-tolerance the first article
Hardened 17-4PH part3-axis plus aging±0.005 mmMachine annealed, then age to final hardness
Titanium bracket5-axis simultaneous±0.01 mmHeat at the edge shortens tool life

Sort the drawing first, then the machine

A part that is easy to inspect is easy to make. Fix the datum, split critical from cosmetic tolerances, and pick the axis count from the geometry. That order saves more money than any machine choice.

FAQs

Questions engineers ask before a first run

How tight a tolerance can a CNC shop actually hold?

On a rigid setup with a well-datumed feature, we hold ±0.005 mm (±0.0002 in) on machined metal. That applies to critical mating features, not every dimension on the print.

If a feature is overhung or the wall is thin, expect a wider band. Tell the shop which dimensions matter and the quote will reflect it.

When is 5-axis worth the extra cost?

When the part has angled walls, deep ribs or features on more than three faces. One 5-axis setup replaces several refixtures and holds tolerance better.

If the part is a flat plate or a simple cover, 3-axis will quote lower and ship faster.

What surface finish is reasonable without post-processing?

A finishing pass gives Ra 0.8–1.6 μm on aluminum and steel. That is the standard fine finish.

If a surface is only cosmetic, leave it as machined at Ra 1.6–3.2 μm and save cycle time. Fine finishes at Ra 0.2–0.8 μm need a dedicated pass and more inspection.

Can you start production before I finalize every note?

We return a quote and a free DFM analysis within 12 hours, and production can start within 24 hours after release. Parts typically ship in 3–5 days.

It helps to freeze the datum and the critical tolerances first. Cosmetic notes can follow without stopping the setup.

Do you have a minimum order quantity?

No. We run from one prototype to 10,000+ part runs. The setup cost is the same, so the per-part price drops as the quantity rises.

Uploads are secure and confidential, and an NDA is available on request.

Which certifications cover automotive and medical work?

We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022. Those cover quality management, automotive parts and information security.

Inspection reports are available on request for any lot.
