Lathe Machining of Shafts, Sleeves and Threaded Parts

• 1
  How lathe machining generates a round surface
• 2
  Which features belong on a turning center
• 3
  Datums, chucks and the second operation
• 4
  Tolerance, finish and material boundaries
• 5
  Turning versus milling versus mill-turn

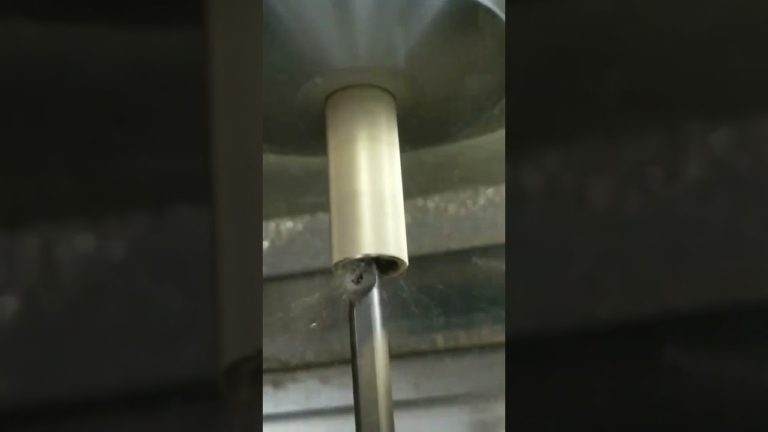

Lathe machining starts with a bar or casting gripped in a chuck and spun at a set surface speed. A single-point insert feeds along the Z axis to reduce diameter, or along X to face the end. Because the tool only has to control one contact point, the resulting surface follows the spindle axis very closely. That is the whole reason a lathe holds diameter tolerance better than a mill holds a pocket width.

Spindle runout, tool wear and thermal growth are the three error sources that matter most. On a well-kept machine, runout stays under 0.005 mm at the chuck jaws. Insert wear shows up as a slow drift in diameter across a batch, not as a sudden jump. Thermal growth moves the turret a few microns over the first hour of a run, which is why we warm up spindles before a tight-tolerance job.

Cutting speed is set by the material, not by the machine. Aluminium 6061 runs fast, often 300–600 m/min at the surface. Stainless 316 and 17-4PH run much slower because they work-harden at the cut. Titanium TC4 sits in between and needs steady feed so the insert keeps cutting instead of rubbing.

Feed per revolution controls chip thickness and surface finish. A 0.1 mm/rev feed with a 0.8 mm corner radius gives a predictable Ra 0.8–1.6 μm on steel. Drop the feed to chase a finer finish and the chip gets thin, heat builds up, and the insert fails early. Change the insert geometry instead.

Any surface that can be described as a circle swept around one axis is a lathe feature. Outside diameters, bores, grooves, chamfers, face reliefs, tapers and single-start threads all fall in that group. If the drawing can be dimensioned with a diameter symbol and a length, the lathe is usually the cheaper route.

Threads are the clearest case. A single-point tool cuts an external or internal thread in one setup, and the pitch diameter can be measured directly with a thread micrometer or a gauge. Rolled threads are stronger in fatigue because the grain flows around the root, but rolled threading needs a dedicated head and is better suited to high volume.

Cross holes, flats, keyways and slots break the symmetry. On a three-axis lathe they need a second setup on a mill, which adds a fixture and a datum transfer. A mill-turn center removes that step by indexing the B axis and driving an end mill from the turret. We run 16 mill-turn centers, so a shaft with two cross holes and a flat can come off one machine.

Deep bores are the feature that most often forces a change of plan. A bore deeper than about four times its diameter needs a long boring bar, and the bar deflects. Below Ø12 mm with an L/D over 6, expect to drill from both ends or switch to a gun-drilling operation.

The datum on a turned part is normally the finished outside diameter or a face, not the raw bar surface. Draw the part so that diameter callouts stack from one end face. If the drawing dimensions from both ends, the shop has to pick one and accept the stack-up, and the tolerance you get may not be the one you intended.

For short parts, a three-jaw chuck with soft jaws bored in place gives repeatable concentricity around 0.01 mm. For parts that need better than 0.005 mm total indicated runout, we use a collet or a between-centers setup with a face driver. Long shafts over 10 times their diameter need a tailstock or a steady rest, otherwise the part deflects under cutting force and the middle comes out oversize.

Thin-wall sleeves are the classic problem. A sleeve with a 1 mm wall clamped at 40 bar will spring back oval after the jaws release. Light clamping pressure, a split bushing, or filling the bore with a low-melt alloy all help. It is worth stating the wall thickness on the drawing so the process planner sees the risk before the first cut.

A second operation always costs more than it looks. Each flip adds a chucking cycle, a datum transfer, and a re-zero. If a part only needs one small milled flat, it is often cheaper to accept a mill-turn machine rate than to build a fixture and run it on a separate mill.

We hold ±0.005 mm on turned diameters as a routine capability, and ±0.0002 in for drawings that use inch units. That figure assumes a stable material, a rigid setup and a reasonable L/D. Push a 500 mm long shaft past L/D 12 between centers and the achievable tolerance loosens to ±0.02 mm or worse, no matter how good the machine is.

Surface finish follows the same logic. Ra 0.2–0.8 μm is reachable on a hard-turned steel or a fine-bored aluminium bore. Ra 1.6–3.2 μm is the normal as-machined result on a roughing pass. A specification below Ra 0.2 μm usually means the part needs grinding, lapping or a polishing step after turning, which changes the cost model.

Material choice decides the cutting parameters. Free-machining grades such as 303 stainless, 12L14 and C36000 brass break chips cleanly and hold a fine finish. 304 and 316 gummy up and need slower speeds. 17-4PH in the H1150 condition machines better than the annealed condition. Soft pure copper tears, and hardened tool steel above 45 HRC needs a ceramic or CBN insert.

Hardness and heat treatment also set the sequence. If a part is case-hardened or through-hardened after turning, either leave grinding stock or specify the finish before heat treat. Hardening moves dimensions, so a final turning pass after heat treat is only practical on material under about 45 HRC.
