Large Diameter CNC Machining: 7 Proven Rules for Big Parts

Large Diameter CNC Machining rarely fails because the tool can’t cut the material. It fails because the part moved, the spindle pushed the workpiece instead of the insert, or the chip cleared a bore and the wall sprang back. When a workpiece outgrows a standard vise and a standard caliper, the problems shift from feeds and speeds to workholding, heat, and measurement. A 400 mm flange and a 1.5 m ring are not the same job scaled up; they behave differently on the table.

This article is written for engineers, sourcing managers, and product development teams who need big parts made right the first time. Aerospace housings, energy flanges, robot base plates, medical imaging rings, and large pump bodies all fall into this category. If you quote Large Diameter CNC Machining like a job-shop turning operation, you will usually lose money on the second setup, not the first.

Here is what typically goes wrong. A part is clamped on four points, bored, and released. It relaxes. The bore is now oval by more than the drawing allows. Or the shop roughs and finishes in one continuous run, heat builds in the wall, and the final diameter drifts after the part cools overnight. Or someone measures with a hand caliper across a 900 mm diameter and trusts a number that is really a chord reading.

The rules below treat Large Diameter CNC Machining as a fixturing, thermal, and metrology problem first. Cutting parameters come after the part is stable, supported, and measurable. We cover what counts as large diameter, how to plan setups and support, why roughing and finishing need separation, how temperature moves dimensions, and how to inspect a part too big for a benchtop gauge. Each rule comes from practical shop experience, not theory. Applied together, Large Diameter CNC Machining becomes predictable, and the scrap rate drops.

What Counts as Large Diameter CNC Machining

There is no official line where a part becomes large, but the practical threshold sits somewhere around a few hundred millimeters in diameter. Below that, most 40-taper vertical mills and mid-size turning centers handle the work without much drama. Above it, diameter and swing start dictating which machines can touch the part at all. That is the zone where Large Diameter CNC Machining begins.

Think of the typical parts: pipe flanges, bearing housings, ring gears, large shafts, valve bodies, and pump casings. A 600 mm flange is not exotic, but it will not fit in a lathe with a 500 mm swing. A bearing housing with a 900 mm bore needs a machine that can reach the bore without the tool holder crashing into the wall. Diameter drives machine selection before material or tolerance does.

It helps to separate two numbers that buyers often conflate: maximum turning diameter and maximum swing. Swing is the largest circle the part can rotate through without hitting the bed, guards, or turret. Turning diameter is what the tool can actually reach and cut. A lathe might swing 1,200 mm but only turn 800 mm with a standard turret. For Large Diameter CNC Machining, both numbers matter, and the smaller one is the real limit.

Vertical machining centers and horizontal boring mills enter the picture when the part is too tall, too heavy, or has features on multiple faces. A 1.5 m diameter ring with bolt holes on the face and a stepped bore is often better run on a vertical mill with a rotary table than on a lathe. Five-axis capability becomes useful when the geometry has angled holes or contoured surfaces that would otherwise need multiple setups.

Mass is the other variable. A 500 mm steel flange might weigh 80 kg; a 1.2 m cast iron housing can easily exceed 1,000 kg. Once parts pass a few hundred kilograms, handling stops being a two-person job. Overhead lifting, certified rigging, and dedicated fixtures become part of the process plan, not an afterthought. Every setup change costs more time and carries more risk.

Setup planning shifts accordingly. On small parts, a machinist can nudge a vise or tap a workpiece into position. On large work, the part goes where the crane puts it, and the fixture has to hold it there within a few thousandths. That usually means pouring or bolting to a faceplate, using adjustable supports, and indicating the part in before any cut starts. Thermal growth across a 1 m steel part is also real; a 10 °C shop swing can move a bore by more than 0.01 mm, which matters on tight-tolerance bearing seats.

Machine choice for Large Diameter CNC Machining usually comes down to a short list. Large-bore turning centers with chucks from roughly 500 mm to over 1,500 mm. Vertical turning lathes for parts that are wider than they are long. Horizontal boring mills for long shafts and deep bores. Gantry or bridge mills for very large plates and frames. Each has a sweet spot, and picking wrong shows up as chatter, deflection, or a part that will not fit.

Tolerance capability does not automatically shrink as parts grow, but it gets harder to hold. A 0.02 mm bore tolerance on a 200 mm part is routine. The same tolerance on a 1,000 mm bore requires attention to thermal stability, tool deflection, and machine geometry. Shops doing Large Diameter CNC Machining typically inspect with large-bore micrometers, inside micrometers, or a CMM with the reach to handle the part. Portable arms are common when the part cannot move.

The short version: if the part needs a crane to load, a fixture to hold, and a machine with more than a meter of swing, you are in Large Diameter CNC Machining territory. The rules that follow assume that starting point. For heavy shafts and rings, Large Diameter CNC Machining success starts with leveling the foundation and verifying the floor before any cut. Wall thickness variation in castings or forgings can force conservative depths of cut during Large Diameter CNC Machining. CAM programming for contoured profiles needs collision checking across the full travel envelope of Large Diameter CNC Machining centers.

Machine and Workholding Choices That Decide the Job

Part geometry drives the machine decision, not the other way around. For rings, flanges, and discs with a large diameter-to-height ratio, a vertical turning lathe is usually the right call. The part sits face-down on a chuck or faceplate, gravity holds it flat, and the operator can see and measure the diameter without leaning over a horizontal bed. Large Diameter CNC Machining on a VTL also keeps the swing diameter honest: if the part clears the column, it will turn.

When the part is long, boxy, or has bores and faces on multiple sides, a horizontal boring mill earns its floor space. HBM workholding typically uses a rotary table plus a tombstone or angle plate, so one setup can reach four sides of a weldment or housing. For prismatic parts that are simply too big for a 40-taper mill, a gantry-style 5-axis machine bridges the gap, letting the spindle travel over a fixed bed instead of the table moving under the tool.

Workholding is where most large-part jobs are won or lost. Three approaches cover the majority of work:

• Chucks and faceplates. A four-jaw independent chuck gives you dial-in control on a rough casting or forging. Faceplates with bolt-on clamps handle thin rings where jaw pressure would distort the bore.
• Tombstone fixtures. A vertical tombstone on a horizontal mill or 5-axis table multiplies part density and lets you machine several faces per setup. Stiffness matters more than compactness here; a tombstone that flexes under a 4-inch face mill will chatter the finish.
• Pie-jaw boring. For thin rings, boring soft jaws to the part’s OD spreads clamping force over a wide arc instead of three or four points. That is how you hold a ring in Large Diameter CNC Machining without squeezing it out of round, then release it and find the diameter still in tolerance.

Fixture design has to account for thermal growth and cutting forces, not just locating points. A large aluminum ring can grow several thousandths of an inch as the spindle heats the workpiece, so rough and finish passes are often separated to let the part stabilize. Steel weldments move even more, which is why stress relief before final machining is common practice, not an extra step.

This is where 5-axis positioning pays off on angled and compound features. Instead of fixturing the part three times to reach a bolt circle on a tapered face, a compound angle, or a cored port, the machine tilts the table or head and cuts it in one setup. Each eliminated setup removes a re-clamp, a re-indicate, and a stack of tolerance that adds up fast. On a part that weighs several hundred pounds, that is also a safety and crane-time argument, not just an accuracy one.

The tradeoff is that 5-axis work on large parts demands more from the programmer and the post. Tool reach, holder clearance, and table load limits all shrink the usable envelope. Shops that run Large Diameter CNC Machining well usually model the fixture and the machine head in CAM, so a collision is caught on screen instead of on the floor.

None of these choices are permanent. A job that starts on a VTL with a faceplate may move to a tombstone setup once volume justifies the fixture, and Custom CNC Machining Services often combine turning and milling operations across two or three machine types to hit the print. The rule is simple: pick the machine that lets you hold the part with the fewest setups and the most rigidity, then build the fixture around that. Get Large Diameter CNC Machining workholding right and the rest of the process gets easier; get it wrong and no amount of tooling will save the tolerance.

Every large-part quote should start with a hard look at how the part will be held, because in Large Diameter CNC Machining the fixture is half the process. A four-jaw independent chuck with dial indicator checks keeps Large Diameter CNC Machining setups straight when part weight shifts during rotation. Stress relief before finishing is often necessary to keep roundness within tolerance after Large Diameter CNC Machining. Post-processor accuracy for rotary axes directly affects positional tolerance in Large Diameter CNC Machining.

Materials and Cutting Parameters for Big Parts

Once the workholding question is settled, the next decision is how hard to push the tool. Big parts change the math because the cut runs long, the chip stays in contact, and heat has nowhere to go. A 200 mm face mill buried 6 mm deep in 4140 for twenty minutes straight behaves nothing like the same cutter taking a 1 mm finishing pass on a bracket. In Large Diameter CNC Machining, the material grade and the section thickness together set the starting parameters.

Carbon and alloy steels such as 1045, 4140, and 4340 machine predictably with coated carbide, but hardness matters more than the grade name. Annealed 4140 at 28 HRC cuts comfortably; the same steel at 40 HRC will punish a weak setup. Typical surface speeds for coated carbide inserts in medium-carbon steel land around 150 to 250 m/min, with feed per tooth between 0.15 and 0.30 mm depending on insert size and rigidity.

Stainless steels are the opposite problem. Grades like 304 and 316 work-harden fast, so a light rubbing pass is worse than a committed one. Keep the tool engaged, take depths of cut of at least 1.5 to 2 mm on roughing so the insert bites under the hardened skin, and hold surface speed lower, often 100 to 180 m/min. Through-tool coolant helps here, both to clear chips and to keep the insert edge from welding to the workpiece.

Cast iron behaves differently again. Gray iron breaks into short chips and generates dust rather than long strings, so coolant is sometimes run dry or with air blast on large faces. Ductile iron, however, produces stringy chips and benefits from flood or through-tool coolant. Surface speeds for carbide in gray iron commonly sit between 150 and 300 m/min, and depths of cut can be aggressive because the material is brittle and the cutting forces are lower.

Aluminum is the easy case until part size introduces chatter. Large aluminum structures allow very high surface speeds, often 500 to 1000 m/min or more, with generous feeds per tooth. The trap is thermal growth: a long roughing cycle heats the part, it expands, and the finishing pass cuts a shape that shrinks when it cools. Sequence roughing and finishing with a cool-down, and use through-tool coolant to carry chips out of deep pockets.

Nickel alloys such as Inconel 718 and Waspaloy are where Large Diameter CNC Machining gets expensive. These materials hold strength at temperature, so the heat goes into the insert instead of the chip. Surface speeds typically drop to 30 to 60 m/min with carbide, depths of cut stay shallow, and through-tool coolant at high pressure becomes mandatory rather than optional. Expect tool life measured in minutes, not hours, and plan for it.

Depth of cut on large parts deserves its own rule. Radial engagement drives cutting force far more than axial depth, so a 20 mm axial pass at 10 percent radial width is often gentler than a shallow pass at full width. This is standard Milling (machining) practice, but it matters more when the part weighs several hundred kilograms and the table is already loaded.

Treat these numbers as starting points, not gospel. Rigidity, tool overhang, insert grade, and the age of the machine all shift the window. On any Large Diameter CNC Machining job, run a test cut, listen to the spindle load, and adjust before committing to a multi-hour cycle. The scrap cost of a large part is high enough that a ten-minute proving pass is always worth it.

One more habit separates good large-part shops from struggling ones: log what actually worked. Insert grade, speed, feed, depth, and tool life for a given material and setup become the baseline for the next similar job. Over time that log is worth more than any published chart, and it keeps Large Diameter CNC Machining predictable instead of experimental. Steady rests and tailstocks must be aligned to the spindle centerline to prevent taper in Large Diameter CNC Machining operations. Subcritical annealing of alloy steel improves machinability and extends tool life in Large Diameter CNC Machining.

Custom fixturing that supports the part across its full length reduces deflection during Large Diameter CNC Machining.

Holding Tolerances on Large Diameter CNC Machining

Geometry is where big parts get humbled. On a 900 mm bore, a few degrees of thermal drift, a soft setup, or a worn insert translates directly into roundness error you cannot polish out. In Large Diameter CNC Machining, tolerance control is less about the machine’s positioning accuracy and more about how the part is supported, measured, and referenced from the first op to the last.

Four callouts drive most of the difficulty: roundness, concentricity, cylindricity, and face runout. Roundness is a radial condition — how close a single cross-section comes to a true circle. Cylindricity combines roundness and taper across the full length, so a bore can be perfectly round at both ends and still fail. Concentricity ties two or more diameters to a common axis, and face runout controls how square a shoulder or flange sits to that axis. Each one punishes a different mistake.

Typical shop tolerances on large diameters land somewhere around 0.025 to 0.05 mm for general work, with roundness and cylindricity often held to roughly half the diameter tolerance. When a customer asks for 0.010 mm total on a 1,200 mm diameter, that is a different conversation — it usually means temperature-controlled roughing and finishing, in-process probing, and a measurement plan agreed before the first cut.

Not every feature needs that treatment. In most large parts, the critical fits are the bearing bores, seal journals, spigot diameters, and mounting faces. Bolt circles, clearance holes, and non-sealing O-ring grooves usually ride along at looser limits. Knowing which is which lets a shop spend its tight-tolerance effort where it actually buys function, instead of chasing tenths across the whole print.

Datum strategy decides whether those numbers hold. Pick datums that exist physically on the part and can be reproduced in every setup — a finished face and a bored diameter, not a rough casting surface. On thin-walled rings and housings, the datum itself can move under clamping load, so light fixturing and consistent torque matter as much as the machine.

Stacking tolerance across setups is the quiet killer in Large Diameter CNC Machining. Every re-chuck adds a fresh centering error, and those errors accumulate. Turning a bore, flipping the part, and turning the mating bore from the opposite end can double the effective runout even when each setup is individually in spec.

Practical ways to avoid the stack:

• Machine as many coaxial features as possible in one setup, ideally in one continuous pass.
• Use a common datum feature for all operations and record how it was established.
• Indicate the part on the machine before cutting, not just after.
• For parts that must be flipped, leave stock and finish the critical diameters after the flip.
• Verify with on-machine probing, then confirm with a CMM or laser tracker in a stable thermal state.

Verification deserves its own line in the plan. A large diameter measured immediately after cutting reads differently than the same part after it has equalized overnight. Shops that log temperature, clamping force, and measurement time build a record they can trust — and that record is what makes Large Diameter CNC Machining repeatable rather than a series of lucky runs.

Where a print mixes tight and loose features, agree on the ranking early. A short CNC Machining Services Comparison 2026 review often surfaces suppliers who will quote the whole part to the tightest callout, which inflates cost for no benefit. Splitting the tolerance budget by function keeps pricing honest.

None of this is exotic. It is discipline: define the datums, minimize setups, control the environment, and measure the same way every time. Do that and Large Diameter CNC Machining stops being a gamble on the last operation and becomes a process you can schedule, quote, and repeat. Thermal growth in the spindle and workpiece matters more as diameters increase, so plan warm-up cuts for Large Diameter CNC Machining. CMM inspection of a two-meter diameter part may need a portable arm or laser tracker rather than a fixed machine after Large Diameter CNC Machining.

Operators trained on small lathes need specific instruction in safe handling and setup for Large Diameter CNC Machining.

Deflection, Thermal Growth, and Chatter Control

Big parts fail on physics long before they fail on tolerance. A tool hanging far out of its holder bends under cutting force, and the bend grows with the cube of overhang. Double the stickout and you lose roughly eight times the stiffness. That is why Large Diameter CNC Machining rewards short, rigid setups over clever ones.

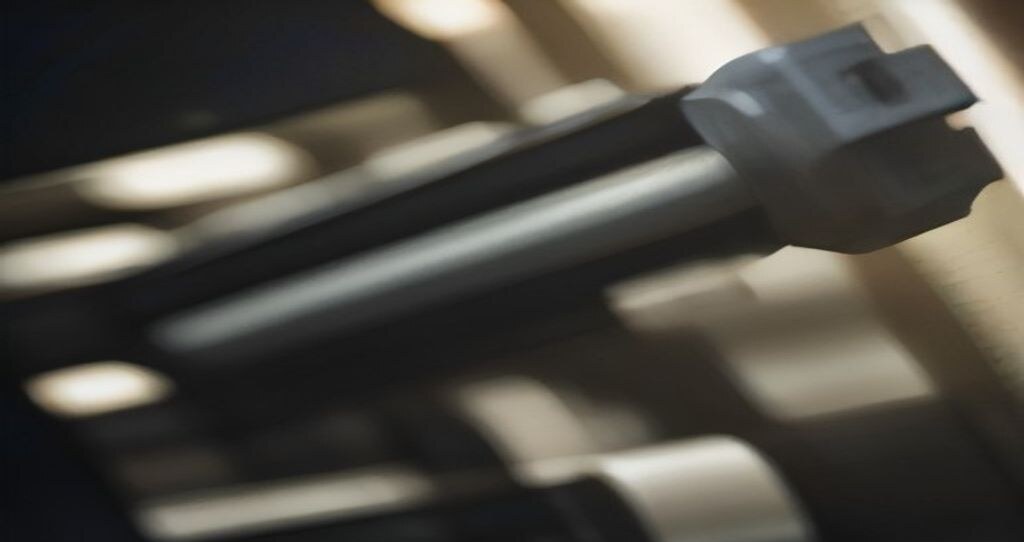

Start with the toolholder. Keep overhang to the minimum the feature actually allows, and prefer a larger taper or a damped boring bar over a slender extension. Balance matters too; at the spindle speeds large diameters often run, an unbalanced holder sets up a vibration that no feed adjustment will fix.

Workholding is the next weak link. A part clamped only in the chuck sags under its own weight, and the sag changes as the tool moves along the length. Add a steady rest near the cut zone, or a tailstock if the geometry allows it, so the workpiece is supported where the force is applied rather than where it is convenient. On long shafts, two steady rests sometimes beat one, because they break the span into shorter, stiffer segments.

Thermal drift is slower but just as damaging. Chips carry heat away, but the part, the spindle, and the machine structure all warm up over a long cycle. A bore that measures on size at hour one may be out at hour five. In Large Diameter CNC Machining, where cycle times often run into hours, this is not a minor effect.

The practical countermeasure is sequencing. Take the bulk of the material in roughing passes, then let the part cool before finishing. A cool-down of thirty to sixty minutes is common in many shops, and it costs far less than scrapping a near-finished workpiece. Some shops finish critical diameters in the morning, after the machine has idled overnight, to keep thermal conditions repeatable.

Chatter deserves its own attention on large diameters because the workpiece itself can ring. Thin-wall tubes and rings act like bells. Three levers usually help:

• Reduce radial engagement and increase feed per tooth to change the cutting force pattern.
• Vary spindle speed slightly, or use a tuned holder, to break the resonance.
• Support the wall from the inside with a plug, expanding mandrel, or filled fixture.

Do not chase chatter with speed alone. If the part is ringing, the fix is usually stiffness or engagement, not RPM. Increasing speed can push you into a worse lobe of the stability diagram.

Measure between operations rather than at the end. Check a diameter after roughing, after cool-down, and after finishing. That gives you a thermal signature for the part and tells you whether the next pass will land where you expect. It also catches a drifting steady rest before it becomes a taper.

None of this is exotic. Short tools, real support, controlled heat, and a rough-then-cool-then-finish sequence. Applied consistently, those four habits carry most of the risk out of Large Diameter CNC Machining and leave the tolerance to the machine, where it belongs. Tool holders with high balance grades reduce vibration that amplifies quickly during Large Diameter CNC Machining at elevated surface speeds. Roundness, concentricity, and cylindricity callouts demand careful datuming before Large Diameter CNC Machining begins.

Inspection: Measuring Diameters You Cannot Wrap

Once a big part comes off the table, the hard work shifts to proving it is correct. A 1.2 m bore cannot be wrapped with a 1.2 m micrometer, and a caliper tells you nothing useful past its jaw depth. Inspection planning for Large Diameter CNC Machining has to be decided before the first chip, not after the last one.

Here is what actually works in a shop measuring oversized features.

• Large micrometers and inside mics. Extended-frame outside micrometers and tubular inside micrometers cover bores and journals up to roughly 1 m in many shops, sometimes more with special frames. They are direct-reading and traceable, but they are heavy, they flex, and they amplify operator feel. Use them for final buy-off on features they can actually reach squarely.
• Bore gauges and telescoping gauges. Two-point and three-point bore gauges work well for through-bores and blind bores within their range. Set them against a ring gauge or a calibrated master, then read the size. They capture roundness poorly, so pair them with a separate roundness check.
• Portable CMM arms. A 2.5 to 4 m articulated arm reaches into large weldments and castings and reports true position, not just size. The catch is stability: the arm base must be rigid and the part must not move between setups. Arm accuracy also degrades toward the far end of its envelope.
• Laser trackers. For parts measured in meters, a tracker with a spherically mounted retroreflector is often the only practical option. It handles large bores, bolt circles, and flatness across a whole frame. It needs line of sight, a stable setup, and a trained operator to get numbers you can defend.
• On-machine probing. Probing the feature while it is still clamped eliminates a re-fixturing error and lets you correct the cut before unclamping. It also ties inspection to the same datum scheme the machine used, which matters on Large Diameter CNC Machining where a small angular error becomes a large linear one at the rim.

Temperature is the quiet variable. A steel part 1 m across grows roughly 11 to 12 microns per degree Celsius. Let that sit for a moment. A part pulled from a warm shop into a 20 C inspection room can move several hundredths before it settles. Soak large parts on the granite for hours, not minutes, and record the part temperature alongside the reading.

Document the setup, too. Note the datum, the clamping points, the probe stylus or gauge used, and the ambient temperature. Any measurement of Large Diameter CNC Machining output is only as good as the setup behind it.

Finally, match the method to the drawing callout. If the print asks for diameter, measure diameter. If it asks for circularity, cylindricity, or true position, a two-point micrometer will not answer the question no matter how carefully it is read. Use the inspection tool that maps to the tolerance zone, and write the plan down so the next operator, or the customer’s inspector, can repeat it exactly.

Get that alignment right and the numbers you report for Large Diameter CNC Machining will hold up under audit, not just on the shop floor. The same discipline that keeps the cut stable keeps the measurement honest. For shops that need both, working with an experienced Leader in Cnc Machining Service China removes a layer of risk from the whole chain. That is the last of the seven rules, and the one that protects the other six. Long-reach boring bars need maximum stiffness and minimum overhang to hold size in Large Diameter CNC Machining passes.

Surface finish specifications on sealing faces often drive the final feed and speed choices in Large Diameter CNC Machining.

Prototypes Through Production in Heavy Industries

Large diameter parts rarely exist for their own sake. They sit inside machines that move fluids, carry loads, or hold alignment under heat and vibration. That is why Large Diameter CNC Machining tends to cluster in a handful of industries where a single oversized component governs the whole assembly.

Energy is the clearest example. Turbine and pump housings, valve bodies, and transition sections often start as castings or forgings weighing hundreds of kilograms. Bore concentricity, flange face flatness, and bolt circle position all matter because the mating part arrives from another supplier and will not be reworked on site.

Aerospace brings ring and flange hardware: engine mounts, structural rings, and seal housings where wall thickness may be only a few millimeters across a diameter measured in meters. Deflection during clamping is the enemy here, not spindle power. Mining and robotics add slewing rings and bearing races, where the gear teeth and the raceway must share a single datum. Large hydraulic components round out the list: cylinder bodies, end caps, and manifolds that must hold pressure without leaking at the joint face.

What changes between a prototype and a production run is not the geometry. It is how you hold it.

A one-off housing is usually set up on a tombstone or a set of adjustable jacks, indicated in by hand, and machined with conservative depths of cut. The programmer has time to babysit the cycle. On a repeat order, that approach collapses. Setup time per part has to shrink, and the operator needs a fixture that locates the same way every time without dialing anything in.

The good news is that the prototype fixture is often the seed of the production one. If the first article was held on three-point supports with a bolted strap, the production version usually becomes a dedicated plate with fixed pads at those same three points, plus a quick-clamp arrangement. The datums carry over. The clamping sequence carries over. What gets added is repeatability.

This is where Large Diameter CNC Machining separates itself from small-part work. On a 200 mm part, a fixture that is 0.05 mm off just shifts the part. On a 2 m part, the same error becomes a taper across the bore. Thermal growth matters too. A casting that sat in a cold warehouse overnight will move as it warms up, and a fixture that constrains it too rigidly will fight that movement.

Repeat production also changes the machine strategy. A shop running the same family of rings month after month will often invest in a fourth or fifth axis so the part can be finished in fewer setups. That is standard Multiaxis machining practice, and for large rings it removes the re-clamping error that comes from moving a heavy part between machines.

Volume shapes the inspection plan as well. Prototypes get full dimensional reports, often with CMM verification of every critical feature. Production runs shift toward first-article approval plus periodic checks, with in-process probing on the machine catching drift before the part leaves the fixture. For a part that takes hours to machine, catching a bore running out of tolerance at hour two beats finding it at hour nine.

None of this is exotic. It is the same discipline shops apply to small parts, scaled up until every source of error becomes visible. In Large Diameter CNC Machining, the fixture, the thermal plan, and the setup count do more to determine whether a program runs profitably than the spindle ever will.

That is also why the industries above tend to stay with the same supplier once a process is proven. Requalifying a fixture and a setup sequence on a part this size costs real money. The prototype is where you learn. Production is where you stop learning and start repeating.

GreatLight runs these jobs across 5-axis milling, turning, and inspection for prototypes through production. If you are quoting a large housing, ring, or hydraulic body, send the drawing and we will tell you where the setup risk sits. Insert grade and edge preparation should match the material’s hardness and chip behavior for reliable Large Diameter CNC Machining. Quoting should separate roughing and finishing time because tooling costs differ sharply in Large Diameter CNC Machining.

Cost Drivers and Lead Time in Large Part Machining

Price on a big part rarely tracks cycle time the way it does on small work. On a 1.2 m diameter flange, cutting might be a third of the quote. The rest is material, fixturing, setup, inspection, and the financial exposure of a blank that already cost thousands before the first tool touches it.

Material drives the quote first. Large diameter stock is not always an off-the-shelf item; plate, forgings, and castings above a certain size often carry mill minimums, cut fees, and lead times measured in weeks. A part designed around a standard plate thickness or a stocked ring size usually quotes lower and ships sooner than one that needs a custom forging.

Setup hours are the second driver, and they scale faster than part size. A 2 m part may need a crane, a custom riser, and dial-indicator work across multiple rotations. Every additional setup adds lift time, re-clocking, and a fresh chance to lose datum alignment. Shops that quote Large Diameter CNC Machining know a four-setup job can carry more hours in handling than in cutting.

Fixtures are where large work gets expensive. Big parts often cannot be held in a standard vise or chuck, so the shop builds soft jaws, a sub-plate, or a weldment strong enough to resist cutting forces without ringing. That tooling is real engineering time, and on a one-off it lands entirely on the first article.

Inspection time also runs long. A large diameter feature may sit outside the envelope of a standard CMM, pushing the shop toward portable arms, laser trackers, or on-machine probing. Each of those approaches adds hours and, in some cases, a subcontractor. For a bearing bore or a sealing face, that inspection is not optional.

The last cost driver is risk. A near-net forging or a thick plate blank can represent a large fraction of the part price, and a scrapped feature means scrapping all of it. Shops price that exposure in. This is also where Large Diameter CNC Machining quotes separate from small-part quotes: the downside of a mistake is measured in weeks of remelt or re-order, not a few dollars of bar stock.

Design choices can pull cost out without touching function. A few that reliably help:

• Relax tolerances on non-critical features. A bolt circle or clearance pocket at plus/minus 0.5 mm instead of plus/minus 0.05 mm can remove a finishing pass and a probing cycle.
• Specify standard stock sizes. Designing to a stocked plate thickness or ring OD avoids custom mill orders and their lead times.
• Keep critical features reachable in fewer setups. Datum features that let the shop machine both sides from one reference cut re-clocking time.
• Call out surface finish only where it matters. A blanket Ra 1.6 on a part that needs it on one face adds polishing time everywhere.
• Avoid deep, narrow features on large parts. Tool reach and rigidity fall off fast, and the shop may need to burn EDM time instead.

Lead time follows the same logic. Material procurement often runs longer than machining. Add fixture build, first-article inspection, and any outside processing, and a large part can spend more calendar time waiting than cutting. Getting stock and tolerances settled early compresses that schedule more than any machine upgrade.

None of this means large parts are automatically costly. It means the quote is dominated by decisions made before the spindle turns. When you plan Large Diameter CNC Machining, treat stock size, tolerance callouts, and setup count as cost levers, because that is exactly how the shop prices them.

A practical habit: before releasing a drawing, ask which features are truly functional and which are simply inherited from an old revision. Trimming tolerance where it does not matter, and standardizing stock where the design allows, often removes more cost than any negotiation on hourly rate.

For a large housing, ring, or hydraulic body, the fastest way to a firm number is a drawing review that flags setup count, stock availability, and inspection method up front. That conversation costs nothing and usually saves far more than it takes. In-process gauging catches diameter drift early and reduces rework on Large Diameter CNC Machining jobs. Material certificates and traceability requirements should be confirmed before scheduling any Large Diameter CNC Machining work.

Rules That Keep Large Diameter CNC Machining Predictable

None of these seven rules is exotic. They are the basics, applied with more discipline because the parts are bigger and the mistakes cost more. Workholding gets designed before the first chip. Cutting parameters get dialed back to control deflection and heat. Tolerances get verified with methods that match the geometry, not a caliper that cannot reach across the diameter.

If you remember one thing about Large Diameter CNC Machining, make it this: the part is usually won or lost in planning, not at the spindle. Machines, fixtures, and inspection strategy are chosen long before the cycle starts.

• Design workholding and supports around the part, not the other way around.
• Expect thermal growth and deflection, and plan passes to compensate.
• Verify large diameters with the right metrology, not improvised tools.
• Treat first-article inspection as the gate to production, not a formality.

Cost and lead time follow from those decisions. A stable setup, realistic parameters, and a clear inspection plan reduce rework, scrapped castings, and schedule surprises. That is what separates routine Large Diameter CNC Machining from a job that keeps coming back.

When you are ready, send your drawings and tolerances for review. GreatLight handles prototypes through production with 5-axis milling, turning, and documented quality inspection, and can flag manufacturability issues before quoting. A short conversation about geometry, material, and volume now often saves weeks later.

Good Large Diameter CNC Machining is boring in the best way: predictable setups, predictable cuts, predictable results. A keyway or lug pattern on a large flange usually requires indexed positioning that complicates Large Diameter CNC Machining cycles. Lead times stretch when raw stock must be forged, normalized, and pre-machined ahead of Large Diameter CNC Machining.
