CNC Machine For Automotive Industry: 7 Proven Machining Rules

An automotive part rarely arrives at a machine as a clean, forgiving job. A bracket that looks simple on a print may carry a tolerance band tight enough to matter, a material that moves after roughing, and a production volume that punishes wasted minutes. That is the reality of running a CNC Machine For Automotive Industry workday after workday. The same spindle that cuts a one-off fixture plate for a job shop may struggle to hold cycle time and capability once the part is destined for a vehicle program.

What separates a smooth automotive job from a painful one usually is not the machine spec sheet. It is the decisions around it. Material behavior, workholding, toolpath strategy, and inspection discipline all interact, and a weak link in any of them shows up as scrap, downtime, or a costed part that never hits margin. Engineers and sourcing teams feel this most when a program moves from prototype into steady production and the process stops behaving the way it did on the first article.

This article covers seven rules that hold up on the shop floor when automotive work hits a CNC Machine For Automotive Industry. We look at what those parts actually demand from a CNC Machine For Automotive Industry setup: how materials behave, how fixtures are chosen, how tolerances and surface requirements drive tooling, and where the real cost drivers hide. The goal is practical. If you are specifying, quoting, or scheduling automotive machining, you should know where a CNC Machine For Automotive Industry process tends to break and what to do before it does.

Some of these rules are about cutting metal. Others are about measuring it, documenting it, and proving the process stays capable across a run. A CNC Machine For Automotive Industry workflow rewards discipline in both areas, because a part that measures well on one shift can drift on the next. The sections ahead walk through each rule in turn, with the kind of detail that helps you ask better questions of your machining partner and catch problems earlier.

What Automotive Work Demands From CNC

Automotive work is rarely about one hard-to-machine feature. It is about hundreds of parts that all have to be the same. A bracket with a tricky undercut is a puzzle. Ten thousand brackets that must measure the same on the last day of the run is a process problem. That distinction shapes everything a CNC Machine For Automotive Industry has to do well.

Start with the material mix. A single shop week might include 6061 aluminum housings, 4140 steel shafts, 303 stainless sensor bodies, glass-filled nylon clips, and ductile iron brake components. Each family cuts differently. Aluminum wants high spindle speed and generous rake angles. Ductile iron wants rigidity and careful dust control. Plastics want sharp edges and chip clearance so the tool never rubs. A CNC Machine For Automotive Industry that only runs well in one material is a bottleneck waiting to happen.

Tolerances are where automotive parts separate themselves from general job shop work. A cosmetic cover might carry plus or minus half a millimeter and still be easy to run. A steering knuckle bore, a brake caliper piston bore, or an airbag sensor mounting face is a different conversation. Those features often hold total tolerances in the tens of microns, with position and profile callouts added on top. The geometry is usually not exotic. The difficulty is holding that geometry repeatably across a production run.

This is why poor setups punish automotive work harder than hard geometry does. A five-axis toolpath that clears a complex contour is impressive once. It becomes worthless if the vise jaw lifts the part two thousandths on cycle forty. Thermal growth in the spindle, chip recutting, worn soft jaws, inconsistent stock from the casting supplier, coolant concentration drifting over a long shift. Few of these show up in a simulation. Most of them show up in a CMM report. Shops running a CNC Machine For Automotive Industry learn to treat fixturing and process control as the main event, not an afterthought.

Documentation expectations add another layer. Automotive customers commonly require PPAP-style submissions: dimensional layout results, material and heat lot traceability, capability studies on critical characteristics, control plans, and first article inspection reports. Even tier-two and tier-three suppliers often inherit these requirements from the OEM above them. That means the machine has to be matched by a measurement strategy. In-process probing, SPC data collection, and clean inspection records are part of the job, not extra credit.

Volume changes the math too. Prototype quantities reward flexible setups and quick changeover. Production quantities reward cycle time, tool life, and unattended running. A shop using a CNC Machine For Automotive Industry for both has to design fixtures that survive the transition. Soft jaws machined on the machine, tombstone setups for small parts, and pallet systems that let one operator tend several spindles are common answers. The setup that gets you through five prototypes is often the wrong setup for five thousand parts.

Put together, the baseline looks like this: broad material capability, tight control on safety-critical features, repeatability that holds across a long run, and paperwork that proves it. A CNC Machine For Automotive Industry succeeds or fails on those four fronts long before geometry becomes the limiting factor. Get the setup, the thermal stability, and the inspection loop right, and most automotive parts are very machinable. Skip them, and even a simple bracket will fight you all the way to the shipping dock. For every new part family, the setup sheet should list each fixture offset a CNC Machine For Automotive Industry will use.

Training checklists should cover offset entry, tool change, and alarm clearing on each CNC Machine For Automotive Industry in the cell.

Background reading: the Numerical control overview is a useful reference on the fundamentals.

Choosing The Right CNC Machine For Automotive Industry Work

Machine selection starts with the part family, not the catalog. A shop buying a CNC Machine For Automotive Industry work has to match axis count and spindle character to what actually comes through the door. Get that match wrong and you either pay for capability you never use or fight tolerance on every cycle.

Three-axis vertical mills remain the workhorse for flat brackets, plates, and simple covers. One setup per face, rigid Z, easy fixturing. If a part needs features on five sides, you are stacking setups and losing datum repeatability with each flip. That is where four-axis enters: a rotary table adds indexable access to multiple faces without re-chucking.

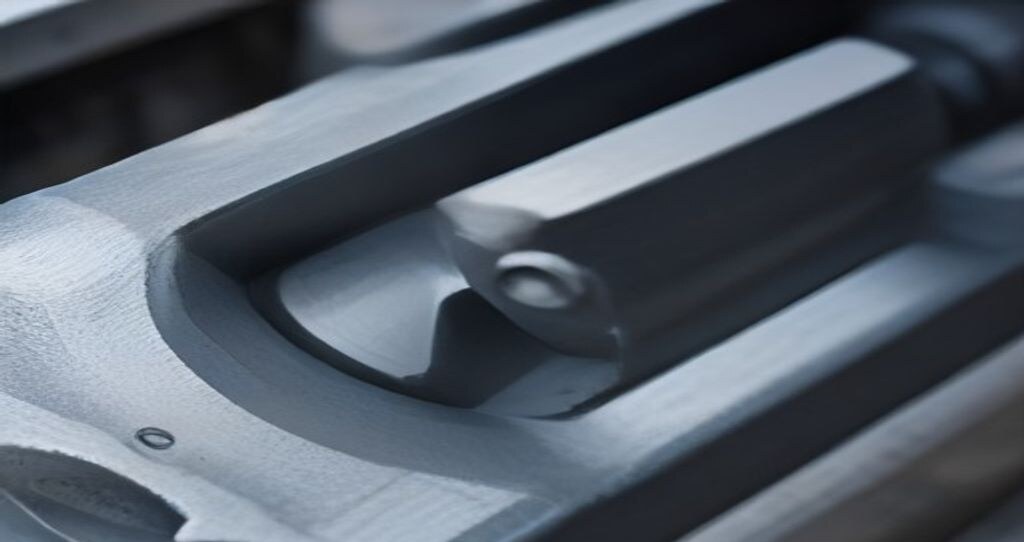

Five-axis earns its price on contoured and angled geometry, not on simple prisms. A transmission housing with cored passages and compound-angle bolt pads often needs simultaneous motion to hit position tolerance without a fixture zoo. For that class of part, a five-axis CNC Machine For Automotive Industry investment usually pays back through fewer setups and tighter true position.

Spindle spec matters as much as axis count. Aluminum brackets want high rpm and modest torque; a 12,000 to 15,000 rpm spindle with 40-taper or HSK is common. Steel and cast iron housings want torque at lower speed, so a geared or integral-motor spindle with a broader low-end curve cuts better. Match the torque curve to the material before you match the brochure numbers.

Work envelope is the quiet constraint. Automotive parts are often larger than they look on a print, and a fixture adds footprint on every side. Check travels against the fixture plate, not just the part. A machine that fits the part but not the tombstone will bottleneck the cell.

Turning centers handle shafts, bushings, and fittings efficiently, but a single-spindle lathe forces a second op for cross-drilled or milled features. Mill-turn changes that equation. When a part needs turning plus milling, cross-holes, or off-axis work, one mill-turn cycle removes a queue, a re-chuck, and the stack-up error between them.

Dual-spindle lathes pay for themselves on higher-volume round parts where both ends get machined. The second spindle takes the back end while the main spindle starts the next part. On transmission and driveline components, that overlap often decides whether the job is profitable. Low volume rarely justifies the tooling and setup complexity, so run the numbers against cycle time and batch size.

For prototypes and low-volume automotive work, a flexible five-axis or mill-turn cell usually beats a dedicated line. For stable high-volume families, purpose-built transfer and dual-spindle machines win on cycle time. The right answer depends on volume, geometry, and how often the design changes. A well-chosen CNC Machine For Automotive Industry setup should absorb those changes without a full retool.

One more rule: buy capability you can actually program and maintain. A five-axis machine without a trained programmer is an expensive three-axis machine. If your team is learning, watch a CNC Machining Video Blog – Tutorials, Cases & Industry Trends walkthrough before committing capital.

Every automotive part family points to a specific machine class. Brackets and covers go to three-axis. Multi-face housings go to four-axis or five-axis. Round transmission components go to turning, mill-turn, or dual-spindle. Pick the class that matches the geometry and volume, and the CNC Machine For Automotive Industry decision becomes straightforward instead of a guess. Tooling decisions deserve a written record of insert grade, coating, and edge prep tied to each CNC Machine For Automotive Industry. Setup reduction projects often start by documenting every manual step a CNC Machine For Automotive Industry operator performs.

Materials And Machining Behavior In Automotive Parts

Material choice drives nearly every decision downstream on a CNC Machine For Automotive Industry program. Aluminum, steel, cast iron, and engineering plastics each behave differently at the spindle, and those differences show up in chip formation, tool life, and the cycle time you can quote. The same part geometry in 6061 versus 7075 can double roughing time or force a tool change strategy you did not plan for.

6061 aluminum is the workhorse for brackets, housings, and fixtures. It machines freely, produces long stringy chips that demand strong coolant flow and pecking routines, and holds tight tolerances without much fuss. Surface finish comes relatively easily, often around 1.6 Ra with modest parameters, though its low yield strength limits use in structural automotive parts.

7075 aluminum is notably stronger than 6061 and machines closer to a medium carbon steel in terms of cutting pressure. It galls and welds to tool edges if speeds climb too high, so shops typically reduce surface footage and increase feed per tooth. Heat-treated 7075-T6 also distorts more during heavy roughing, which means leaving stock for a semi-finish pass on any CNC Machine For Automotive Industry job holding flatness under a few thousandths.

4140 and 4340 steel cover the structural side: suspension links, fasteners, driveline components. 4140 machines predictably in the 28-32 HRC range with coated carbide and moderate speeds. 4340 at higher hardness pushes tool wear harder, and its toughness means interrupted cuts punish insert edges. Both steels move when heat treated, so leave 0.010 to 0.020 inch of stock for post-hardening finishing if the print calls for tight tolerances.

Cast iron behaves differently again. The graphite flakes break chips into short segments, which is a gift for chip evacuation, but the abrasive scale and sand inclusions chew through uncoated tools. Many shops run cast iron dry or with minimal coolant to avoid slurry buildup in the conveyor. Surface finish is generally good, though porosity can leave small pits that show after painting.

Engineering plastics like POM, PEEK, and nylon round out the mix. They cut fast but generate heat that melts chips back onto the part if feeds are too light. Sharp tooling, high rake angles, and generous clearance are standard. Dimensional stability after machining is the real challenge, since plastics relax and move with humidity and temperature changes.

Thermal management ties all of this together. Aluminum pulls heat into the chip and part, so coolant strategy matters more than tool coating. Steels concentrate heat at the cutting edge, where coating selection and edge geometry decide insert life. Plastics move heat poorly and need air blast or mist rather than flood coolant.

When you weigh cycle time against surface finish, the material sets the floor. A 7075 part that needs 0.8 Ra may require a slower finishing pass and a tool change mid-run. A 6061 version of the same part might finish in one operation. That gap is why any CNC Machine For Automotive Industry quote starts with the material callout, not the drawing dimensions.

Heat treatment adds another variable. Sending a roughed 4340 part out for hardening and back for finishing adds lead time and a second setup. Distortion from quenching can shift bores and flats by several thousandths, so the finishing operation has to absorb that movement. Plastics skip heat treatment entirely but still need stress relief through proper annealing if the geometry is complex.

None of this is guesswork once you build a material library with proven speeds, feeds, and stock allowances. Track what worked on the last 4140 shaft and apply it to the next one. That discipline is what separates a profitable CNC Machine For Automotive Industry shop from one chasing scrap all week. Tolerance stacks should be reviewed before programming any feature a CNC Machine For Automotive Industry must hold on the line. Tool life tracking works best when the operator logs each index directly at the CNC Machine For Automotive Industry control.

Fixtures, Setups, And Workholding For Volume Runs

On a high-volume automotive job, the machine tool is rarely the bottleneck. Setup time is. A horizontal machining center with a tombstone fixture can run several part families across four faces, but only if the fixture holds position from the first part to the ten-thousandth. That repeatability is what a profitable CNC Machine For Automotive Industry shop sells, and it is built into the workholding long before the spindle turns.

Tombstone fixtures are the workhorse of volume milling. Four faces on one cube, one pallet change, and the spindle stays in cut while the operator loads the next batch. The trade-off is access and chip evacuation: deep pockets on a tombstone can trap chips and push coolant to the wrong places. Design the fixture so every cutting zone drains freely and every clamp is reachable with a torque wrench.

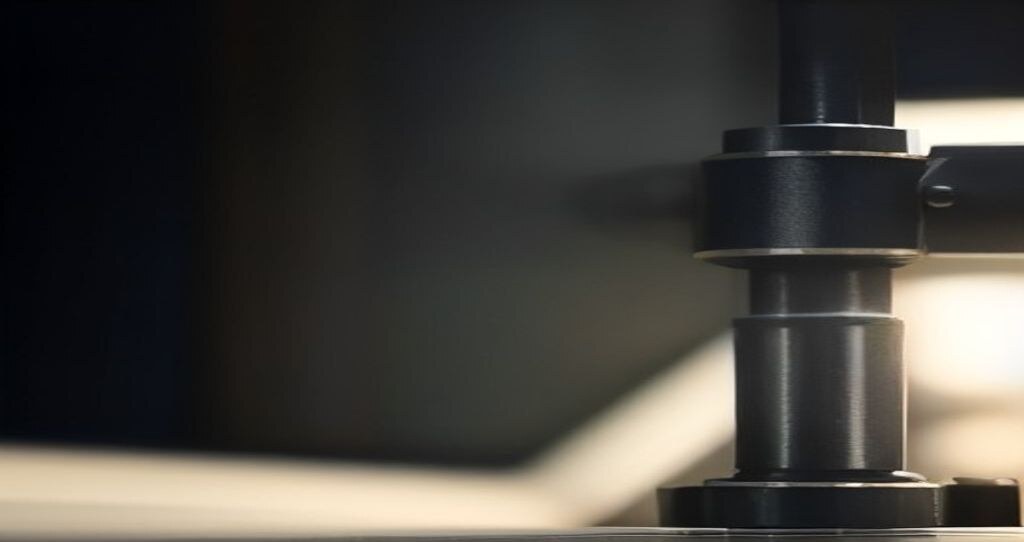

Hydraulic clamps solve a different problem. Manual bolts demand consistent operator torque, and consistency drifts over a long shift. Hydraulic clamping applies the same force on every cycle, which keeps thin-wall parts from bowing and keeps locating surfaces seated. In many shops, a hydraulic manifold tied to a single pump is cheaper than the scrap generated by one loose bolt on a transmission housing.

Soft jaws cut to the part profile are still the fastest way to hold a casting or forging without marking it. Machine them in place on the chuck or vise, then leave a small witness step so the operator can spot wear. When a soft jaw wears past the step, replace it before dimensions walk. For a CNC Machine For Automotive Industry run of thousands of parts, that replacement interval is a scheduled maintenance item, not a surprise.

Zero-point systems tie all of this together. A receiver plate mounted on the table, a clamping pallet on the fixture, and the whole assembly drops into position with repeatability typically in the low microns. Setup time drops from an hour of indicating to a few minutes of clamping. That is the difference between a spindle running and a spindle waiting.

First-part verification is the gate that keeps a good setup from going bad. After the first article comes off, check the critical dimensions against the drawing before releasing the run. Do not assume the fixture settled the way it did last week. Thermal growth, chip buildup under a locator, and a worn jaw all shift the datum. Catch it on part one, not part four hundred.

Stable clamping also protects the machine itself. A part that moves under cut chatters, and chatter destroys insert life, surface finish, and toolholder taper over time. On a CNC Machine For Automotive Industry program running unattended lights-out, a fixture that creeps is a crash waiting for the third shift. That is why many shops pair hydraulic clamping with pressure monitoring: if the clamp loses pressure, the cycle stops.

Prototypes and low-volume work often use the same principles with simpler hardware. If a program is heading to production, build the fixture as if it already is. Teams that need a fast bridge between one-off and volume runs can use Prototype CNC Machining Services to validate geometry before committing to a tombstone. The fixture cost is real, but it is amortized across every part that follows.

None of this works without documentation. Every fixture needs a setup sheet: clamp locations, torque values, zero-point offsets, and the first-part dimensions to verify. A CNC Machine For Automotive Industry shop that runs three shifts lives or dies on whether the second shift can replicate the first shift’s setup without calling an engineer. Write it down, laminate it, and hang it on the cart.

Workholding is not glamorous. It is the foundation that makes a CNC Machine For Automotive Industry volume program repeatable across thousands of parts, and it deserves the same engineering attention as the toolpath. Get the fixture right, and the rest of the run takes care of itself. Material certs and hardness checks belong in the job packet before a CNC Machine For Automotive Industry cuts the first part. First article inspection should run before full production on any CNC Machine For Automotive Industry moved to a new cell.

Tolerances And Surface Finish On Safety-Critical Features

On safety-critical automotive features, the print usually calls out plus or minus 0.001 to 0.002 inch on bore diameters and bearing seats. That is not an arbitrary number. It reflects the clearance the bearing manufacturer needs for proper fit and the stack-up the assembly can absorb. On a CNC Machine For Automotive Industry, holding that band across a production run is a process capability question, not just a machine accuracy question.

Bearing seats, bushing bores, and hydraulic valve bores are the usual suspects. A bore that runs 0.001 inch oversize may still press together, but it changes the interference fit and the load the bearing carries. Undersize is worse. You scrap the part or, if it slips through, you crack the housing during press-in.

Surface finish matters just as much as the diameter on these features. A bearing seat that is too rough will wear through the mating surface during micro-movement. Too smooth can be a problem as well, because some press fits need a controlled roughness to grip. Automotive drawings commonly specify Ra values in the 16 to 63 microinch range for bearing bores, with tighter finishes on sealing surfaces. Your insert selection, feed rate, and toolpath strategy all feed directly into that number.

Burr control is where a lot of shops lose parts they already measured as good. A raised edge on a bore intersection or a cross-drilled oil gallery will break loose later and travel through the lubrication system. On a CNC Machine For Automotive Industry, that means deburring is planned into the process, not added at the end. Chamfers, back-chamfers, and controlled tool exits are common ways to manage it.

Edge quality drives fatigue life on parts that see vibration. A sharp corner on a stamped or machined feature concentrates stress and becomes a crack initiation site. Radius specifications on safety-critical parts are there for a reason. If your tool leaves a burr or a torn edge instead of a clean radius, you have effectively changed the fatigue behavior of the part.

Fluid flow features add another layer. Valve bodies, pump housings, and fuel system components depend on consistent passage geometry. A burr or a rough bore wall changes flow characteristics and can cause erratic actuation. On a CNC Machine For Automotive Industry, this is why cross-hole deburring and bore honing are often separate operations with their own inspection steps, not something you hope the finishing pass handles.

Here is what a practical tolerance and finish plan looks like for these features:

• Bore diameters held to plus or minus 0.001 to 0.002 inch, verified with bore gauges or a CMM, not calipers.
• Surface finish called out per feature, typically 16 to 63 microinch Ra for bearing and sealing surfaces.
• Burr-free edges specified on every drawing, with deburring methods defined in the process sheet.
• Radius and chamfer callouts treated as critical dimensions, not cosmetic details.
• First-article inspection that includes edge quality and finish, not just size.

Inspection has to match the requirement. A bore that measures in tolerance with a two-point gauge can still be out of round. On a CNC Machine For Automotive Industry running safety-critical parts, roundness and cylindricity checks often belong in the control plan alongside diameter. That is the difference between a part that passes incoming inspection and a part that survives a vehicle lifetime of vibration and thermal cycling.

None of this is exotic. It is the discipline of treating every safety-critical feature as a controlled process, with the tooling, inspection, and deburring steps written down and repeated. A CNC Machine For Automotive Industry that runs this way produces parts that fit, seal, and last. One that skips steps produces parts that pass the gauge and fail in the field. Inspection plans should name the gauges and sampling rate for every critical dimension a CNC Machine For Automotive Industry produces. Coolant concentration and filtration should be checked weekly for every CNC Machine For Automotive Industry cutting aluminum or cast iron.

Inspection, Traceability, And Quality Documentation

Any shop running a CNC Machine For Automotive Industry knows the part is only as good as the paperwork behind it. Inspection starts long before the first chip is cut. The quality plan for an automotive program typically defines which features get checked, at what frequency, with which gauge, and who signs off. Skip that planning step and you end up measuring whatever is convenient instead of whatever the customer actually cares about.

First article inspection is the anchor. Before production runs, a machinist or quality tech verifies every dimension, tolerance, and note on the drawing against the first good part. A CMM handles the complex geometry: position tolerances, profile of a surface, true position on hole patterns. Simple features often get checked with micrometers, bore gauges, or height stands. The FAI report captures actual measured values, not just pass or fail, so there is a record when questions come up months later.

Gauge R and R matters more than most people expect. A gauge that is not repeatable will send good parts to scrap and bad parts to the customer. Running a gauge study confirms the measurement system itself is capable, usually targeting under 10 percent of tolerance for repeatability and reproducibility, with 10 to 30 percent acceptable depending on the feature’s criticality. Without that check, you are trusting a number you cannot defend.

In-process checks keep the CNC Machine For Automotive Industry honest between full inspections. Operators check key features at defined intervals, often every few parts or once per shift depending on cycle time and tool wear. SPC charts on a critical diameter or bore size catch drift before a tool fails. That is cheaper than sorting a full lot after the fact.

Material and lot traceability tie the whole chain together. Every batch of bar stock, casting, or billet should carry a heat number and a mill cert that matches the alloy and mechanical properties called out on the print. When a part is machined, the work order records which heat lot it came from. If a customer later reports a field issue, you can trace back to the raw material and forward to every other part made from that lot.

Inspection planning is not a standalone task. It feeds directly into PPAP submissions and customer-specific quality requirements. The dimensional results, gauge studies, and material certs become the evidence package. Some automotive customers want layout inspection reports, capability studies (Cpk targets often at 1.33 or higher on critical characteristics), and control plans that match the actual process. Others layer on their own forms and sign-off rules.

Documentation discipline separates shops that survive audits from shops that scramble. A clean CNC Machine For Automotive Industry process means every measurement is recorded, every lot is traceable, and every deviation is documented with a disposition. That is also where real Efficiency Improvements In Automotive Part Production Using disciplined inspection show up: fewer escapes, less rework, and faster PPAP approval.

None of this replaces good machining. It proves it. A shop with tight tolerances and no records is a liability to any automotive buyer. A shop with the same tolerances, a CMM report, gauge studies, and lot traceability is a supplier. That distinction shows up in every audit and every quality scorecard.

GreatLight builds inspection and traceability into the process from prototype through production, so the CNC Machine For Automotive Industry parts leaving the floor come with evidence, not just dimensions. If your program needs documented quality, CMM reports, and full lot traceability, our team can walk you through how we handle it. Quoting should separate cycle time, setup time, and tool cost for each CNC Machine For Automotive Industry in the routing. Fixture maintenance schedules should note clamp force and wear points for each CNC Machine For Automotive Industry in service.

How A CNC Machine For Automotive Industry Cuts Cost Per Part

Piece price is not set by the hourly rate alone. It is set by how many good parts leave the machine per hour, per shift, per week. When a shop quotes a part, the estimator is really adding up four numbers: cycle time, tool cost per part, scrap and rework, and the labor content attached to each unit. A CNC Machine For Automotive Industry earns its keep by pushing all four of those numbers in the right direction at once.

Cycle time is the most visible lever. Trimming two minutes off a 14-minute cycle can raise throughput by roughly 15 percent on the same spindle, with the same floor space and the same operator. That gain comes from real machining decisions: higher feed rates where the tool and setup allow, trochoidal paths that keep radial engagement low, and roughing passes that use the full flute length instead of a tiny stepover. The mechanics behind those choices are well documented in Milling (machining), and the payoff on the shop floor is straightforward.

Tool life is the second driver, and it cuts both ways. A tool that fails early forces a mid-cycle stop, a re-zero, and often a scrapped part. Push a tool too hard and insert consumption climbs until tool cost per part overtakes the savings in cycle time. The usual fix is not one big change but a set of small ones: correct grade and coating for the material, stable workholding, coolant aimed at the cut rather than the chip, and a tool change interval based on measured wear instead of habit.

Scrap rate is where hidden cost accumulates fastest. Each rejected part carries the full burden of the material, the machine time, and the inspection it consumed. On a CNC Machine For Automotive Industry running safety-critical or high-volume work, keeping scrap low is often the difference between a profitable job and a break-even one. In-process probing, first-article checks, and SPC sampling catch drift before it becomes a bin of rejects.

Labor content responds to setup count. Every additional fixture, re-clamp, and offset change adds non-cutting time and a new chance for error. Reducing a part from four setups to two on a 5-axis platform removes handling time, improves datum consistency, and frees the operator to run a second machine. That is how one person covers more spindles without the work getting sloppy.

Spindle utilization ties the whole picture together. A machine that cuts only part of the calendar day is expensive per part no matter how fast the cycle is. Lights-out and unattended running raise that figure, but they demand reliable process control: verified tool life, chip evacuation that does not stall, probing to confirm the part before the next one starts, and alarms that stop the machine rather than let it cut air or crash. Shops that get this right can run a CNC Machine For Automotive Industry through nights and weekends with minimal supervision.

None of this requires cutting quality. Tighter processes usually improve it, because a stable cycle with predictable tool wear produces more consistent dimensions than a rushed one. The cost per part comes down through earned efficiency, not through shortcuts.

A useful way to see where the money sits is to compare two quote scenarios for the same part:

When you quote a CNC Machine For Automotive Industry program, ask for cycle time, tool cost per part, and expected scrap as separate line items. Shops that can break those out usually know exactly where their cost sits, and they can show you how a second operation or a fixture change would move the number. That transparency is worth more than a low headline rate that hides rework downstream. Lead time promises depend on when raw stock, fixtures, and a CNC Machine For Automotive Industry all arrive on the floor.

Process capability studies should follow any change to a CNC Machine For Automotive Industry, including spindle or ballscrew repair.

Prototype To Production Without Losing The Process

Getting a good part off a prototype run is only half the job. The real test is whether the tenth, the five-hundredth, and the five-thousandth part match it. On a CNC Machine For Automotive Industry, that match does not happen by accident. It comes from deliberately carrying the prototype process forward instead of reinventing it on the production floor.

A common launch failure we see is a quiet one. The prototype shop proves the part on a three-axis mill with a vise and a stop. Production then rebuilds the job on a different machine, with a different fixture, a different CAM setup, and a different inspection routine. Every one of those changes is a chance to shift a datum or lose a tolerance. Nothing looks wrong until the first PPAP submission.

Fixture carryover is the first line of defense. If the prototype ran in soft jaws machined to the part profile, production should start from that same locating concept, scaled up for volume and hardened where wear matters. Datum targets, clamp positions, and support points need to stay in the same relationship to the part. When a fixture changes, the stack-up changes with it, and a feature that was comfortably in tolerance can drift to the edge of the band.

Program version control matters just as much. A prototype program often carries hand edits, feed overrides, and tool changes made at the machine. Those edits are process knowledge. They need to be folded back into the master CAM file, not left on a USB stick next to the control. Any shop running a CNC Machine For Automotive Industry at volume should be able to answer one question at any time: which program revision cut this part, and on which machine?

Setup logic should transfer as a document, not as tribal memory. A short setup sheet that lists work offsets, tool numbers, probe routines, and torque values removes guesswork from the second shift. It also makes the process auditable when an engineer asks why a bore moved two tenths between lots.

Then comes the capability check. A prototype proves the part can be made once. A capability study proves the process can make it repeatedly. Run a short pre-production batch, measure the critical characteristics with the same gauge and the same inspection plan used in the prototype, and calculate Cp and Cpk. In many automotive programs, a Cpk of 1.33 or better is the typical target. If the numbers come back lower, fix the process before the volume order lands, not after.

The inspection plan itself should also carry over unchanged. Same fixtures, same datum scheme, same gauge, same sampling frequency. Switching from a CMM to a hand gauge between prototype and production introduces a measurement difference that looks like a process shift but is really a metrology change. Keeping the plan identical isolates real variation from noise.

Here is the handoff checklist we recommend for any CNC Machine For Automotive Industry program moving from prototype into production:

• Freeze the fixture design and record datum targets, clamp locations, and support points.
• Merge all at-machine program edits into the controlled CAM revision.
• Issue a setup sheet with offsets, tools, probe logic, and torque values.
• Run a pre-production batch and calculate Cp and Cpk on critical features.
• Keep the prototype inspection plan, gauges, and sampling frequency in place.
• Document which machine, program revision, and fixture produced each lot.

A clean handoff does not slow a launch down. It removes the rework, the containment, and the late-night calls that follow a process nobody can trace. For a CNC Machine For Automotive Industry project, the discipline of carrying the same setup logic and inspection plan from first article to full rate is what keeps launch risk where it belongs, on the schedule, not on the shop floor. Programming standards should fix feeds, speeds, and coolant codes so any CNC Machine For Automotive Industry runs the same way. Sourcing managers should ask for the routing step where each CNC Machine For Automotive Industry appears before approving a quote.

Putting These Rules To Work

The seven rules above come down to one idea: match the process to the part, then hold it repeatably. Automotive work tends to punish shortcuts. A setup that runs fine for ten pieces can drift at ten thousand, and a tolerance that looks comfortable on a print can turn into scrap once thermal growth and tool wear enter the picture.

If you are specifying a CNC Machine For Automotive Industry program, start with the features that carry safety or fitment risk. Lock those tolerances first, then build the rest of the process around them. That sequence usually decides which machine, fixture, and inspection method you actually need.

• Confirm material spec and heat treat before quoting cycle time.
• Design fixtures for the run size, not just the first article.
• Define critical dimensions and inspection frequency up front.
• Keep prototype and production processes as close as practical.
• Require dimensional reports and material traceability with every lot.

A CNC Machine For Automotive Industry investment pays back through consistency, not just spindle speed. When setups are rigid, tooling is controlled, and inspection is planned, cost per part falls on its own. Scrap, rework, and expedited freight are where automotive programs quietly lose margin.
