Every cutting tool decision starts with one question: what is this tool doing on this feature? Facing, external roughing, internal boring, threading and finishing all pull the choice in different directions. A 50 mm face mill that removes 3 mm of stock on a cast aluminium housing is a poor pick for a 12 mm deep pocket in 17-4PH stainless.

Write the operation down in four values: material, feature size, stock to remove and surface finish target. Those four values alone eliminate most of the catalog. If the finish callout is Ra 0.8–1.6 μm, the tool must be a finishing geometry with a small nose radius and a positive rake, not a roughing cutter with a strong negative edge.

On a part with 40 features, two or three of them usually set the cycle time. Those are the tools worth real engineering time. A chamfer tool that runs for 4 seconds does not deserve a two-hour selection study.

We see this mistake constantly in DFM reviews: a shop buys a premium insert for a low-load finishing pass, then uses a cheap general-purpose cutter on the heavy roughing pass where edge strength actually matters.

Hand matters and it is easy to get wrong. A right-hand tool feeds in the counterclockwise spindle direction; a left-hand tool is used when the spindle runs clockwise. If your turret is mixed, confirm the hand of every station before the first cut. A backward tool does not just cut badly, it pulls the part or pushes the turret into a hard stop.

Geometry follows the feature. Use a 45° lead angle for general facing and shoulder work because the chip thins and the load spreads. Use a 90° lead when you need a square shoulder in one pass. For deep pockets, pick the shortest flute length that reaches the floor; extra length is extra deflection.

Nose radius is a finish-versus-strength trade. A 0.4 mm radius leaves a finer finish but a weaker edge. An 0.8 mm radius survives more load and leaves visible scallops at fine feed rates. On a 4,000 mm long part, deflection grows with overhang, so keep the toolholder as short as the geometry allows.

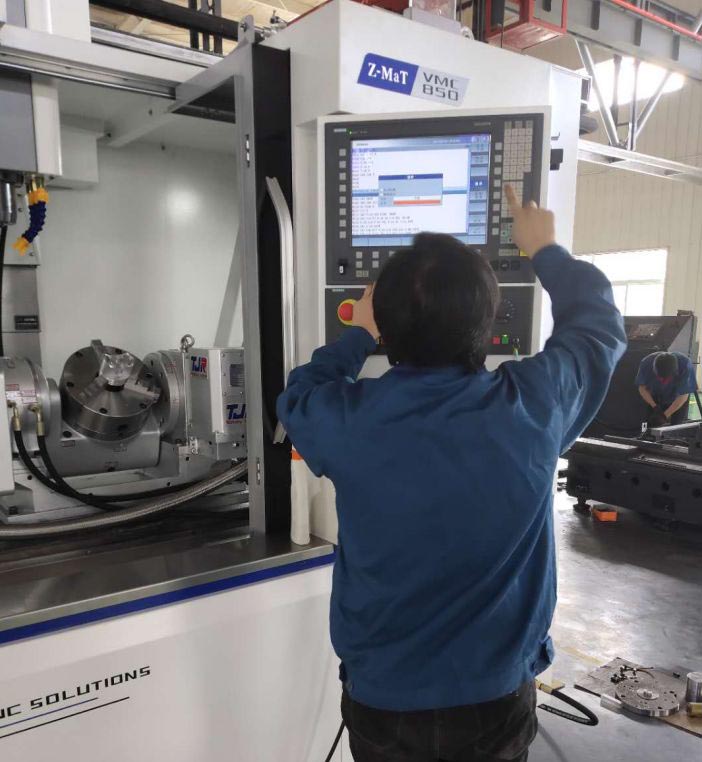

If the machine has a Ø400 mm rotary table or a 5-axis trunnion, check clearance before you fall in love with a large-diameter cutter. A 125 mm face mill can be the right tool and still be impossible to position.

Most tools are designed around carbon steel, so steel is the easy case: a P-class coated grade handles 1018, 1045, 4130 and 4140 without drama. Stainless 303 and 304 work better with an M-class grade and a tougher coating, because the material work-hardens and the edge sees more heat.

Aluminium 6061, 7075 and ADC12 want sharp, polished, uncoated or lightly coated edges with high rake. Titanium TC4 (Ti-6Al-4V) and Inconel sit at the other end: low speed, high feed per tooth, and a grade that resists notch wear. Do not run a general steel insert in titanium and expect tool life.

Plastics and composites rarely need a coated grade at all. POM and PEEK cut clean with sharp uncoated carbide, and carbon fibre needs a diamond-like edge because abrasive fibre wears carbide fast.

The practical rule: pick the grade class first, then the coating, then the chipbreaker. Coating choice follows the heat and the material chemistry, not the price tag on the box.

Edge prep is where a good selection becomes a good cut. A honed or T-land edge resists chipping in interrupted cuts and in castings with hard skin. A sharp edge cuts gummy aluminium and soft plastics with lower cutting force. If a tool chips on the first pass, the edge is usually too sharp for the load, not too weak in grade.

Runout decides real tool life. Measure total indicator reading at the cutting edge, not at the holder. Keep it at 0.01 mm or tighter for finishing and small-diameter tools; 0.02–0.03 mm is workable for roughing. High runout puts all the load on one flute and the insert fails early even though the grade was correct.

Speed and feed follow the insert maker's window, then get adjusted for rigidity. Start conservative on feed per tooth, then raise it until the chip breaks cleanly and the sound stays steady. Chattering at the same spindle speed across two passes usually means the tool is too long or the workholding is soft, not that the speed is wrong.

For our own 5-axis work, we log the runout and the first-part result for every new tool setup. That record saves time on the next run of the same part.

More tools is not better. Every extra tool adds a setup, a touch-off, a tool change and a failure point. The goal is the smallest set that holds the tolerance and the finish on every feature. On most parts, 6 to 12 tools cover the whole job.

Watch the size error in both directions. A milling cutter that is too small forces multiple passes; a face mill that is too large costs money, needs more spindle power and adds air-cutting time. The same logic applies to drills: the largest drill that fits the hole is not always the cheapest.

Give the longest-running tool the most attention. If one cutter runs for 18 minutes of a 40-minute cycle, a 10 percent improvement there beats a perfect setup on a tool that runs 20 seconds. That is where tool life and edge prep pay back.

Finally, standardize. A shop that keeps three insert grades and four holder types on the shelf makes fewer mistakes and holds tighter process control than one that buys a new grade for every job.
