How to Choose a Tool Correctly for CNC Turning and Milling

• 1
  What matters most before you order a tool
• 2
  Start with the feature, not the catalog
• 3
  Match the material to substrate and coating
• 4
  Choose geometry for chip control and force
• 5
  Set starting parameters from the material, then trim
• 6
  Verify runout, then break the edge in
• 7
  Seven steps from print to first cut
• 8
  Tool choice by material and cut type

Most bad tool choices start in the wrong place: a catalog page. Before you open one, list what the feature actually demands. Reach, clearance, corner radius, depth-to-diameter ratio, tolerance and surface finish. A 6 mm end mill with a 4:1 length-to-diameter ratio will deflect more than a stub version, even in the same grade and coating.

Look at the feature from the holder side. On a turning center, the parting blade must clear the chuck jaws through the full cut. On a mill, the holder body can hit a wall before the cutter reaches the floor of a pocket. We model the holder in CAM for this reason, not just the tool.

Tolerance sets the floor for tool quality. If the print calls for ±0.005 mm, a general-purpose cutter with 0.02 mm runout will not hold it across a batch, even with a perfect program. Finish requirements do the same job on the other end: Ra 0.8–1.6 μm is realistic with a sharp ground edge and stable conditions; Ra 0.2–0.8 μm usually needs a dedicated finishing pass and a rigid setup.

Write the list down. Reach, corner radius, ratio, tolerance, finish. That list filters the catalog faster than any index.

• 1
  Feature firstReach, clearance, radius, depth ratio, tolerance, finish.
• 2
  Check interferenceHolder and blade, not only the cutting edge.
• 3
  Tolerance floor±0.005 mm parts need a ground, low-runout tool.

The workpiece decides the substrate class before the coating. Aluminium 6061, 7075 and ADC12 cut best with uncoated or polished carbide and high positive rake, because the metal is soft and gummy. A sharp, free-cutting edge avoids built-up edge and keeps chips flowing.

Stainless 303, 304, 316 and 17-4PH work-harden. Here you want a tougher substrate and a coating that resists heat and abrasion, such as TiAlN or AlTiN. Keep the edge in the cut; dwelling on 304 will harden the surface and dull the tool within a few passes.

Titanium TC4 (Ti-6Al-4V), Inconel and magnesium AZ31B or AZ91D sit at opposite ends. Titanium and Inconel need a strong edge, low cutting speed and plenty of coolant, so sharp positive geometry is risky. Magnesium cuts freely but brings chip-fire risk, so keep feeds high and never let fines accumulate.

Plastics such as POM, PEEK and ABS need sharp, polished flutes and high rake. Heat is the enemy. A coated tool that works well in steel can smear POM because the coating raises friction and traps heat at the edge.

• 1
  AluminiumUncoated polished carbide, high positive rake.
• 2
  300-series stainlessTougher grade, TiAlN or AlTiN, no dwell.
• 3
  Titanium and InconelStrong edge, low speed, flood coolant.

Rake angle controls cutting force and chip flow. Positive rake lowers force and suits soft, gummy materials, but the edge is weaker. Negative rake is stronger and suits interrupted cuts and hard materials, at the cost of higher force and more heat. For most 6061 work, positive rake wins. For a hardened insert pocket or a rough casting, negative rake survives longer.

Chip breakers matter as much as the angle. A finishing breaker with a narrow land makes thin, controllable chips at light depth of cut. A roughing breaker with a wide land handles 2–4 mm depth but produces thicker chips and higher force. Using a roughing breaker for a 0.3 mm finishing pass usually rubs instead of cutting.

Radius selection follows the same logic. A 0.4 mm corner radius is a good general choice for finishing; 0.8 mm and above survive roughing better but push radial force up. On slender parts, that extra force causes deflection and taper.

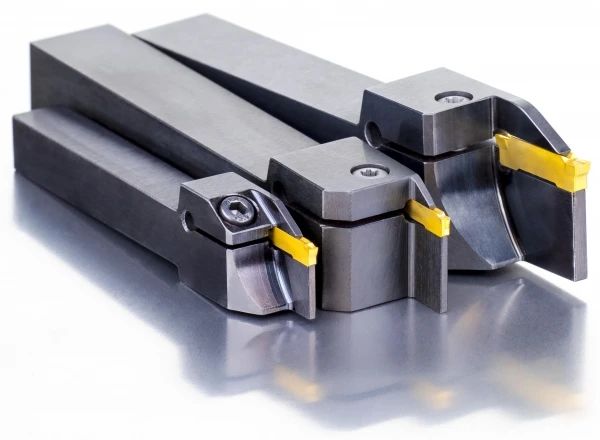

For parting and cutoff, insert width is the main lever. A narrow blade cuts faster and wastes less material but flexes more. A wider blade is stable but needs more spindle power and can chatter on small-diameter bar. Match width to bar diameter and overhang, not to habit.

• 1
  Positive rakeLower force, better for aluminium and soft steel.
• 2
  Negative rakeStronger edge for interrupted and hard cuts.
• 3
  Breaker choiceFinishing land for light passes, roughing land for 2–4 mm.

Surface speed is the first number. For aluminium 6061 with uncoated carbide, 300–500 m/min is a normal window. For 304 stainless, 120–180 m/min. For TC4 titanium, 40–60 m/min. For POM, 200–400 m/min but with an eye on chip evacuation and heat.

Feed per tooth follows the chip load the edge can take. A 10 mm three-flute cutter in 6061 might start near 0.05 mm per tooth; the same cutter in 304 drops to about 0.03 mm. Too light a feed rubs and work-hardens stainless. Too heavy a feed on a small cutter snaps it on the first corner.

Depth of cut should respect the tool ratio. Radial engagement of 30–40% of diameter is a safe starting point for roughing with a standard end mill; full-width cuts belong on stub tools or in aluminium. Axial depth of 1× diameter is common in aluminium, 0.5× diameter in stainless.

Then trim one variable at a time. If chatter appears, reduce radial engagement before reducing speed. If the edge wears too fast, reduce speed before changing feed. Changing two numbers at once tells you nothing about which one helped.

• 1
  Speed first6061 at 300–500 m/min, 304 at 120–180 m/min.
• 2
  Chip loadAround 0.05 mm per tooth in aluminium, 0.03 mm in 304.
• 3
  One variableAdjust engagement, then speed, then feed.

Runout is where good plans fail quietly. A tool with 0.030 mm total indicated runout will cut one flute harder than the others, wear unevenly and leave a poor finish. Measure with a dial indicator on the cutting edge, not on the shank. Clean the taper, seat the holder properly and re-check.

On hydraulic and shrink-fit holders, runout under 0.005 mm is achievable. On a standard collet chuck, aim for under 0.010 mm. If the number stays high, the holder or the collet is the problem, not the cutter.

Break-in protects a coated edge. Run the first 30 seconds at 70–80% of the calculated cutting speed to let the coating settle into the cut. Skipping this step can micro-chip the edge on the first heavy pass, especially in stainless and titanium.

Record what you used. Tool code, holder, runout, speed, feed and depth. The next job in the same material starts from a known point instead of a guess.

• 1
  Measure on the edgeDial indicator on the cutting edge, not the shank.
• 2
  Collet targetUnder 0.010 mm; shrink-fit under 0.005 mm.
• 3
  Break-in70–80% cutting speed for the first 30 seconds.
