Most machined handles are short and rigid. A hilt is long, hollow, and often thin. That combination changes the whole process. A 250 mm aluminium tube with a 1.5 mm wall will ring under a face mill and spring back when you release the vise. The same part in 6061-T6 behaves differently from one in 304 stainless, which work-hardens and pushes back on the tool.

The second difference is visibility. On a hilt, the outside is the product. Every tool mark, every clamp witness, every shallow chatter line shows up under a satin anodize. So the sequence matters as much as the tolerance. Rough the inside, stress-relieve if needed, then finish the outside in the last operation with the lightest possible grip.

Third, hilts carry threads. Pommel threads, emitter threads, and often a battery cap. Those threads set the bore diameter, and the bore sets the wall. If a customer asks for M30 × 1.5 internal threads in a 34 mm outer diameter body, the wall is roughly 1.5 mm after threading. That is a real number to design around, not a cosmetic detail.

We see three families of parts in this shape. Display replicas, where surface finish dominates. Functional handles, where threads and switch bores must hold. And instrument or tool bodies that borrow the hilt silhouette. Each family wants a different first operation, and that is where the quote changes.

• 1
  Length-to-diameter above 8:1Plan for a tailstock or a steady, not just a vise.
• 2
  Wall under 1.5 mmExpect light finishing passes and a soft-jaw fixture.
• 3
  Visible outer surfaceFinish it last, after all bores and threads are done.

A straight hilt with one bore, one thread, and a few cross holes can run on a 3-axis mill plus a lathe. That is the cheapest route and often the right one for a first prototype. The limit arrives when a feature sits off-axis: a switch pocket at 30°, a blade holder with three angled vents, or a helical groove.

On a 4-axis mill you get the rotary table, so cross holes and flats around the perimeter land in one setup. Our 4-axis mills and mill-turn centers handle most cylindrical bodies up to Ø400 mm on the rotary table. If the part needs a turned profile and milled flats, mill-turn removes one re-chuck and the runout that comes with it.

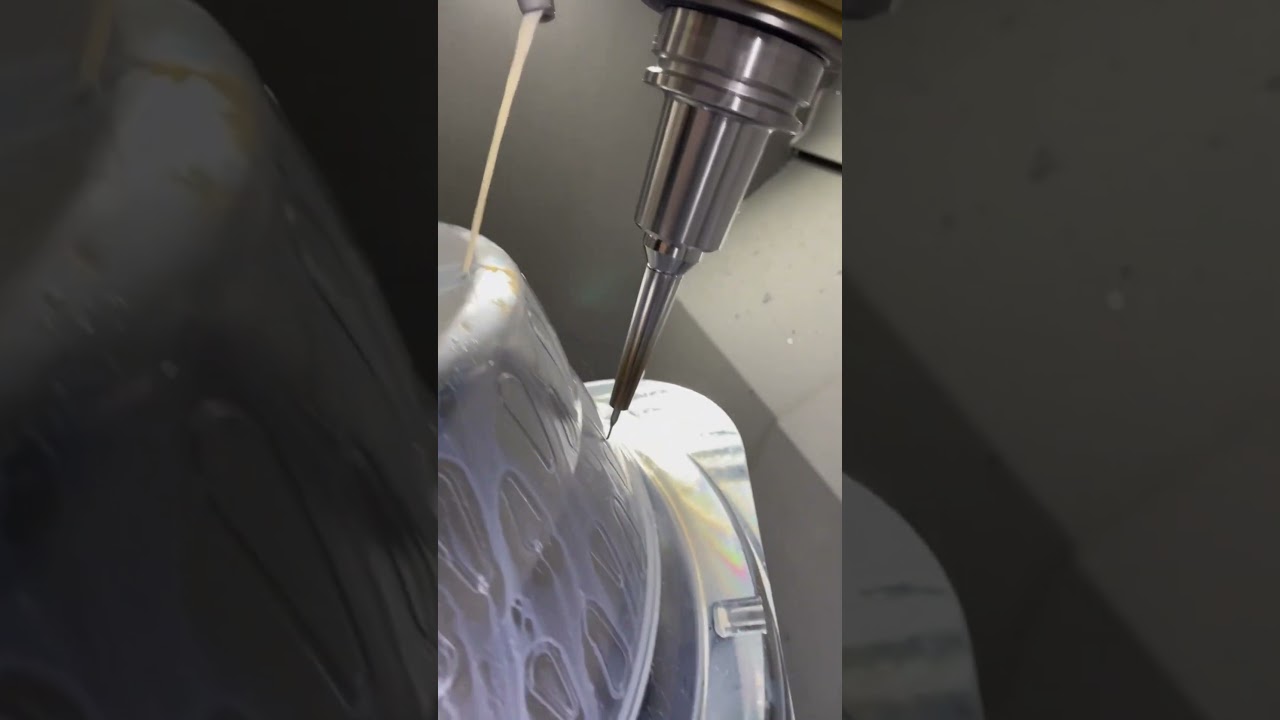

A 5-axis center is the answer when the part has compound angles or when the outer surface must be cut in one continuous pass. Sixteen simultaneous 5-axis centers here run exactly that kind of work. The gain is not only geometry. It is the ability to tilt the tool and reach a deep pocket with a short, stiff cutter instead of a long, chattering one.

Pick the machine by the feature list, not by habit. Count the setups on paper. If a 3-axis plan needs five re-chucks and a custom angle plate, the 5-axis hour rate is usually the cheaper number once you add up handling, scrap, and inspection.

• 1
  All features normal to one axis3-axis mill plus turning is enough.
• 2
  Perimeter holes and flats4-axis or mill-turn, one setup.
• 3
  Compound angles or one-pass skinsSimultaneous 5-axis.

Aluminium 6061-T6 is the default for hilts. It machines fast, anodizes well, and holds a ±0.005 mm bore if you leave 0.15–0.25 mm for the finish pass. 7075 gives more strength for thin walls but cuts with a sharper edge and costs more. If the part will be handled daily, 6061 hardcoat anodize is usually the better trade.

Stainless 303 is the free-machining grade and the easiest to thread. 304 and 316L look better and resist corrosion, but they work-harden. On those grades, keep the feed per tooth up and never let the tool rub. A dwell of half a second in a 304 bore can raise the surface hardness enough to kill the next pass.

Titanium TC4 (Ti-6Al-4V) is the choice when weight and strength both matter. It moves under heat, so use through-spindle coolant, climb milling, and a conservative radial depth of 5–8% of cutter diameter. Expect the finish pass to take longer than the rough, which is the opposite of aluminium.

Wall thickness is where designs fail. In aluminium, 1.0 mm is workable on a 40 mm diameter body if the part is supported. At 0.8 mm, the part deflects during clamping and springs when released. In stainless, keep 1.5 mm minimum. In titanium, 2.0 mm. If the design needs thinner, split the part into a machined core and a pressed or printed shell.

• 1
  Aluminium 6061-T6Leave 0.15–0.25 mm for the finish bore pass.
• 2
  Stainless 303 vs 304303 threads cleanly; 304 needs higher feed per tooth.
• 3
  Titanium TC4Radial depth 5–8% of cutter diameter, through-coolant.

Internal threads on a hilt are usually fine-pitch and shallow. M30 × 1.5 is common. Cut them with a single-point tool or a thread mill, not a tap, when the bore is deeper than 1.5 × diameter. Thread milling lets you adjust the fit after measurement, and it does not jam if the chip clears poorly.

Bores that carry a blade or a battery tube need a true position call. On a 200 mm body, a 0.05 mm runout between the emitter bore and the pommel thread is visible as a wobble. State runout, not just diameter tolerance, on the drawing. It is the number the machinist will chase.

Surface finish is where the cost curve bends. As-machined at Ra 1.6–3.2 μm is fine for a painted or bead-blasted body. A satin anodize wants Ra 0.8–1.6 μm. A polished or bright-dipped surface wants Ra 0.2–0.8 μm, which means a separate finishing pass with a small stepover and a fresh insert.

Anodizing adds roughly 0.005–0.025 mm per surface depending on the coating. If a thread must assemble after coating, cut it 0.02–0.05 mm oversize or mask it. Hardcoat builds faster than clear anodize. Tell the finisher which surfaces are fits and which are cosmetic.

• 1
  Deep internal threadsThread mill, not tap, past 1.5 × diameter.
• 2
  Concentric boresCall runout, for example 0.05 mm, not only diameter.
• 3
  Anodize growthAllow 0.005–0.025 mm per coated surface.

The most common mistake is finishing the outside too early. A beautiful turned surface goes back into a vise for a thread or a cross hole, and the jaws leave marks. Sequence the operations so the visible surface is cut last, or protect it with a soft aluminium or urethane jaw.

The second is ignoring anodize growth on threads. A pommel thread cut to nominal size will not assemble after hardcoat. Cut it 0.02–0.05 mm oversize, or mask the thread. The same applies to any press fit for a switch or a lens holder.

The third is a drawing that calls ±0.005 mm everywhere. That number is achievable on a bore or a bearing seat. It is not needed on a cosmetic groove or a vent slot. Tightening a non-functional dimension adds inspection time and sometimes a second setup. Mark only the fits as critical.

On quantity, there is no minimum order quantity here. One prototype and a 10,000-part run are both normal. For runs above a few hundred, a dedicated soft-jaw fixture and a pre-set tool list cut cycle time more than any change to the part itself. Parts ship in 3–5 days once the process is set.

• 1
  Finish lastKeep the visible skin out of the vise until the end.
• 2
  Plan for coatingOversize or mask every thread and press fit.
• 3
  Tighten only what mattersReserve ±0.005 mm for bores and bearing seats.
