3D Custom Glasses Project: PA 11 Bio-Based Material as a Fit-for-Purpose Choice

• 1
  Key takeaways
• 2
  Why a 3D custom glasses project often starts with PA 11 bio-based
• 3
  Frame geometry that suits the material and geometry that does not
• 4
  Where CNC finishing earns its place in the workflow
• 5
  What to fix before you send the 3D custom glasses project to a supplier
• 6
  PA 11 bio-based printing versus machined metal and injection molding

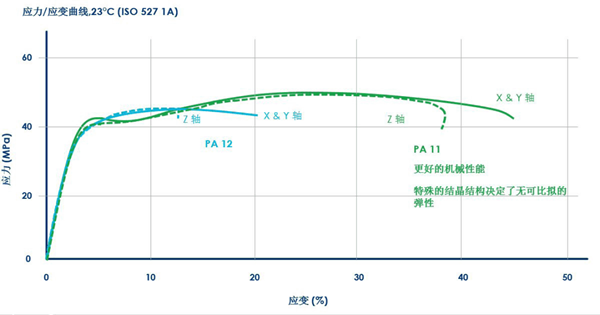

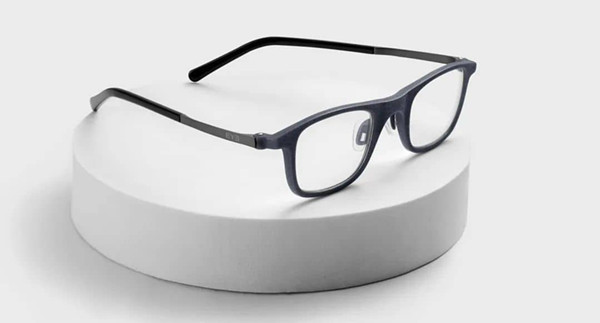

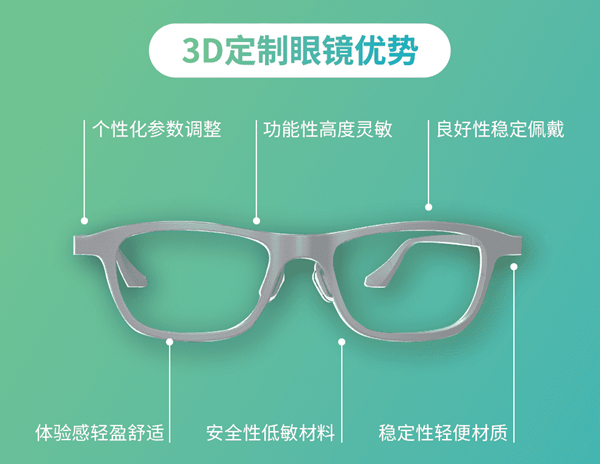

A 3D custom glasses project usually begins with a fit problem: one wearer's face, one prescription, one hinge position. Traditional injection molding cannot justify a tool for a hundred pairs, so the frame has to come off a printer. Among the printable nylons, PA 11 bio-based stands out because it is derived largely from renewable castor oil rather than petrochemical feedstock, and it prints with good layer bonding on both laser sintering and powder-bed systems.

The mechanical profile matters more than the origin story. This grade has lower moisture uptake than PA 6 and PA 12 in some formulations, which means the printed frame swells less when it sits in humid air or against skin. That matters because a frame that grows 0.2 mm at the hinge will not close cleanly after two months of wear. Lower moisture also keeps the as-printed color closer to the finished color after dyeing.

Toughness is the second reason. A glasses frame takes repeated small loads at the temples and hinge bosses, plus occasional drops. Bio-based PA 11 behaves more like a ductile nylon than a brittle one, so a thin temple arm bends before it cracks. That gives the design room to keep sections slim, which is what eyewear styling needs.

It is not a free upgrade. The material costs more than commodity PA 12 powder, and it still absorbs enough moisture that humidity control during printing and storage matters. If a project only needs a rigid, low-cost cosmetic frame, the bio-based grade adds cost without adding function.

The shapes that print reliably share a pattern: continuous curvature, no abrupt section changes, and load paths that spread over a wide area. A rounded front rim with a 2.0 mm wall and a temple arm that tapers from 4 mm to 2.5 mm is a good candidate. So is a one-piece sport frame where the bridge and the temples form a single springy arc.

The shapes that fail share the opposite pattern. A hinge lug that is 1.2 mm thick and carries a steel screw concentrates stress on a small cross-section, and printed nylon will creep there. Sharp internal corners at the bridge act as crack starters. Very flat, wide panels warp during cooling because the top and bottom of the print cool at different rates.

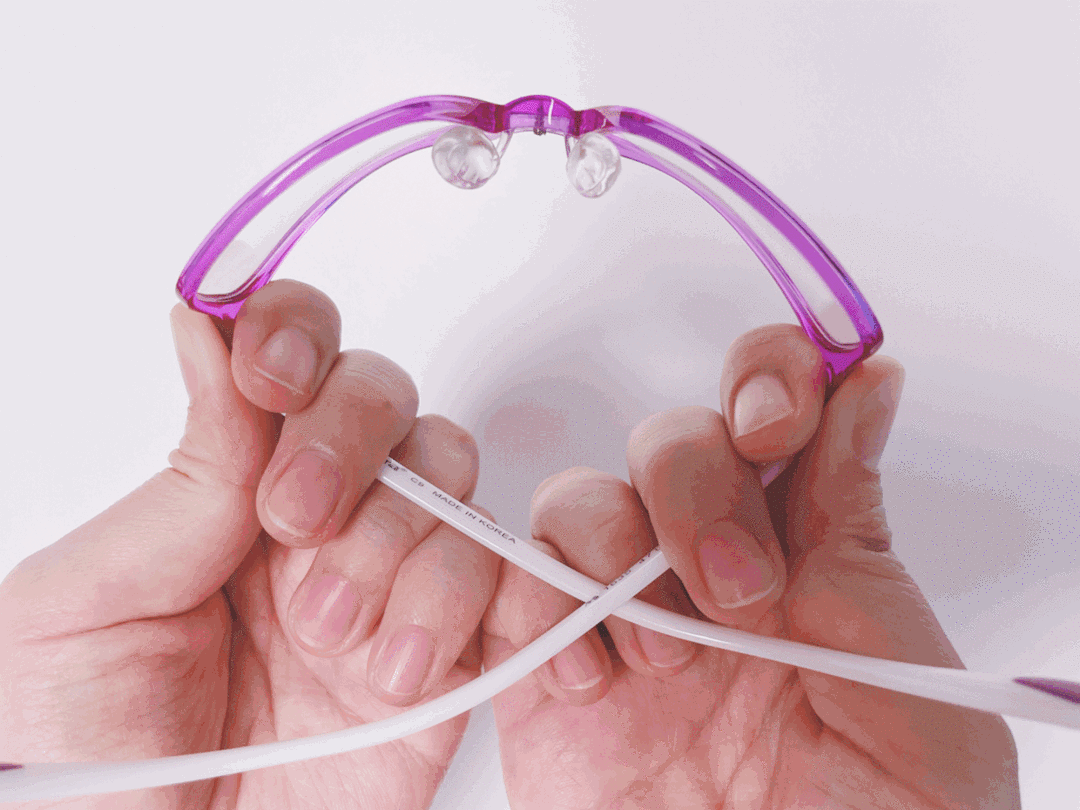

A practical rule: if a feature is thinner than 1.5 mm and carries a point load, move it out of the printed part. Mold the hinge as a separate insert, or design an integrated living hinge that spreads the bend over 8–12 mm of length. Living hinges in this material tolerate thousands of cycles if the bend radius stays above roughly 1.5 mm and the section stays uniform.

Wall thickness also controls print time and cost. Going from 2.0 mm to 1.6 mm on a temple arm cuts powder consumption noticeably, but it also cuts stiffness by more than half. Decide which matters before the first print, not after.

Printing gives you the organic shape; it does not give you the interface dimensions. Hinge bores, screw threads, lens grooves and any flat that seats against another part usually need a light machining pass. On our side, that means a printed near-net frame goes onto a 3-axis or 4-axis mill for reaming, facing and drilling.

A typical sequence for a hinge bore: print the boss 0.15–0.25 mm undersize, then ream to final diameter on a 4-axis machine with the frame held in a soft jaw fixture. That holds the bore within ±0.005 mm and keeps the two hinge axes parallel, which is what stops the temple from binding when it opens.

Lens grooves are a different case. A groove that is 0.8 mm wide and 0.5 mm deep is hard to cut after printing because the tool deflects. It is usually better to print the groove oversize and clean it with a small end mill, or to print it to size and accept a slightly looser lens fit with a gasket.

Surface finish is the last step. As-printed PA 11 has a matte, slightly grainy surface at Ra 1.6–3.2 μm. Bead blasting brings it to a uniform matte, and dyeing after blasting gives better color penetration than dyeing before. Polished or glossy finishes are possible but they hide the layer texture only partially, so plan the finish before you approve the print orientation.

Freeze three things first: the hinge interface, the lens retention method, and the surface finish callout. If any of those three is still open, the supplier will quote one version and you will receive another. A drawing that shows the hinge bore diameter, its position relative to the lens plane, and the allowed runout removes most of the back-and-forth.

Second, define the inspection you actually need. For a printed frame, the critical dimensions are usually hinge bore diameter, hinge axis parallelism, lens groove width, and overall temple length. Asking for a full first-article report on every cosmetic curve adds cost without adding control.

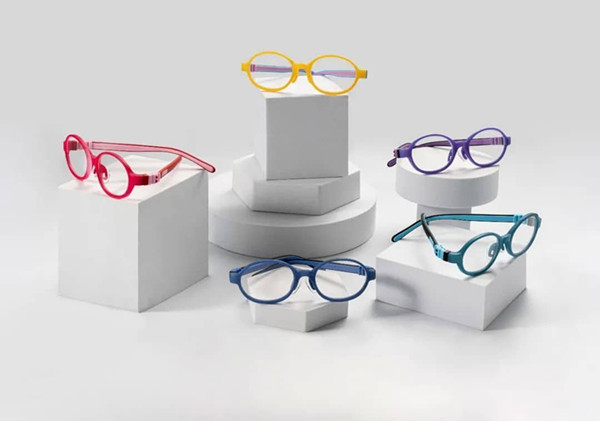

Third, decide how many pairs you are ordering and in what mix. Printing has no tooling cost, so a run of 20 pairs in 5 colorways is practical, while a run of 5,000 identical frames starts to favor injection molding. The crossover is usually somewhere in the low thousands, and it depends on how much finishing each frame needs.

Finally, ask about moisture and packaging. Frames that ship without a moisture barrier can pick up enough water in transit to change fit. A sealed bag with desiccant and a short equilibration period before final inspection avoids that surprise.
