A bio-based composite is a fiber-reinforced material where both phases come from plant or animal feedstock. The reinforcing phase is short cellulose, flax, hemp or collagen fiber. The matrix is a polymer such as lignin, hemicellulose or a collagen-derived resin. In a printed part, those fibers are not laid in woven sheets. They are chopped, mixed into the resin, and pushed through a nozzle one bead at a time.

That changes the engineering picture. In a laminate you know the ply orientation and can predict stiffness from it. In an extruded bead the fiber orientation depends on flow. Fibers align along the nozzle path because shear near the wall rotates them. The result is a part whose stiffness follows the toolpath, not a datasheet.

The new 3D printing technology behind these parts is less about the motion system and more about the deposition head. It has to meter a fiber-loaded melt without clogging, keep the fiber length above the critical aspect ratio, and wet each fiber before the polymer freezes. Get any of those wrong and the fiber becomes a void.

Research groups in Germany, including textile fiber institutes working with machine builders, have focused on exactly this: an energy and material efficient print route for sustainable composites. The goal is a part that uses less material and less energy per unit of strength, not a part that simply looks green.

• 1
  Fiber aspect ratioBelow roughly 10:1 the fiber reinforces poorly and acts as filler.
• 2
  Wetting timeMelt viscosity and nozzle dwell decide whether resin penetrates the fiber bundle.
• 3
  MoistureNatural fibers absorb water. Dry them before extrusion or trapped steam forms pores.

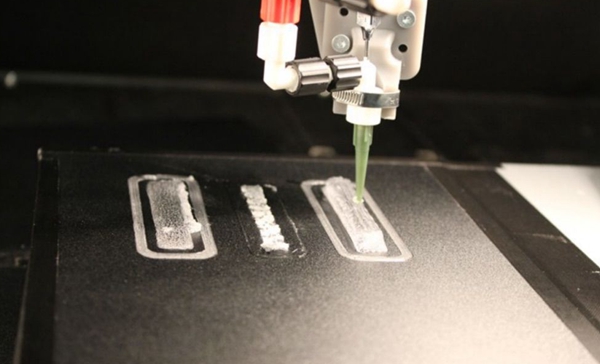

Most bio-based composite printing is material extrusion. A pellet or filament feedstock is plasticized in a heated barrel, then driven through a nozzle that typically runs 0.4 mm to 1.2 mm in diameter. Larger nozzles pass longer fibers and print faster, but they round off fine features and leave a coarser surface.

Bed and chamber temperature matter more here than with plain PLA or ABS. A natural-fiber composite has a narrow window: too cold and the bead skins over before it bonds to the layer below; too hot and the fiber degrades. For many lignin and cellulose systems the usable range sits roughly 20–40 °C above the matrix softening point, with the chamber held warm enough to slow cooling.

Layer height is usually set to 50–70 percent of nozzle diameter. That gives enough squeeze to bond without smearing the bead sideways. Print speed for a fiber-loaded melt often falls in the 10–30 mm/s band, well below unfilled polymer. The fiber raises viscosity, so the head needs more time to fill the bead.

Toolpath strategy is where the process earns its keep. Because fibers align with flow, you can steer stiffness by steering the path. A bracket can be printed with beads running along the load line and a sparse infill in the low-stress core. That is the same logic as a tailored laminate, expressed in extruder moves.

• 1
  Nozzle0.4–1.2 mm; bigger passes longer fiber but coarsens detail.
• 2
  Layer height50–70 percent of nozzle diameter for reliable bonding.
• 3
  Speed10–30 mm/s for fiber-filled melt.
• 4
  ChamberHold warm to slow cooling and limit warp.

Bio-based composites print well when the part is a shell, a cover, a duct, a low-load bracket or a housing. They are a poor fit when the part has to hold a bearing bore, seal against a mating face, or carry a cyclic load in tension across the bead direction. In those cases the printed blank is a starting point, not the finished part.

Porosity is the first limit. Even with dried fiber and good wetting, extrusion leaves small voids between beads. A part that must be vacuum-tight or pressure-rated will usually need a machined or coated surface. The voids also reduce fatigue life, because each one is a crack starter.

Tolerance is the second. FDM-class extrusion on a fiber composite typically holds ±0.3 mm on an as-printed feature, and warping can push that further on long thin sections. If your drawing calls ±0.05 mm, printing will not get you there. Neither will it produce a Ra 0.8–1.6 μm sealing face straight off the bed.

Thermal service is the third. Plant-derived matrices soften earlier than engineering thermoplastics, and natural fibers begin to degrade well below metal service temperatures. If the part sits near an engine or a heated manifold, check the matrix Tg and the fiber degradation onset before you commit.

• 1
  Good fitCovers, ducts, housings, low-load brackets, ergonomic forms.
• 2
  Poor fitBearing bores, seals, pressure boundaries, high-cycle tension.
• 3
  As-printed toleranceTypically ±0.3 mm, worse on long thin walls.

The practical answer for many programs is a hybrid route. Print the bio-based composite body to near net shape, then cut the interfaces on a CNC. That keeps the sustainable material where it does the most good and puts metal-grade accuracy only where the drawing demands it.

GreatLight runs this as a two-step job. The printed blank arrives, we fixture it, and we machine the bores, faces and slots on 3-axis, 4-axis or 5-axis centers. With 16 simultaneous 5-axis machining centers and 127 high-precision machines in the shop, we hold ±0.005 mm (±0.0002 in) on the cut features and reach Ra 0.8–1.6 μm where a seal or bearing seat needs it.

Clamping is the part that decides success. A bio-based composite blank is softer and more compliant than aluminium, so vise pressure can crush a thin wall. We use soft jaws, support the part under the cut, and take light passes. A 6 mm carbide end mill at 8,000–12,000 rpm with a modest feed usually cuts a lignin or cellulose composite cleanly, but the feeds and speeds are set per material, not copied from a plastic chart.

Dust control matters too. Natural-fiber composite dust is fine and light. We run dust extraction at the cut and bag the chips separately so the fiber does not migrate into other jobs. If the part is a medical or food-contact item, tell us at quote time and we plan the cleaning step accordingly.

• 1
  Step 1Print the body to near net shape in the bio-based composite.
• 2
  Step 2Machine bores, faces and slots to ±0.005 mm on a CNC center.
• 3
  FixturingSoft jaws and supported cuts to avoid crushing thin walls.

A bio-based composite part needs a test plan that respects anisotropy. A tensile coupon cut along the bead path will look strong. The same coupon cut across the path will not. If you qualify the material with only one orientation, the data will not predict the part.

Start with fiber content. Thermogravimetric analysis gives the fiber weight fraction, and that number explains most of the scatter between builds. Then measure void content by density or microscopy. A part at 5 percent voids behaves differently from one at 1 percent, even when both come off the same printer.

For anything structural, run coupons in the two in-plane directions plus the build direction. Report modulus and strength for each. If the part sees heat, add a dynamic mechanical analysis scan to find the matrix Tg, and a short exposure test at the top service temperature to catch fiber degradation.

On the shop side, we keep the paper trail simple. Raw material check, in-process monitoring and final inspection are standard, and reports go out on request. Our quality system is certified to ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022, so the inspection records fit the same format your other suppliers use.

• 1
  Fiber fractionThermogravimetric analysis gives weight percent fiber.
• 2
  Void contentDensity method or polished cross-section under a microscope.
• 3
  AnisotropyCoupons along, across and through the bead path.
