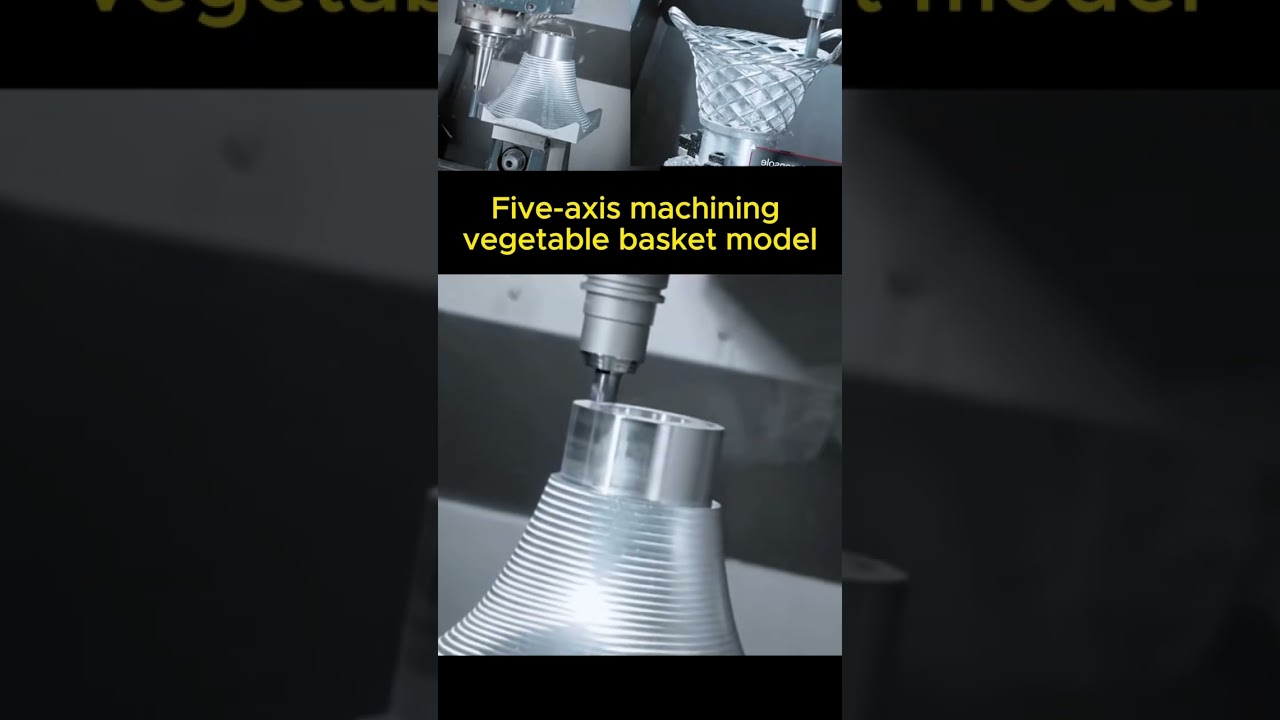

Five Axis Machining Vegetable Basket Model: 5-Step Manufacturing Process

• 1
  Key takeaways
• 2
  Why a basket model suits five axis machining vegetable basket model work
• 3
  Workholding and datum choices for a thin-wall lattice
• 4
  Toolpath strategy and cutting parameters
• 5
  Material and wall thickness limits
• 6
  Step by step: machining the basket model
• 7
  Five axis machining vs 3D printing vs sheet metal for basket models

A vegetable basket model is mostly air. The useful material is a set of ribs, a rim, and a base plate. That shape is hard to hold and easy to distort, which is why the process choice matters more than the machine brand. Five axis machining vegetable basket model geometry lets the tool reach both the outside face and the inside face of each rib without a second fixture.

Count the directions a three-axis machine cannot reach. Undercut rib joints, the inside of the rim radius, and any rib that leans more than about 40° from vertical all need the table to tilt. If your model has more than four such features, a 5-axis setup usually wins on total cycle time, even though the hourly rate is higher.

The basket also has a stiffness problem. A thin rib is a spring. When the cutter pushes on it, the rib bends away, then snaps back and leaves a mark. Five axis helps here for a different reason: a tilted tool can approach a rib along its length rather than across it, so cutting force goes into the stiff direction of the rib.

One more thing to check before quoting. If the basket is decorative and the rib spacing is under 3 mm, 3D printing may be the cheaper route. If the basket is a functional shell that must hold load, mate with a housing, or take a thread, machining is the right call.

• 1
  Good fitRib spacing 3 mm and up, wall 0.8 mm and up, closed rim, load-bearing base.
• 2
  Poor fitRib spacing under 2 mm, walls under 0.5 mm, or a pure display model.
• 3
  Watch forSharp internal corners. They trap the tool and cause chatter.
• 4
  Best stock6061-T6 plate for aluminum, 304 or 17-4PH for stainless baskets.

Start with the base. Most basket models have a flat bottom that can sit on a fixture plate. Machine the base face and the outer rim profile in the first operation, then leave two or three tabs about 4 mm wide connecting the part to the stock. Those tabs carry the part through the rest of the cycle.

Do not clamp on the rim. A rim is a thin loop, and a vise jaw will ovalize it before the first cut. Use a fixture plate with M6 or M8 bolts outside the finished profile, or a vacuum plate if the base area is larger than 80 × 80 mm. For small baskets, a 5-axis vise with soft jaws machined to the base outline works well.

Set your work offset at the center of the base bore or at a corner datum, then verify with a probe. A 0.02 mm error at the base becomes roughly 0.05 mm at the rim once the part is 100 mm tall. Probe the stock top, two sides, and one corner before cutting anything.

Plan the tab removal before you plan the finishing passes. Leave the tabs at 0.3 mm thickness so they can be cut with a 3 mm end mill in the last operation, then blend the marks with a 6 mm ball nose at 8,000-12,000 rpm.

Cut the outside of the basket first, then the ribs, then the inside of the rim, then the base pocket. This order keeps the part as stiff as possible for as long as possible. If you cut the base pocket first, the shell becomes a bell and every later pass rings.

Use a 6 mm or 8 mm carbide end mill with 3 flutes for roughing aluminum baskets. Run 12,000-16,000 rpm, 1,800-2,400 mm/min feed, 3-5 mm axial depth, and 40-50% radial engagement. For stainless, drop to 4,000-6,000 rpm and 400-700 mm/min, and take 0.5-1 mm axial depth.

Rib finishing is where five axis earns its keep. Tilt the tool 15-25° away from the rib wall and machine down the rib in one continuous pass. A vertical approach on a 1 mm rib will chatter at almost any feed. The tilted approach converts the cut into a shearing action along the rib length.

Keep the tool overhang short. A 6 mm end mill sticking 40 mm out of the holder will deflect about 0.05 mm under a 300 N load. For deep baskets, step up to a 10 mm shank with a reduced neck, or use a tapered tool. Air blast at 6-8 bar clears chips from the lattice better than flood coolant, which tends to pack chips into the pockets.

• 1
  Roughing6-8 mm 3-flute, 3-5 mm axial, 40-50% radial, air blast.
• 2
  Rib finishing6 mm 4-flute, 15-25° tilt, 0.2 mm stepover, 8,000-12,000 rpm.
• 3
  AvoidFull-width radial cuts on ribs under 1.5 mm, and dwell in corners.
• 4
  Chip clearingAir at 6-8 bar, aimed along the rib direction, not across it.

Aluminum 6061-T6 is the default for basket models. It machines clean, holds a 0.8 mm wall without much trouble, and takes anodizing well. If the basket needs to be lighter, 7075 gives higher strength but is more prone to chipping at thin edges, so keep walls at 1.2 mm and up.

Stainless 304 and 17-4PH are common for baskets that see wash-down or food contact. Both work, but 304 work-hardens fast. Keep the radial engagement under 30% and never let the tool rub. 17-4PH in the H900 condition machines at about the same speed as 304 but holds a sharper edge on thin ribs.

Plastic baskets, usually POM or PEEK, machine well but move after cutting. A 1 mm POM rib will relax about 0.03-0.05 mm in the first 24 hours. If the model has a tight fit, cut it 0.05 mm oversize and let it settle before finishing.

Wall thickness drives cost more than any other feature. Going from 1.5 mm to 0.8 mm roughly doubles the finishing time because you need lighter passes. Below 0.8 mm in aluminum, chatter marks appear even with a tilted tool. If your design needs 0.5 mm ribs, 3D printing or sheet metal is the better process.
