A casting, a forging, a bar and a plate arrive with different internal structure. That structure decides how the part behaves under a cutter. A 6061-T6 plate is stress-relieved and stays flat after heavy milling. A 7075 block machines clean but moves when you remove 60% of its section. The material is not the whole story; the stock form is.

Early machine tools copied a shape by hand. A pattern, a tracer, a skilled pair of hands. The result depended on the operator's eye. Modern craftsmanship replaces that eye with a control loop: servo feedback, a ball screw, and a tool path that is calculated before the first cut. The operator still matters, but the operator now sets up the process rather than chasing the shape.

That shift turned raw materials into a predictable input. A block that arrives at 100 × 80 × 40 mm leaves the machine at a known dimension, not an approximate one. Tolerance moves from the skill of one person to the repeatability of a machine. That is the real change, and it is what lets a shop hold ±0.005 mm across a batch.

So the question is no longer whether a shape can be made. It is whether the shape should be made this way. Two identical drawings can need completely different setups, and the cost difference between them comes from geometry, not from material price.

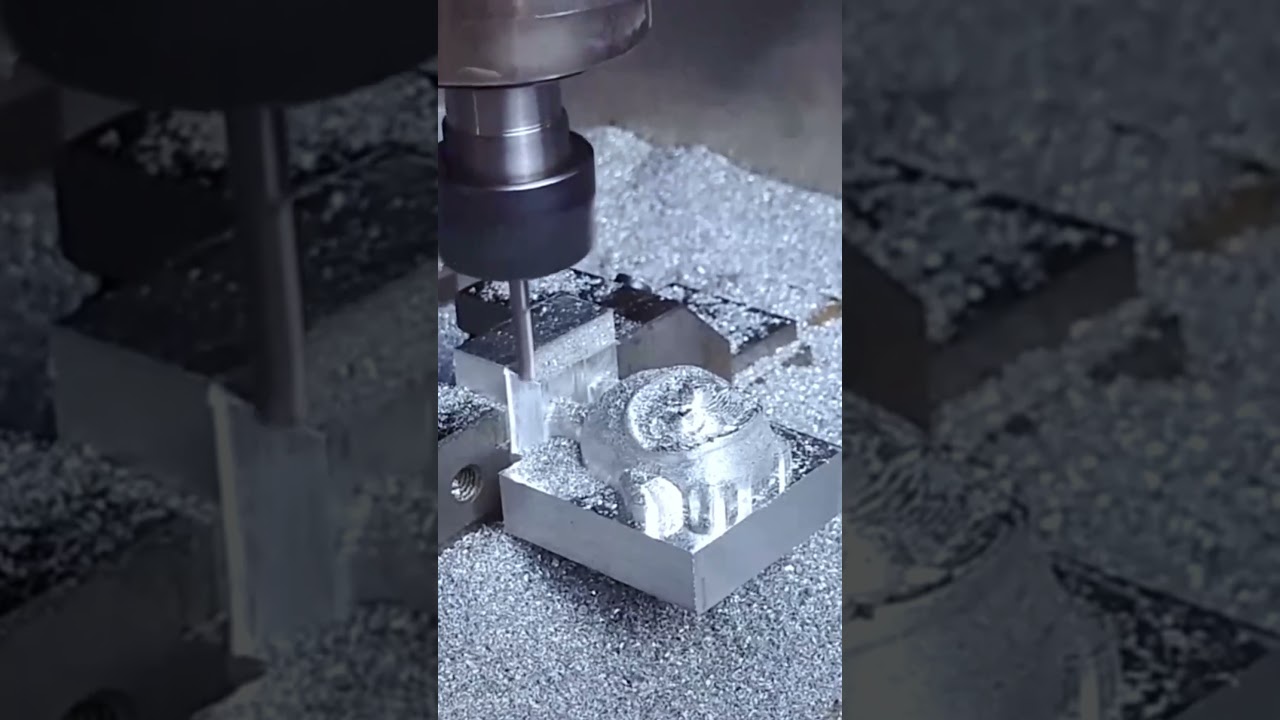

Milling holds the stock still and spins the tool. Turning holds the tool still and spins the stock. Both cut with the same idea: a hard edge meets softer material at a controlled speed and feed, and a chip forms. Everything else is bookkeeping.

The bookkeeping matters. Surface speed, feed per tooth, axial depth and radial engagement set the chip load. Too light a chip rubs instead of cutting and work-hardens stainless. Too heavy a chip breaks the tool or lifts the part out of the vise. For aluminum at 6061-T6, a spindle speed around 8,000 rpm with a 12 mm three-flute cutter and 0.1 mm feed per tooth is a normal roughing range.

Heat is the limit. Most of the heat leaves with the chip, which is why air blast often beats flood coolant on aluminum. Titanium and Inconel hold heat at the edge, so speeds drop hard. TC4 (Ti-6Al-4V) may run at one fifth the surface speed of 6061 with the same cutter, and the tool life is shorter.

The cutting edge also leaves a finish behind. A sharp tool at light feed produces Ra 0.8–1.6 μm directly from the machine on most aluminum parts. Finer than that, Ra 0.2–0.8 μm, usually needs a finishing pass with a smaller stepover or a secondary operation. The finish is a process choice, not a material property.

A three-axis machine moves the table in X, Y and Z. The tool always points down. Every face you need to cut must be reachable from above, so the part gets flipped by hand between operations. Each flip costs setup time and adds a small alignment error. On our compact three-axis centers, travel runs 500 × 500 × 450 mm and 500 × 310 × 200 mm.

A four-axis machine adds a rotary table, usually Ø400 mm. Now the part can index around one axis while the tool stays vertical. Shafts, clevis ends and parts with holes on four sides stop needing multiple vise setups. The rotary table indexes to a known angle, so the second face is located by the machine, not by the operator.

Five-axis machining adds a second rotary axis and, more importantly, tilts the tool. That tilt is what lets a short, stiff cutter reach deep pockets and undercut walls in one setup. We run 16 simultaneous five-axis machining centers, with travels of 750 × 1,150 × 550 mm and 600 × 600 × 600 mm, plus a 4,000 × 400 × 150 mm envelope for long parts.

More axes are not automatically better. A flat bracket with holes on one face is cheaper on a three-axis machine, and the extra setup on a five-axis center buys nothing. Reach for five axes when the geometry has angled faces, deep cavities or tight position between features on different planes.

A part that vibrates cannot hold a tolerance, no matter how good the spindle is. Fixturing holds the stock against cutting force without distorting it. Soft jaws bored to the part profile, a dovetail block, vacuum plates, or a purpose-built fixture. The choice follows the shape and the batch size.

Thin walls are the common failure. A 1.5 mm aluminum wall will bow when the vise closes on it. Support it from the inside with a sacrificial web, or cut it in a second operation after the bulk of the pocket is gone. Leave the wall thick during roughing and bring it to size in the finishing pass, when cutting forces are small.

Workholding also sets datum strategy. Locate on a machined surface, not on a raw cast face. A cast skin varies by a few tenths of a millimeter, and any feature measured from it inherits that variation. When the drawing calls for position between two holes, both holes should come off the same setup or the same datum.

For a first article, ask for the setup sheet. It shows how many operations the part needs, which faces are cut in each, and where the datum sits. That single page explains most of the price difference between two quotes on the same drawing.

Aluminum cuts fast and moves with heat. Grades 6061 and 6082 are the default for housings and brackets. 7075 offers higher strength but is less forgiving of thin sections. 2024 machines well and holds a fine finish, though it corrodes without anodizing. Aluminum chips clear easily, so deep pockets are practical with air blast and a three-flute cutter.

Stainless 303 and 304 machine with a gummy chip that work-hardens if the cutter rubs. Keep the feed per tooth up and never let the tool dwell. 17-4PH (SUS630) is stronger and used for shafts and valve parts, but it needs slower speeds and rigid support. 316L is common in medical and marine work for corrosion resistance rather than machinability.

Titanium TC4 and Inconel sit at the other end. They hold heat, gall against the tool, and spring back after the cut. Cutter engagement stays light, coolant goes to the edge under pressure, and the whole job runs slower. These are not materials you choose for convenience; you choose them when the service temperature or strength demands it.

Plastics behave on their own terms. POM and PEEK hold tight tolerances but expand with heat, so a heavy roughing pass can change the final dimension. ABS and PC scratch easily and need sharp tooling. For prototypes, many parts start as 3D printed models in the same geometry and only move to metal once the shape is settled.

Tolerance is a budget, not a flex. ±0.005 mm is achievable on rigid setups with a temperature-stable shop and a machine that has been checked that day. It is not achievable on a 1.5 mm wall held in a vise, or on a part that has been flipped four times.

The cost curve is steep. Going from ±0.05 mm to ±0.005 mm can mean slower passes, more inspection, and a fixture instead of a vise. For many brackets and covers, ±0.1 mm is fine and the part ships faster. Ask what the tolerance is for, and put the tight number only on the features that need it.

Inspection closes the loop. Raw material check, in-process monitoring and final inspection before shipment. Reports come on request. For a first article, a dimensional report against the drawing shows which features were measured and with what instrument.

Surface finish follows the same logic. As-machined Ra 1.6–3.2 μm is normal for a roughing pass. Ra 0.8–1.6 μm comes from a controlled finishing pass. Ra 0.2–0.8 μm needs a finer stepover or a secondary operation, and it adds time to every face that carries it.

A machined part is rarely the final part. Anodizing adds corrosion resistance and color on aluminum. Electroless nickel gives a hard, uniform layer on steel and copper alloys. Black oxide and powder coating change appearance and wear behavior. Bead blasting and tumbling knock down tool marks.

Laser marking puts a part number or logo on the surface. The minimum character height is 1.5 mm, so a logo squeezed into a 3 mm boss will not read. Plan the marking area with the same care as a functional feature.

Documentation travels with the part. Material certificates, inspection reports and certificates of conformity can be issued with the shipment. For regulated work in medical devices or automotive, those documents are part of the deliverable, not an extra.
