Learn How CNC Machining Can Simplify Ordinary Raw Materials and Turn Them Into Precision Parts

• 1
  Key takeaways
• 2
  Why CNC machining can simplify raw material into one finished part
• 3
  Match the stock form to the part before you program
• 4
  Feeds, speeds and depth of cut that keep the part straight
• 5
  Fixturing and datums decide whether the tolerance holds
• 6
  Where CNC machining stops being the simple answer
• 7
  How to turn raw stock into a finished part, step by step
• 8
  Which process fits which part

A raw material is simple. A 6061-T6 bar is a known alloy with a known temper. A 304 plate is flat, stable and cheap. The difficulty appears when the drawing demands a pocket, a bore and a face that all reference each other. CNC machining can simplify that jump because stock removal is programmable. The tool follows a path you can verify before the first chip.

Subtractive work also removes the guesswork about material properties. You are not sintering or casting a new microstructure. You are cutting a certified billet, so the final part keeps the parent metal's strength and grain direction. For a bracket, a manifold block or a fixture plate, that predictability matters more than speed.

The gain is not only shape. It is repeatability. Once the first article passes inspection, the same program and the same fixture produce the same geometry on part 2 and part 200. Operators change, shifts change, but the coordinates do not.

• 1
  One certified billet inMaterial traceability stays intact from stock certificate to finished part.
• 2
  Programmable geometryTool paths are simulated and inspected before cutting.
• 3
  Repeatable from part 1 to part 10,000Same fixture, same offsets, same result.

Choose the stock form first. A shaft with a single diameter and a shoulder belongs on bar stock and a lathe. A housing with a flat base and a deep cavity belongs on plate and a mill. A part with large bosses and thin webs is often cheaper as a near-net forging or casting, then finished by CNC to hit the datums.

Stock allowance is the second decision. Leave 0.5–1.0 mm per side on faces that will be finished, and 1.5–2.0 mm on faces that are rough-cast or saw-cut. Too little allowance and the tool hits scale or a hard skin. Too much and you spend cycle time removing metal that adds no value.

Grain direction matters on long, slender parts. A 4,000 mm extrusion machined along its length behaves differently from the same shape cut across a plate. If the part bends under load, align the tool path so the strongest grain direction sits along the stress axis.

For plastic stock, especially PEEK and POM, buy stress-relieved plate. Unrelieved extruded stock will bow after the first heavy pass, and no amount of finishing will bring it back flat.

• 1
  Bar stockTurned parts, shafts, bushings, fittings up to 4,000 mm.
• 2
  PlateMilled housings, plates, manifolds, pockets and slots.
• 3
  Near-net formsCastings and forgings where removal volume is large.
• 4
  Relieved plasticPEEK, POM and PA plate that must stay flat.

Cutting parameters are a balance between heat, force and chip evacuation. In 6061, a 12 mm carbide end mill runs well at 3,000–4,000 rpm with 0.05–0.10 mm per tooth and 0.5–1.0 × D axial depth. That removes metal fast without loading the tool. Push the feed too low and the edge rubs, work-hardens the surface and dulls in minutes.

Stainless 304 and 316 need lower surface speed and a heavier feed per tooth. Aim for 60–90 m/min surface speed, 0.03–0.06 mm per tooth, and never let the tool dwell in the cut. A dwelling edge glazes the surface and creates a hard layer that the next pass must fight through.

Titanium TC4 (Ti-6Al-4V) is a different problem. Heat stays in the tool, not the chip. Use 30–50 m/min, generous coolant through the tool, and a rigid setup. Any chatter marks become crack initiation sites on a fatigue part.

Thin walls distort. Rough to within 0.5 mm of final size, let the part cool, then take a light finishing pass of 0.2–0.3 mm. If the wall is under 1.5 mm, add a temporary support rib or use a low-melting wax fixture.

• 1
  Aluminium 60613,000–4,000 rpm, 0.05–0.10 mm/tooth, 0.5–1.0 × D axial.
• 2
  Stainless 304/31660–90 m/min, 0.03–0.06 mm/tooth, no dwell.
• 3
  Titanium TC430–50 m/min, through-tool coolant, rigid setup.
• 4
  Thin wallsRough to 0.5 mm, cool, then finish at 0.2–0.3 mm.

A part is only as good as the way it is held. Establish one primary datum, usually a flat face or three-point plane, and reference every other feature to it. If the operator re-clamps between operations without re-probing, the second face will not line up with the first. On a 750 × 1,150 × 550 mm mill, a 0.02 mm shift at the vise becomes a 0.05 mm error at the far end of the part.

Use soft jaws machined to the actual part profile for production runs. They spread clamping force and stop the part from lifting. For thin plates, support the underside with a sacrificial plate and cut through into it rather than leaving a skin that must be broken out by hand.

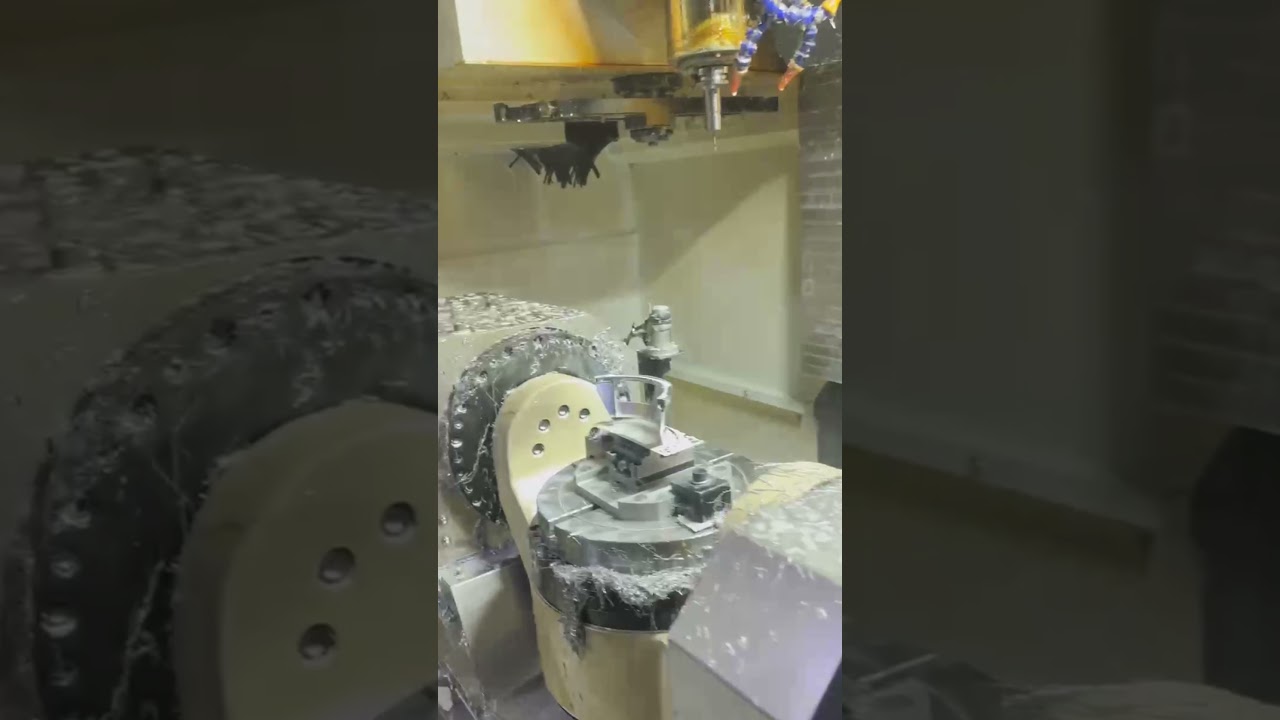

Five-axis work pays off when a part has features on four or five faces. One clamp, one datum, and the rotary table brings each face to the tool. That removes four re-fixturing steps and the stack-up error that comes with them. Our 16 simultaneous 5-axis centers and Ø400 mm rotary tables handle this class of work.

Probing is not a luxury on tight parts. Touch off the stock, record the actual position, and let the program adapt. It catches a saw-cut that is 0.3 mm off before it becomes a scrapped housing.

• 1
  One primary datumReference all features to a single face or plane.
• 2
  Soft jaws for runsMachined to part profile, spread clamp force evenly.
• 3
  Support thin platesSacrificial backing plate, cut through, no hand breaking.
• 4
  Probe the stockAdapt the program to actual stock position.

CNC is not always the right route. If the part is a hollow shell with uniform 2 mm walls and 10,000 units per year, injection molding or die casting will beat it on unit cost. If the geometry is a lattice or an internal channel that no tool can reach, additive manufacturing wins. If the part is a flat bracket with two bends, sheet metal fabrication is faster and cheaper.

Very hard materials also push back. Machining a 60 HRC tool steel insert is possible with carbide and careful parameters, but it is slow and the tool cost is high. Sometimes the better answer is to machine the part soft, then heat treat and grind only the critical surfaces.

There is a size ceiling too. Our largest travel is 4,000 × 400 × 150 mm. Beyond that, the part must be split or the process changed. Knowing the boundary early saves a redesign later.

• 1
  High-volume hollow shellsMolding or casting usually wins on unit cost.
• 2
  Internal latticesAdditive manufacturing reaches what tools cannot.
• 3
  Flat bent bracketsSheet metal is faster and cheaper.
• 4
  Over 4,000 mmSplit the part or change the process.
