Single-Disc Vertical Machining Center: How Micron Accuracy Actually Happens

• 1
  What the single-disc vertical machining center layout does to cutting forces
• 2
  Where micron error comes from on a single-disc vertical machining center
• 3
  Guideway stiffness, ballscrew pitch, and why they set the floor on accuracy
• 4
  When a single-disc vertical machining center is the right call, and when it is not
• 5
  Matching machine and feature to the right setup

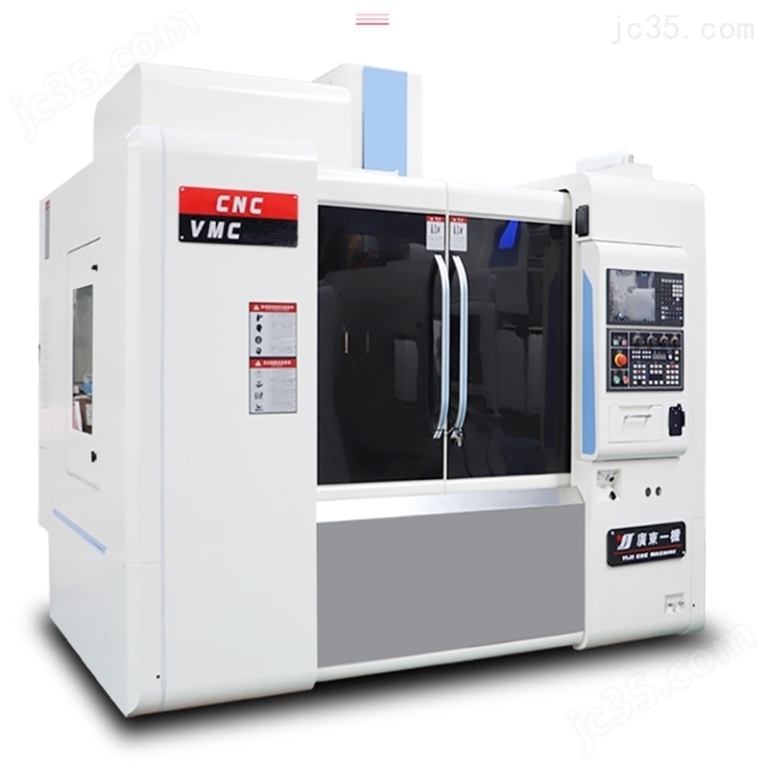

A single-disc vertical machining center carries the spindle on a vertical column and moves the workpiece on a table that sits over one large disc-shaped base casting. The 'single-disc' name comes from that base: one thick, ribbed disc replaces the separate bed and column footings found on many older vertical mills. Fewer bolted joints means fewer places for the loop to flex under load.

The load path matters more than the label. When the cutter pushes into the part, force travels from the tool through the spindle, into the column, down through the base, and back up to the table. On a single-disc base, that loop is short and closed. Deflection at the tool tip is mostly elastic and repeats, which is why a well-tuned machine can hold ±0.005 mm on a stable cut.

Disc geometry also affects where heat goes. Chips carry most of the cutting heat away, but the spindle nose and ballscrew still warm up. A thick, symmetric casting spreads that heat more evenly than a thin frame. Even so, the machine still grows. On a 500 mm part, a 2 °C rise across a steel column moves the tool relative to the work by roughly 10 μm. Warming up the spindle for 20–30 minutes before the first finish pass is not optional.

The layout has limits. A vertical spindle cannot reach five sides in one setup without a rotary table, and deep pockets in hard steel will chatter before a horizontal machine would. That is a fixturing and rigidity trade, not a defect of the design.

Micron accuracy is a budget, not a single number. On a single-disc vertical machining center the budget splits into four buckets: geometric error, thermal error, spindle error, and servo error. Each one has a different fix, and confusing them wastes weeks.

Geometric error comes from squareness, straightness, and parallelism of the axes. It is measured with a granite square, dial indicator, and laser interferometer, then corrected in the CNC via pitch error compensation and backlash tables. Re-check after any crash and after moving the machine. A machine that was square in the showroom can be out of spec after a forklift ride.

Thermal error is the slow one. A spindle running at 12,000 rpm for two hours can move the tool tip 15–30 μm before the casting reaches steady state. Coolant temperature, shop drafts, and direct sun all add to it. The practical countermeasure is warm-up cycles, stable coolant temperature, and finishing critical features after the machine has soaked, not first thing in the morning.

Spindle and servo error are faster. Bearing preload, tool holder taper contact, and ballscrew nut wear show up as repeatable patterns in a circular test. If a bored hole is round but a milled slot tapers, look at the spindle and tool holder before you touch the leveling pads. Measure first, adjust second.

• 1
  GeometricSquareness and straightness; fixed by leveling and compensation tables.
• 2
  ThermalGrowth from spindle and drives; managed by warm-up and stable coolant.
• 3
  SpindleTaper contact and bearing preload; shows in circular interpolation tests.
• 4
  ServoBacklash and following error; corrected in the control, then verified.

Two guideway families dominate. Hardened box ways with hand-scraped contact give high damping and stiffness, which suits heavy cuts in steel and cast iron. Linear roller guides give low friction and fast positioning, which suits aluminum and short cycle times. Neither is universally better. The choice should follow the material and the feature you care about.

Ballscrew pitch sets resolution and thrust. A 10 mm pitch screw with a 10,000 count/rev encoder resolves about 1 μm per count before compensation. A 20 mm pitch screw resolves 2 μm but moves faster for the same rpm. For micron work, the finer pitch plus a calibrated compensation table usually wins.

Preload matters as much as pitch. A preloaded double-nut screw removes axial play, but too much preload adds friction heat and shortens life. Manufacturers publish a preload torque; respect it. When backlash grows, re-shim or replace the nut rather than dialing it out in software, because the mechanical play will still show under reversing loads.

Scale feedback changes the picture. Adding linear scales closes the loop on the table position instead of the motor, which removes screw pitch error and thermal growth of the screw from the part geometry. It costs more and adds a calibration step, but on parts with tight true-position callouts it is often the difference between scrap and ship.

Choose this layout for prismatic parts with features on three or fewer faces, moderate depth-to-width ratios, and materials from aluminum to stainless. Typical work includes housings, brackets, manifolds, mold inserts, and fixture plates. Batch sizes from one prototype to 10,000 parts run on the same platform with the right workholding.

Do not force it on parts that need five-sided access in one setup. A rotary table or a five-axis machine will beat it on setup count and true position across faces. Deep cavities in hardened tool steel also favor a horizontal spindle, where chips fall away instead of packing into the cut.

Thin-wall parts are a gray zone. The machine can hold the wall if the tool path, cutter geometry, and fixturing are right, but the failure mode is deflection, not machine error. If a wall moves 0.05 mm under a finishing pass, no amount of leveling will fix it. Fix the setup first.

For micron callouts, plan the sequence: rough, semi-finish, let the part and machine stabilize, then finish. Skipping the stabilization step is the most common reason a good machine produces a bad bore.
