Design of Transformation Tooling for Automobile Bogie Shell

• 1
  What the bogie shell does to a fixture
• 2
  Locating strategy for transformation tooling for automobile bogie shell
• 3
  Clamping force and where it lands
• 4
  Tooling material, wear parts and machining conditions
• 5
  First-article checks that prove the tooling
• 6
  Which transformation tooling approach fits the job

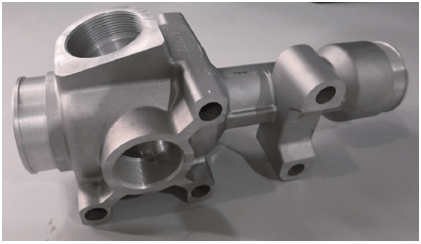

The shell is a load-carrying aluminium housing. It carries the steering rack or a similar rotating assembly, so most of its critical features are bores, bearing seats, pad faces and bolt patterns that must stay in relation to each other. A few of those faces are sealing faces, which means flatness and surface finish matter as much as position.

The part is usually thin-wall. Wall sections between 3 mm and 6 mm are common on the cast or forged blank. When you clamp that kind of wall, it deflects. A 0.05 mm elastic squeeze at the clamp point can show up as 0.03 mm of bore roundness error once the part is released and springs back. That number is already five times a ±0.005 mm tolerance band, so the fixture has to control where the force goes.

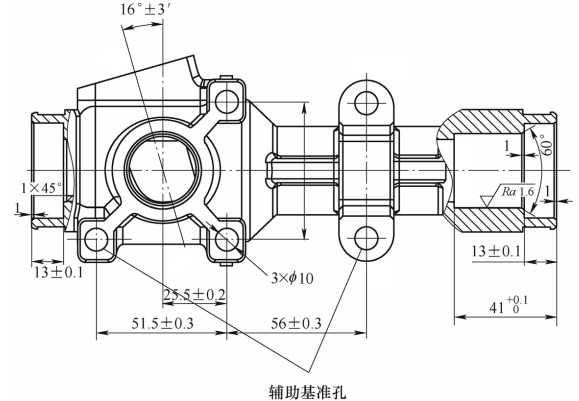

Datum structure is the second constraint. A bogie shell normally has two or three machined datum pads from an earlier operation. The transformation tooling has to pick those pads up without shimming, because shimming hides stack-up. If the pads are not flat within 0.02 mm, the fixture cannot fix it. It can only refuse it.

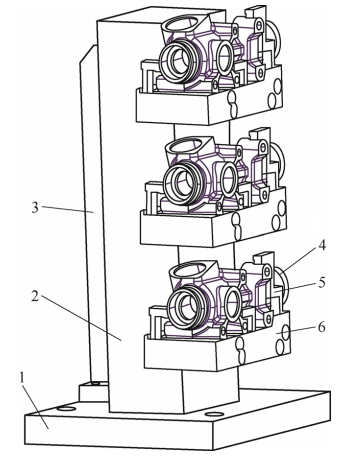

There is also a handling problem. These shells are awkward to lift, heavy enough that operators use a hoist, and they get machined on more than one face. Any transformation tooling design has to allow a clean load, a clamped cut, and an unload without the operator reaching into the tool path.

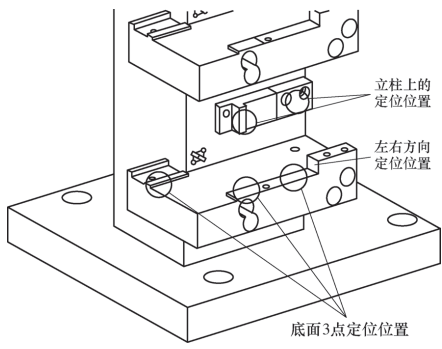

Start from the 3-2-1 rule and then break it deliberately. Three pads on the primary datum kill three degrees of freedom. Two points on the secondary edge kill two more. One point on the tertiary face kills the last one. On a flexible shell, the three primary pads should sit under the stiffest ribs, not at the geometric corners, because corner pads bend the wall.

Where the part has only one good machined datum, use a self-centering bore locator on a bearing seat instead. A Ø40 mm expanding mandrel with a 0.01 mm repeatability is often better than three pads, because it references the functional axis directly. The trade-off is that the mandrel adds cycle time and needs chip protection.

Round locating pins should be one round and one diamond, never two round pins. Two round pins over-constrain the bolt pattern and the part will not seat. Pin diameter is normally the nominal hole minus 0.02 mm to 0.05 mm, so the pin guides without jamming.

Check the locating scheme against the drawing stack-up before you cut metal. Add the blank tolerance, the datum pad machining tolerance and the pin clearance. If the sum exceeds one-third of the tightest feature tolerance, the locating scheme is wrong and no amount of clamping force will save it.

• 1
  Primary padsPlace under ribs, not at thin corners.
• 2
  Round plus diamondTwo round pins over-constrain the pattern.
• 3
  Bore locatorUse when only one datum is reliable.
• 4
  Stack-up checkTotal error must stay under one-third of feature tolerance.

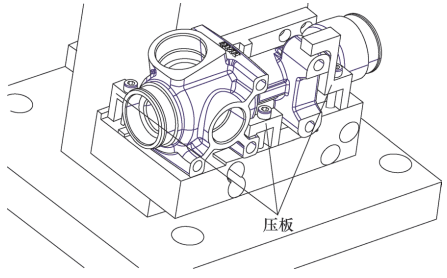

Clamping should hold the part against the locators, not bend it onto them. For an aluminium shell, a swing clamp with a 2 kN to 4 kN holding force is usually enough. Push much past that and the wall yields locally, especially around a bolt boss.

Direction matters more than magnitude. Clamp directly over a locator or over a rib. A clamp placed between two locators turns the wall into a beam and the middle of that beam lifts off the pad. You will not see it in the machine. You will see it on the CMM after the part cools.

Use sequence valves so all clamps reach pressure together. If one clamp closes first, it drags the part across the pads and the pin holes wear oval within a few hundred cycles. A pressure switch on the hydraulic line gives you a per-cycle record without extra operator work.

For a finishing cut with tight roundness, drop the clamp pressure to the low end and check chips under the pads. A 0.1 mm chip trapped under a locator is a 0.1 mm position error, and that is twenty times the tolerance.

The fixture body is normally 1045 or 4140 steel, stress-relieved before final grinding. For high-volume lines, locator pads and pins in 440C or 17-4PH hold size longer than mild steel. Hardened pads at 50–55 HRC can be replaced individually, which keeps the fixture in service instead of rebuilding the whole base.

Aluminium shells cut cleanly at 300–600 m/min surface speed with a two or three flute carbide cutter. Roughing removes the bulk of the pad stock; finishing takes 0.2 mm to 0.5 mm radial depth at a lower feed to hold Ra 0.8–1.6 μm on sealing faces. In-process probing between roughing and finishing catches thermal drift before the finish pass.

Chip evacuation is a fixture design problem, not only a coolant problem. Add clearance under each pad, an air blast line, and open the base so chips fall through instead of packing. A shell fixture that traps chips will make bad parts in the third shift even if the first shift runs clean.

Coolant choice follows the material. Water-soluble flood coolant suits most aluminium shells. For bores with a tight roundness call, keep the fixture at a stable temperature. A 5 °C shop swing over a shift moves an aluminium part more than the tolerance band on a 300 mm bore.

Prove the fixture with a capability run, not a single good part. Machine five to ten parts, measure the critical features on a CMM, and calculate spread. If the range on a bore position is 0.04 mm against a ±0.005 mm tolerance, the fixture or the process is not capable yet, regardless of what the first part measured.

Measure in the clamped state and the free state. The difference tells you how much the fixture is distorting the part. More than 30 percent of the tolerance band is a warning sign. The fix is usually fewer clamps, softer pressure, or a support jack under an unsupported wall.

Track locator wear. Pins and pads wear on the leading edge where the operator loads the part. A monthly check with a bore gauge or height gauge keeps the fixture honest. When a pad wears 0.02 mm, replace it before the next production run.

Keep a fixture log. Record clamp pressures, cycle counts, and any re-shim or re-grind. That history tells you whether the tooling is stable or whether the process is being nursed. For automotive work under IATF 16949, this record is also part of the audit trail.
